LW-M5-2BB-PID

Lightway Technology Development Limited
Cell Type: Monocrystalline
Power Range: 2.85~3.01 Wp
Region: China China
Note: Your Enquiry will be sent directly to Lightway Technology Development Limited.

Description:

1. PID Free
2. High conversion efficiency,average cell efficiency is 19.2%,highest efficiency is 19.9%
3. Long term efficiency stability and excellent reliability
4. Low breakage rate and Low LID rate
5. Good color uniformity

Product Characteristics

Model No.
LW-M5-2BB-PID-2.85W LW-M5-2BB-PID-2.88W LW-M5-2BB-PID-2.90W LW-M5-2BB-PID-2.91W LW-M5-2BB-PID-2.93W LW-M5-2BB-PID-2.94W LW-M5-2BB-PID-2.96W LW-M5-2BB-PID-2.97W LW-M5-2BB-PID-2.99W LW-M5-2BB-PID-3.01W
Product Characteristics
Cell Technology Monocrystalline
Dimensions 125×125 mm
Diagonal 165±0.5 mm
Cell Thickness 220 ± 20 µm
Front Surface (-)
No. of Busbars 2
Busbar Width 1.5±0.2 mm
Busbar Material Silver
Anti Reflection Coating Silicon nitride
Back Surface (+)
No. of Soldering Pads 2
Soldering Pad Width 2.0±0.2 mm
Soldering Pad Material Silver
Back Surface Field (BSF) Aluminium
Electrical Data at STC
Maximum Power (Pmax)
2.85 W 2.88 W 2.9 W 2.91 W 2.93 W 2.94 W 2.96 W 2.97 W 2.99 W 3.01 W
Voltage at Maximum Power Point (Vmpp)
0.531 V 0.533 V 0.535 V 0.536 V 0.538 V 0.539 V 0.54 V 0.541 V 0.542 V 0.544 V
Current at Maximum Power Point (Impp)
5.367 A 5.403 A 5.421 A 5.429 A 5.446 A 5.455 A 5.481 A 5.49 A 5.517 A 5.533 A
Open Circuit Voltage (Voc)
0.635 V 0.637 V 0.638 V 0.639 V 0.64 V 0.6641 V 0.642 V 0.643 V 0.644 V 0.645 V
Short Circuit Current (Isc)
5.797 A 5.814 A 5.817 A 5.819 A 5.825 A 5.834 A 5.843 A 5.852 A 5.859 A 5.863 A
Cell Efficiency
18.40-18.60 % 18.60-18.70 % 18.70-18.80 % 18.80-18.90 % 18.90-19.00 % 19.00-19.10 % 19.10-19.20 % 19.20-19.30 % 19.30-19.40 % 19.40-19.50 %
Fill Factor (FF)
77.42 % 77.76 % 78.15 % 78.26 % 78.59 % 75.89 % 78.91 % 78.93 % 79.24 % 79.6 %
Thermal Ratings
Temperature Coefficient of Pmax -0.36 %/˚C
Temperature Coefficient of Voc -0.36 %/˚C
Temperature Coefficient of Isc 0.06 %/˚C
Intensity Dependence
Intensity
Voc
Vmpp
1000 W/m2
1.00
--
900 W/m2
1.00
--
800 W/m2
0.99
--
500 W/m2
0.97
--
300 W/m2
0.95
--
200 W/m2
0.93
--

Characteristics

Dimensions:      125mm x 125mm±0.5mm

                          With 165mm±0.5mm diagonal

Thickness(Si):   220μm±20μm

Front:                1.4mm wide bus bars (sliver)

                          Blue/Purple silicon nitride AR coating

Back:                 2.0mm wide sliver/aluminum soldering pads

                          Full aluminum local back surface field


Specifications


1. High efficiency and High power.

2. Superior quality-A Grade,PID-Free

3. Long-term electrical stability.
4. Lowest price and Fastest delivery.
5. Good quality and good service.

6. Certificate:CE,ROHS,IEC,TUV,UL etc

About Lightway

Lightway was established in 2006,set up four companies in China mainland and owns two operating/sales companies in HongKong,with manufacturing factilities in Jiangsu/Jiangxi/Guangdong for solar cells,solar modules and solar applications etc and global marketing/sales company in Shenzhen,our current annual production/supply capacity is over 280MW for solar cells and 360MW for solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates.Lightway devoted to offering clients a one-stop shop for high quality products,solutions and engineering services with its extensive expertise in solar energy field.

Viewing Eco-friendly as our first priority,Lightway is committed to maintaining high quality solar products and high standard services to grow with our customers in the 21st century and beyond as usually.

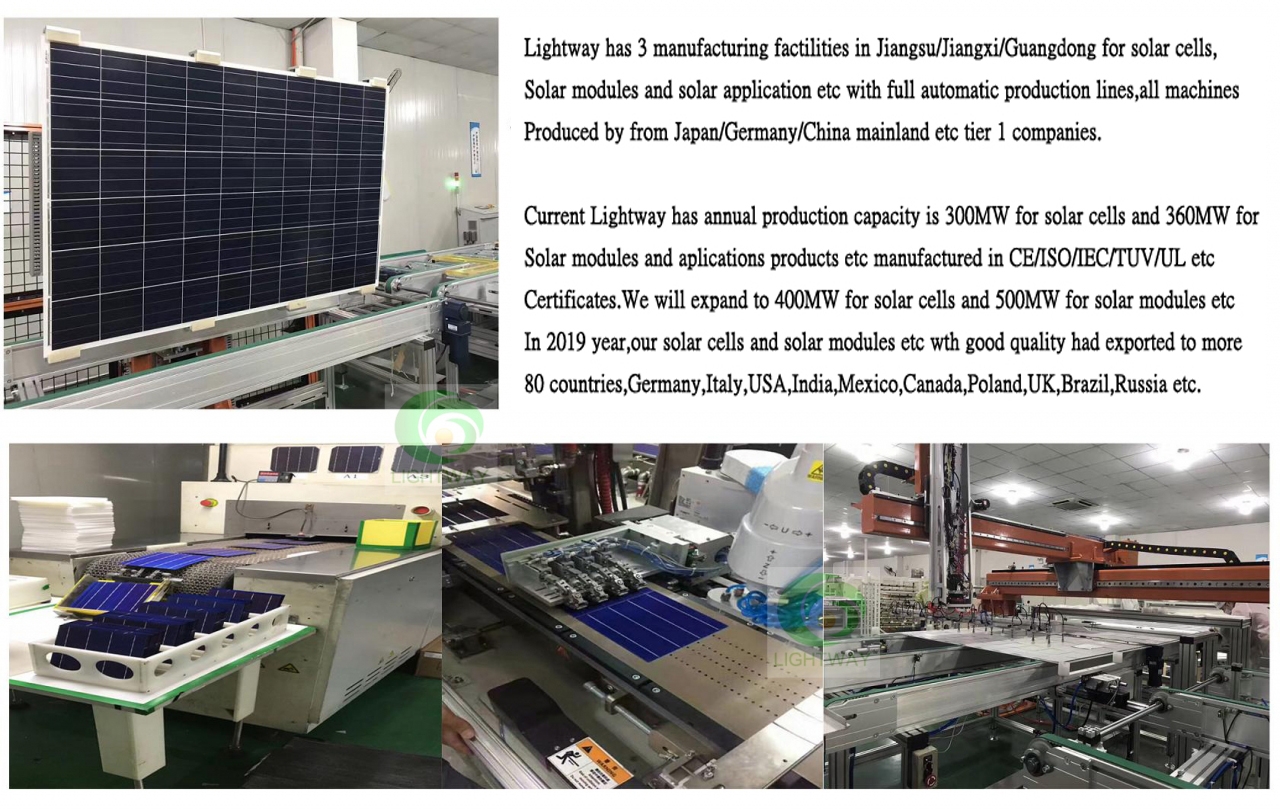

Our Solar Cell Manufacturing Lines


Our Solar Module Manufacturing Lines
