LWM9BB-PERC-166

LWM9BB-PERC-166

Lightway Solar Energy Technology Ltd
Price:
From €0.0176 / Wp
Cell Type: PERC
Power Range: 5.95~6.2 Wp
Region: China China
Contact Manufacturer
Note: Your Enquiry will be sent directly to Lightway Solar Energy Technology Ltd.

Description:

1. PID Free

2. PERC Technique

3. High conversion efficiency,average cell efficiency is 22.5%,highest efficiency is 23.0%

4. Long term efficiency stability and excellent reliability

5. Low breakage rate and Low LID rate

6. Good color uniformity

Product Characteristics

Model No.
LWM9BB-5.95W LWM9BB-5.98W LWM9BB-6.00W LWM9BB-6.03W LWM9BB-6.06W LWM9BB-6.09W LWM9BB-6.11W LWM9BB-6.14W LWM9BB-6.17W LWM9BB-6.20W
Product Characteristics
Cell Technology PERC
Dimensions 166×166 mm
Diagonal 223±0.25 mm
Cell Thickness 190 ± 20 µm
Front Surface (-)
No. of Busbars 9
Busbar Width 0.1±0.1 mm
Busbar Material Silver
Anti Reflection Coating Silicon nitride
Back Surface (+)
No. of Soldering Pads 9
Soldering Pad Width 1.9±0.1 mm
Soldering Pad Material Silver
Back Surface Field (BSF) Aluminium
Electrical Data at STC
Maximum Power (Pmax)
5.95 W 5.98 W 6 W 6.03 W 6.06 W 6.09 W 6.11 W 6.14 W 6.17 W 6.2 W
Voltage at Maximum Power Point (Vmpp)
0.571 V 0.573 V 0.574 V 0.576 V 0.579 V 0.58 V 0.583 V 0.585 V 0.587 V 0.589 V
Current at Maximum Power Point (Impp)
10.412 A 10.438 A 10.452 A 10.465 A 10.473 A 10.486 A 10.49 A 10.502 A 10.516 A 10.53 A
Open Circuit Voltage (Voc)
0.661 V 0.662 V 0.664 V 0.666 V 0.668 V 0.67 V 0.673 V 0.675 V 0.676 V 0.677 V
Short Circuit Current (Isc)
10.966 A 10.99 A 11.009 A 11.026 A 11.034 A 11.047 A 11.061 A 11.078 A 11.09 A 11.104 A
Cell Efficiency
21.70 % 21.80 % 21.90 % 22.00 % 22.10 % 22.20 % 22.30 % 22.40 % 22.50 % 22.60 %
Fill Factor (FF)
82.02 % 82.21 % 82.07 % 82.09 % 82.27 % 82.17 % 82.16 % 82.16 % 82.34 % 82.5 %
Thermal Ratings
Temperature Coefficient of Pmax -0.36 %/˚C
Temperature Coefficient of Voc -0.37 %/˚C
Temperature Coefficient of Isc 0.07 %/˚C

---------------------<<About Lightway>>----------------------

Lightway Solar was established in 2006,set up four companies in China mainland and owns two operating/sales companies in HongKong,with manufacturing factilities in Jiangsu/Jiangxi/Guangdong for solar cells,solar modules and solar applications etc and global marketing/sales company in Shenzhen,our current annual production capacity is over 1.0GW up to 2.5GW for solar cells and solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates.Lightway devoted to offering clients a one-stop shop for high quality products and already recognized by many of our clients from all over the world up to 80 countries.

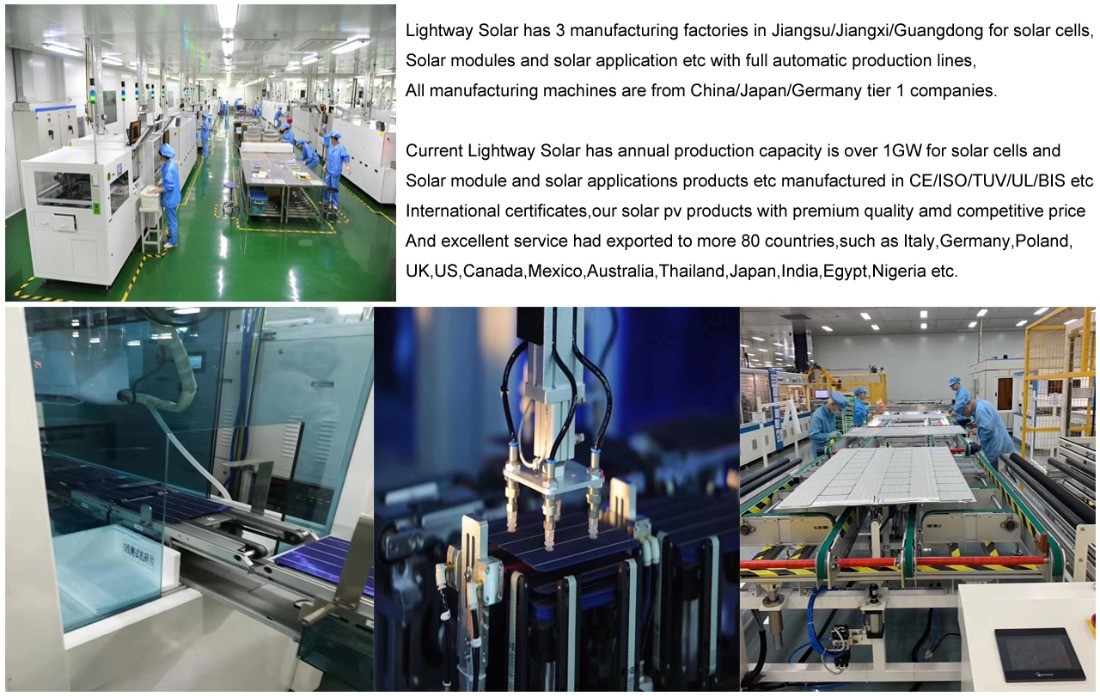

--------------------------<<Our Factory>>--------------------------

---------------------<<Storage & Package>>---------------------

-----------------<<Applications & Projects>>------------------

----------------------<<Full Certificates>>----------------------

----<<Our Flexible and Various Payment Term>>-----

Our Shipping is Fast Delivery and Safy & Accurate
