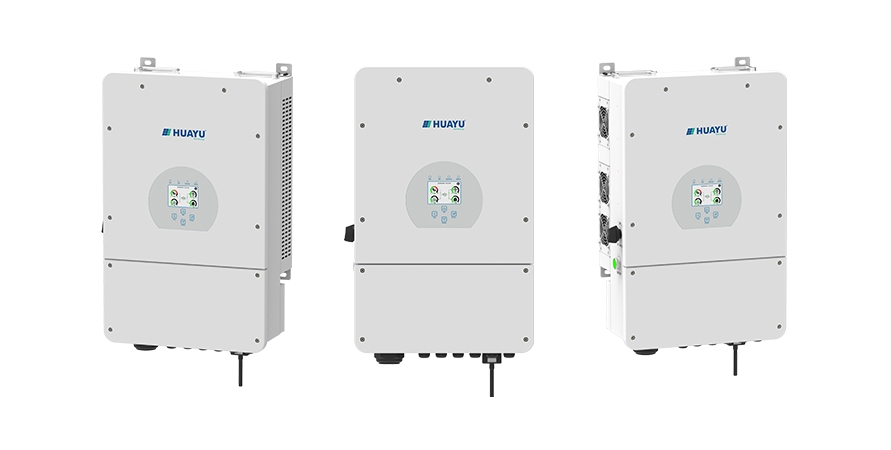

HYH-7.6/8K-EU

Huayu New Energy Technologies Co., Ltd.
Price:
From €0.185 / Wp
From €1,550 / Unit
Type: Hybrid
Power Range: 8.36~8.8 kW
Region: China China
Note: Your Enquiry will be sent directly to Huayu New Energy Technologies Co., Ltd..

Description:

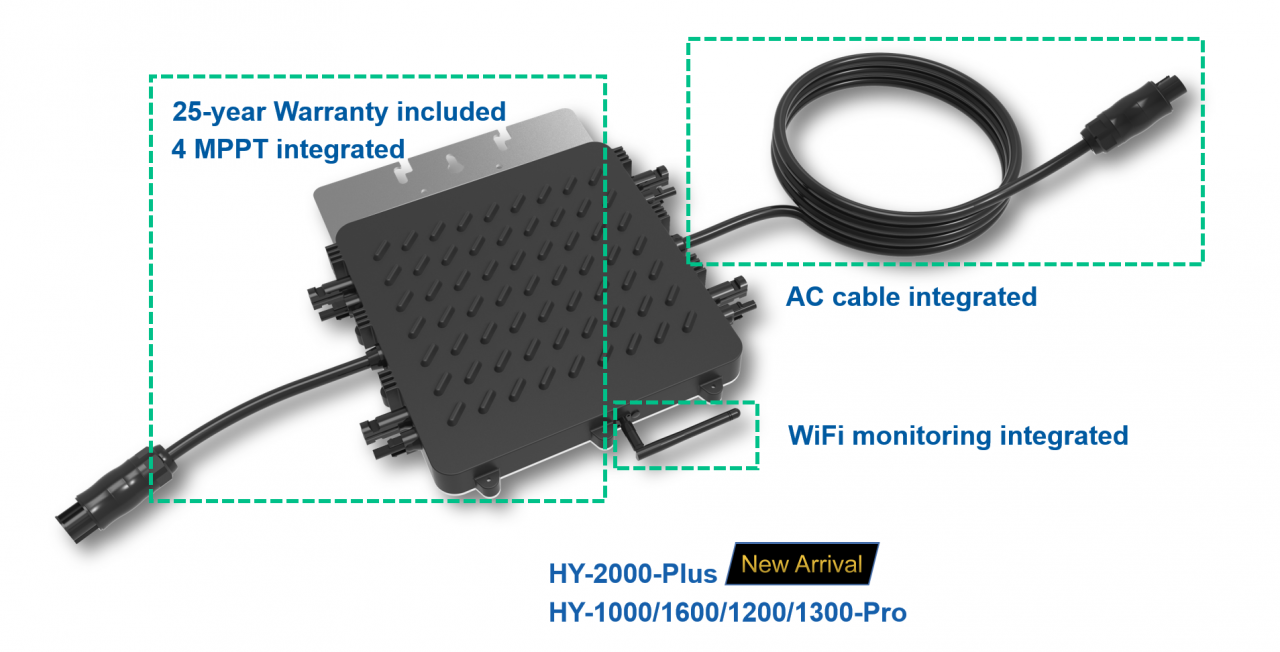

● Featured with module-level MPPT and module-level monitoring
● Max.60V DC input voltage makes no risk of electric shock for installers and fire on rooftops
● Integrated AC cable&built-in WiFi monitoring device, lower hardware cost
● AC cable "plug & play" installation, possible to add on existing solar system flexibly
● 25-year warranty for trouble free service in lifetime of solar system

Product Characteristics

Model No.
HYH-7.6K-EU HYH-8K-EU
Specification
Power
8.36 KW 8.8 KW
Price
€1,550 / Unit €1,650 / Unit
Warranty
Product Warranty (Min)
5 Years 5 Years
Input Data(DC)
Max. DC Power
9.88 kW 10.4 kW
Min. DC Voltage to Start Feed In
125 V 125 V
MPP(T) Voltage Range
125~425 V 125~425 V
No of MPP Trackers
2 2
DC Inputs
36 36
Output Data (AC)
Max. AC Power
8.36 kW 8.8 kW
Nominal AC Power
7.6 kW 8 kW
Rated AC Voltage
33 V 35 V
Max. AC Current
38 A 40 A
Frequency
50, 60 Hz 50, 60 Hz
Distortion (THD)
< 3 % < 3 %
No of feed-in phases
1 1
General Data
Dimensions (H/W/D)
680x420x233 mm 480x420x233 mm
Weight
32 kg 32 kg
Noise Level
< dB(A) < 30 dB(A)
Operating Temperature -25 ~ +60 ℃
Protection Class IP65
Cooling Fan
Interface RS 485
PDF
Download Manufacturer's PDF

Huayu (Zhejiang) New Energy Technologies Co., Ltd



Overview

Huayu MLPE(Module-level Power Electronics) is designed with a much safer & smarter module-level solution(by microinverter) mainly for our home energy.

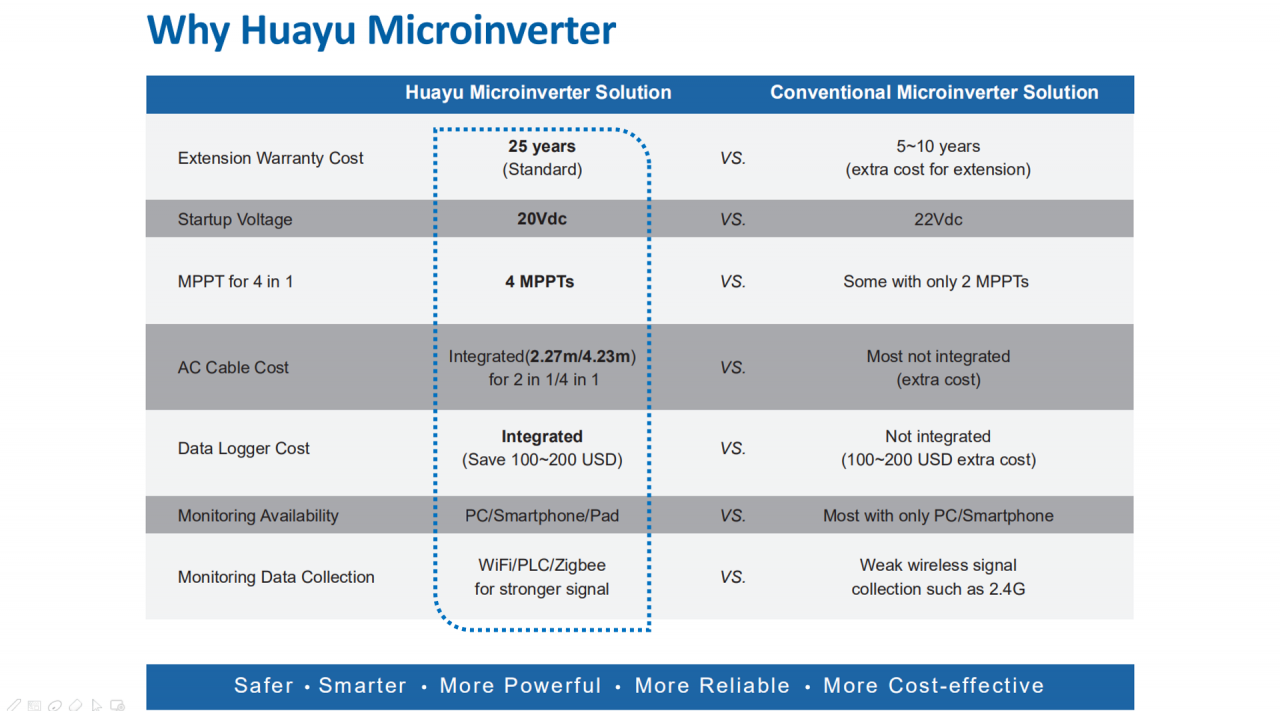

Why Huayu MLPE Solution




Huayu New Energy Technologies Co., Ltd.

No.456 Xingning Road, Ningbo, Zhejiang
No. Staff: 760
Send message to this supplier
Huayu New Energy is a world-leading solar inverter manufacturer which focuses on highly safe & efficient MLPE(Module-level Power Electronics) & ESS(Energy Storage System)rooftop solar solutions.

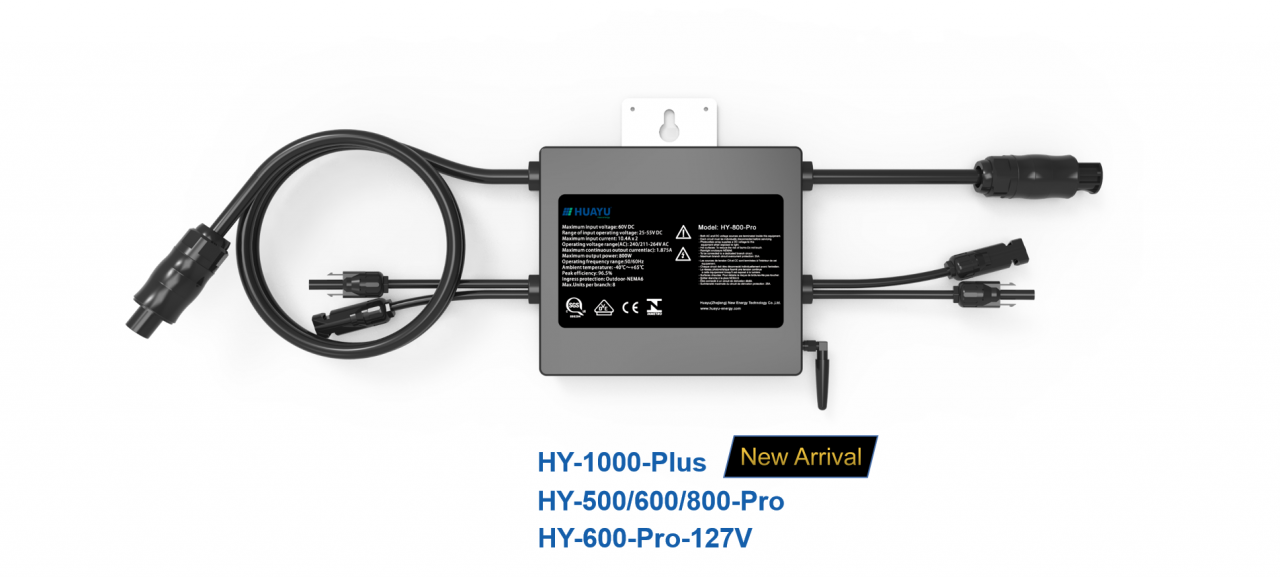

Deeply rooted in over 30 years of Power Electronics Technology from its parent company since the year of 1990, Huayu New Energy is one of the very few professional MLPE manufacturers worldwide which are able to provide full ranges of microinverters covering single-module(300/350/400/450/500W), dual-module(500/600/700/800/1000W) & quad-module(1200/1300/1600/1800/2000W) applications.

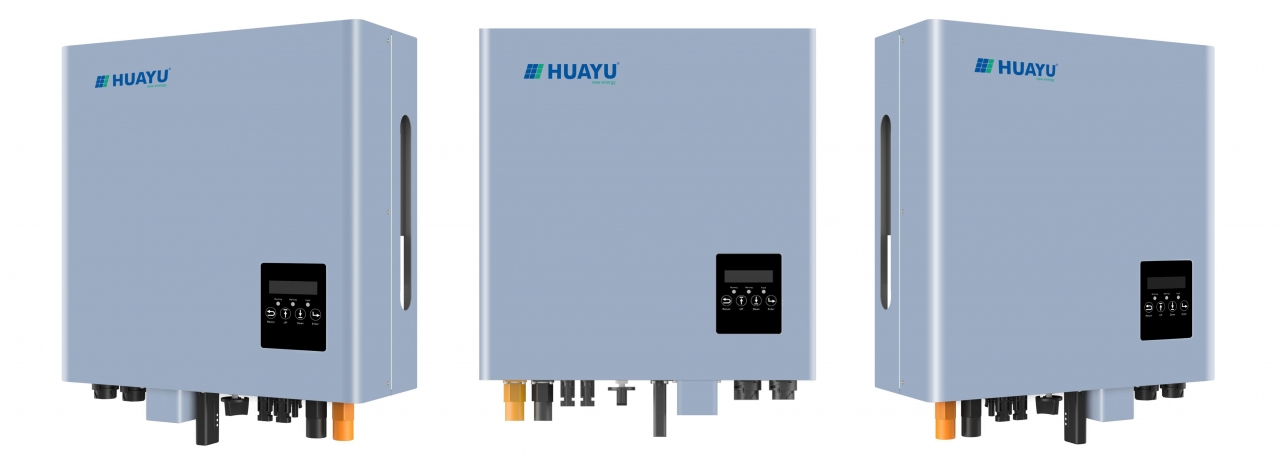

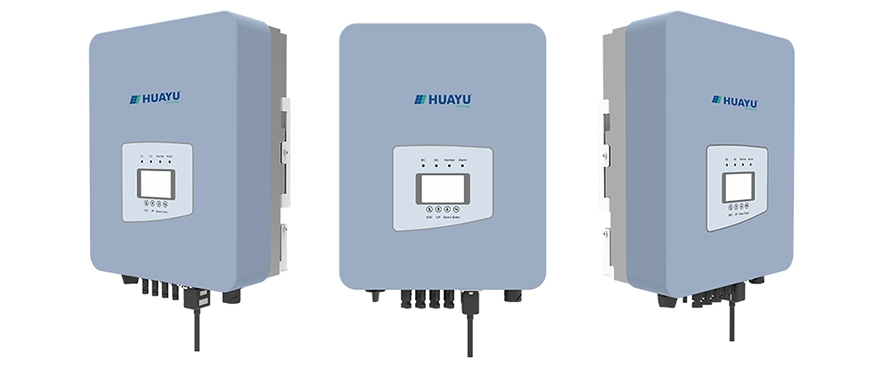

Thanks to the great efforts of the Huayu ESS R&D team, Huayu hybrid inverters as well as AC-coupled retrofit storage inverters have been well accepted in the global solar market since its first launch 5 years ago and currently expands its scenario from residential rooftops to commercial rooftops(3/3.6/4/5/6/7.6/8/10/12kW).
