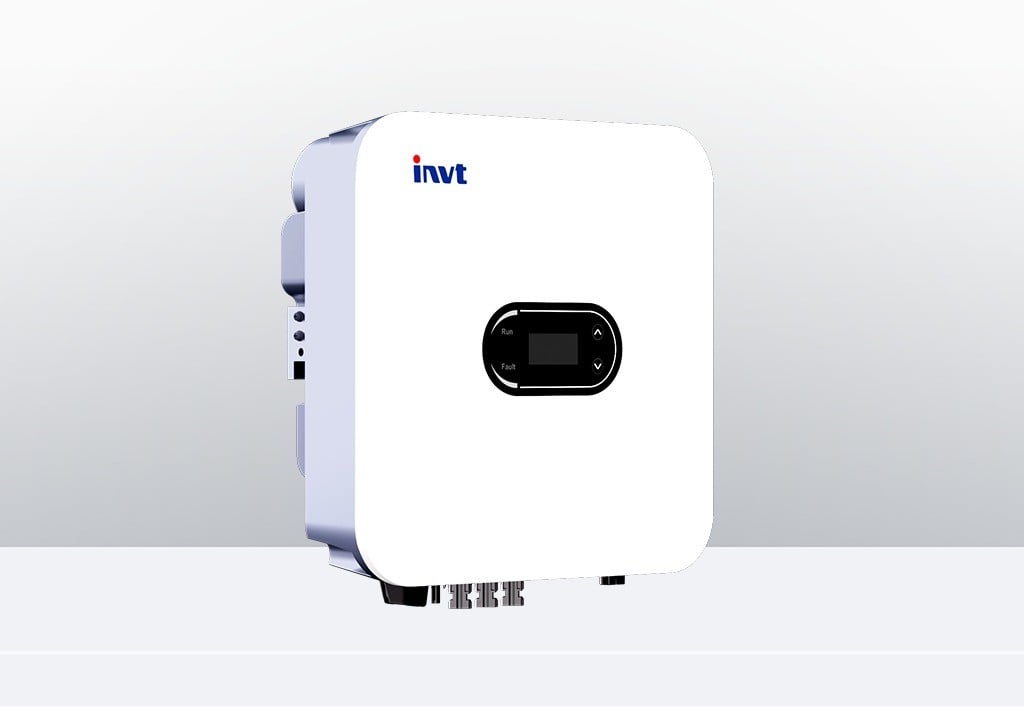

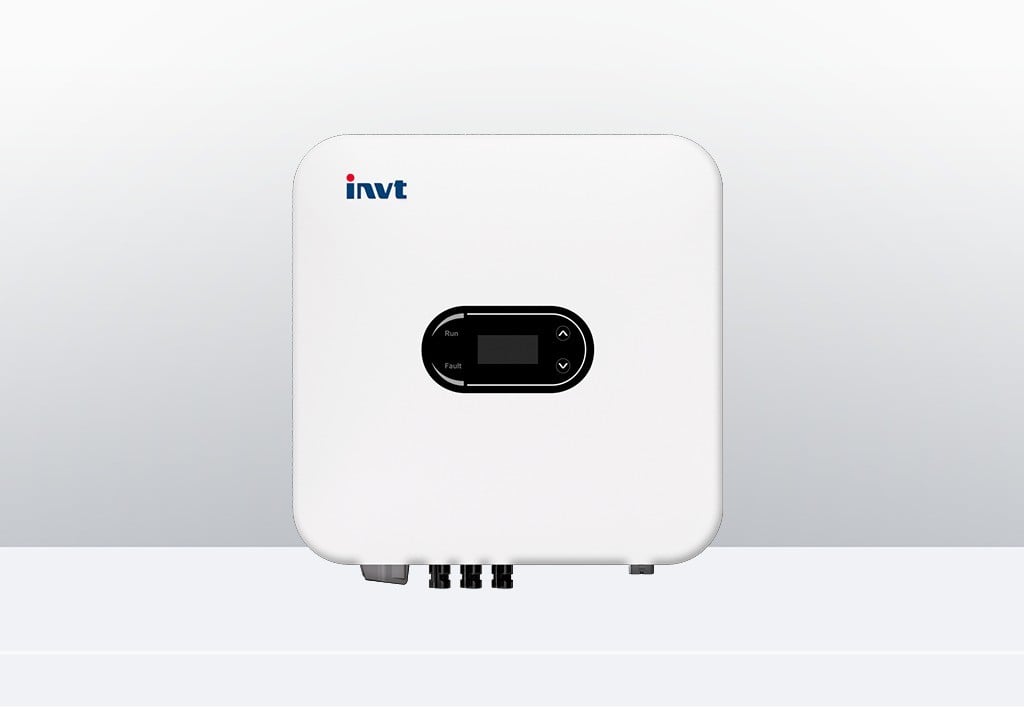

XG1-5KTL-S
XG1-5KTL-S
XG1-5KTL-S

XG1-5KTL-S

INVT Solar Technology (Shenzhen) Co., Ltd.
Type: On-Grid
Power Range: --
Region: China China
Contact Manufacturer
Note: Your Enquiry will be sent directly to INVT Solar Technology (Shenzhen) Co., Ltd..

Description:

▪ Wide input voltage range, adapt to all kinds of solar panels and string configurations

▪ Use combined technology of T-type three-level topologies and SVPWM

▪ AC output power is adjustable between 1-100 %

▪ Grid self-adaptation, no N-line AC design to meet various grid access requirements

▪ Integrated global monitor management, APP with one-button registration

Product Characteristics

Model No.
XG1KTL-S XG1.5KTL-S XG2KTL-S XG2.5KTL-S XG3KTL-S XG3.68KTL-S XG4KTL-S XG4.2KTL-S XG4.6KTL-S XG5KTL-S
Warranty
Product Warranty (Min)
5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
Input Data(DC)
Max. DC Power
1.5 kW 2.25 kW 3 kW 3.75 kW 4.5 kW 5.52 kW 6 kW 6.3 kW 6.9 kW 7.5 kW
Max. DC Voltage
600 V 600 V 600 V 600 V 600 V 600 V 600 V 600 V 600 V 600 V
Nominal DC Voltage
360 V 360 V 360 V 360 V 360 V 360 V 360 V 360 V 360 V 360 V
Min. DC Voltage to Start Feed In
50 V 50 V 50 V 50 V 50 V 50 V 50 V 50 V 50 V 50 V
Max. DC Current
20 A 20 A 20 A 20 A 20 A 20 A 20 A 20 A 20 A 20 A
MPP(T) Voltage Range
50~550 V 50~550 V 50~550 V 50~550 V 50~550 V 50~550 V 50~550 V 50~550 V 50~550 V 50~550 V
No of MPP Trackers
1 1 1 1 1 1 1 1 1 1
DC Inputs
1 1 1 1 1 1 1 1 1 1
Output Data (AC)
Nominal AC Power
1 kW 1.5 kW 2 kW 2.5 kW 3 kW 3.68 kW 4 kW 4.2 kW 4.6 kW 5 kW
Max. AC Current
5 A 7.5 A 10 A 12.5 A 15 A 16 A 20 A 21 A 22.7 A 22.7 A
Frequency
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
Power Factor (cosθ)
0.99 0.99 0.99 0.99 0.99 0.99 0.99 0.99 0.99 0.99
Distortion (THD)
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
No of feed-in phases
1 1 1 1 1 1 1 1 1 1
Max. Efficiency
97.3 % 97.3 % 97.3 % 97.3 % 97.6 % 97.6 % 97.8 % 97.8 % 97.8 % 97.8 %
Euro Efficiency
97 % 97 % 97 % 97 % 97.2 % 97.2 % 97.3 % 97.3 % 97.3 % 97.3 %
General Data
Dimensions (H/W/D)
270x250x130 mm 270x250x130 mm 270x250x130 mm 270x250x130 mm 270x250x130 mm 270x250x130 mm 270x250x145 mm 270x250x145 mm 270x250x145 mm 270x250x145 mm
Weight
6 kg 6 kg 6 kg 6 kg 6 kg 6 kg 6 kg 6 kg 6 kg 6 kg
Power Consumption at Night
< 1 W < 1 W < 1 W < 1 W < 1 W < 1 W < 1 W < 1 W < 1 W < 1 W
Operating Temperature -30 ~ +60 ℃
Transformer Transformerless
Protection Class IP66
Humidity 0-100 %
Cooling Natural
Max. Altitude 4000 m
Interface RS 485, WLAN
Display LCD, LED
Protection Features
Protection Features Anti Island Protection(ENS), Short Circuit Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection, DC Load Disconnector, Ground Fault Monitoring, Isolation Monitoring, Grid Monitoring
PDF
Download Manufacturer's PDF
Datasheet
Our Products-Inverters
About INVT Solar

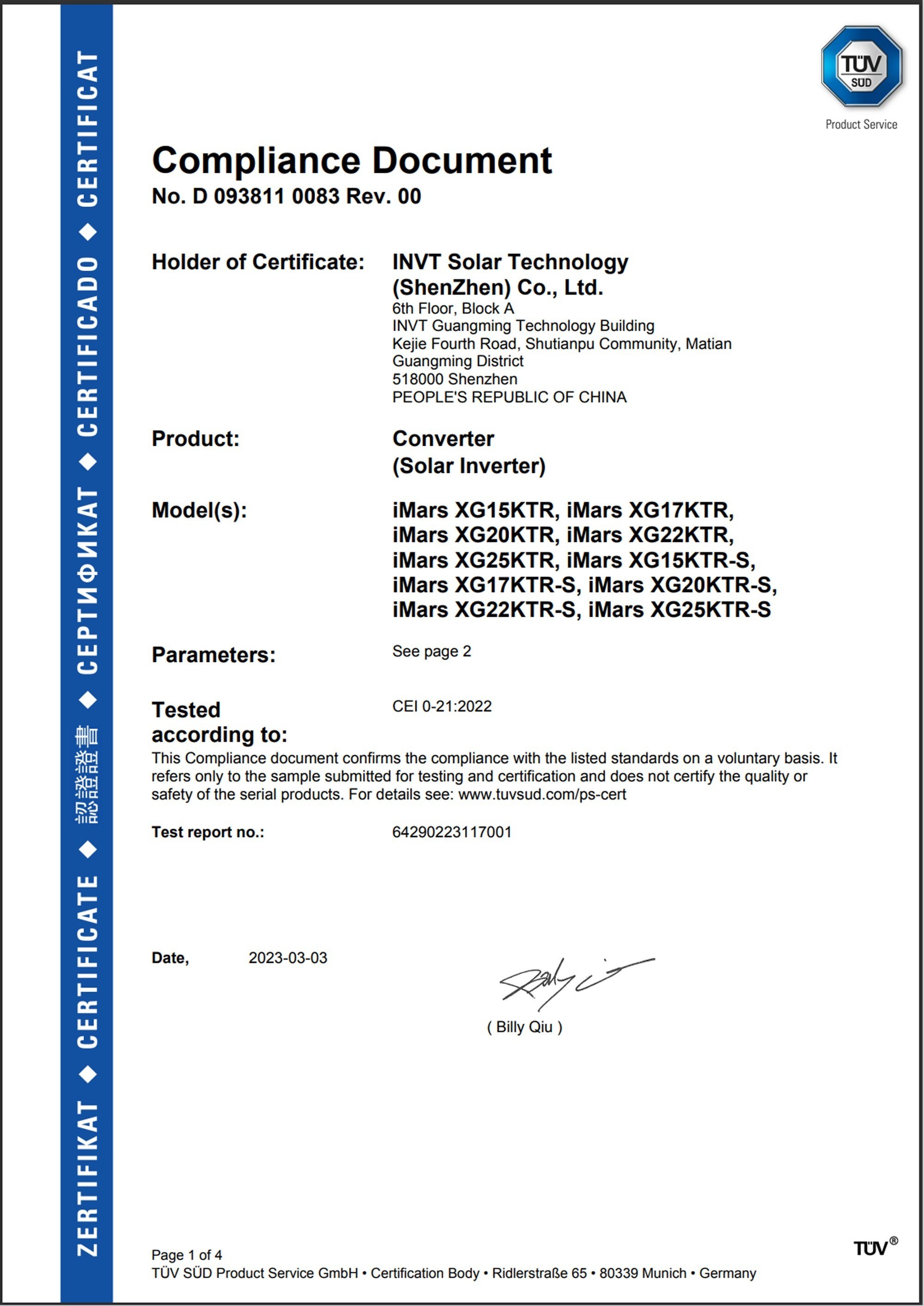

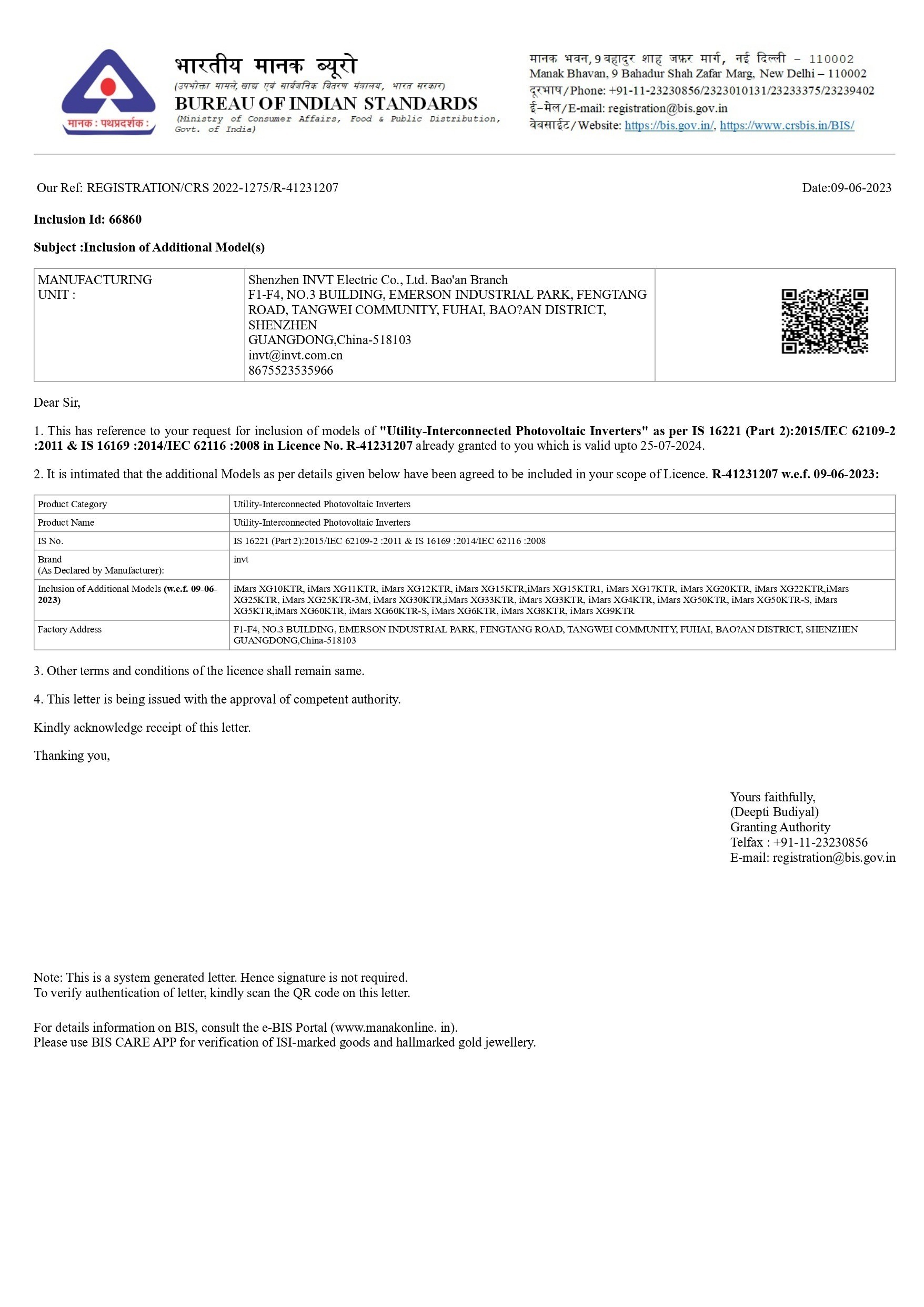

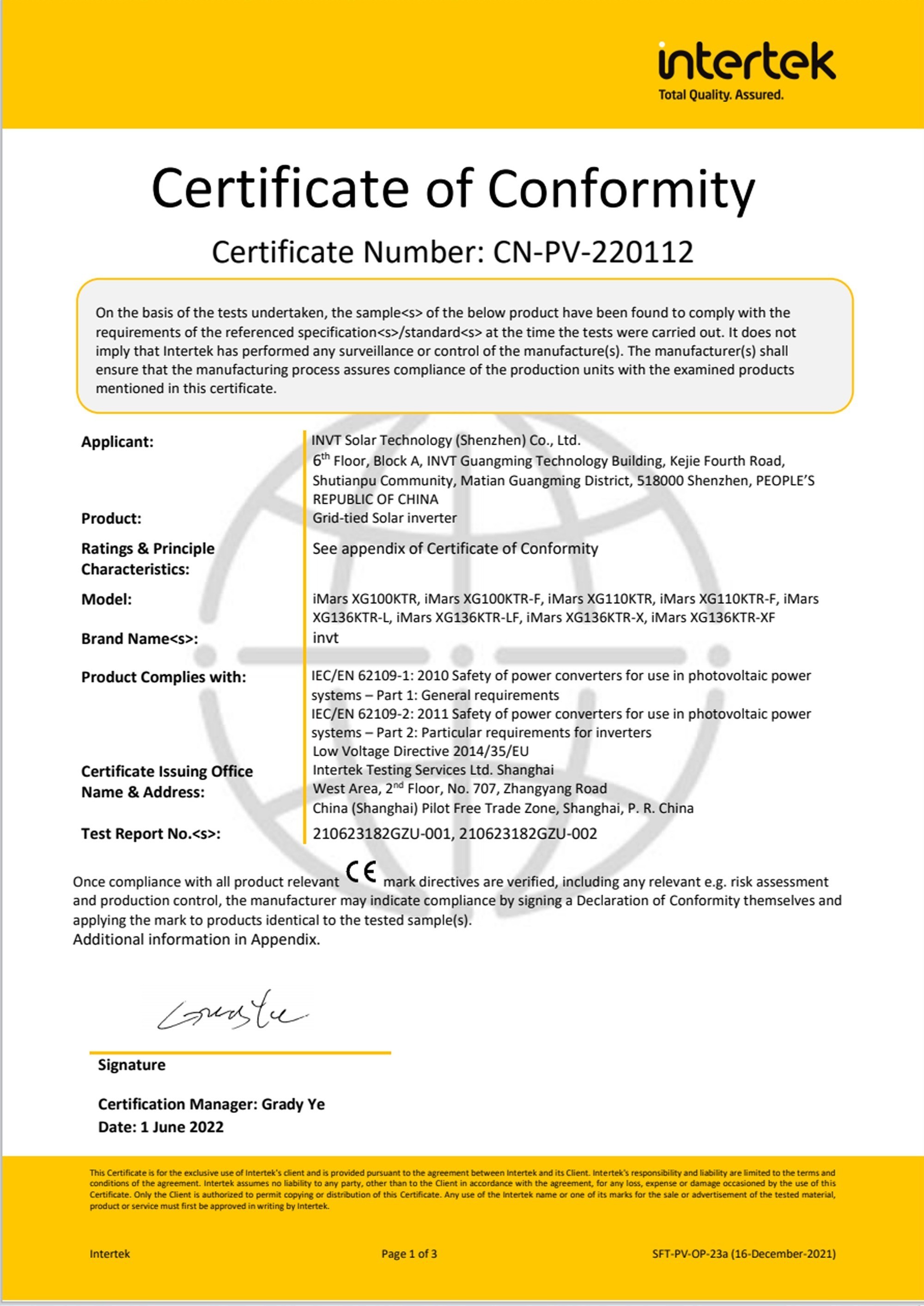

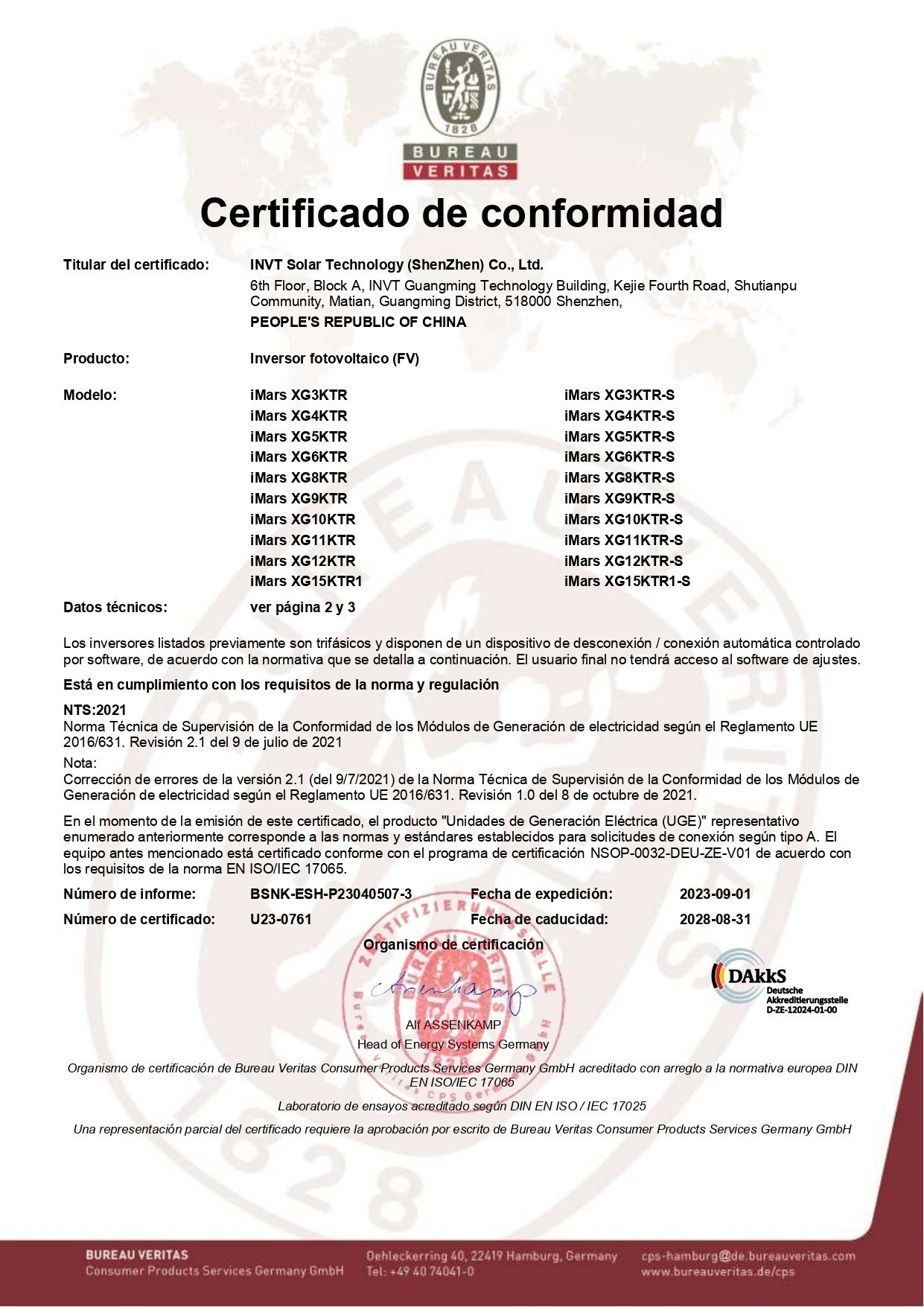

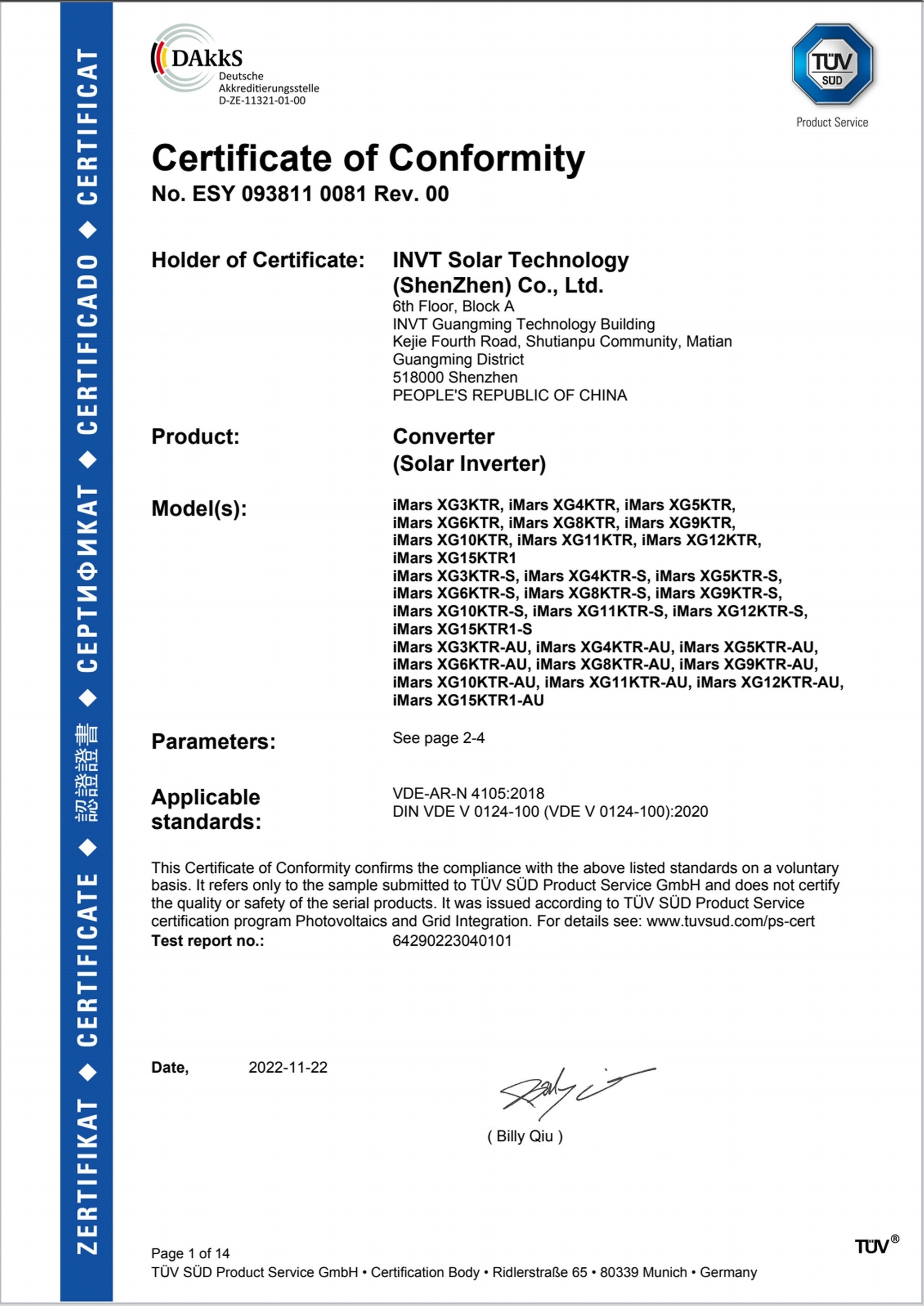

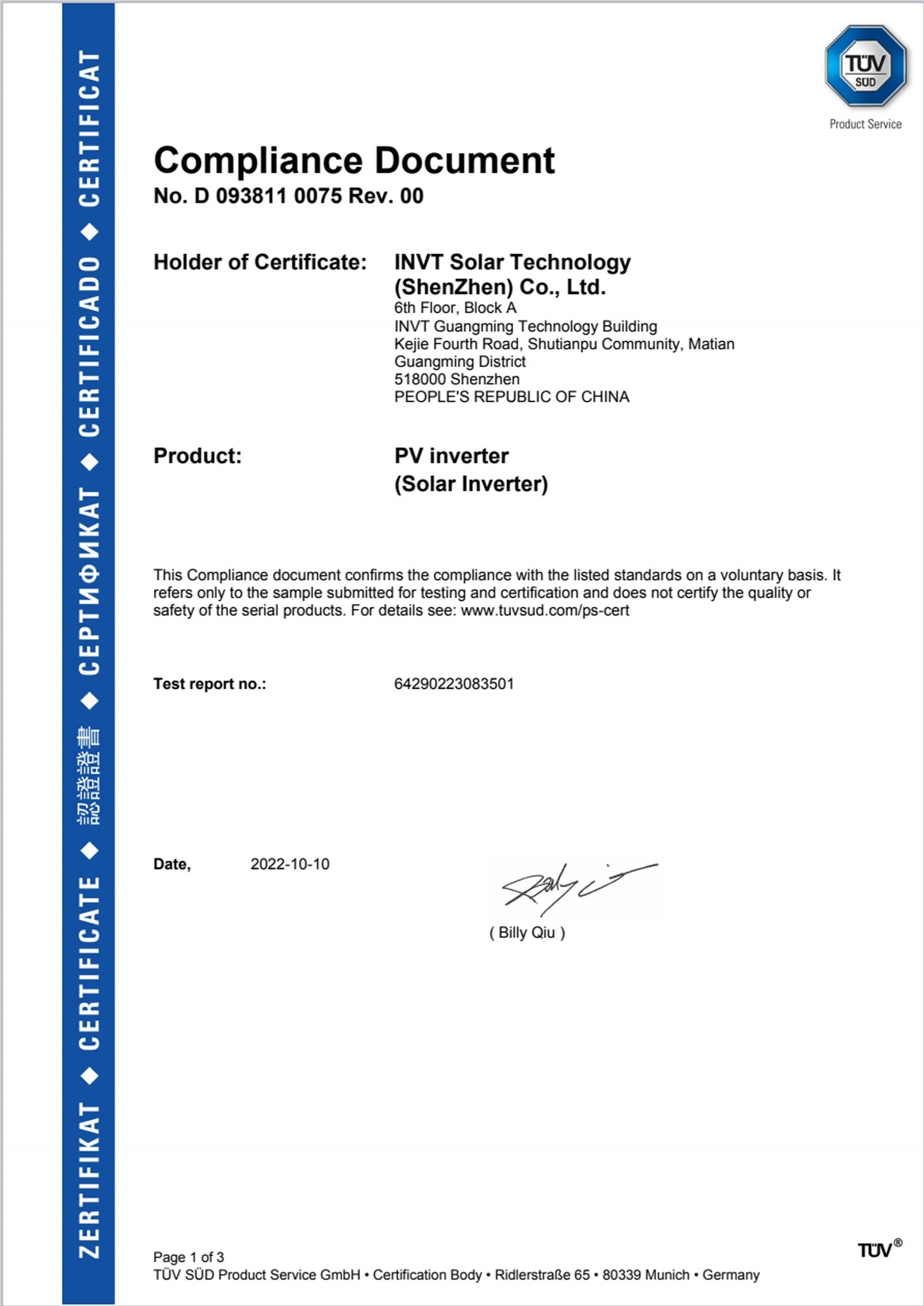

Our Certifications

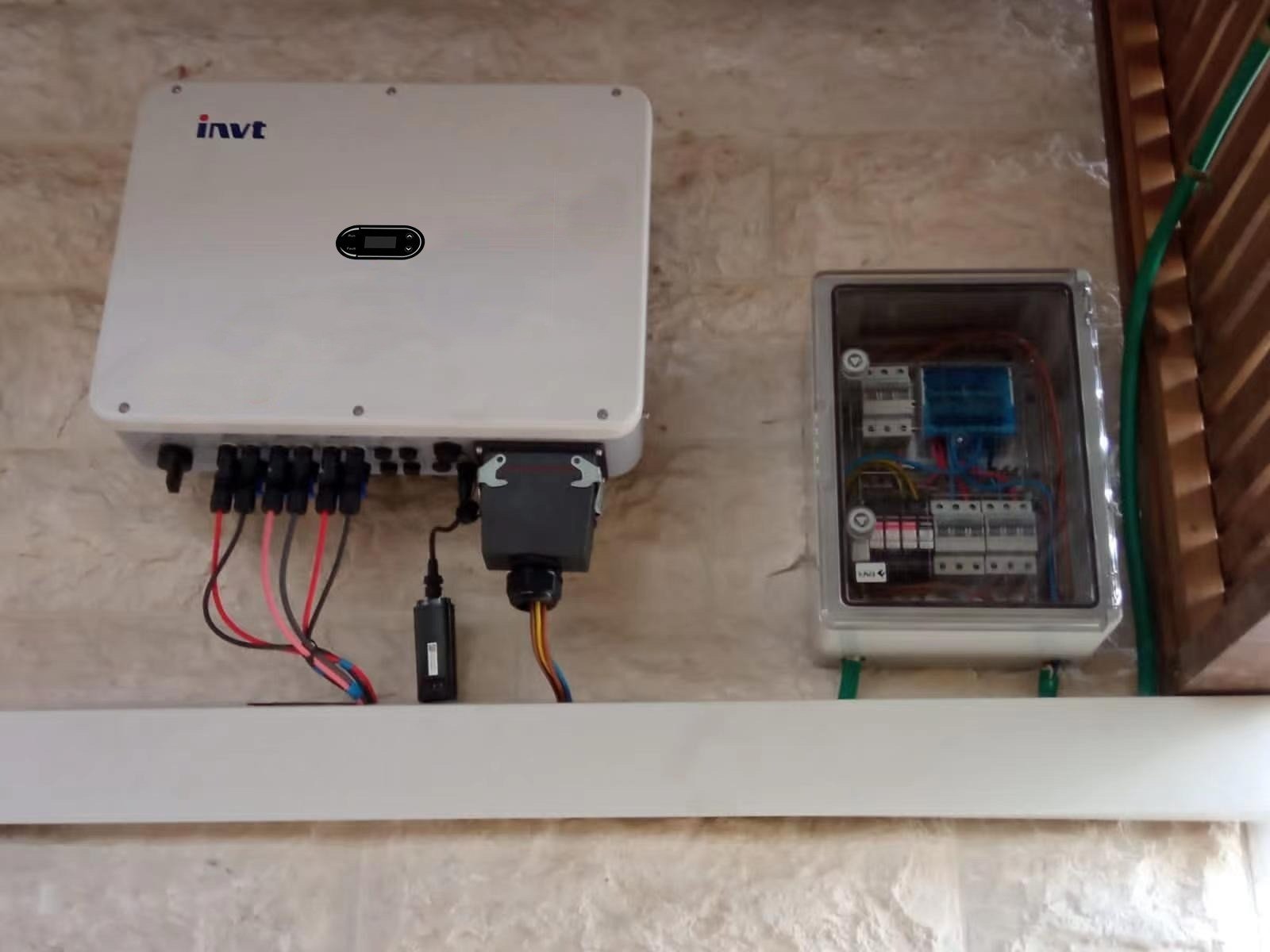

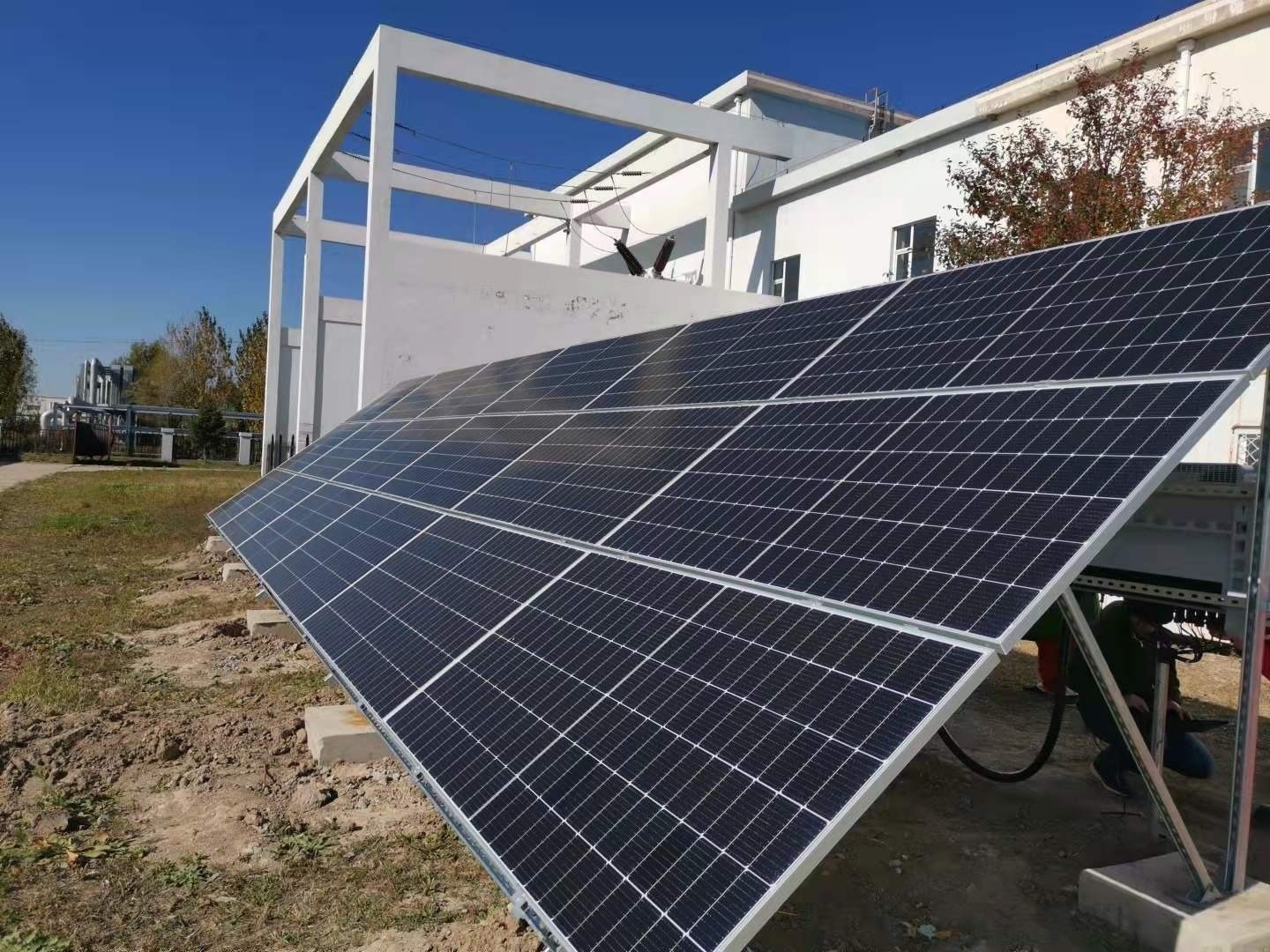

Our Projects
