IQ8 MC - AC - HC

Enphase IQ8 MC - AC - HC

SolarDeals
Price:
From €0.297 / Wp
Type: Micro-inverter
Power Range: 0.33~0.384 kW
Region: Netherlands Netherlands
Contact Seller
Note: Your Enquiry will be sent directly to SolarDeals.

Description:

  • World's Leading Microinverter Brand

  • Compatible With Latest Generation High-Output PV Modules

  • High Energy Production, Reliability, And Safety

  • Easy To Install And Commission

  • Industry-Leading Warranty Of Up To 25 years

Product Characteristics

Model No.
IQ8MC-72-M-INT IQ8AC-72-M-INT IQ8HC-72-M-INT
Specification
Power
0.33 kW 0.366 kW 0.384 kW
Warranty
Product Warranty (Min)
25 Years 25 Years 25 Years
Input Data(DC)
Max. DC Power
0.48 kW 0.53 kW 0.56 kW
Max. DC Voltage
60 V 60 V 60 V
Rated DC Voltage
35 V 36.5 V 37 V
Min. DC Voltage to Start Feed In
22 V 22 V 22 V
Max. DC Current
14 A 14 A 14 A
MPP(T) Voltage Range
25~45 V 28~45 V 29.5~45 V
Connectors
MC4 MC4 MC4
Output Data (AC)
Max. AC Power
0.33 kW 0.366 kW 0.384 kW
Nominal AC Power
0.325 kW 0.36 kW 0.38 kW
Output AC Voltage Range
184~276 V 184~276 V 184~276 V
Nominal AC Voltage
230 V 230 V 230 V
Max. AC Current
1.43 A 1.59 A 1.67 A
Frequency Range
45-55 Hz 45-55 Hz 45-55 Hz
Frequency
50 Hz 50 Hz 50 Hz
Power Factor (cosθ)
1 1 1
Distortion (THD)
< 5 % < 5 % < 5 %
Max. Efficiency
97.5 % 97.3 % 97.4 %
Euro Efficiency
96.7 % 96.6 % 96.8 %
General Data
Dimensions (H/W/D)
212x175x30.2 mm 212x175x30.2 mm 212x175x30.2 mm
Weight
1.1 kg 1.1 kg 1.1 kg
Power Consumption at Night
< 0.05 W < 0.05 W < 0.05 W
Operating Temperature -40 ~ +65 ℃
Transformer High Frequency-Transformer
Protection Class IP67
Humidity 4-100 %
Cooling Fan
Max. Altitude 2600 m
PDF
Download Manufacturer's PDF

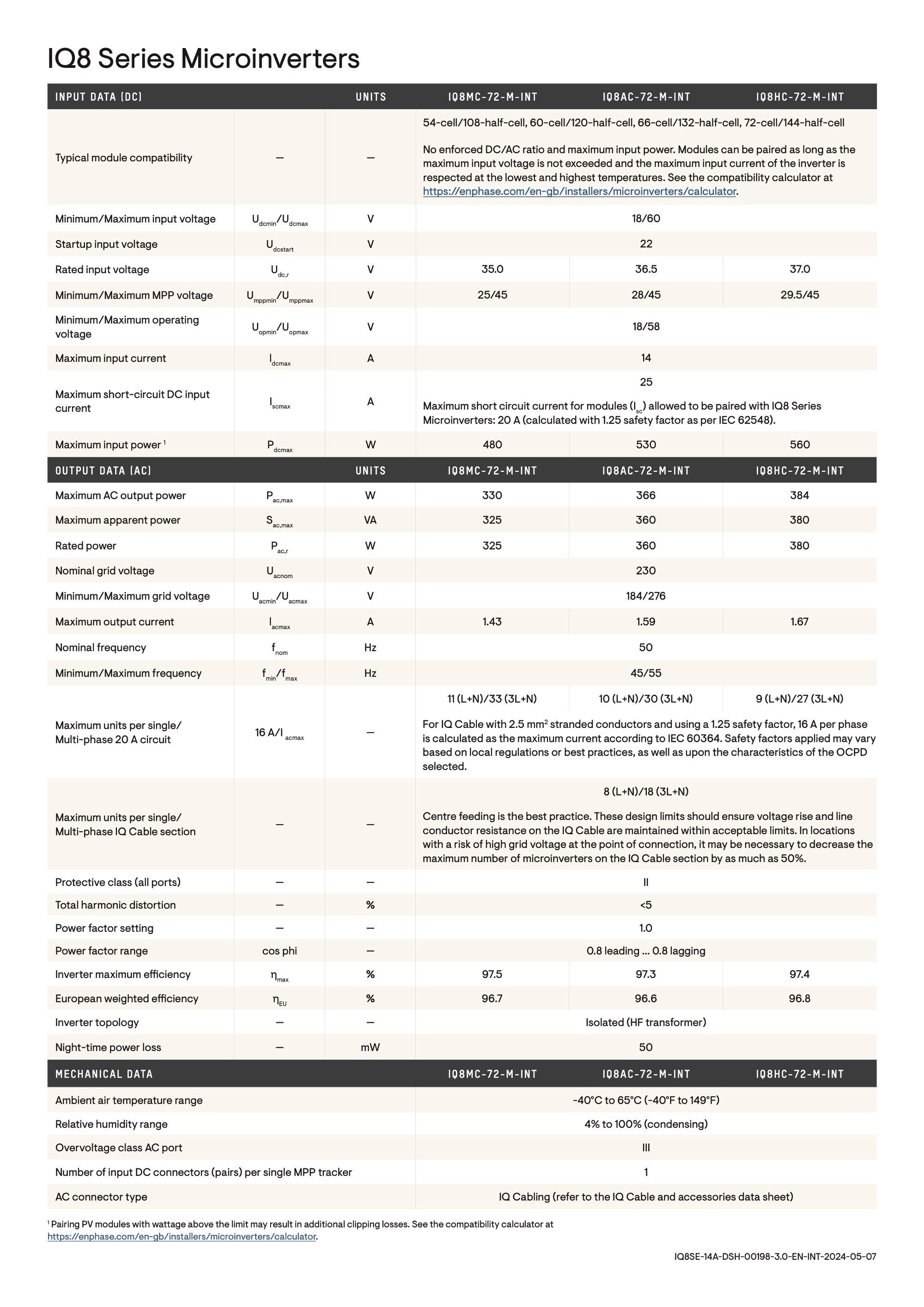

Datasheet
Datasheet
