6''Mono-Cryst. 159W

Onyx Solar- Building Integrated Photovoltaics
Type: Monocrystalline
Power Range: 159 Wp
Region: Spain Spain
Note: Your Enquiry will be sent directly to Onyx Solar- Building Integrated Photovoltaics.


1. Sizes adapted to construction standards
2. No limits of color or semitransparency
3. Fully integrable and combinable with any other construction material

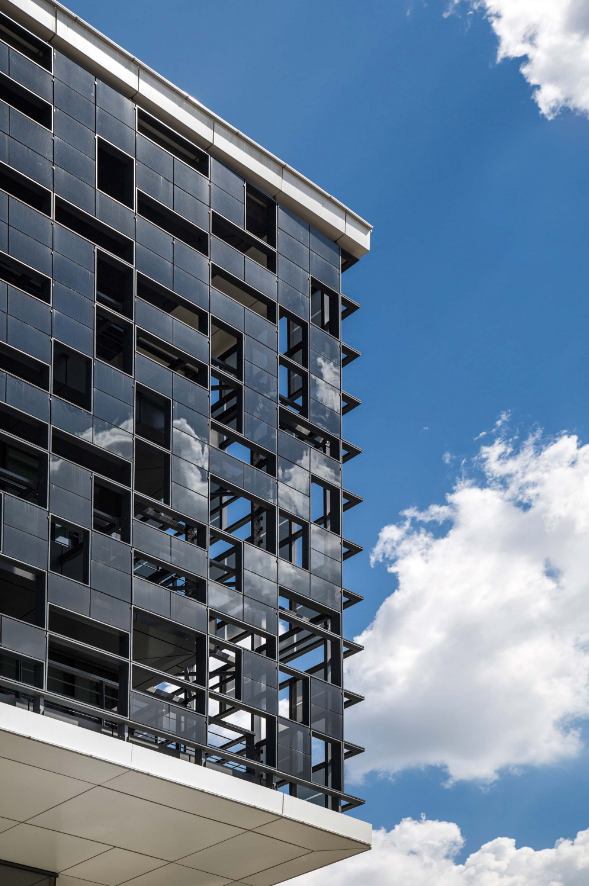

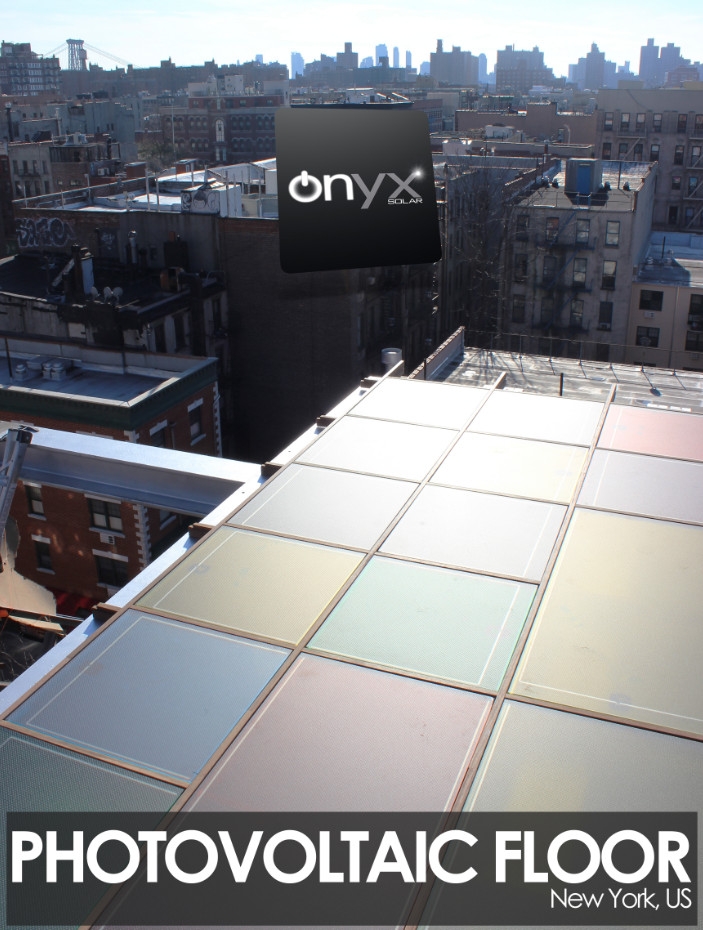

4. Fits perfectly into Ventilated Facades, Skylights, Walkable Floors, Brise Soleils, Canopies, Windows, Curtain walls, Balconies...

Product Characteristics

Model No.
Electrical Data at STC
Maximum Power (Pmax)
159 Wp
Voltage at Maximum Power (Vmpp)
19 V
Current at Maximum Power (Impp)
8.39 A
Open Circuit Voltage (Voc)
23 V
Short Circuit Current (Isc)
8.93 A
Power Tolerance (Positive)
+ 10 %
Power Tolerance (Negative)
- 10 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.451 %/°C
Temperature Coefficient of Voc -0.361 %/°C
Temperature Coefficient of Isc 0.08 %/°C
Maximum Ratings
Maximum System Voltage 1000 V
Material Data
Panel Dimension (H/W/D) 1650x850 mm
Cell Type Monocrystalline
Cell Size 156×156 mm
Cell Number 36
Glass Type Tempered
Encapsulant Type EVA
Junction Box Protection Class IP 65
Cable Crosssection 2.5 mm2

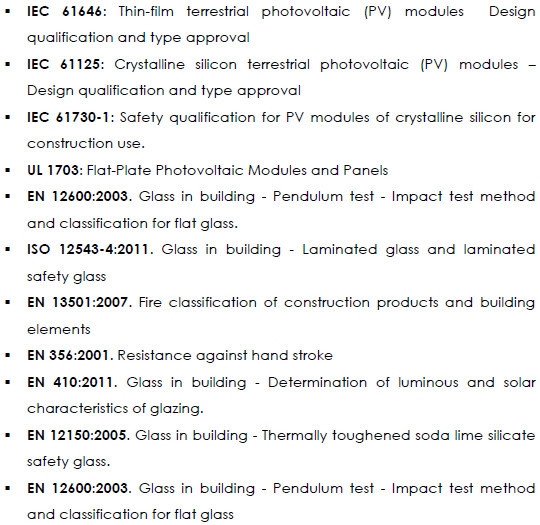

Ⅰ. International Standards

Ⅱ. Corporate Social Responsibility

Onyx Solar commitment to sustainability has an impact on your company's Corporate Social Responsibility policy and its performance in three dimensions: economic, environmental and social.

● Economic

Sustainability is becoming core to business practice on corporate strategies. Proved to be embedded in customer expectations, improves company's reputation, drives sales and makes a company more competitive in their market. Fitting premises with photovoltaic cells has been shown as one of the most powerful measures to achieve it.

● Environmental

Adopting Onyx Solar innovative solutions and combining them with other environmental-friendly practices is the best contribution a company can make to build a greener future for people and our planet.

● Social

We collaborate with local partners and organizations to enhance our ability to do business responsibly in the communities where we operate. From developed countries to developing ones, we try to set more sustainable patterns to grow.

We believe in a better future. That's how Onyx Solar approaches corporate responsibility. We see our environmental-friendly solutions as a small contribution to create a meaningful change, needed to secure a sustainable legacy for generations to come.

"We do not inherit the Earth from our ancestors

we borrow it from our children"

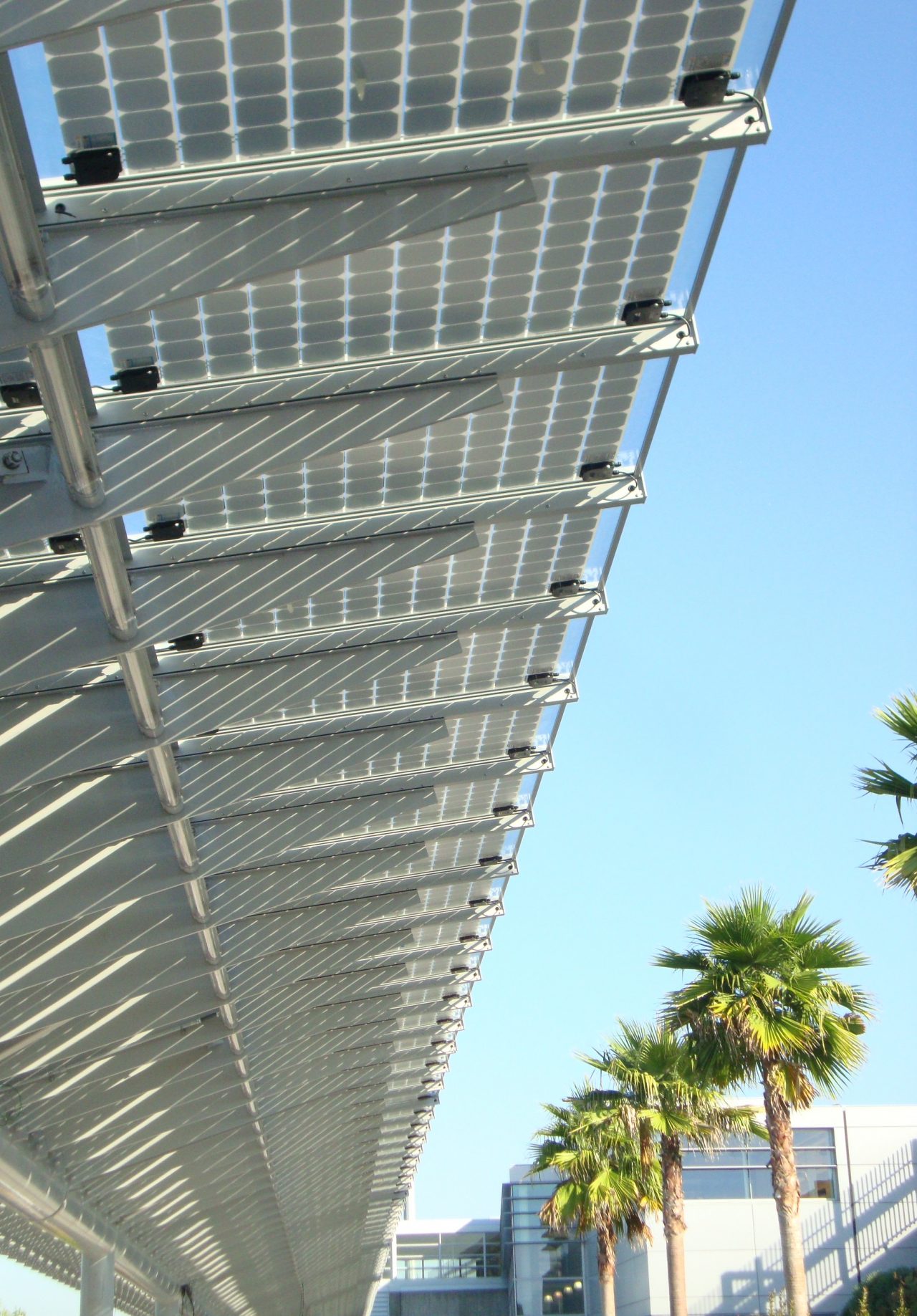

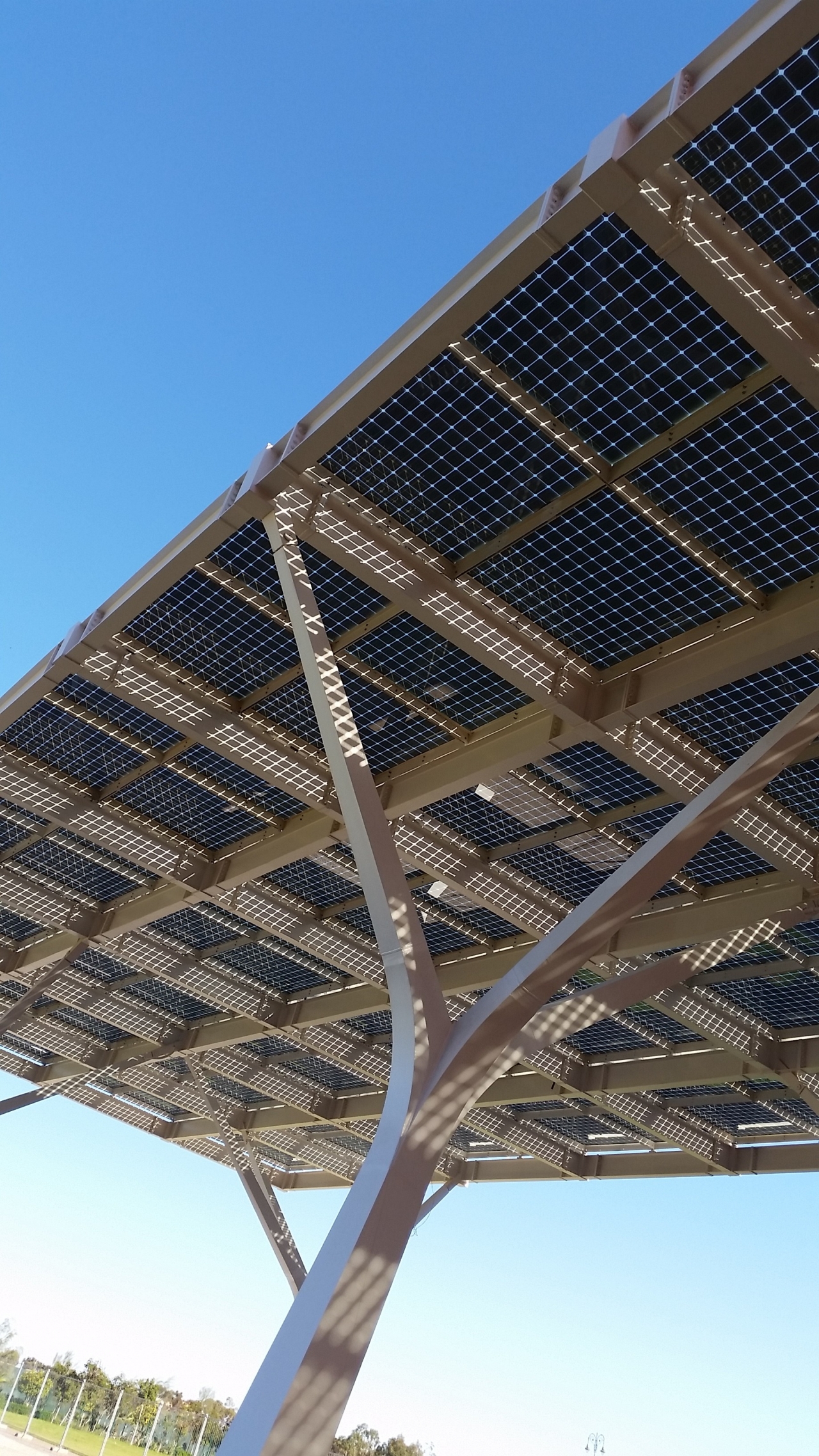

Ⅲ. Engineering

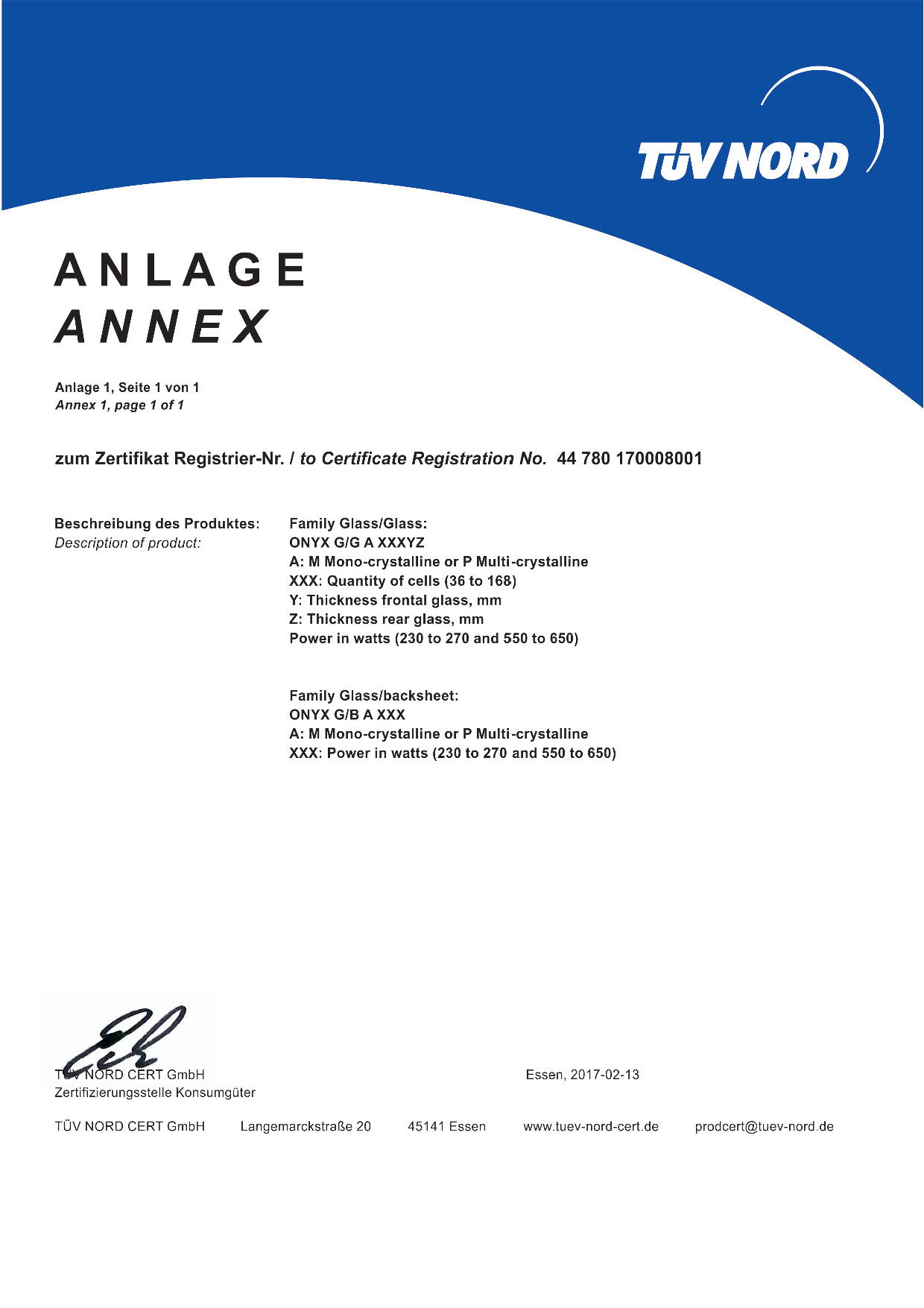

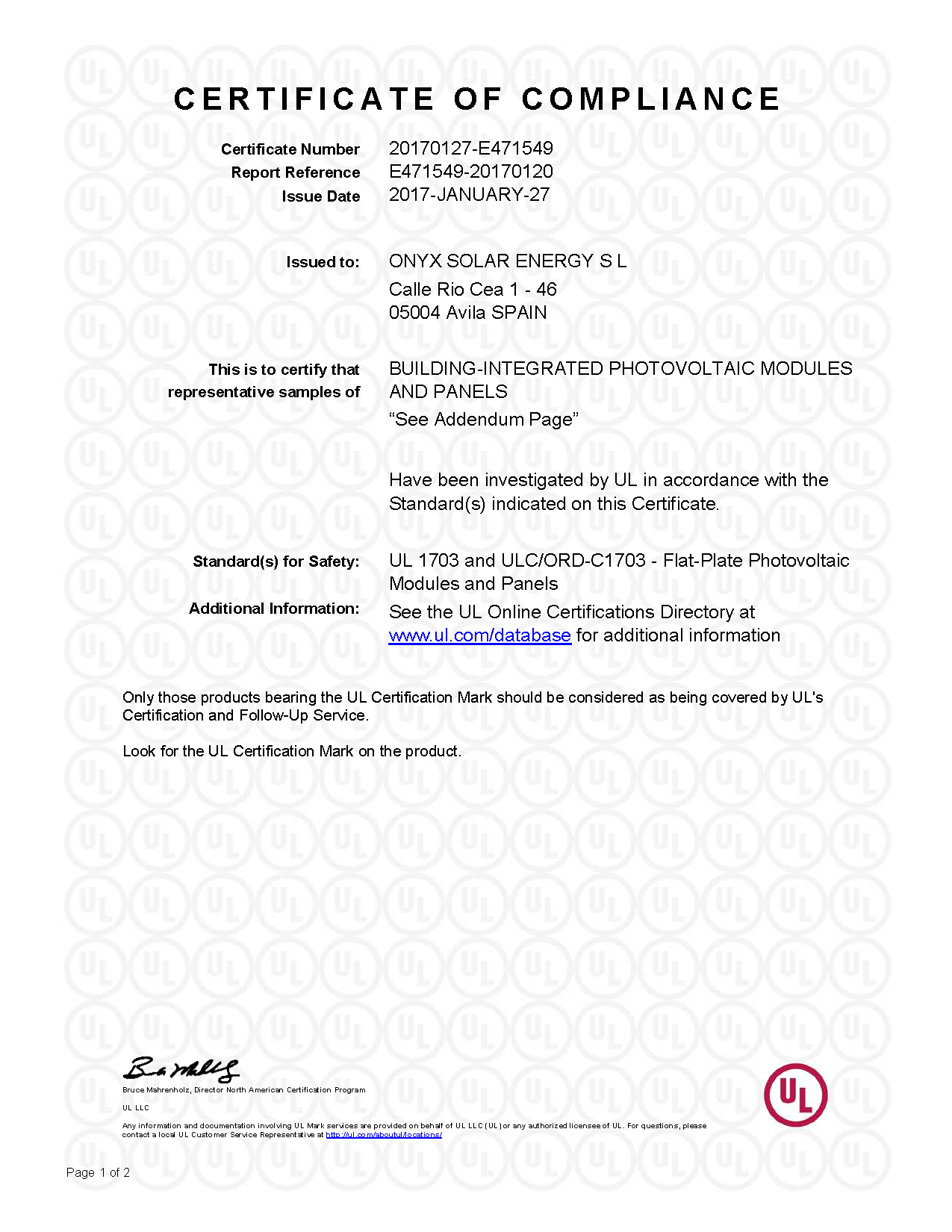

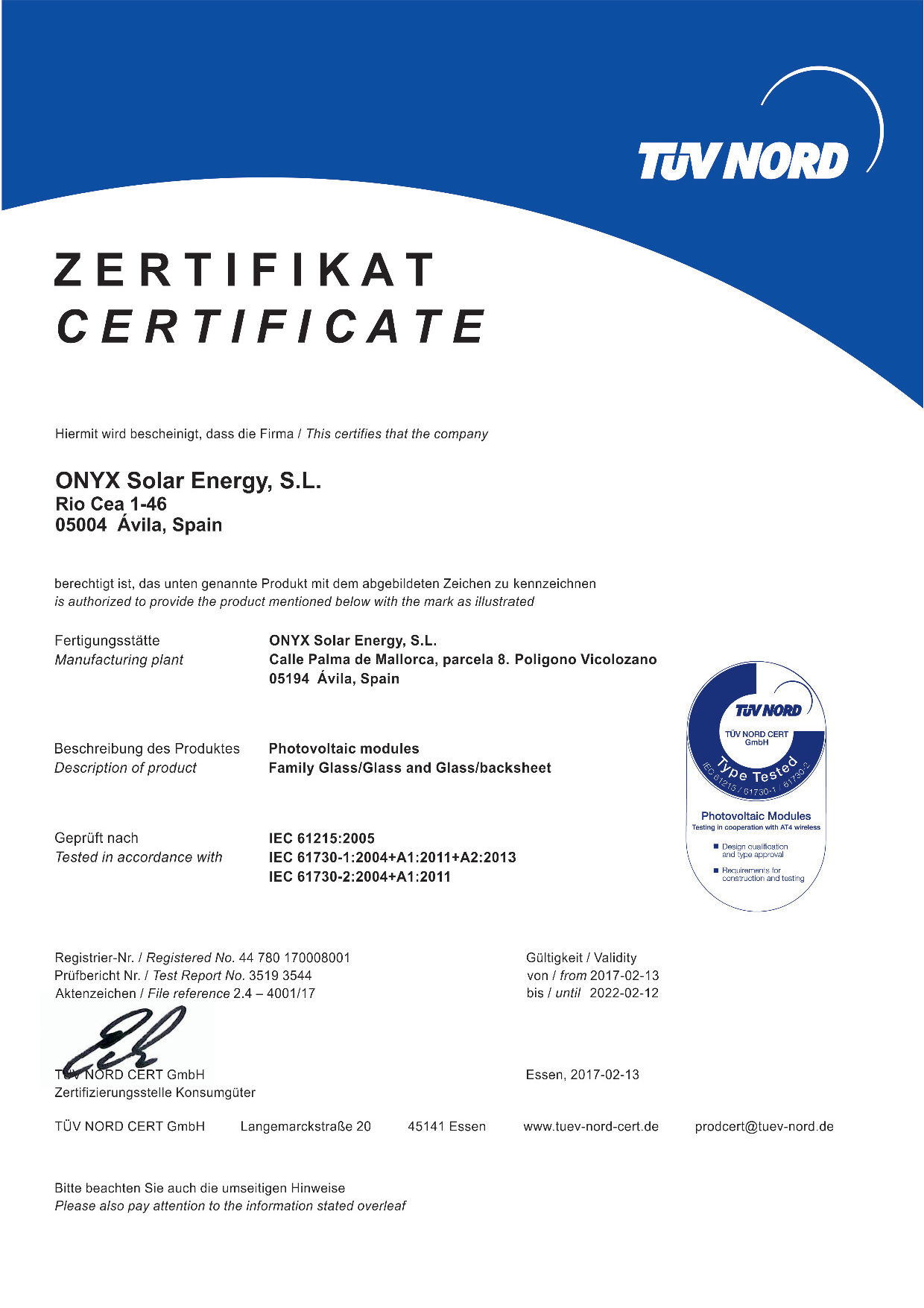

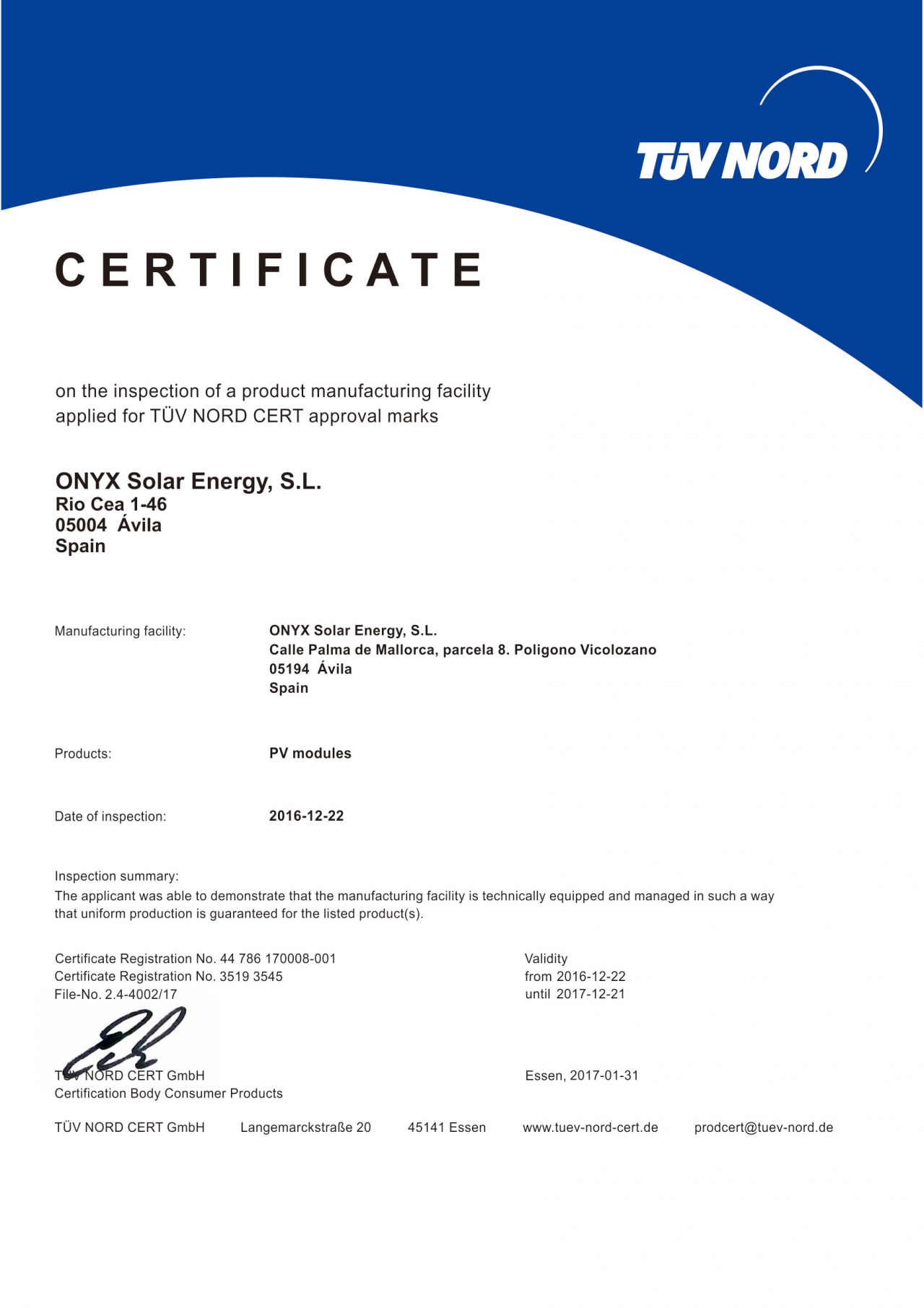

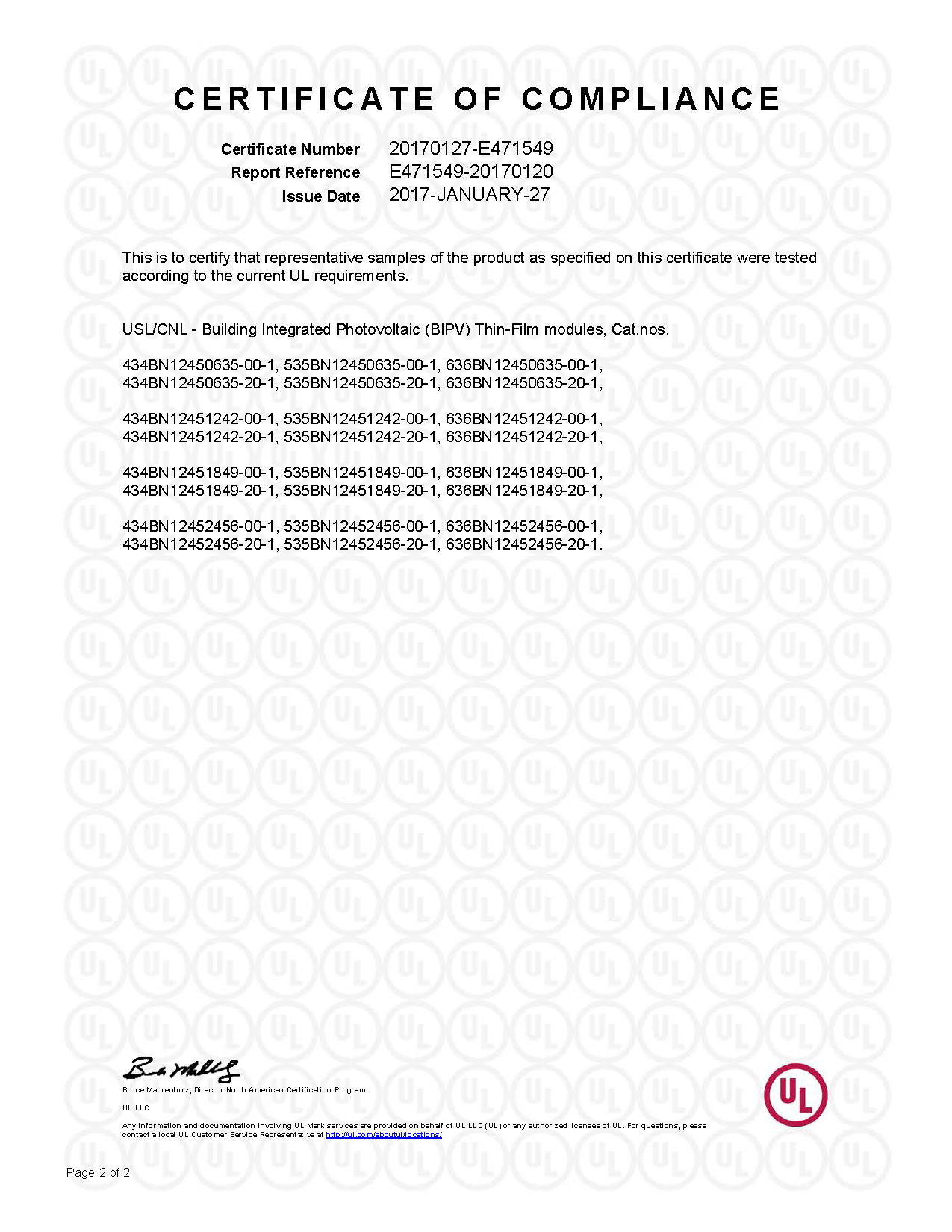

Ⅳ. Certification

Onyx Solar- Building Integrated Photovoltaics

Calle Río Cea 1, 46, 05004 Ávila
Send message to this supplier
Onyx Solar is the global technology leader in photovoltaic glass for buildings as well as the best global photovoltaic glass provider. This cleantech company founded in 2009 has developed and produces the first photovoltaic glass with low-e properties in the world, a glass awarded “Most Innovative Glass Product of 2015” by the National Glass Association and the Window & Door Dealers Association of the United States.

Backed by rich experience and innovation excellence, Onyx Solar has been introducing innovative solutions on a continuous basis to ensure a exemplary commercialization success of its solutions.


Production (MW)/2015: 5 MWp
Monocrystalline, Polycrystalline
Power Range(Wp): 50-650


Production (MW)/2015: 10 MWp
Amorphous: Single-Junction, Multi-Junction
Power Range(Wp): 30-250

Innovative Panel Design

Production (MW)/2015: 5 MWp
Transparent Solar Cell
Power Range(Wp): 30-250
