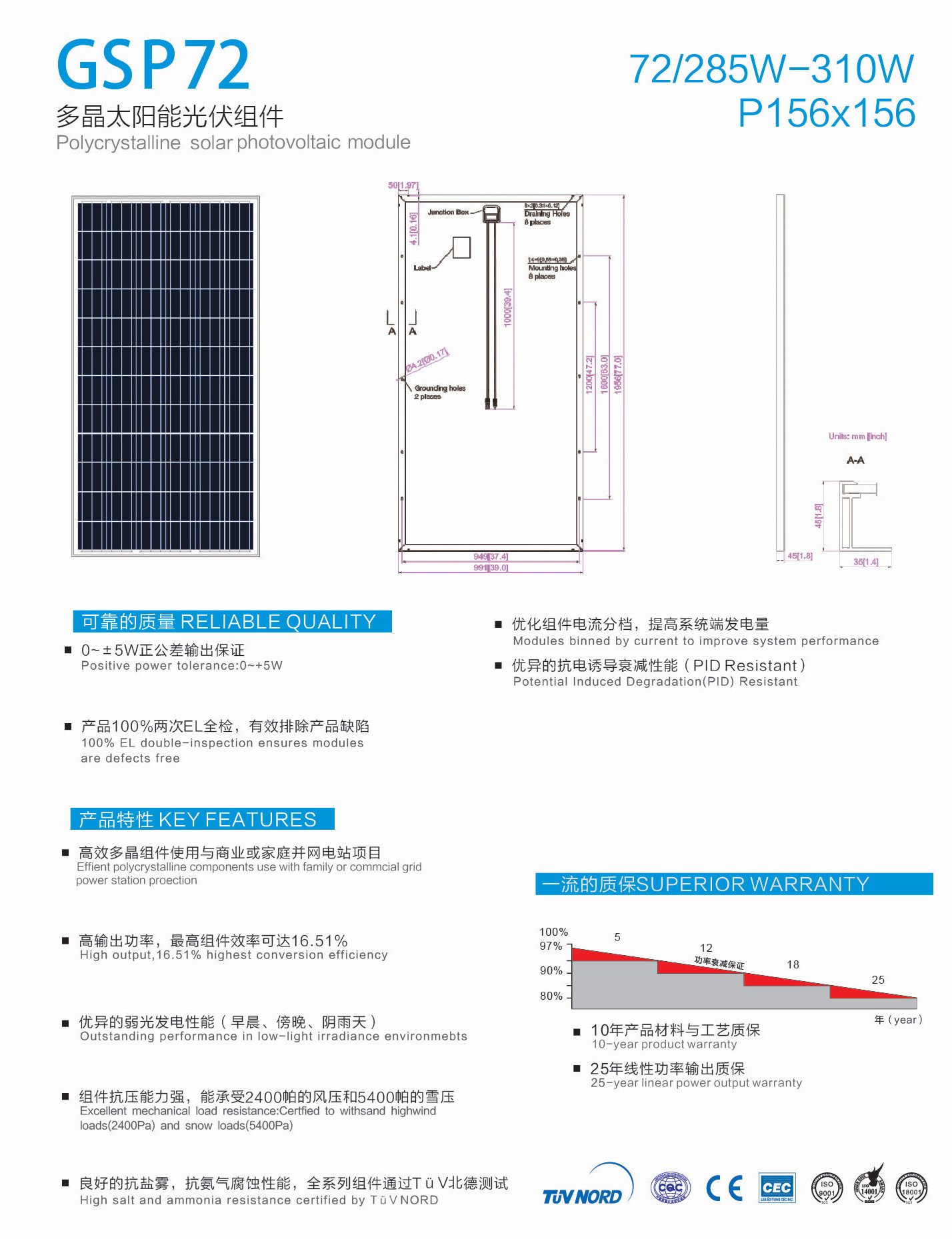

GSP72

Changzhou GS Energy and Tech Co., Ltd.
Type: Polycrystalline
Power Range: 285 ~ 310 Wp
Region: China China
Note: Your Enquiry will be sent directly to Changzhou GS Energy and Tech Co., Ltd..

Alternative Product

DSP80-290P

Dokio Solar
From $0.320 / Wp
  • Cell Type: Polycrystalline
  • Dimensions: --
  • Weight: --
  • Cell Size: --
  • Glass Thickness: --
  • Pmax: 80 Wp
  • Vmpp: 17.96 V
  • Impp: 4.45 A
  • Voc: 22.9 V
  • Isc: 5.01 A
  • Efficiency: 16.49 %
  • Product Warranty: 5 Years
  • Power Warranty: 12 Years of 90% Output Power, 25 Years of 80% Output Power

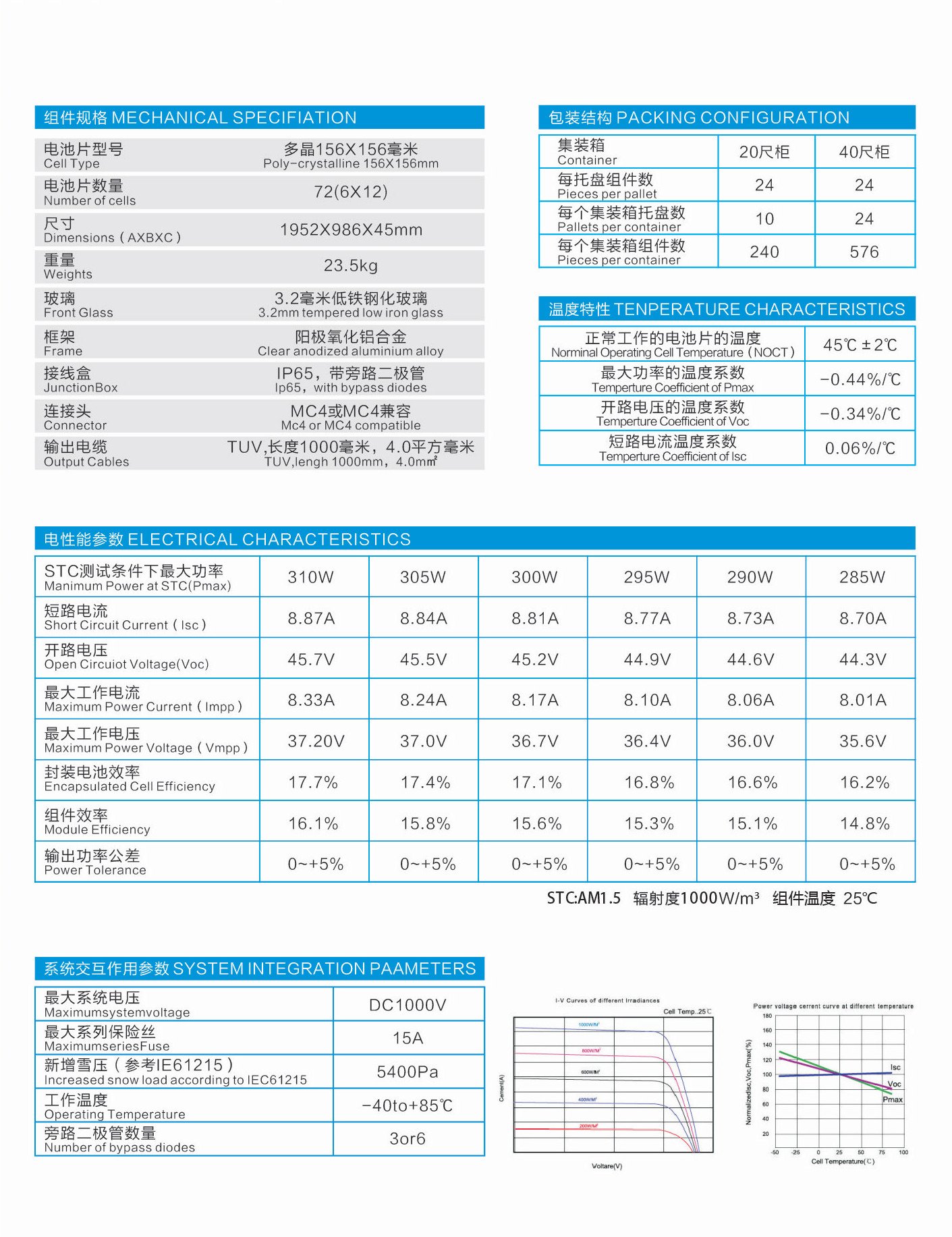

Product Characteristics

Model No.
285 290 295 300 305 310
Warranty
Product Warranty 10 Years
Power Warranty 12 Years of 90% Output Power, 25 Years of 80% Output Power
Electrical Data at STC
Maximum Power (Pmax)
285 Wp 290 Wp 295 Wp 300 Wp 305 Wp 310 Wp
Voltage at Maximum Power (Vmpp)
35.6 V 36 V 36.4 V 36.7 V 37 V 37.2 V
Current at Maximum Power (Impp)
8.01 A 8.06 A 8.14 A 8.17 A 8.24 A 8.33 A
Open Circuit Voltage (Voc)
44.3 V 44.6 V 44.9 V 45.2 V 45.5 V 45.7 V
Short Circuit Current (Isc)
8.7 A 8.73 A 8.77 A 8.81 A 8.84 A 8.87 A
Panel Efficiency
14.8 % 15.1 % 15.3 % 15.6 % 15.8 % 16.1 %
Power Tolerance (Positive)
+ 5 % + 5 % + 5 % + 5 % + 5 % + 5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Temperature
45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.44 %/°C
Temperature Coefficient of Voc -0.34 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Maximum Ratings
Maximum System Voltage 1000 V
Series Fuse Rating 15 A
Material Data
Panel Dimension (H/W/D) 1952x986x45 mm
Weight 23.5 kg
Cell Type Polycrystalline
Cell Size 156×156 mm
Cell Number 72
Glass Type Tempered, Low Iron
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Protection Class IP 65
Connector Type MC4
Cable Crosssection 4 mm2
Cable Length 1000 mm
