SKT360M6-24

Wuxi Sunket New Energy Technology Co., Ltd.
Price:
From €0.229 / Wp
Type: Monocrystalline
Power Range: Wp
Region: China China
Product is no longer manufactured.

Description:

  • ENF Assessed Supplier

  • Excellent Low-light Performance

  • Anti-PID

  • Strengthened Mechanical Load

  • 100% Inspection Guarantee

  • Certified Durability

  • 12-Year Product, 25-Year Linear Power Warranty

Product Characteristics

Model No.
SKT360M6-24
Warranty
Product Warranty 12 Years
Power Warranty 12 Years of 90% Output Power, 25 Years of 80% Output Power
Electrical Data at STC
Maximum Power (Pmax)
360 Wp
Voltage at Maximum Power (Vmpp)
39.9 V
Current at Maximum Power (Impp)
9.03 A
Open Circuit Voltage (Voc)
49.1 V
Short Circuit Current (Isc)
9.76 A
Panel Efficiency
18.7 %
Power Tolerance (Positive)
+ 5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Thermal Ratings
Operating Temperature Range -45~85 °C
Temperature Coefficient of Pmax -0.40 %/°C
Temperature Coefficient of Voc -0.32 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D) 1956x992x40 mm
Weight 23 kg
Cell Type Monocrystalline
Cell Size 156.75×156.75 mm
Cell Number 72
Glass Type Tempered
Glass Thickness 3.2 mm
Encapsulant Type EVA
Back Cover Type TPT
Frame Type Anodized Aluminium Alloy
Junction Box Protection Class IP 67
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 1000 mm
PDF
Download Manufacturer's PDF

Manufacturing

Certifications

Project References

Exhibitions

Wuxi Sunket New Energy Technology Co., Ltd.

Click to show company phone
https://www.sunket.cn
China
No. 888, Delin Industry Park, Qinghong Road, E'hu Town, Wuxi, Jiangsu
No. Staff: 500
Parent Company: Delin Holding
Product is no longer manufactured.

Crystalline

Production (MW)/: MWp
Monocrystalline, Polycrystalline
Power Range(Wp): 290-600

Useful Contacts

Contact Face
Jesse Xia Vice-President
Contact Face
Jay Sales Engineer
Contact Face
Michael Sales/Engineer
Contact Face
Jeffrey sales Engineer
Contact Face
Ares sales manager
Contact Face
Heike sales manager
Contact Face
Polly sales manager
Contact Face
Jane sales manager
Contact Face
Bruce Sales Engineer
Contact Face
Aaron Sales Engineer
Company Description

Wuxi Sunket New Energy Technology Co., Ltd. was established in 2007. It is a PV enterprise invested by Delin Holding Group. We specialize in solar cells, photovoltaic modules, lithium batteries, and solar systems design, production, and sales. Sunket is located in the Historic Town of Dangkou and covers an area of 150,000 square meters, with a total investment of more than 600 million yuan. Through the introduction of the world's most advanced automatic production and testing equipment, the annual production capacity of PV modules has reached 3GW, and the yearly total of energy storage batteries has gone 1GWh.

Since its establishment, Sunket has adhered to the concept of making accurate and superior products, continuously developing high-quality solar products and extending to the downstream, finally building a complete vertical industry chain in the “solar cells market, solar module manufacture, solar system project, and solar application.” Sunket has obtained ISO9001, ISO14001, ISO45001, TUV, CE, IEC, CEC, INMETRO, RETIE, CSA, MCS, CEC, JP-AC, DEWA, CQC, and many other international and domestic authoritative product certifications, and salt spray level 6 and ammonia resistance and PID resistance test certifications. Our products are exported to 100+ countries and regions in Europe, South America, Southeast Asia, the Middle East, and Africa. Sunket also provides product customization service, which has won wide praise from customers worldwide.

Sunket has always been to the concept of "Shared and Beyond" as our mission, uphold the "Client First, Quality First, Credit First" operation philosophy, abide by the "integrity, pragmatic, team, innovation" spirit of enterprise, to provide customers with high-quality and high-performance products. Sunket is committed to becoming a diversified, large-scale, international professional solar green energy supplier in the solar PV industry field to provide one-stop services and solutions for the global market.

Product Videos
Products

Our Products

We offer monocrystalline solar cells with efficiency ranging from 19.6 to 23%, polycrystalline solar cells with efficiency ranging from 17.4 to 18.9%, and PERC, bifacial, and HJT cells.

We provide production and customized services of 5W-600W high-efficiency solar panels. We produce mono, poly, all-black, half-cut, BIPV, HJT, and TOPCON solar panels with certificates like TUV, CE, CEC, ISO, CQC, RETIE, JP-AC, DEWA, INMETRO, and CSA.

Manufacturing

Project Reference

Exhibition

Certification

Data independently collected by a TÜV Rheinland Inspector – 28 Oct 2021

Company Name :

Wuxi Sunket New Energy Technology Co., Ltd.

Facility Address :

No. 888, Qinghong Road, E’hu Town, Xishan District, Wuxi City, Jiangsu Province, China

Contact Person :

Mr. Jesse Xia

URL/Web Address :

http://www.sunket.cn

Report Date :

2021-10-28

Expiry Date (24 months validity) :

2023-10-27

Name Of Assessor :

Tim Zhang

Overall Turnover Of Last Year :

RMB 162,530,000

Total Building Size :

157,000 m2

Number Of Buildings :

3

Office Size :

700 m2

Working Day :

Monday-Saturday

Working Hours :

08:00-11:00     12:00-16:00

Department Name

Full Time Employee(s)

Part-Time Employee(s)

Total

GM

1

0

1

Vice GM

1

0

1

Sales Dept.

35

0

35

R&D Dept.

3

0

3

Purchase Dept.

3

0

3

Finance Dept.

5

0

5

Production Dept.

291

0

291

Management Dept.

3

0

3

Admin Dept.

6

0

6

QC Dept.

2

0

2

total

350

0

350

Export Business Capacity

Current Export Situation

There are 14 foreign trading employees in the company.

Work Experience

Headcount

Over 30 Years

0

21-30 Years

0

11-20 Years

2

6-10 Years

2

2-5 Years

10

Less than 2 years

0

Accepted Language

Listening & Speaking

Reading & Writing

English

Does the company have a valid export license? :

  Yes, Export License Registration No.: 02247487

Trade Agents Employed Overseas? :

 No

Average lead time from product order confirmation to production delivery (products exiting the company) :

7 -- 15 Days

Nearest Port :

Shanghai Port

Accepted Payment Terms

 FOB
 CIF
 EXW
 CFR

Accepted Payment Types

 L/C
 T/T
 Credit Card
 Cash
 West Union
 Money Gram
 Paypal
 Money booker

Market Distribution (Previous 12 Months)

Market

Main Product(s)

Total Revenue(%)

South America

Solar Panel

10 %

Eastern Europe

Solar Panel

4 %

Southeast Asia

Solar Panel

10 %

Africa

Solar Panel

10 %

Oceania

Solar Panel

5 %

Middle East

Solar Panel

1 %

Eastern Asia

Solar Panel

4 %

Western Europe

Solar Panel

10 %

Central America

Solar Panel

1 %

Northern Europe

Solar Panel

4 %

Southern Europe

Solar Panel

1 %

South Asia

Solar Panel

5 %

Domestic Market

Solar Panel

35 %

Data independently collected by a TÜV Rheinland Inspector – 28 Oct 2021

Product Name

Production Line Capacity

Actual Units Produced (Previous Year)

Solar Panel

170 MWp/Month

2,000 MWp

Production Machinery

Key Machine Name

Brand & Model No.

Quantity

Condition

PV Cell Laser Cutting Machine

HC40A

6

Acceptable

Flip Check Machine

YP-FZC-06

2

Acceptable

Solidify Line

UP-GHX-06

2

Acceptable

Auto Laying Machine

DOUBLE 100

2

Acceptable

Auto Laying Machine

UP-PBJ-06

2

Acceptable

Frame Assembling Machine

ERJU UP-ZKJ-06

4

Acceptable

Auto Trimming Machine

UP-XBJ-06

3

Acceptable

Laminating Machine

SG SGCY-S-2458

4

Acceptable

Glue Filling Machine

ERJU EJ-AB10

3

Acceptable

Series Welding Machine

ATW MS100B

3

Acceptable

Series Welding Machine

AM050E-8000

3

Acceptable

Series Welding Machine

ATW MS40

1

Acceptable

Material Loading Machine

DB100-BL02

1

Acceptable

Fold Welding Machine

ATW AM023D-200

3

Acceptable

PV Cell Laser Cutting Machine

Flip Check Machine

Solidify Line

Auto Laying Machine

Auto Laying Machine

Frame Assembling Machine

Auto Trimming Machine

Laminating Machine

Glue Filling Machine

Series Welding Machine

Series Welding Machine

Series Welding Machine

Material Loading Machine

Fold Welding Machine

Key Testing Machinery

Machine Name

Brand & Model No.

Quantity

Condition

EL Testing Machine

ASICCN SCSS-EL

2

Acceptable

IV Testing Machine

ST-MX100

2

Acceptable

Voltage Insulation Tester

YD9860G

1

Acceptable

EL Testing Machine

IV Testing Machine

Voltage Insulation Tester

Production Flow

Material Loading

Cutting

Dicing Saw

Series Welding

Plate Rowing

Stitch Welding

Gluing

Laying

EL Testing

Laminating

Edging

Visual Inspecting

Frame Assembling

Wire Assembling

Glue Filling

Solidify

Chamfering

Cleaning

IV Testing

Packaging

Data independently collected by a TÜV Rheinland Inspector – 28 Oct 2021

R & D Capacity

Current Situation

There are 3 R&D engineers in the company.

Education Level

Headcount

Doctorate

0

Post-Graduate

0

Graduate

3

Junior College

0

Technical School

0

High School

0

Brand Situation

Registration/application No.

Brand Name

For Approval to Use Goods

Validity Date

Ref.

11405223

Refer to the photo

Class 9

2014-02-21~
2024-02-20

Photo in Section 10 (Trademark Photo)

Does the company provide OEM/ODM service for others?

 Yes

Are there relevant design input/output, review, and verification documents available for the assessed company?

 Yes

Based on inspection, are R&D employees equipped with adequate specialized equipment?

 No

Do R&D employees use any specific software for designing new products?

 Yes

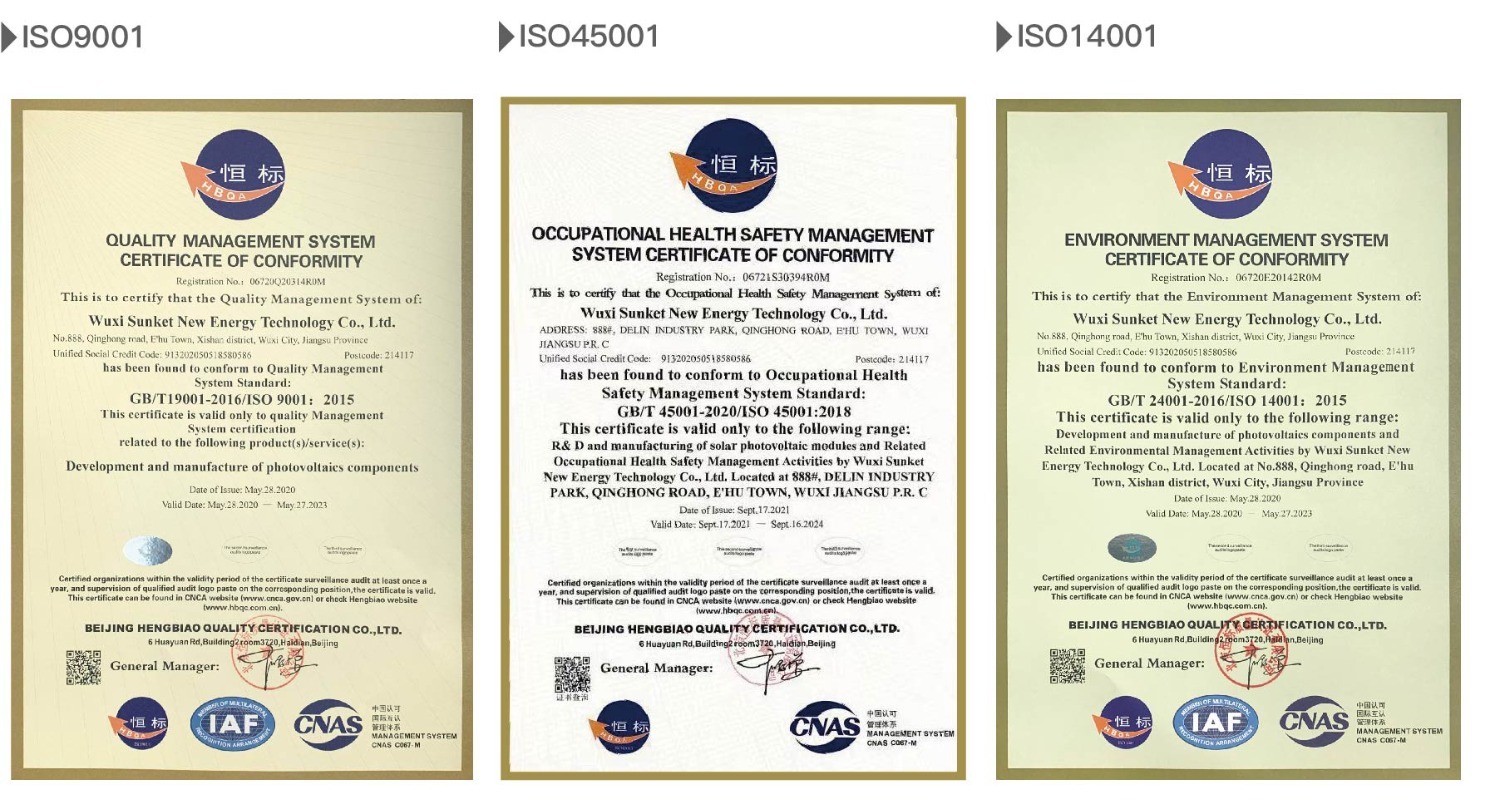

MANAGEMENT SYSTEMS & QUALITY CONTROL MANAGEMENT

Certification

Certified By

Certificate No.

Business Scope

Expiry Date

ISO9001:2015

HBQA

06720Q20314R0M

Development and manufacture of photovoltaics components

2020-05-28~2023-05-27

ISO14001:2015

HBQA

06720E20142R0M

Development and manufacture of photovoltaics components and related environmental management activities by Wuxi Sunket New Technology Co., Ltd. located at No. 888, Qinghong road, E’hu town, Xishan District, Wuxi City, Jiangsu Province

2020-05-28~2023-05-27

ISO45001:2018

HBQA

06721S30394R0M

Development and manufacture of photovoltaics components and related occupational health sagety management activities by Wuxi Sunket New Technology Co., Ltd. located at No. 888, Qinghong road, E’hu town, Xishan District, Wuxi City, Jiangsu Province P.R.C

2021-09-17~2024-09-16

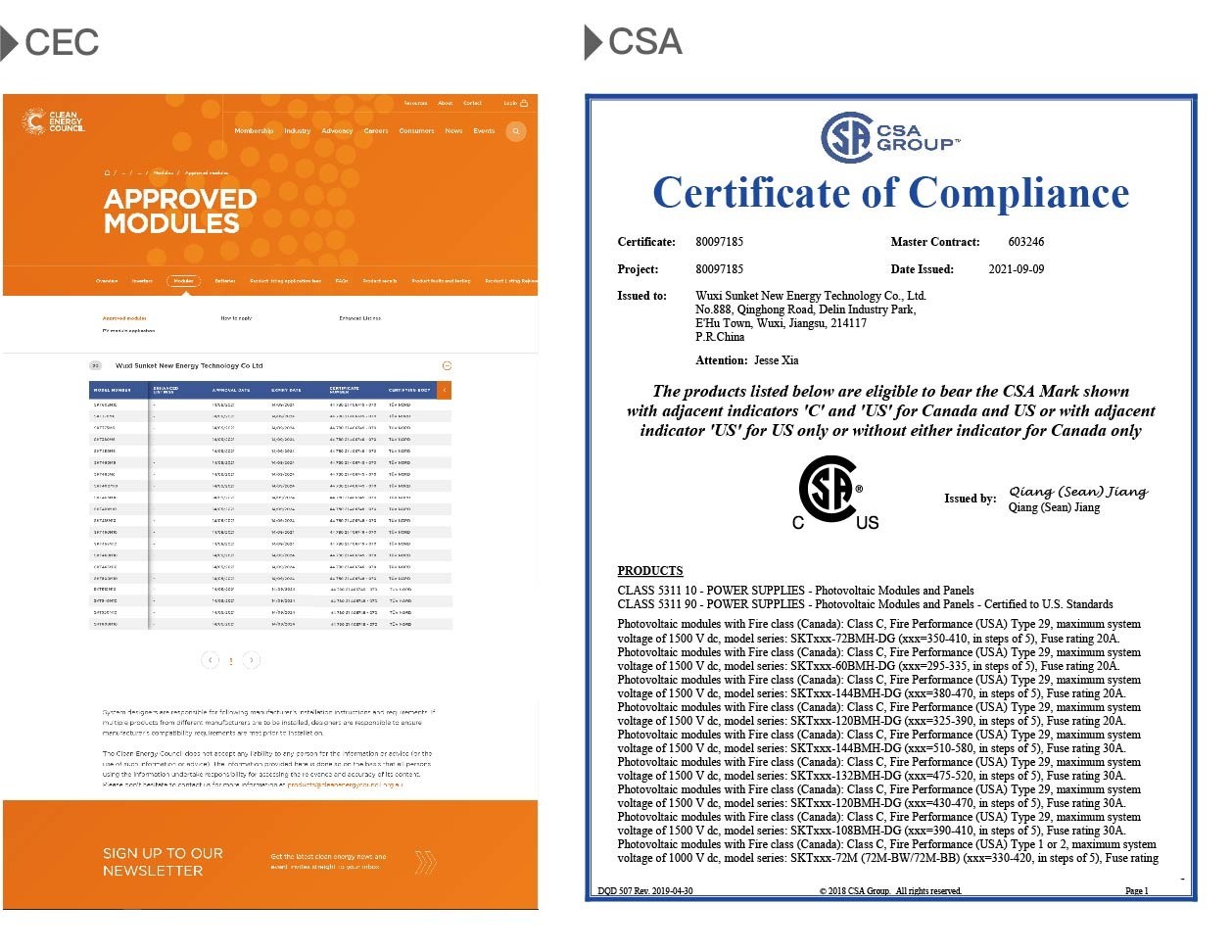

Product Certification

Certification

Certified By

Certificate No.

Product Name & Model No.

Expiry Date

CB Certificate

TUV NORD

DE 7-0608

Crystalline Silicon Photovoltaic Modules & SKT Series

2021-08-18 ~ 2049-12-31

CE Certificate

TUV NORD

4479921406749-045

Crystalline Silicon Terrestrial Photovoltaic (PV) Modules

2021-05-08 ~ 2049-12-31

CQC Certificate

CQC

CQC21024303333

PV Modules & SKT Series

2021-07-01 ~ 2049-12-31

CQC Certificate

CQC

CQC21024303334

PV Modules & SKT Series

2021-07-01 ~ 2049-12-31

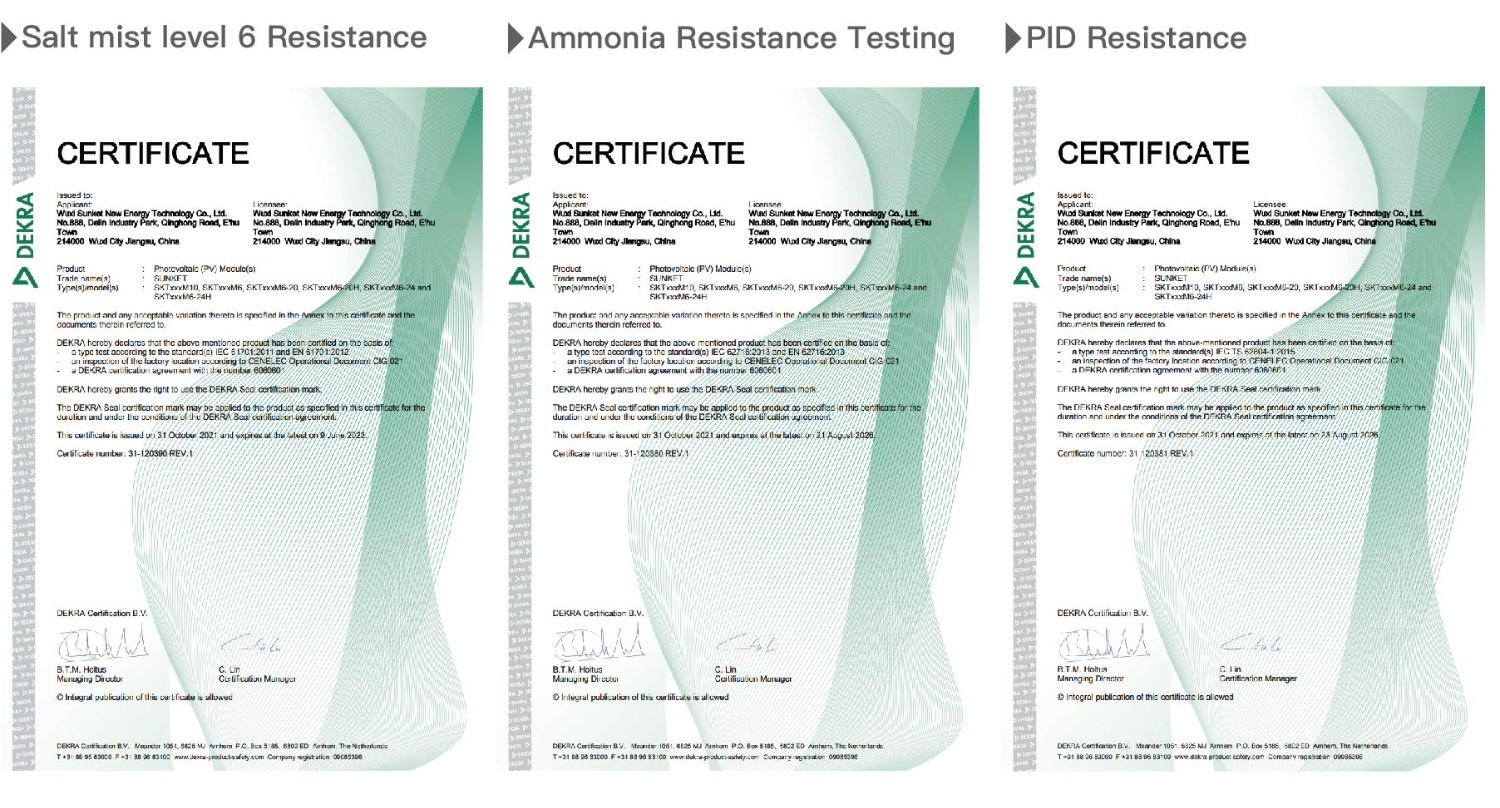

DEKRA Certificate

DEKRA

31-120390

Photovoltaic (PV) Module(s) & SKT Series

2021-08-25 ~ 2023-06-10

TUV Certificate

TUV NORD

44 780 21 406749-070

PV Modules & SKT Series

2021-05-08 ~ 2026-05-07

After Sales Service

Are there any clear procedures for handling customer complaints?

  Yes, with clear procedures and written records

Has the company set up any procedure for customer feedback, including complaints, clearly recorded and maintained?

  Yes, with a standard feedback form and records

Does the company have the SOP (Standard Operation Procedure) for after-sales service? Does the company provide after-sales consulting services?

 Yes

Does the company implement the provisions of the National Three Warrantees (warrantee for repair/replacement /return) for their products?

 Yes

Quality Control Management

Does the company set up any inspection standards for raw materials?

 Yes

Has the company set up necessary quality inspection standards in the process of production?

 Yes

Does the company have any measures to control the management of unqualified materials after sampling, to avoid mixing up or wasting?

 Yes

Are work instructions available at the location where the processes take place?

  Total Line

Is personal protective equipment (PPE) needed in the production line?

 Yes

Is the management and usage of production materials as well as the production process executed by staff who are appropriately trained and qualified or by senior staff?

 Yes

Supplier Management

Does the company have a supplier assessment procedure?

 Yes

Does the company establish and implement a standard procedure for purchasing contract review and approval?

  Yes, with written standard procedures

Does the company keep its supplier assessment reports?

  Yes, Keep for 3 years available

Are the company’s purchasing documents sufficient to ensure product safety control and their customers’ requirements?

  Yes, the purchasing document includes all the information required

Is there a procedure to conduct random product inspections after final packaging?

  Yes, with clear standard and written inspection records
Data independently collected by a TÜV Rheinland Inspector – 28 Oct 2021

Certification & Photos

Business License

Permit for Opening Bank Account

Export License

Trademark

Lease Agreement

Certificate Photo -- ISO9001:2015

Certificate Photo -- ISO14001:2015

Certificate Photo -- ISO45001:2018

Certificate Photo -- CB Certificate

Certificate Photo -- CE Certificate

Certificate Photo -- CQC Certificate

Certificate Photo -- CQC Certificate

Certificate Photo -- DEKRA Certific...

Certificate Photo -- TUV Certificate

Company Gate

Office

Workshop

Workshop

Warehouse

Warehouse

Product Photo

Product Photo

Product Photo

Product Photo

Product Photo

Product Photo

Development/Expansion Plans

Company Development Action

Timeframe

The organization is going to development the new overseas market.

1 Year

Health and Safety

Has the company set up a safety responsibility system, and distributed to all levels of supervisor and provided them with corresponding training?

 Yes

Does the company conduct regular inspection of the plant and equipment, to ensure the health and safety of the workshop at least in accordance with the law?

 Yes

Does the company regularly provide necessary safety and health training, to make the staff understand that there might be occupational hazards in their work, and take appropriate protective measures when necessary? (For example, how to use personal protective equipment safely, etc.)

 Yes

Does the company hold regular fire drills, including fire drills and evacuation drills? Do the staff clearly know how to raise an alarm, how to evacuate and how to use the fire extinguisher?

 No

Does the company have the approval report issued by the local Fire Bureau?

 No

Does the company provide sufficient first aid equipment? Are first-aid kits and trained first-aiders available in each workplace?

 No

Does the company provide clean lavatory, separating men’s and ladies?

 Yes

Does the company provide clean drinking water to the staff? Is there unrestricted access to the drinking water?

 Yes

Corporate social responsibility

Is it clarified that there’s no child labor in the company?

 Yes

Does the company have an explicit job management program, and take corresponding measures to check the age of the employees?

 Yes

Are the staff clearly aware of the terms of labour contract, regulations of the company and the right of free employment?

 Yes

Have the staff been forced to work overtime? Will they be fined or fired if they refuse to?

 No

30 More Series From Wuxi Sunket New Energy Technology Co., Ltd.‎

  • €0.135 / Wp
    SKT525-550M10
    525~550 Wp Monocrystalline
  • €0.255 / Wp
    SKT390-415M10
    390~415 Wp Monocrystalline
  • €0.255 / Wp
    SKT480-505M10
    480~505 Wp Monocrystalline
  • €0.312 / Wp
    SKT345~365M10...
    345~365 Wp TOPCon
  • €0.162 / Wp
    SKT460~480M10...
    460~480 Wp TOPCon
  • €0.242 / Wp
    SKT550M10
    550 Wp Bifacial
  • €0.158 / Wp
    SKT545~580M10...
    545~580 Wp TOPCon
  • €0.167 / Wp
    SKT545~580M10...
    545~580 Wp TOPCon
  • €0.157 / Wp
    SKT530~555M10...
    530~555 Wp PERC
  • €0.155 / Wp
    SKT530~555M10...
    530~555 Wp PERC
  • €0.157 / Wp
    530-555W (All...
    530~555 Wp PERC
  • €0.152 / Wp
    SKT530~555M10
    530~555 Wp Monocrystalline
  • €0.168 / Wp
    SKT510~530M10...
    510~530 Wp TOPCon
  • €0.173 / Wp
    SKT460~480M10...
    460~480 Wp TOPCon
  • €0.167 / Wp
    SKT460~480M10...
    460~480 Wp TOPCon
  • €0.185 / Wp
    SKT430~450M10...
    430~450 Wp HJT
  • €0.159 / Wp
    SKT385~410M10...
    385~410 Wp PERC
  • €0.162 / Wp
    SKT415~435M10...
    415~435 Wp TOPCon
  • €0.168 / Wp
    SKT415~435M10...
    415~435 Wp TOPCon
  • €0.167 / Wp
    SKT410~430M10...
    410~430 Wp TOPCon
  • €0.172 / Wp
    SKT410~430M10...
    410~430 Wp TOPCon
  • €0.166 / Wp
    SKT410~430M10...
    410~430 Wp TOPCon
  • €0.164 / Wp
    SKT410~430M10...
    410~430 Wp TOPCon
  • €0.159 / Wp
    SKT390~415M10...
    390~415 Wp PERC
  • €0.161 / Wp
    SKT390~415M10...
    390~415 Wp PERC
  • €0.173 / Wp
    SKT390~415M10
    390~415 Wp Monocrystalline
  • €0.164 / Wp
    SKT385~410M10...
    385~410 Wp PERC
  • €0.162 / Wp
    SKT385~410M10...
    385~410 Wp PERC
  • €0.161 / Wp
    SKT385~410M10
    385~410 Wp PERC
  • €0.182 / Wp
    SKT680~700M12...
    680~700 Wp HJT, Bifacial
