  1. Solar Panel Directory
  2. G12 120cells 585-605W
G12 120cells 585-605W
G12 120cells 585-605W
G12 120cells 585-605W

G12 120cells 585-605W

Sunrise Energy Co., Ltd.
Price:
From €0.206 / Wp
Type: Monocrystalline
Power Range: 585 ~ 605 Wp
Region: China China
Note: Your Enquiry will be sent directly to Sunrise Energy Co., Ltd..

Description:

●G12-210*105mm 605w 120cells 21.38% Non-destructive cutting 11BB Mono half cut Modules；
●TUV/BIS/CQC/CE/CSI/ISO；
●1500V；
●25 year linear performance warranty；
At the same time,it has the advantages of flexible installation, cost saving, good system adaptation.

Product Characteristics

Model No.
SR-60MAX585H SR-60MAX590H SR-60MAX595H SR-60MAX600H SR-60MAX605H
Warranty
Product Warranty 12 Years
Power Warranty 10 Years of 90% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)
585 Wp 590 Wp 595 Wp 600 Wp 605 Wp
Voltage at Maximum Power (Vmpp)
33.79 V 34 V 34.21 V 34.42 V 34.63 V
Current at Maximum Power (Impp)
17.32 A 17.36 A 17.4 A 17.44 A 17.48 A
Open Circuit Voltage (Voc)
40.72 V 40.98 V 41.23 V 41.48 V 41.74 V
Short Circuit Current (Isc)
18.39 A 18.43 A 18.47 A 18.52 A 18.56 A
Panel Efficiency
20.68 % 20.85 % 21.03 % 21.21 % 21.38 %
Power Tolerance (Positive)
+ 1 % + 1 % + 1 % + 1 % + 1 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
442.86 Wp 446.64 Wp 450.43 Wp 454.21 Wp 458 Wp
Voltage at Maximum Power (Vmpp)
31.45 V 31.64 V 31.84 V 32.03 V 32.23 V
Current at Maximum Power (Impp)
14.08 A 14.11 A 14.15 A 14.18 A 14.21 A
Open Circuit Voltage (Voc)
38.38 V 38.62 V 38.86 V 39.1 V 39.33 V
Short Circuit Current (Isc)
14.81 A 14.85 A 14.88 A 14.92 A 14.95 A
Temperature 43±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.362 %/°C
Temperature Coefficient of Voc -0.262 %/°C
Temperature Coefficient of Isc 0.042 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 30 A
Material Data

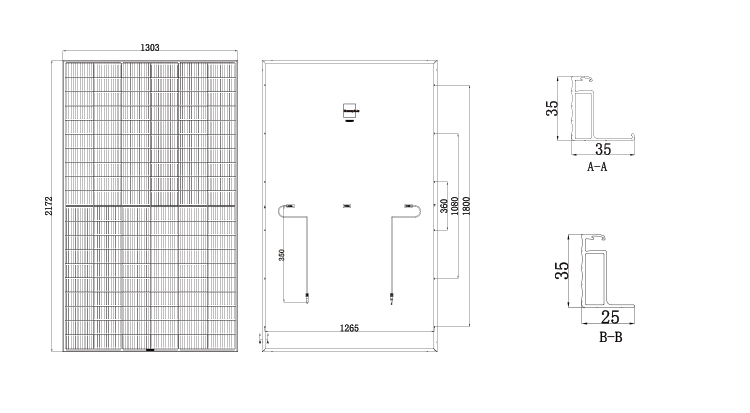

Panel Dimension (H/W/D) 2172x1303x35 mm
Weight 30.5 kg
Cell Type Monocrystalline
Cell Number 120
Glass Type Tempered, Low Iron
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 350 mm
PDF
Download Manufacturer's PDF



12BB G12 210mm pv modules oem 605w 600w 595w 590w 585w 120 cells half cell mono perc solar panel cell

MONO has a complete IV curve cell;
G12 cell size 210*105mm;
MBB reduces power losses;
HALF CUT reduces hot pot losses;
BOS reduces investment costs;
1500v system voltage;
Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.



Type
SR-MAX605H
SR-MAX600H
SR-MAX595H
SR-MAX590H
Efficiency(%)
21.38
21.21
21.03
20.85
Cell Type(mm)
210*105mm (12BB Mono-Crystalline Silicon)
Cells(pcs)
120(10*12)
Diode quantity
3
Cable&Connector
4mm2,MC4 or MC4 compatible，4mm2, EVO2 or EVO2 compatible
Cable length
350mm or as customer's requirements

  Automation Product Process



  Packaging and Shipping




5 or 7-ply corrugated boxes, reinforced wooden cases with pallets;
Custom made wooden cases are optional;
Ensure safety of all solar modules.
Protect your products in all aspects during transportation;

Dimension
2172×1303×35mm
Weight
30.5kg
Packing
31pcs/pallet

Loading Capacity

558pcs/40HC


  Our Project Reference




  Deliverry Mode




The transportation

According your demand and the quantity of products ,we’ll choose safe and economic transportation for you,including sea,air ,land and express.

  Company Profile



Intelligent Manufacturing

System Integration

Customization Project

Established in 2006,Sunrise Energy located in Zhonglou Economic Development District, Changzhou, China.Sunrise has 35000m² automatic workshop with 1GW annual capacity. Sunrise suppied high efficient and customized green solar power solution over 50 countries.

15+ Years Photovoltaic field experience

7.2+ GW Solar modules output

50+ Cases Germany,America,Vietnam

80+ Partners Around the world

100+ Patnents Main business , technologies



  Certifications



  Exhibition


T/T
20% T/T in advance, the banlance will be paid before goods arrive at discharge port.
L/C
20% T/T in advance, the banlance will be against L/C 30 days
By sea
Depart from Shanghai seaport

Delivery time

20-30 days on receipt of advance payment

  FAQ

Q: What is payment term?
A:T/T 30 days, L/C 30 days.
Q: What is the lead time?
A:Generally it will take about 20 days for production on receipt of advance payment.
Q: What is your monthly capacity？
A:Monthly capacity is about 80MW.
Q: How long is the warranty of your products?
A:year Product Warranty and 25-year Warranty for Extra Linear Power Output.
