1. Solar Panel Directory
  2. RT100WM

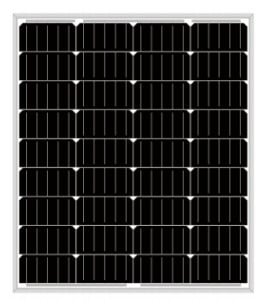

RT100WM

RT100WM

Runtech China Co.,Ltd
Price:
From €0.085 / Wp
Price per Piece
Minimum Order 50-299 Pieces 300-1999 Pieces 2000+ Pieces
Lead Time 5 Days 5 Days 7 Days
RT100WM €8.68 €8.59 €8.50
Technology: --
Power Range: 100 Wp
Region: China China
Contact Manufacturer
Note: Your Enquiry will be sent directly to Runtech China Co.,Ltd.

Description:

  • EVA encapsulated

  • Glass foil sandwich laminated

  • Sandblasted anodizing Aluminum frame

  • IEC 5400Pa tested

  • Hail up to 25mm diameter, 80 Km/h tested

  • Wide temperature range of -40 to +85 ℃

  • Nominal operating cell temperature (NOCT) of 47℃

Product Characteristics

Type Monocrystalline
Model No.
RT100WM
Electrical Data at STC
Maximum Power (Pmax)
100 Wp
Voltage at Maximum Power (Vmpp)
18.4 V
Current at Maximum Power (Impp)
5.43 A
Open Circuit Voltage (Voc)
22.8 V
Short Circuit Current (Isc)
5.85 A
Panel Efficiency
14.9 %
Power Tolerance (Positive)
+ 5 %
Power Tolerance (Negative)
- 5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Temperature 47±0 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.23 %/°C
Temperature Coefficient of Voc -0.33 %/°C
Temperature Coefficient of Isc 0.1 %/°C
Material Data
Panel Dimension (H/W/D) 770x665x30 mm
Weight 5.8 kg
Cell Number 36
Glass Type Tempered
Glass Thickness 3.2 mm
Encapsulant Type EVA
Frame Type Anodized Aluminium
Junction Box Protection Class IP 67
Cable Crossection 2.5 mm2
Cable Length 600 mm
PDF
Download Manufacturer's PDF
Datasheet

Runtech China Co.,Ltd

Click to show company phone
www.runtechenergy.com
China
15A, Maike Business Center, No. 12, Jinye Road, High-tech Zone, Xi'an, Shaanxi, 710065
No. Staff: 30
Parent Company: Runtech Group
Contact Manufacturer
Note: Your Enquiry will be sent directly to Runtech China Co.,Ltd.

Crystalline

Production (MW)/: MWp
Monocrystalline, Polycrystalline
Power Range(Wp): 100-420

Useful Contacts

Contact Face
Jack Wong （TS oversea） Technologic Support Engin...
Company Description

Runtech China have been engaged in New Energy included solar plant, solar off grid, and power generation more than 10 years since 2014 which is factory in Changzhou City, Jiangsu province and specialized to produce the 5W-600W range of solar module. Runtech accept the OEM / ODM business upon the 200MW ability annual.

Meanwhile as a leading trader of solar modules and PV project developer installer. With more than 400MW of premium quality modules ( CSI, Trina, Longji, JA AND Jinko Etc) deployed around the world and more Than 100MW solar plant were built by Runtech In China every year. The solar module what Runtech Energy provided all are one of the most bankable Tier one solar module in the world。
