RL430-460HM-144

Name: RL430-460HM-144
Brand: Rarlon PV TECH
SKU: 49541
Price: 0.19000 USD
Availability: InStock

Ningbo Rarlon Photovoltaic Technology Co., Ltd.

Price:

From €0.175 / Wp

Type:	Monocrystalline
Power Range:	430 ~ 460 Wp
Region:	China

Note: Your Enquiry will be sent directly to Ningbo Rarlon Photovoltaic Technology Co., Ltd..

Description:

Using MBB higher efficiency 166mm Mono cell and half cell technology. Power can be 430w-460w. By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced. This design effectively deals with the mismatch happened between cells caused by shadow, out of sync performance degradation, etc.

Product Info
Company Profile

Product Characteristics

Model No.

RL430HM-144

RL435HM-144

RL440HM-144

RL445HM-144

RL450HM-144

RL460HM-144

Warranty

Power Warranty

12 Years of 90% Output Power, 25 Years of 80% Output Power

Electrical Data at STC

Maximum Power (Pmax)

430 Wp

435 Wp

440 Wp

445 Wp

450 Wp

460 Wp

Voltage at Maximum Power (Vmpp)

41 V

41.2 V

41.4 V

41.6 V

41.8 V

41.9 V

Current at Maximum Power (Impp)

10.49 A

10.56 A

10.63 A

10.7 A

10.77 A

10.98 A

Open Circuit Voltage (Voc)

48.5 V

48.7 V

48.9 V

49.1 V

49.3 V

49.7 V

Short Circuit Current (Isc)

11.37 A

11.45 A

11.54 A

11.62 A

11.74 A

11.75 A

Panel Efficiency

19.8 %

20 %

20.2 %

20.5 %

20.7 %

21.2 %

Power Tolerance (Positive)

+ 3 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Electrical Data at NOCT

Temperature

45±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.38 %/°C

Temperature Coefficient of Voc

-0.289 %/°C

Temperature Coefficient of Isc

0.055 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

15 A

Material Data

Panel Dimension (H/W/D)

2094x1038x35 mm

Weight

23.5 kg

Cell Type

Monocrystalline

Cell Size

166×166 mm

Cell Number

144

Glass Type

Tempered

Glass Thickness

3.2 mm

Encapsulant Type

EVA

Back Cover Type

TPT

Frame Type

Anodized Aluminium Alloy

Junction Box Diodes

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm²

Cable Length

500 mm

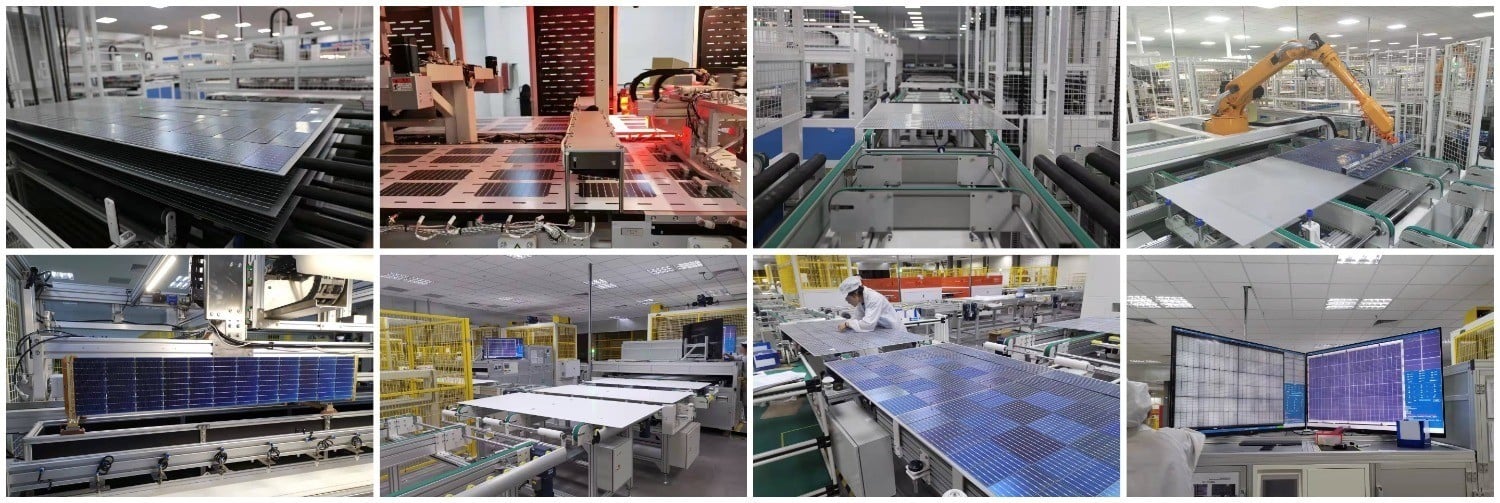

Production Line
