OS-HM72-445-455W

Hebei Oushang Photovoltaic Technology Co., Ltd.
Price:
From €0.129 / Wp
Type: Monocrystalline
Power Range: 445 ~ 455 Wp
Region: China China
Contact Manufacturer
Note: Your Enquiry will be sent directly to Hebei Oushang Photovoltaic Technology Co., Ltd..

Description:

  • 9BB multi-busbar technology for greater efficiency

  • Half-cut cells for higher power output

  • Less shading loss

  • ISO 9001, CE, TUV, and SGS certified

Product Characteristics

Model No.
OS-HM72-445 OS-HM72-450 OS-HM72-455
Warranty
Product Warranty 10 Years
Electrical Data at STC
Maximum Power (Pmax)
445 Wp 450 Wp 455 Wp
Voltage at Maximum Power (Vmpp)
41.21 V 41.52 V 41.82 V
Current at Maximum Power (Impp)
10.8 A 10.84 A 10.88 A
Open Circuit Voltage (Voc)
49.56 V 49.7 V 49.85 V
Short Circuit Current (Isc)
11.32 A 11.36 A 11.41 A
Panel Efficiency
19.3 % 19.7 % 20.1 %
Power Tolerance (Positive)
+ 1 % + 1 % + 1 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Temperature 47±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.35 %/°C
Temperature Coefficient of Voc -0.272 %/°C
Temperature Coefficient of Isc 0.044 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Material Data
Panel Dimension (H/W/D) 2100x1038x35 mm
Cell Type Monocrystalline
Cell Number 144
Glass Type Tempered
Encapsulant Type EVA
Back Cover Type TPT
Frame Type Anodized Aluminium
Junction Box Diodes 3
Junction Box Protection Class IP 67
Connector Type MC4
Cable Crossection 4 mm2
PDF
Download Manufacturer's PDF

Company Profile

Hebei Oushang Photovoltaic Technology Co., Ltd. is one of the top photovoltaic module manufacturers in China and has an annual production capacity of 500 MW. Our factory is located in Hebei Province, China, and covers 50,000 square meters of land. Oushang Solar has engaged in R&D, production, and sales of solar module products for many years. The power range of our solar panels is from 5W to 550W. Products cover monocrystalline and polycrystalline panels, half-cell modules, solar controllers, inverters, gel batteries, flood lights, solar street lights, monitor systems, etc. We also offer OEM service.
We have an advanced automatic production line in our factory. We use strict production technology and a quality control system to ensure the quality of our manufactured products. The quality inspection follows ISO 9001 standards. Our solar modules have passed the TUV, SGS, CE, SONCAP, and CQC tests. Our factory has passed the Intertek inspection. Our reliable solar panels have been proven to perform in diverse climates and environments all over the world. More than 20 GW has been shipped to Africa, Europe, Middle America, the Middle East, and Southeast Asia.

Our Factory

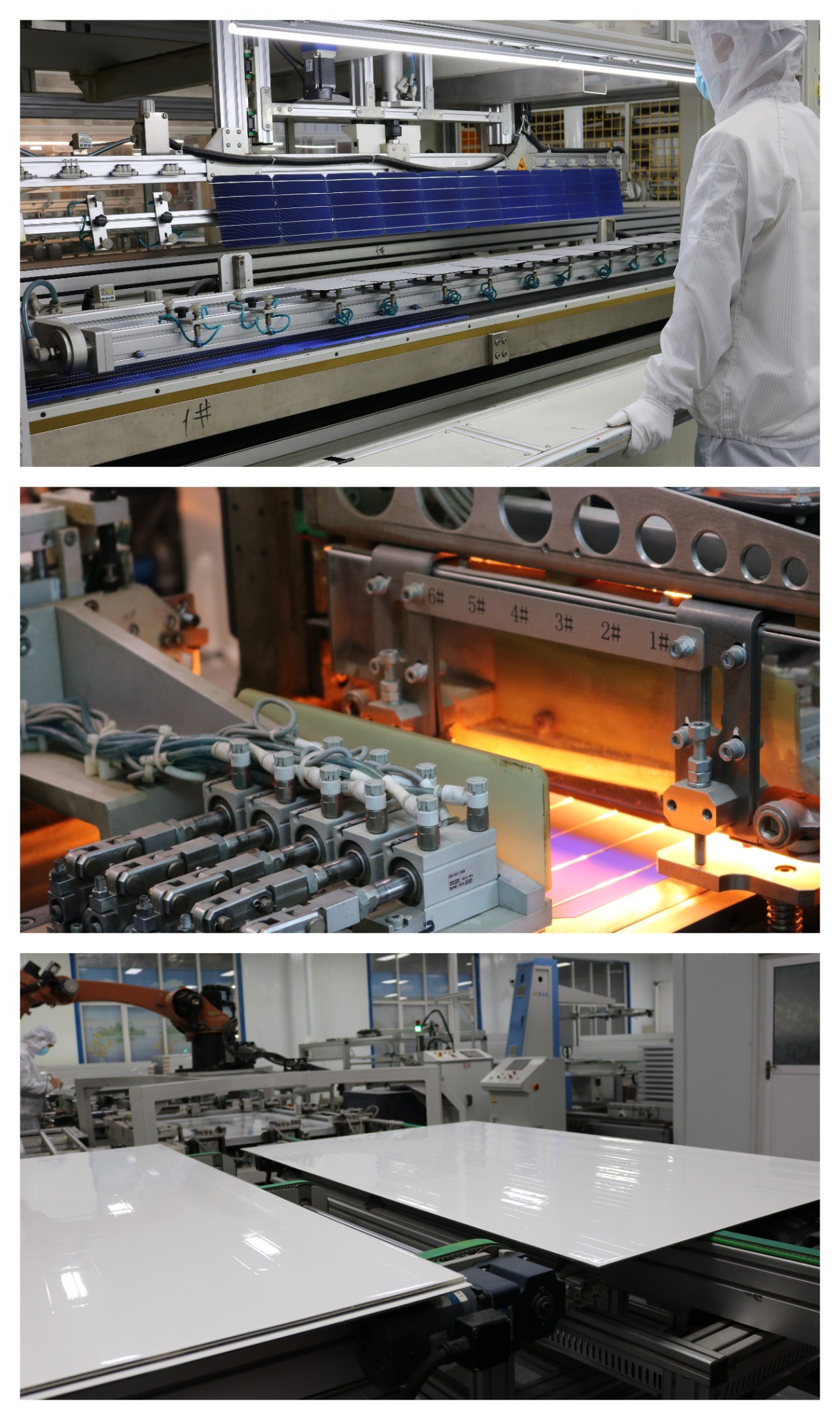

Production
