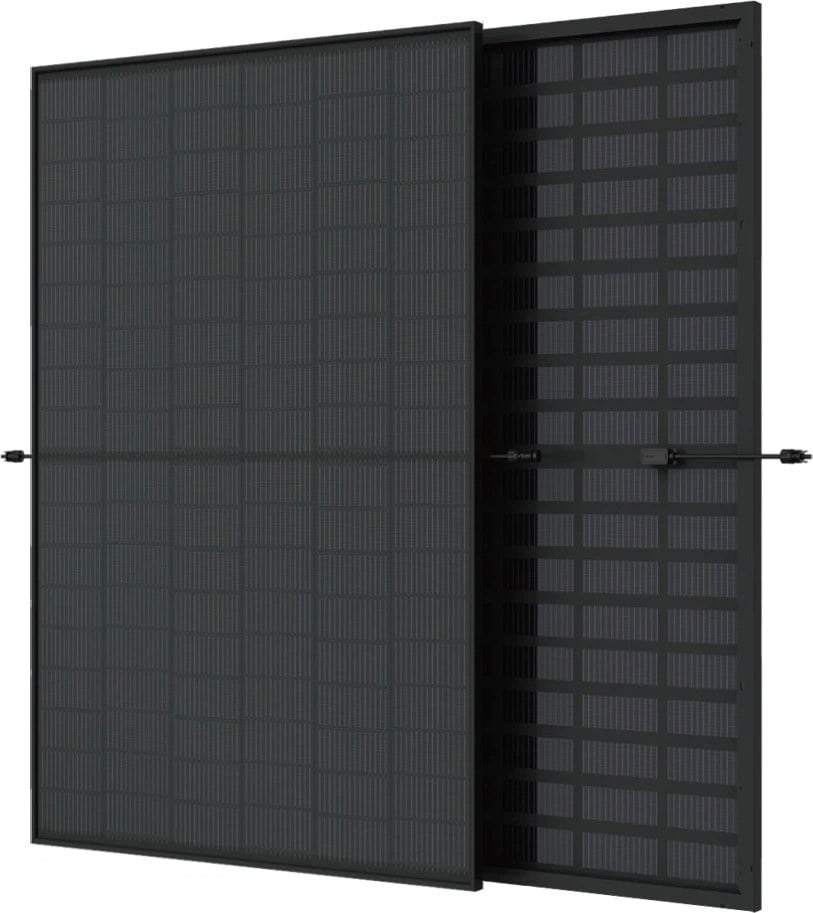

HW-P360H 275-295

HW-P360H 275-295

Hiwatt Solar Limited
Price:
From €0.251 / Wp
Price per Piece
Minimum Order 10+ Pieces
275 €68.9
280 €75.8
285 €76.7
Technology: --
Power Range: 275 ~ 295 Wp
Region: China China
Contact Manufacturer
Note: Your Enquiry will be sent directly to Hiwatt Solar Limited.

Description:

N-Type Half-Cell Module

PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Reduced Hot Spot Loss Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient

High energy generation, low LCOE

Low Pmax temp coefficient increases energy production

Product Characteristics

Type Polycrystalline
Model No.
275 280 285 290 295
Warranty
Product Warranty 12 Years
Power Warranty 25 Years of 84.8%
Electrical Data at STC
Maximum Power (Pmax)
275 Wp 280 Wp 285 Wp 290 Wp 295 Wp
Voltage at Maximum Power (Vmpp)
31.07 V 31.39 V 31.63 V 31.87 V 32.1 V
Current at Maximum Power (Impp)
8.85 A 8.92 A 9.01 A 9.1 A 9.19 A
Open Circuit Voltage (Voc)
38.3 V 38.58 V 38.86 V 39.13 V 39.4 V
Short Circuit Current (Isc)
9.35 A 9.45 A 9.55 A 9.65 A 9.75 A
Panel Efficiency
16.6 % 16.9 % 17.2 % 17.5 % 17.8 %
Power Tolerance (Positive)
+ 2 % + 2 % + 2 % + 1.5 % + 1.5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
204 Wp 208 Wp 212 Wp 215 Wp 219 Wp
Voltage at Maximum Power (Vmpp)
28.92 V 29.2 V 29.43 V 29.65 V 29.86 V
Current at Maximum Power (Impp)
7.08 A 7.14 A 7.21 A 7.28 A 7.35 A
Open Circuit Voltage (Voc)
35.92 V 36.18 V 36.44 V 36.7 V 36.95 V
Short Circuit Current (Isc)
7.54 A 7.62 A 7.7 A 7.79 A 7.87 A
Temperature 43±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.34 %/°C
Temperature Coefficient of Voc -0.25 %/°C
Temperature Coefficient of Isc 0.04 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 30 A
Material Data
Panel Dimension (H/W/D) 1665x996x35 mm
Weight 17.8 kg
Cell Number 60
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
PDF
Download Manufacturer's PDF
Datasheet

N-Type Half-Cell Module

N-Type Half-Cell Module

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Reduced Hot Spot Loss

Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient

High energy generation, low LCOE

Low Pmax temp coefficient increases energy production

Hiwatt Solar Limited

Click to show company phone
www.hiwattsolar.com
China
Longxi Road, Changzhou, Jiangsu
No. Staff: 200
Contact Manufacturer
Note: Your Enquiry will be sent directly to Hiwatt Solar Limited.

Crystalline

Production (MW)/: MWp
Monocrystalline, Polycrystalline
Power Range(Wp): 275-780

Useful Contacts

Contact Face
Mr.liam Manager
Contact Face
Harry-Director Sales Director
Company Description

Hiwatt Solar is a technology company specializing in the research , development, production and sales of solar photovoltaic modules. Hiwatt Solar is a world leading solar module manufacturer and comprehensive solar solution provider.Our solar modules production capacity reaches 2.2GW . We have our own fully automated production line which ensures the quality is strict and stable.we can produce market mainstream solar modules ,including large size 210mm cell solar module power up to 750W plus, MBB, high efficient single glass and double glass bifacial modules, both mono and poly, full cells and half cut cells solar modules.
