RL525HM-550HM-B

RL525HM-550HM-B

Ningbo Rarlon Photovoltaic Technology Co., Ltd.
Price:
From €0.167 / Wp
Type: Bifacial, HJT
Power Range: 525 ~ 550 Wp
Region: China China
Contact Manufacturer
Note: Your Enquiry will be sent directly to Ningbo Rarlon Photovoltaic Technology Co., Ltd..

Description:

Using MBB higher efficiency 158.75mm Mono cell and half cell technology. Power can be 390w-420w. By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced. This design effectively deals with the mismatch happened between cells caused by shadow, out of sync performance degradation, etc.

Product Characteristics

Model No.
RL525HM-B RL530HM-B RL535HM-B RL540HM-B RL545HM-B RL550HM-B
Warranty
Product Warranty 10 Years
Power Warranty 15 Years of 90% Output Power, 25 Years of 80% Output Power
Electrical Data at STC
Maximum Power (Pmax)
525 Wp 530 Wp 535 Wp 540 Wp 545 Wp 550 Wp
Voltage at Maximum Power (Vmpp)
40.61 V 40.71 V 40.81 V 40.91 V 41.07 V 41.18 V
Current at Maximum Power (Impp)
12.93 A 13.02 A 13.11 A 13.2 A 13.27 A 13.36 A
Open Circuit Voltage (Voc)
49.27 V 49.35 V 49.42 V 49.49 V 49.65 V 49.81 V
Short Circuit Current (Isc)
13.63 A 13.71 A 13.79 A 13.87 A 13.94 A 14.04 A
Panel Efficiency
20.36 % 20.55 % 20.75 % 20.94 % 21.13 % 21.18 %
Power Tolerance (Positive)
+ 3 % + 3 % + 3 % + 3 % + 3 % + 3 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
391 Wp 394 Wp 398 Wp 402 Wp 405 Wp
Voltage at Maximum Power (Vmpp)
37.74 V 37.88 V 37.98 V 38.08 V 38.18 V
Current at Maximum Power (Impp)
10.35 A 10.41 A 10.48 A 10.55 A 10.62 A
Open Circuit Voltage (Voc)
46.5 V 46.58 V 46.65 V 46.71 V 46.86 V
Short Circuit Current (Isc)
11.02 A 11.07 A 11.14 A 11.2 A 11.26 A
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.35 %/°C
Temperature Coefficient of Voc -0.28 %/°C
Temperature Coefficient of Isc 0.048 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 30 A
Material Data
Panel Dimension (H/W/D) 2256x1134x35 mm
Weight 28 kg
Cell Type Bifacial, HJT
Cell Size 210×210 mm
Cell Number 144
Glass Type Anti-reflection Coating
Glass Thickness 3.2 mm
Encapsulant Type EVA
Back Cover Type TPT
Frame Type Aluminium
Junction Box Protection Class IP 68
Cable Crossection 4 mm2

Production Line

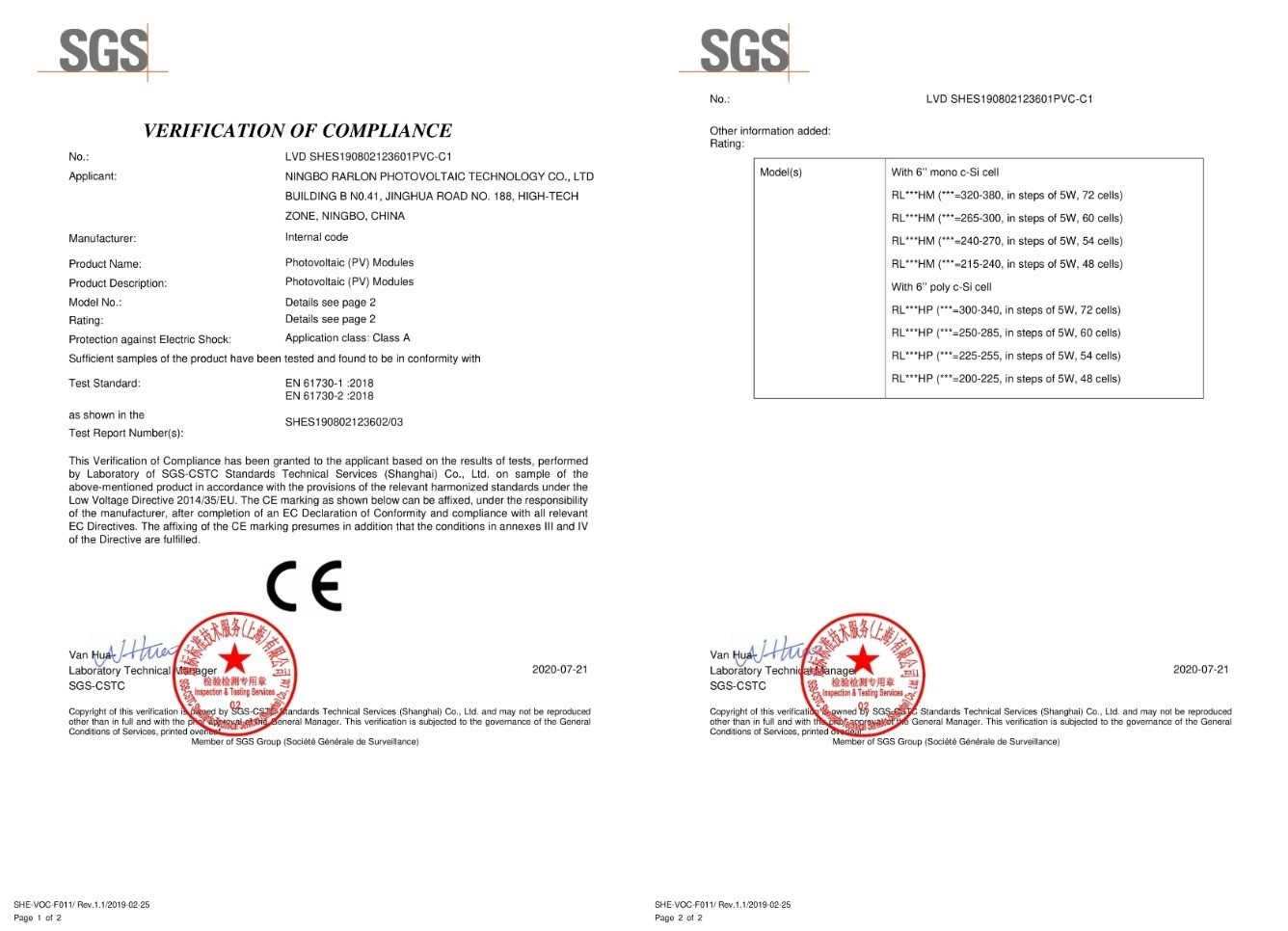

Certificates

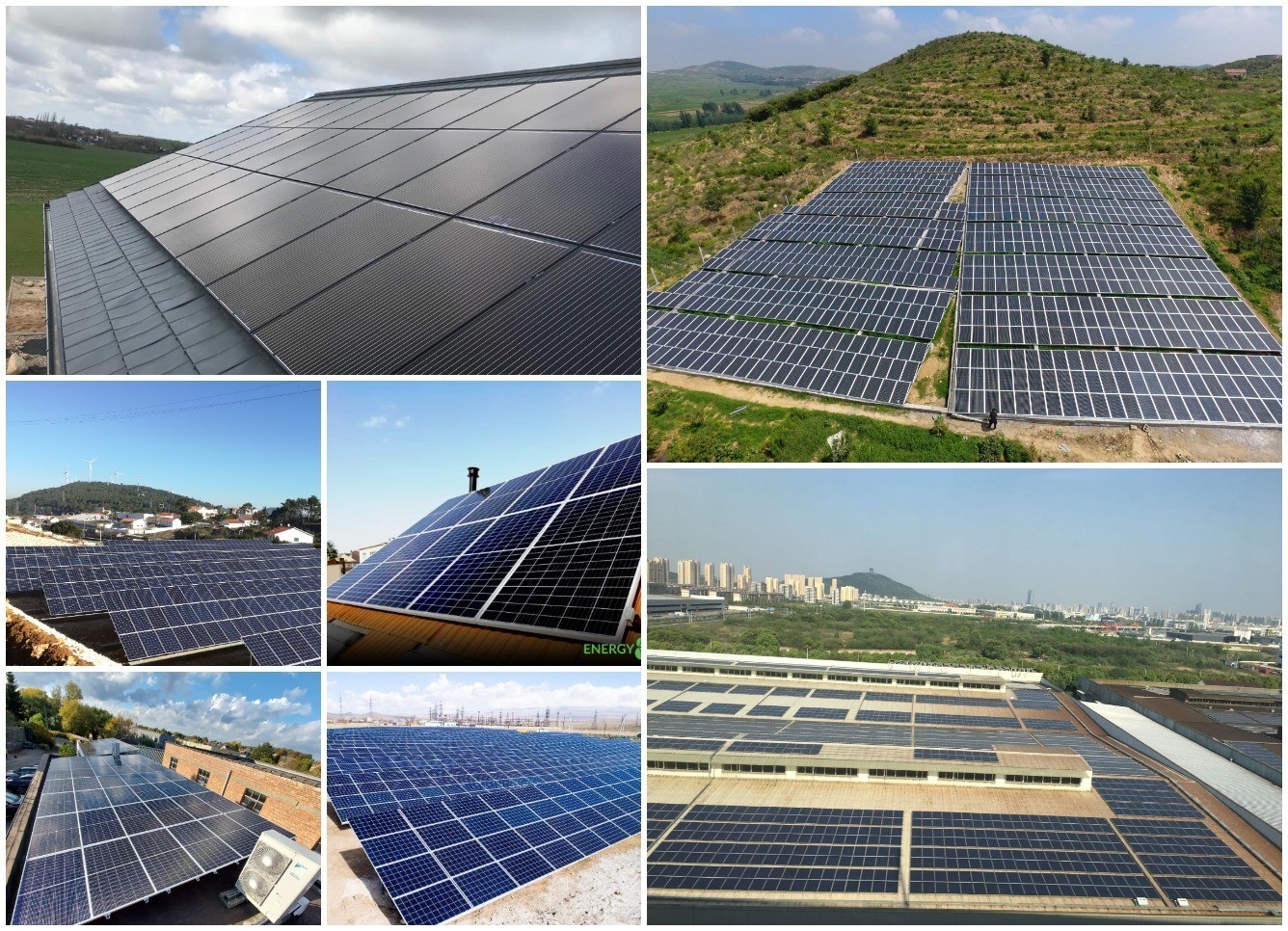

Projects
