M6 Series MY-M6/36-195-215W

M6 Series MY-M6/36-195-215W

MY Solar Technology Co., Ltd.
Price:
From €0.272 / Wp
Type: Monocrystalline
Power Range: 195 ~ 215 Wp
Region: China China
Contact Manufacturer
Note: Your Enquiry will be sent directly to MY Solar Technology Co., Ltd..

Alternative Product

Series 5 LNVU-...

Luxen Solar Energy
  • Cell Type: PERC
  • Dimensions: 2279x1134x35 mm
  • Weight: 27.5 kg
  • Cell Size: --
  • Glass Thickness: 3.2 mm

Product Characteristics

Model No.
MY-M6/36-195 MY-M6/36-200 MY-M6/36-205 MY-M6/36-210 MY-M6/36-215
Warranty
Product Warranty 25 Years
Electrical Data at STC
Maximum Power (Pmax)
195 Wp 200 Wp 205 Wp 210 Wp 215 Wp
Voltage at Maximum Power (Vmpp)
21.24 V 21.42 V 21.6 V 21.78 V 21.96 V
Current at Maximum Power (Impp)
9.18 A 9.34 A 9.49 A 9.64 A 9.84 A
Open Circuit Voltage (Voc)
24.34 V 24.37 V 24.41 V 24.44 V 24.48 V
Short Circuit Current (Isc)
10.2 A 10.43 A 10.65 A 10.88 A 11.16 A
Panel Efficiency
17.73 % 18.19 % 18.64 % 19.09 % 19.55 %
Power Tolerance (Positive)
+ 2.5 % + 2.5 % + 2.5 % + 2.5 % + 2.5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
145.63 Wp 149.36 Wp 153.09 Wp 156.83 Wp 160.56 Wp
Voltage at Maximum Power (Vmpp)
19.75 V 19.92 V 20.09 V 20.26 V 20.42 V
Current at Maximum Power (Impp)
7.36 A 7.49 A 7.61 A 7.73 A 7.89 A
Open Circuit Voltage (Voc)
22.8 V 22.84 V 22.87 V 22.9 V 22.94 V
Short Circuit Current (Isc)
8.24 A 8.43 A 8.61 A 8.79 A 9.02 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.39 %/°C
Temperature Coefficient of Voc -0.3 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D) 1560x705x35 mm
Weight 12.5 kg
Cell Type Monocrystalline
Cell Size 166×166 mm
Cell Number 36
Glass Type Anti-reflection Coating, Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 300 mm
PDF
Download Manufacturer's PDF

MY Solar Technology Co., Ltd.

Click to show company phone
www.mypvtech.com
China
No. 18, Yanxing Road, Yanqiao Supporting Area, Huishan Economic Development Zone, Wuxi, Jiangsu
No. Staff: 350
Note: Your Enquiry will be sent directly to MY Solar Technology Co., Ltd..

Crystalline

Production (MW)/: MWp
Monocrystalline, Polycrystalline
Power Range(Wp): 5-680

Innovative Panel Design

Production (MW): --
Roof Tiles and Shingles, Transparent Solar Cell, PV Thermal
Power Range(Wp): 100-1000

Useful Contacts

Contact Face
Mike Marketing Director
Contact Face
Jason Sales Manager
Contact Face
Jeb Sales Manager
Company Description

MY Solar Technology Co., Ltd. (MYPVTECH) is a major member of MY Solar Group (MY Solar), founded in 2010. MY Solar is a professional manufacturer engaged in the research & development, manufacturing & sales business of solar modules, inverters, energy storage batteries, solar power systems, and supporting products for solar power stations.

MY Solar is deeply trusted by new and old professional customers around the world for its new energy products with reasonable design, sophisticated technology, rich categories, and reliable quality, as well as professional, high-efficiency, and refined service characteristics.

The annual production and sales of new energy products include 3GW solar modules, 250, 000 solar systems, and 1.2GW solar power plant equipment. Customers are located in Europe, America, Asia, Africa, and other regions. MY Solar has reached brand, product, and channel cooperation with many well-known manufacturers in the industry, providing stable OEM and ODM services for relevant well-known manufacturers, and providing more cost-effective Tier1 brand product sales services for MY Solar customers simultaneously.

Product Videos
Products

About US

MY Solar is committed to driving economic development with green energy and creating a golden future with customers. Under the background of the general improvement of human environmental protection awareness and action, with the joint efforts of the team, with the trust and support of customers and the market, MY Solar has always maintained a healthy and stable development trend in recent years and has gradually grown into a more well-known high-quality new energy brand. MY Solar is also becoming the preferred supplier of new energy products for more experienced buyers.

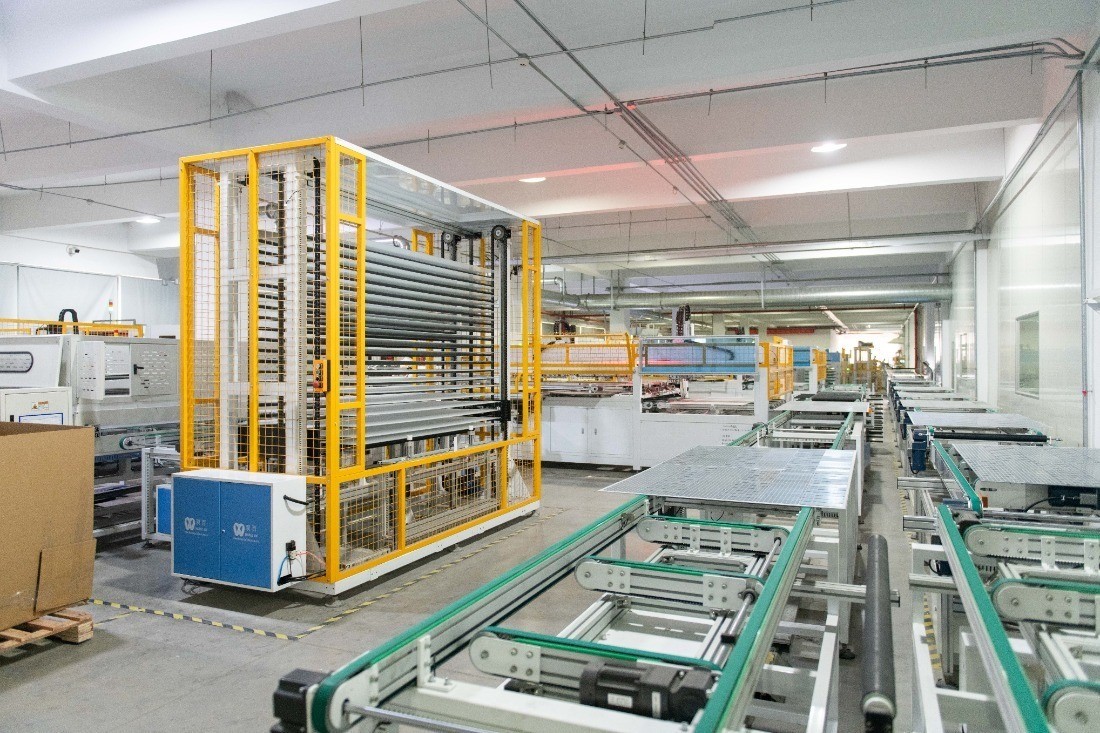

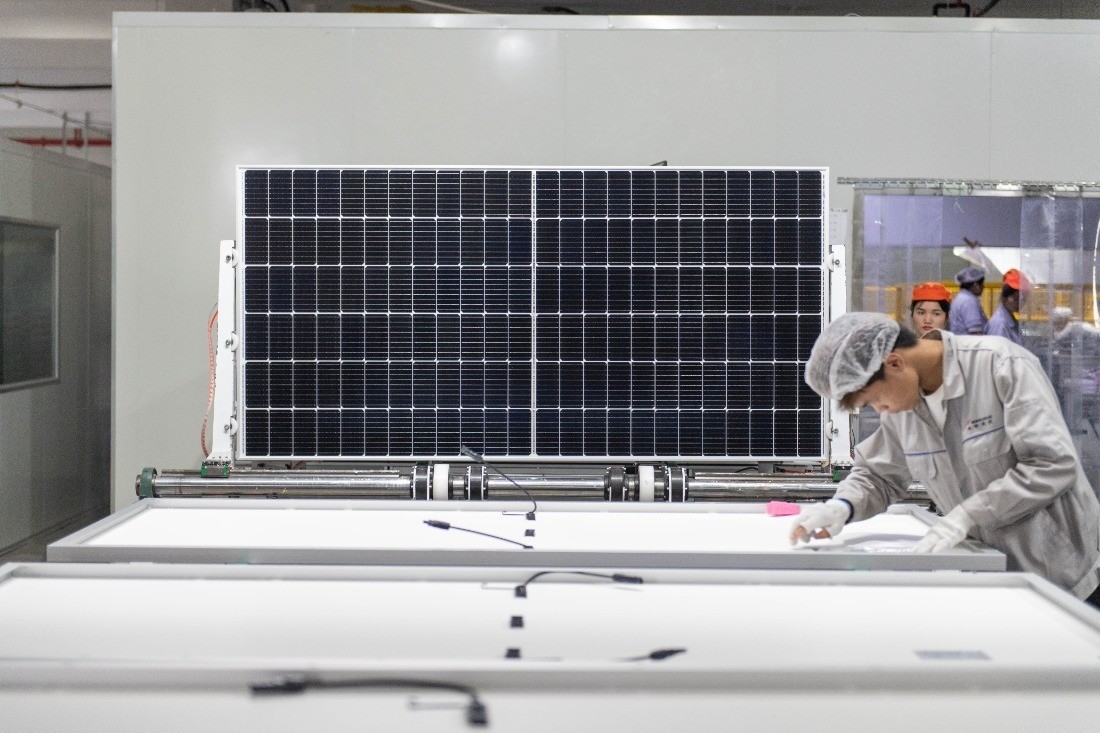

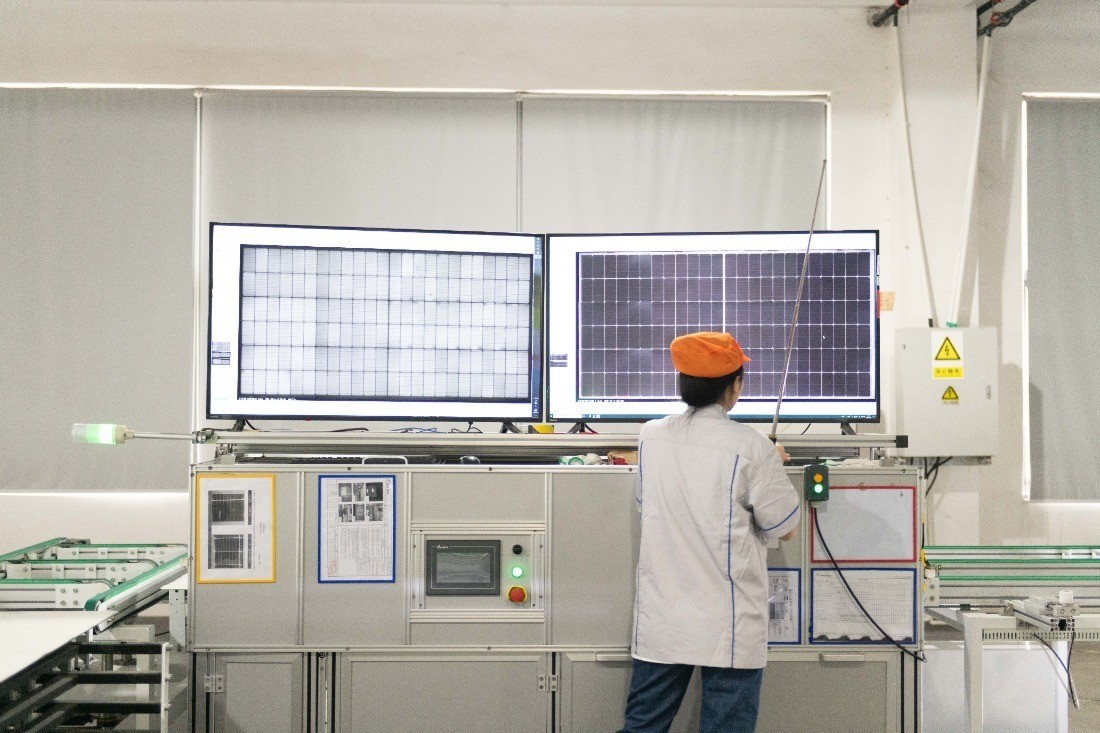

Factory

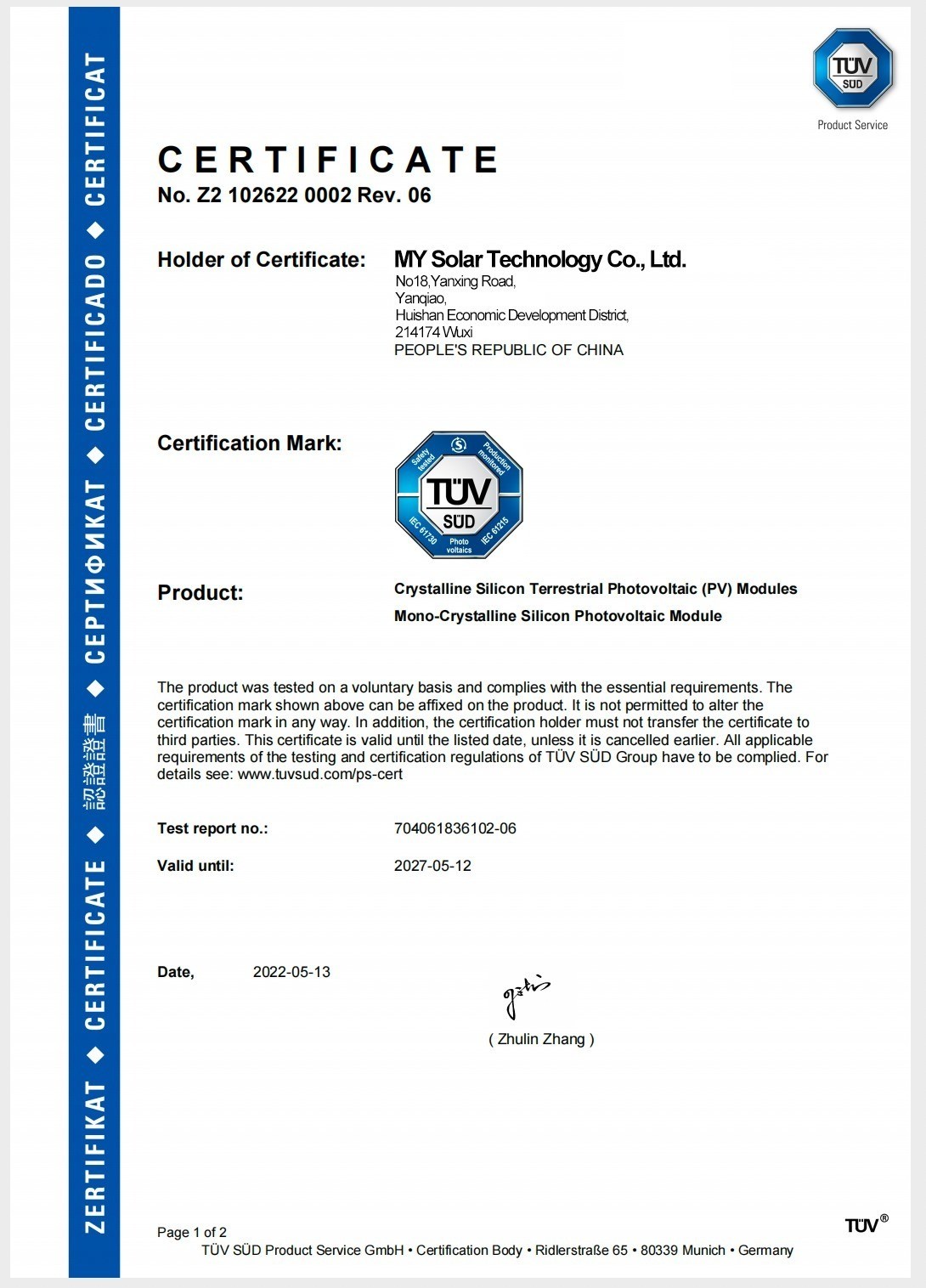

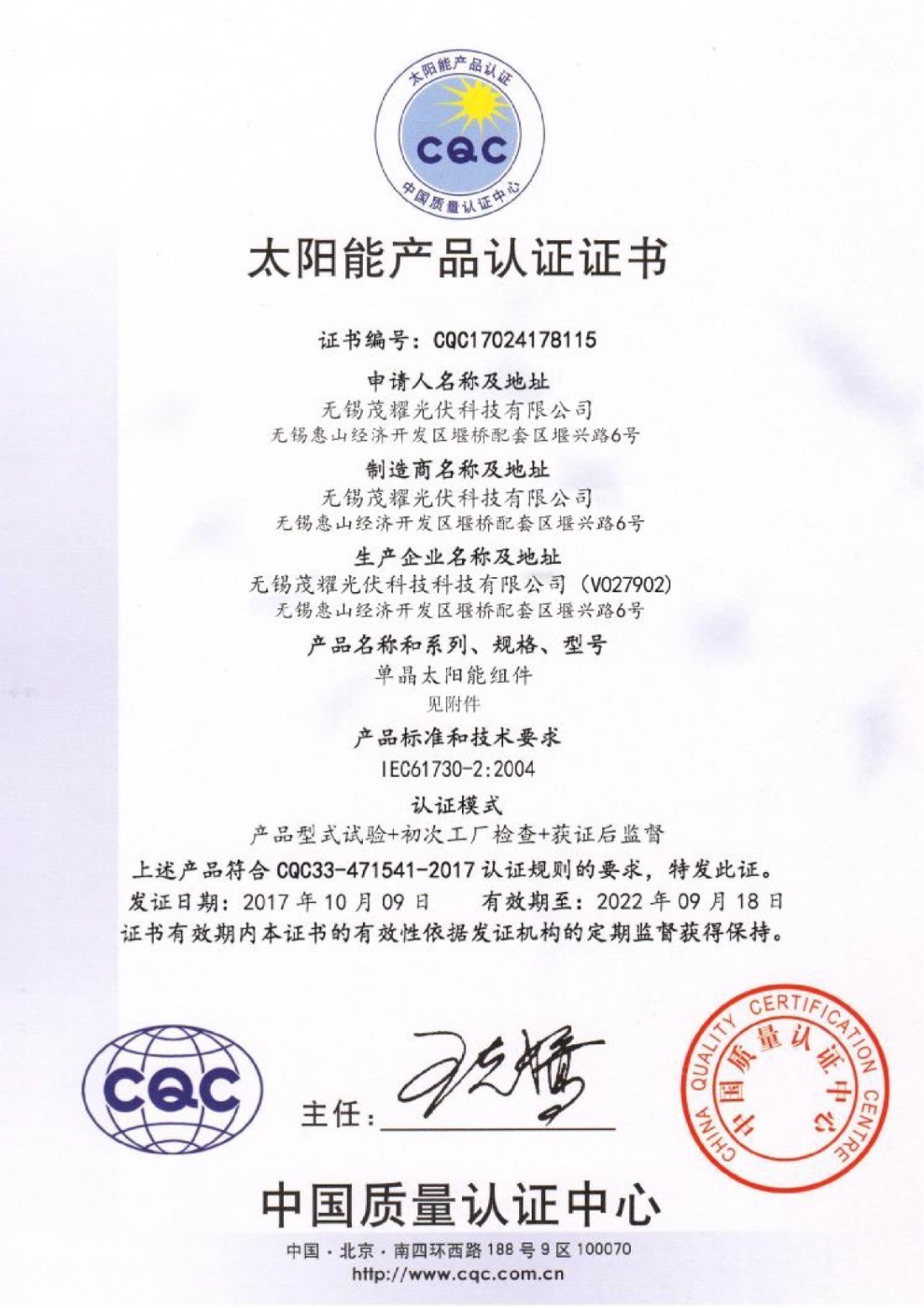

Certifications
