  2. MS-M854H 395-415W
MS-M854H 395-415W

MS-M854H 395-415W

Maysun Solar Co., Ltd
Price:
From €0.136 / Wp
Type: Monocrystalline
Power Range: 395 ~ 415 Wp
Region: China China
Note: Your Enquiry will be sent directly to Maysun Solar Co., Ltd.

Description:

A sleek and modern all-black frame packed with advanced technologies

Power range from 395 to 415 watts and an efficiency of up to 21.26%

Advanced half-cut technology and a multi-busbar design

Series-parallel wiring reduces shading loss

Excellent temperature performance

Product Characteristics

Model No.
MS-M854H 395W MS-M854H 400W MS-M854H 405W MS-M854H 410W MS-M854H 415W
Warranty
Product Warranty 12 Years
Power Warranty 12 Years of 90% Output Power, 25 Years of 85% Output Power
Electrical Data at STC
Maximum Power (Pmax)
395 Wp 400 Wp 405 Wp 410 Wp 415 Wp
Voltage at Maximum Power (Vmpp)
31.25 V 31.36 V 31.47 V 31.59 V 31.71 V
Current at Maximum Power (Impp)
12.64 A 12.76 A 12.87 A 12.98 A 13.09 A
Open Circuit Voltage (Voc)
37.02 V 37.11 V 37.2 V 37.29 V 37.38 V
Short Circuit Current (Isc)
13.51 A 13.63 A 13.74 A 13.85 A 13.96 A
Panel Efficiency
20.23 % 20.48 % 20.74 % 21 % 21.26 %
Power Tolerance (Positive)
+ 3 % + 3 % + 3 % + 3 % + 3 %
Power Tolerance (Negative)
- 3 % - 3 % - 3 % - 3 % - 3 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
292 Wp 295 Wp 299 Wp 305 Wp 309 Wp
Voltage at Maximum Power (Vmpp)
28.43 V 28.53 V 28.64 V 28.81 V 28.92 V
Current at Maximum Power (Impp)
10.26 A 10.35 A 10.43 A 10.59 A 10.68 A
Open Circuit Voltage (Voc)
34.2 V 34.27 V 34.35 V 34.67 V 34.76 V
Short Circuit Current (Isc)
10.91 A 11 A 11.1 A 11.19 A 11.27 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~+85 °C
Temperature Coefficient of Pmax -0.36 %/°C
Temperature Coefficient of Voc -0.29 %/°C
Temperature Coefficient of Isc +0.048 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 1722x1134x30 mm
Weight 21.5 kg
Cell Type Monocrystalline
Cell Size 182x182 mm
Cell Number 108
Glass Type Anti-reflection Coating, Tempered
Glass Thickness 3.2 mm
Encapsulant Type EVA
Back Cover Type TPT
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 300 mm
PDF
Download Manufacturer's PDF

MS-M854H 395-415W

1722 * 1134 * 30mm;

108 cells, Module efficiency: 21.26%, Mono 10BB Half-cut Module;

TUV, CE, CB, ISO9001, CQC certified;

12 years product warranty;

25 years linear power output warranty;

Package: 36 Pcs/Pallet, 936 pcs/40' Hq;

The half-cut technique leads to increased power output. When the cells are cut into halves, the current is also halved, which enables less internal loss;

Series-parallel wiring mode results in reduced shading loss;

The temperature of HC module is 1.6 °C lower than that of the conventional module under the same working condition, which results to less power loss.

About the Company

Maysun Solar Co., Ltd. is a high-tech enterprise specializing in the production of solar cell modules. At present, it has developed into a comprehensive energy management company integrating R & D and production of photovoltaic module products, development, installation, and maintenance of solar power stations, striving to create high-quality products and services for clean and renewable energy.

Since its establishment, to expand production capacity and improve production technology, the company has introduced first-class modern production equipment, improved the conversion efficiency and quality of products, and reduced production costs. Continuously committed to the development of new technology, it has successfully applied for more than 10 invention patents, with products passing ISO9001, TUV, CQC, and CE certifications.

Maysun Solar has two main brands: “Maysun Solar” mainly promotes overseas markets. Its products are exported to Germany, Italy, France, Spain, Belgium, Portugal, Netherlands, Pakistan, and other counties, and are widely praised by customers. At the same time, to actively respond to the national call for "carbon peak, carbon neutral”, Maysun Solar launched the high-end component brand “Rachida”, which mainly serves the distributed power station and centralized ground power station pursuing high power generation and high-cost performance. Maysun Solar will do its best to protect the green Earth so that more families can always enjoy renewable solar energy and build a clean living environment. Maysun Solar is also committed to becoming a leading photovoltaic manufacturer in the industry and making its contribution to global energy conservation and environmental protection.

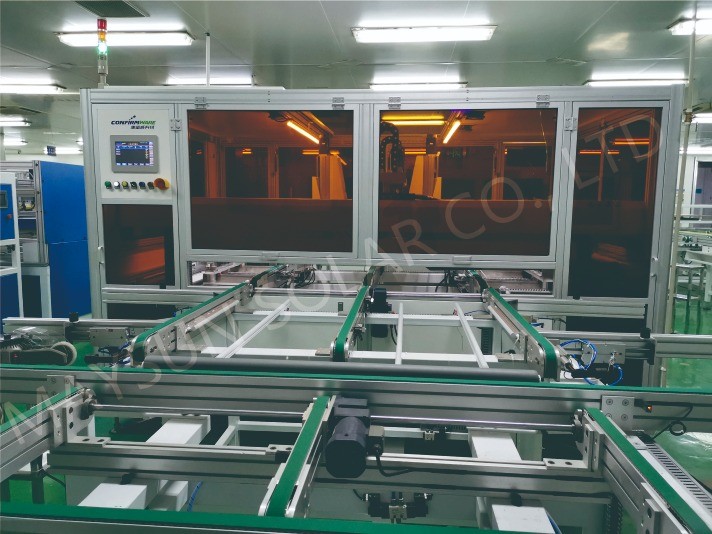

Factory
