RMHT72/565~585S1

RMHT72/565~585S1

REGITEC Solar
Price:
From €0.0933 / Wp
Technology: TOPCon
Power Range: 565 ~ 585 Wp
Region: Belgium Belgium
Contact Manufacturer
Note: Your Enquiry will be sent directly to REGITEC Solar.

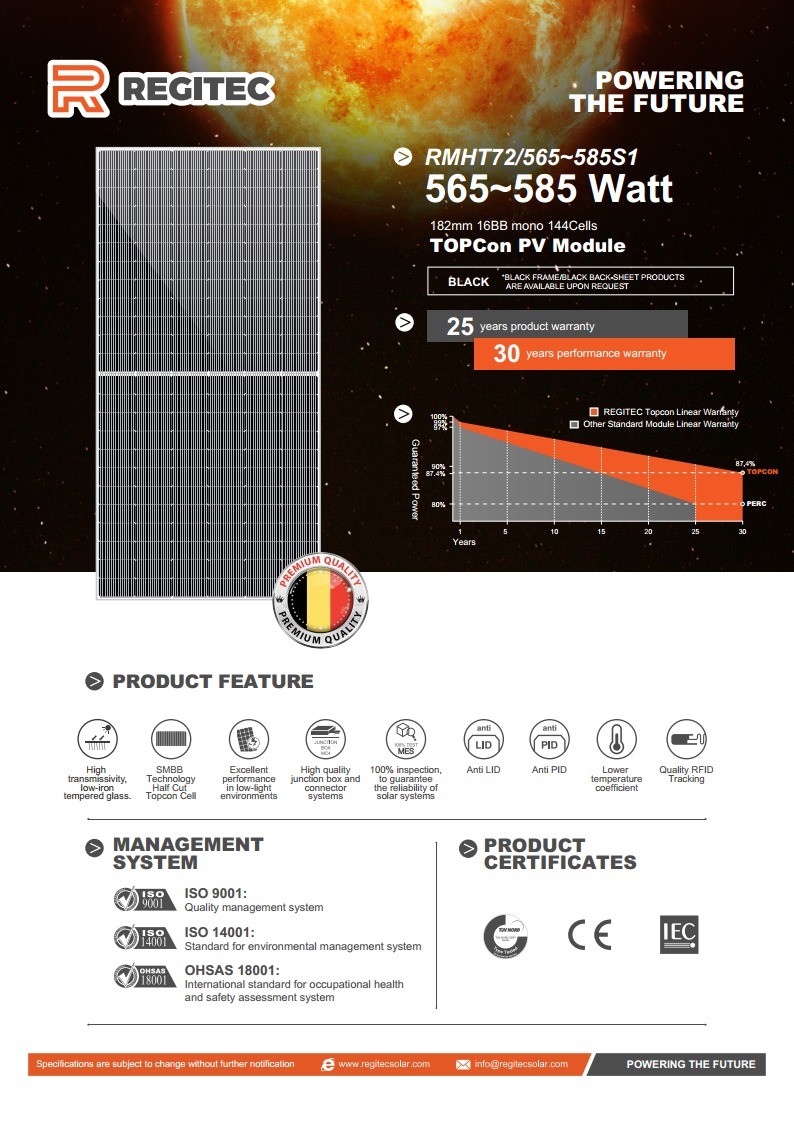

Description:

Using high efficiency TOPCon solar cells.

high module efficiency.

25 years product warranty

lower temp. coefficiënt.

more output at lower light conditions compared to PERC.

100% inspection, to guarantee the reliability of solar systems.

Anti LID & Anti PID.

Quality RFID Tracking.

Product Characteristics

Type Monocrystalline
Model No.
RMHT72/565S1 RMHT72/570S1 RMHT72/575S1 RMHT72/580S1 RMHT72/585S1
Warranty
Product Warranty 25 Years
Power Warranty 30 Years of 87.4% Output Power

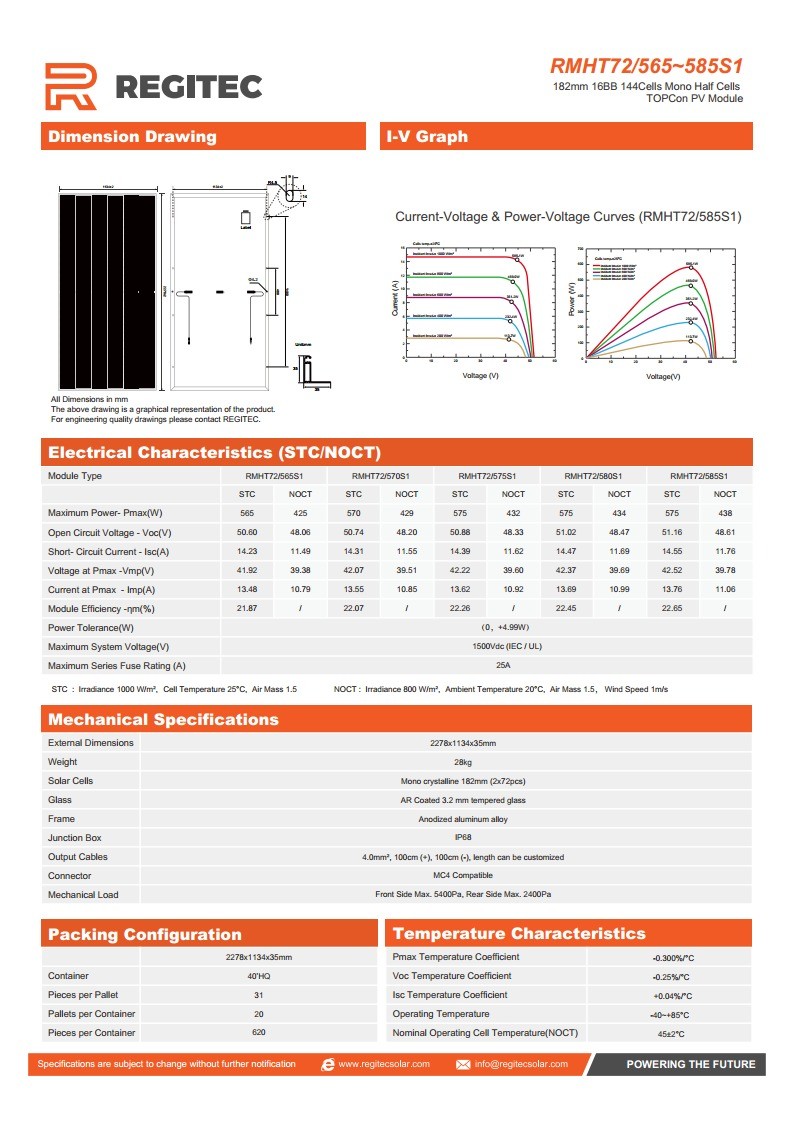

Electrical Data at STC
Maximum Power (Pmax)
565 Wp 570 Wp 575 Wp 580 Wp 585 Wp
Voltage at Maximum Power (Vmpp)
41.92 V 42.07 V 42.22 V 42.37 V 42.52 V
Current at Maximum Power (Impp)
13.48 A 13.55 A 13.62 A 13.69 A 13.76 A
Open Circuit Voltage (Voc)
50.6 V 50.74 V 50.88 V 51.02 V 51.16 V
Short Circuit Current (Isc)
14.23 A 14.31 A 14.39 A 14.47 A 14.55 A
Panel Efficiency
21.87 % 22.07 % 22.26 % 22.445 % 22.65 %
Power Tolerance (Positive)
+ 1 % + 1 % + 1 % + 1 % + 1 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
425 Wp 429 Wp 432 Wp 434 Wp 438 Wp
Voltage at Maximum Power (Vmpp)
39.38 V 39.51 V 39.6 V 39.69 V 39.78 V
Current at Maximum Power (Impp)
10.79 A 10.85 A 10.92 A 10.99 A 11.06 A
Open Circuit Voltage (Voc)
48.06 V 48.2 V 48.33 V 48.47 V 48.61 V
Short Circuit Current (Isc)
11.49 A 11.55 A 11.62 A 11.69 A 11.76 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.35 %/°C
Temperature Coefficient of Voc -0.275 %/°C
Temperature Coefficient of Isc 0.045 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 2278x1134x35 mm
Weight 28 kg
Cell Number 144
Glass Type Anti-reflection Coating, Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 1000 mm
PDF
Download Manufacturer's PDF

REGITEC Solar

+32 495 523 035
https://www.regitecsolar.com
Belgium
Veldekensstraat 5A, 8810 Lichtervelde
Note: Your Enquiry will be sent directly to REGITEC Solar.
