DY-M182H672-530-550W

Jiangsu Deyu New Energy Technology Co., Ltd.

Technology:	--
Power Range:	530 ~ 550 Wp
Region:	China

Contact Manufacturer

Note: Your Enquiry will be sent directly to Jiangsu Deyu New Energy Technology Co., Ltd..

Solar Panel
Sungi Solar - SNG Colored HC Mono 400W Total Red

From €0.098 / Wp

Solar Panel
Resun Solar - RS8V-M Full Black TOPCon 420-435W

From €0.0763 / Wp

Product Info
Company Profile

Product Characteristics

Type

Monocrystalline

Model No.

530

535

540

545

550

Warranty

Product Warranty

12 Years

Power Warranty

10 Years of 92.1% Output Power, 25 Years of 83.1% Output Power

Electrical Data at STC

Maximum Power (Pmax)

530 Wp

535 Wp

540 Wp

545 Wp

550 Wp

Voltage at Maximum Power (Vmpp)

40.74 V

40.88 V

41.01 V

41.15 V

41.28 V

Current at Maximum Power (Impp)

13.01 A

13.09 A

13.17 A

13.24 A

13.32 A

Open Circuit Voltage (Voc)

49.26 V

49.4 V

49.53 V

49.67 V

49.8 V

Short Circuit Current (Isc)

13.69 A

13.77 A

13.85 A

13.93 A

14.01 A

Panel Efficiency

20.6 %

20.8 %

21 %

21.2 %

21.4 %

Power Tolerance (Positive)

+ 1 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

394 Wp

398 Wp

402 Wp

406 Wp

410 Wp

Voltage at Maximum Power (Vmpp)

37.92 V

38.05 V

38.19 V

38.32 V

38.46 V

Current at Maximum Power (Impp)

10.4 A

10.46 A

10.52 A

10.58 A

10.64 A

Open Circuit Voltage (Voc)

46.5 V

46.63 V

46.75 V

46.88 V

47 V

Short Circuit Current (Isc)

11.06 A

11.12 A

11.19 A

11.25 A

11.32 A

Temperature

44±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.35 %/°C

Temperature Coefficient of Voc

-0.27 %/°C

Temperature Coefficient of Isc

0.048 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

25 A

Material Data

Panel Dimension (H/W/D)

2279x1134x35 mm

Weight

29.4 kg

Cell Number

144

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Cable Crossection

4 mm²

Cable Length

300 mm

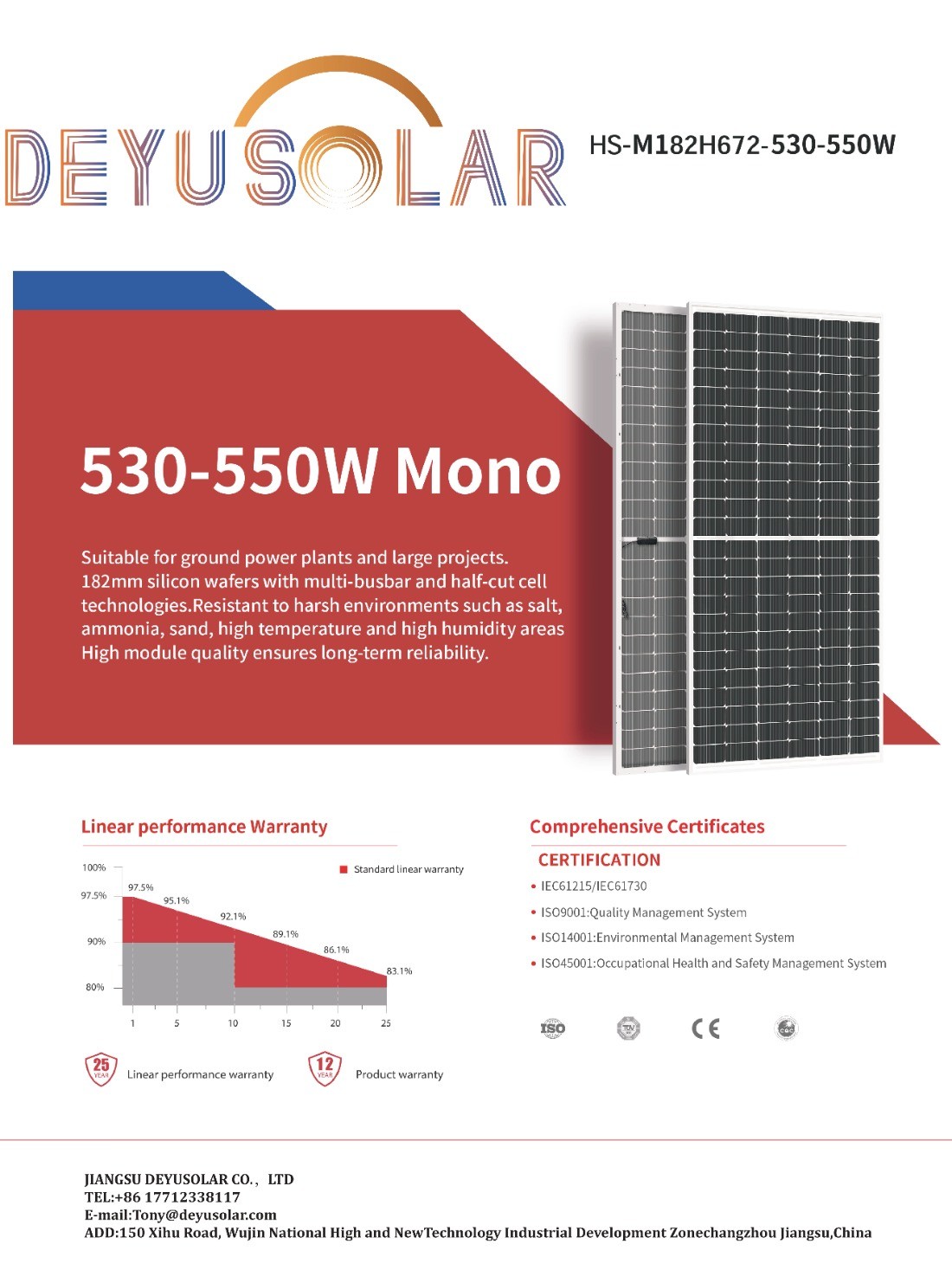

PDF

Download Manufacturer's PDF

Jiangsu Deyu New Energy Technology Co., Ltd.

: Click to show company phone
: www.deyusolar.com
: China
: No. 150, Xihu Road, Wujin High-tech Industrial Development Zone, Changzhou City, Jiangsu Province

No. Staff: 277

Contact Manufacturer

Note: Your Enquiry will be sent directly to Jiangsu Deyu New Energy Technology Co., Ltd..

Crystalline

Production (MW)/: MWp

Monocrystalline, Polycrystalline, Crystalline

Power Range(Wp): 15-550

Useful Contacts

Chen yang Sales Director

Company Description

Jiangsu Changzhou DeyuSolar was established in December 2015. We are a professional company equipped with an R&D team engaged in the design, production, and sales of solar cells, solar photovoltaic modules, and system applications.

Since our establishment, the company has been adhering to the concept of making accurate and high-quality products, continuously developing high-quality PV products, and extending downward, elaborately creating a vertical industrial chain of the photovoltaic industry.

We are committed to becoming a diversified, large-scale, and international professional green energy supplier, providing global customers with one-stop service and solutions in the field of solar photovoltaic.
