Vertex S+ TSM-NEG9R.28 430-460W

Trina Solar Vertex S+ TSM-NEG9R.28 430-460W

TWE Solar GmbH
Price:
From €0.119 / Wp
Technology: TOPCon, N-type
Power Range: 450 Wp
Region: Germany Germany
Contact Seller
Note: Your Enquiry will be sent directly to TWE Solar GmbH.

Description:

  • High power output & efficiency with high density interconnect technology

  • Multi-busbar technology for better light trapping, lower series resistance, improved current collection & enhanced reliability

  • Upgraded dual glass, less prone to micro-cracks and scratches

  • 15 years product warranty & 30 years power warranty

Product Characteristics

Type Monocrystalline
Model No.
450W
Warranty
Product Warranty 15 Years
Power Warranty 30 Years of 87.4% Output Power
Electrical Data at STC
Maximum Power (Pmax)
450 Wp
Voltage at Maximum Power (Vmpp)
44.6 V
Current at Maximum Power (Impp)
10.09 A
Open Circuit Voltage (Voc)
52.9 V
Short Circuit Current (Isc)
10.74 A
Panel Efficiency
22.5 %
Power Tolerance (Positive)
+ 1 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
343 Wp
Voltage at Maximum Power (Vmpp)
41.7 V
Current at Maximum Power (Impp)
8.24 A
Open Circuit Voltage (Voc)
50.2 V
Short Circuit Current (Isc)
8.65 A
Temperature 43±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.29 %/°C
Temperature Coefficient of Voc -0.24 %/°C
Temperature Coefficient of Isc 0.04 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 1762x1134x30 mm
Weight 21.8 kg
Cell Number 144
Glass Type Anti-reflection Coating
Glass Thickness 1.6 mm
Frame Type Anodized Aluminium, Black
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
PDF
Download Manufacturer's PDF

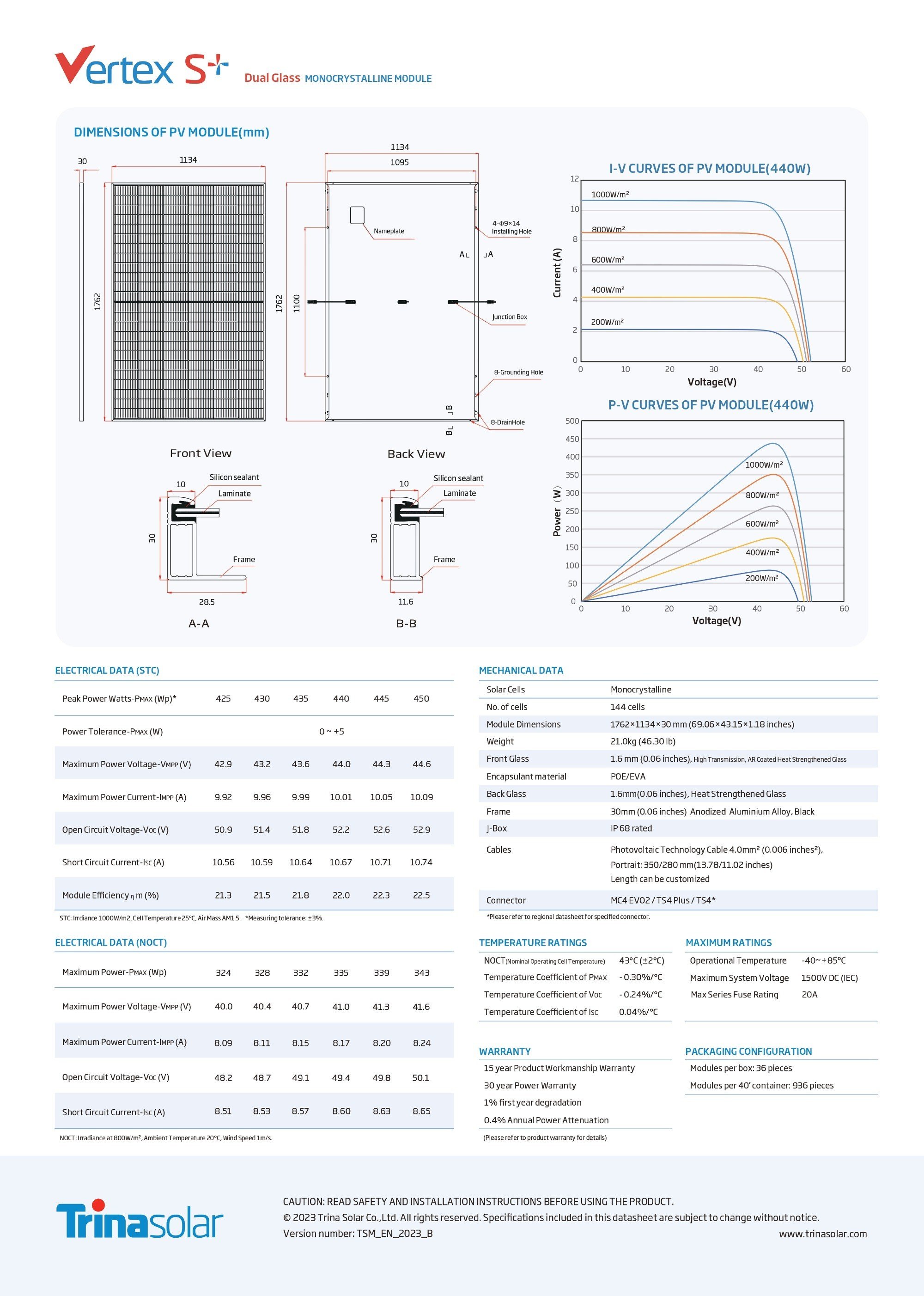

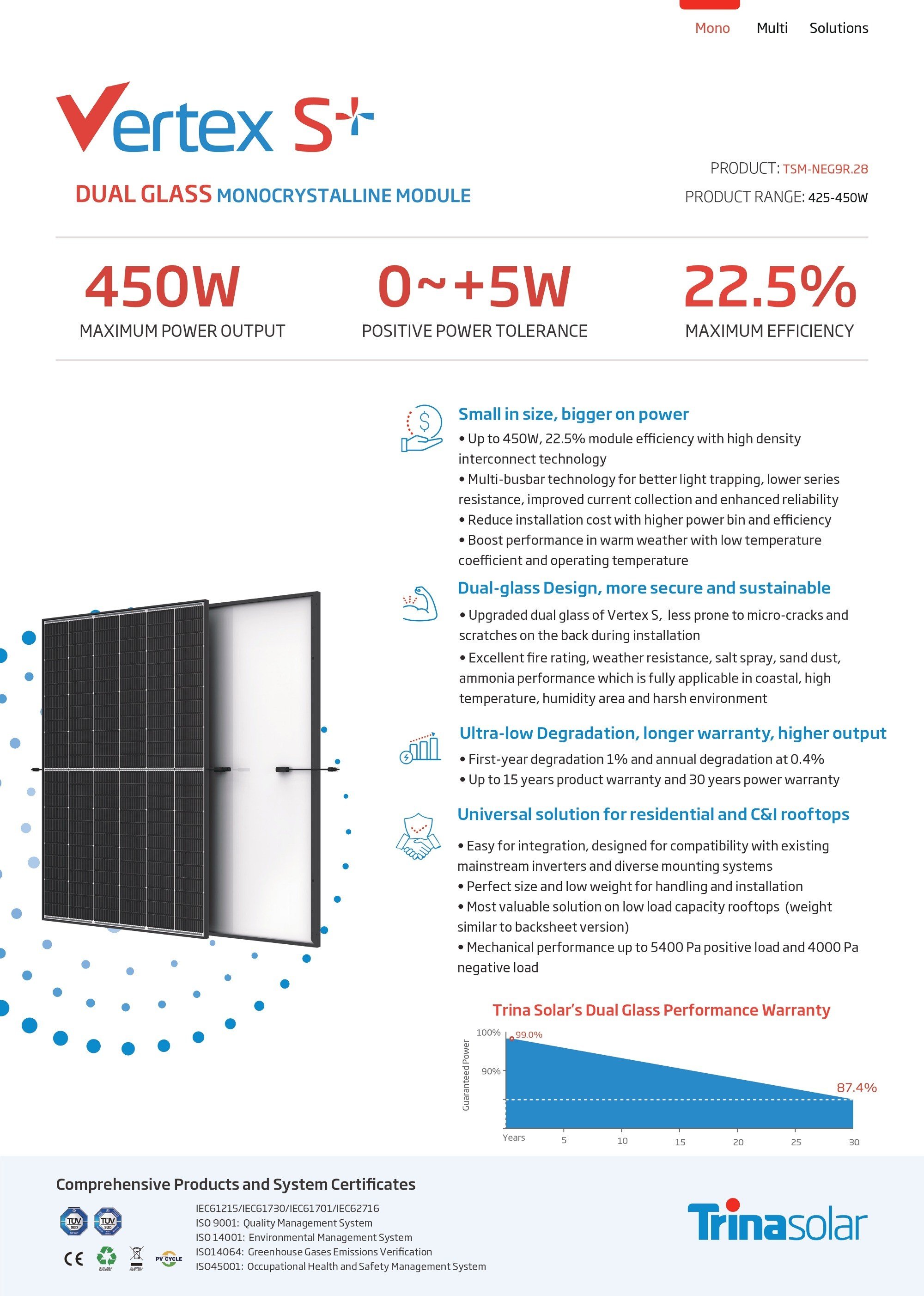

Trina Vertex S+ TSM-NEG9R.28 425-450W Solar Module
