RH954TDGDC 410-430W Full Black

Zhejiang Winhitech New Energy Co., Ltd.

Technology:	Bifacial, TOPCon
Power Range:	410 ~ 430 Wp
Region:	China

Contact Manufacturer

Note: Your Enquiry will be sent directly to Zhejiang Winhitech New Energy Co., Ltd..

Solar Panel
Techwise Solar - Sun-Pursuit Pro TW-575-600HP-1

From €0.0715 / Wp

Solar Panel
Sunpro Power - SPDG540-565W-N120R12

From €0.118 / Wp

Product Info
Company Profile

Product Characteristics

Model No.

410

415

420

425

430

Warranty

Product Warranty

12 Years

Power Warranty

30 Years of 87.4% Output Power

Electrical Data at STC

Maximum Power (Pmax)

410 Wp

415 Wp

420 Wp

425 Wp

430 Wp

Voltage at Maximum Power (Vmpp)

31.28 V

31.49 V

31.7 V

31.91 V

32.12 V

Current at Maximum Power (Impp)

13.11 A

13.18 A

13.25 A

13.32 A

13.39 A

Open Circuit Voltage (Voc)

37.9 V

38.11 V

38.32 V

38.53 V

38.74 V

Short Circuit Current (Isc)

13.84 A

13.92 A

14 A

14.08 A

14.16 A

Panel Efficiency

21 %

21.25 %

21.51 %

21.77 %

22.02 %

Power Tolerance (Positive)

+ 3 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.3 %/°C

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

0.46 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Material Data

Panel Dimension (H/W/D)

1722x1134x30 mm

Weight

24.5 kg

Cell Number

108

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Cable Crossection

4 mm²

Cable Length

1200 mm

PDF

Download Manufacturer's PDF

Datasheet

Zhejiang Winhitech New Energy Co., Ltd.

: Click to show company phone
: www.runhaine.com
: China
: No.5, South Zimao 1st Road, High-tech Industrial Park, Zhoushan, Zhejiang

No. Staff: 1,000

Contact Manufacturer

Note: Your Enquiry will be sent directly to Zhejiang Winhitech New Energy Co., Ltd..

Crystalline

Production (MW)/: MWp

Monocrystalline

Power Range(Wp): 410-730

Useful Contacts

Guoqing Chen

Zhao chunbo Domestic Sales Director

Xu lianbin

Zhang pinxuan

Lou kan

Lin chenyan Sales Support Specialist

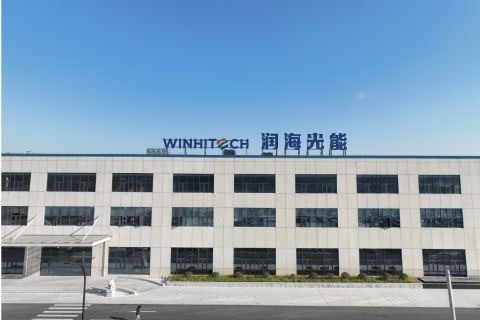

Company Description

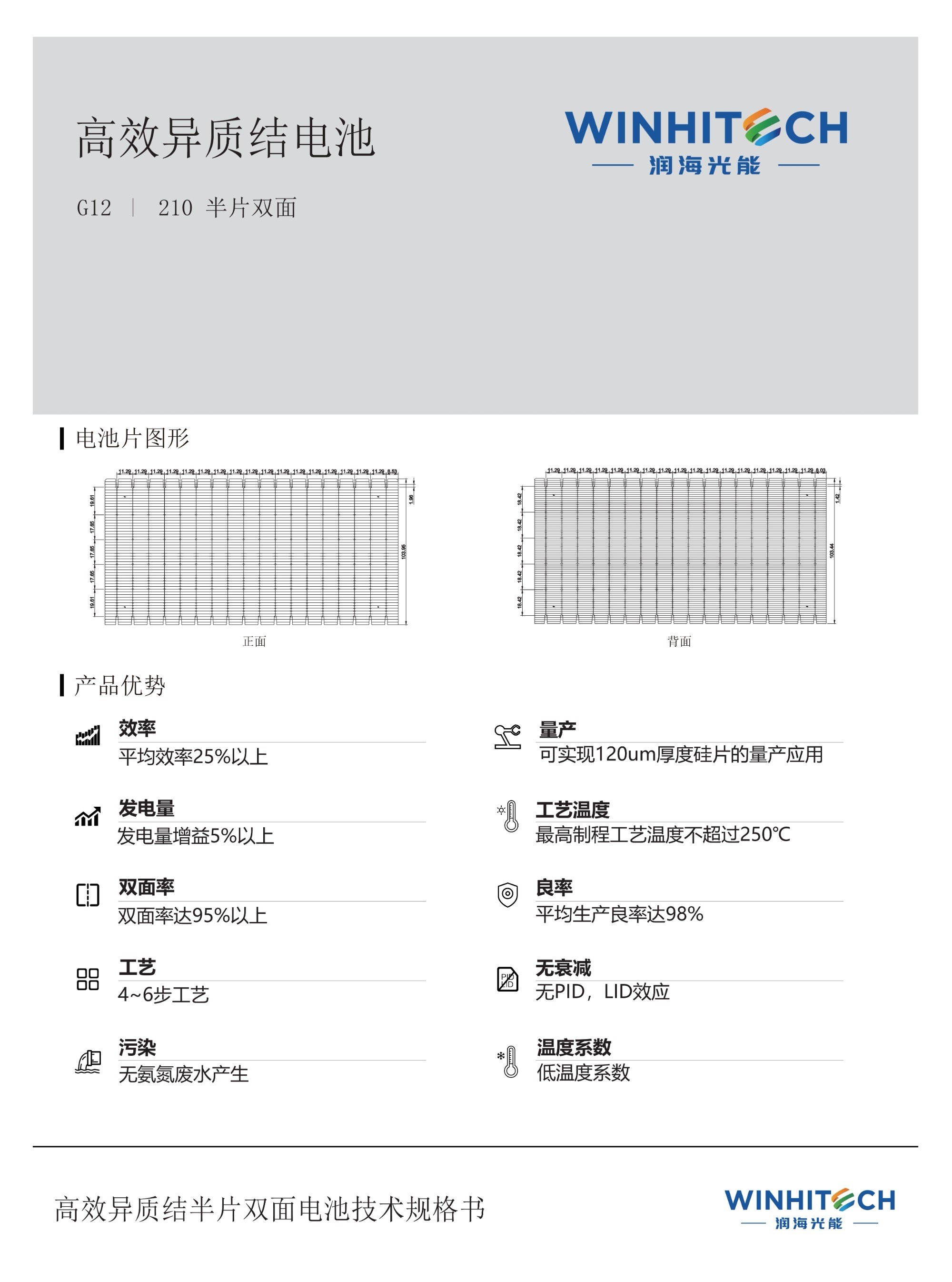

Zhejiang Winhitech New Energy Co., Ltd. is a dynamic new energy enterprise backed by central and state-owned resources. Guided by the vision of "Leading the Way with HJT Expertise," Winhitech is dedicated to the research, development, production, and sales of high-efficiency heterojunction (HJT) solar cells and modules.

The company has an ambitious total production plan of 30 GW for cells and 15 GW for modules. The first phase, featuring 3 GW of cell production and 5 GW of module production, spans 211 acres in Zhoushan City, Zhejiang Province.
