RMHT40/320F2 Agri-PV

RMHT40/320F2 Agri-PV

REGITEC Solar
Technology: Bifacial, TOPCon, BIPV
Power Range: 320 Wp
Region: Belgium Belgium
Contact Manufacturer
Note: Your Enquiry will be sent directly to REGITEC Solar.

Description:

AGRI-PV 320W glass/bifacial glass with N-type TOPCon cells

for installation in a greenhouse, for example

25-years product warranty

2088*1128*5mm

Product Characteristics

Type Monocrystalline
Model No.
RMHT40/320F2
Warranty
Product Warranty 25 Years
Power Warranty 30 Years of 87.4% Output Power
Electrical Data at STC
Maximum Power (Pmax)
320 Wp
Voltage at Maximum Power (Vmpp)
24.6 V
Current at Maximum Power (Impp)
13.04 A
Open Circuit Voltage (Voc)
28.12 V
Short Circuit Current (Isc)
13.77 A
Panel Efficiency
19.55 %
Power Tolerance (Positive)
+ 1.5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.29 %/°C
Temperature Coefficient of Voc -0.25 %/°C
Temperature Coefficient of Isc 0.045 %/°C
Maximum Ratings
Maximum System Voltage 1000 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 2088x1128x5 mm
Weight 27 kg
Cell Size 182×182 mm
Cell Number 80
Glass Type Tempered
Glass Thickness 2 mm
Frame Type Frameless
Junction Box Protection Class IP 67
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 1200 mm

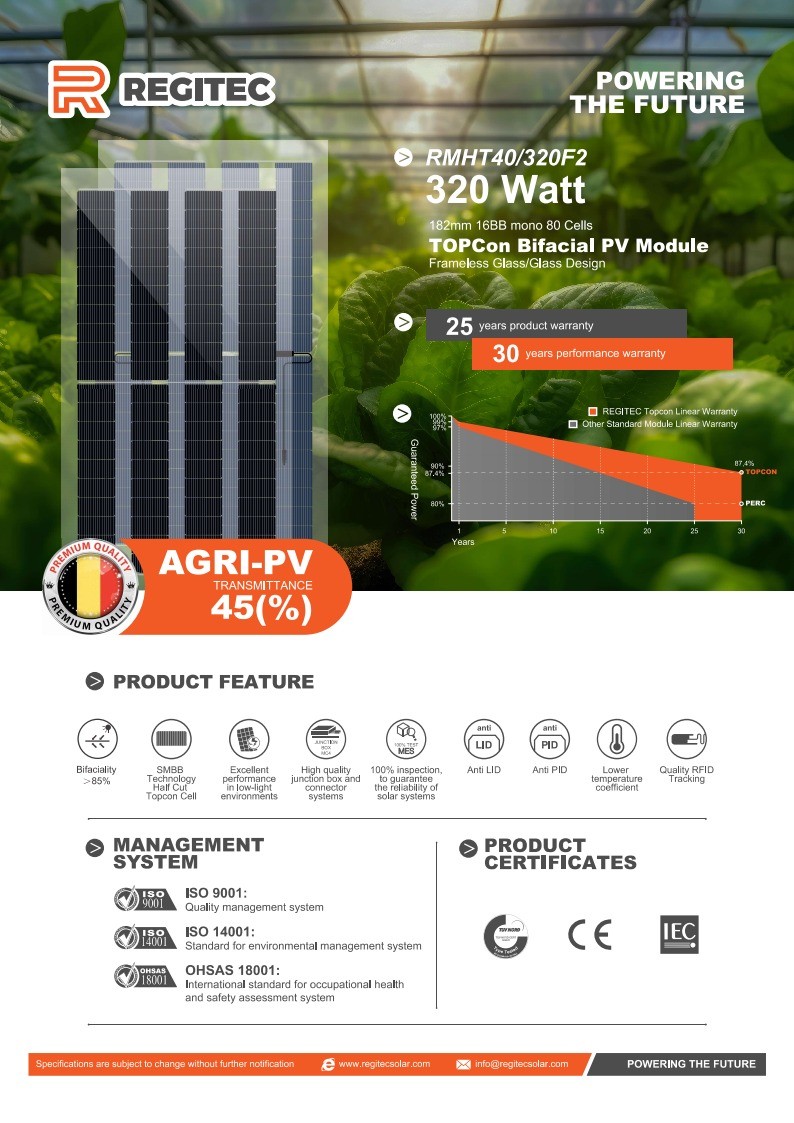

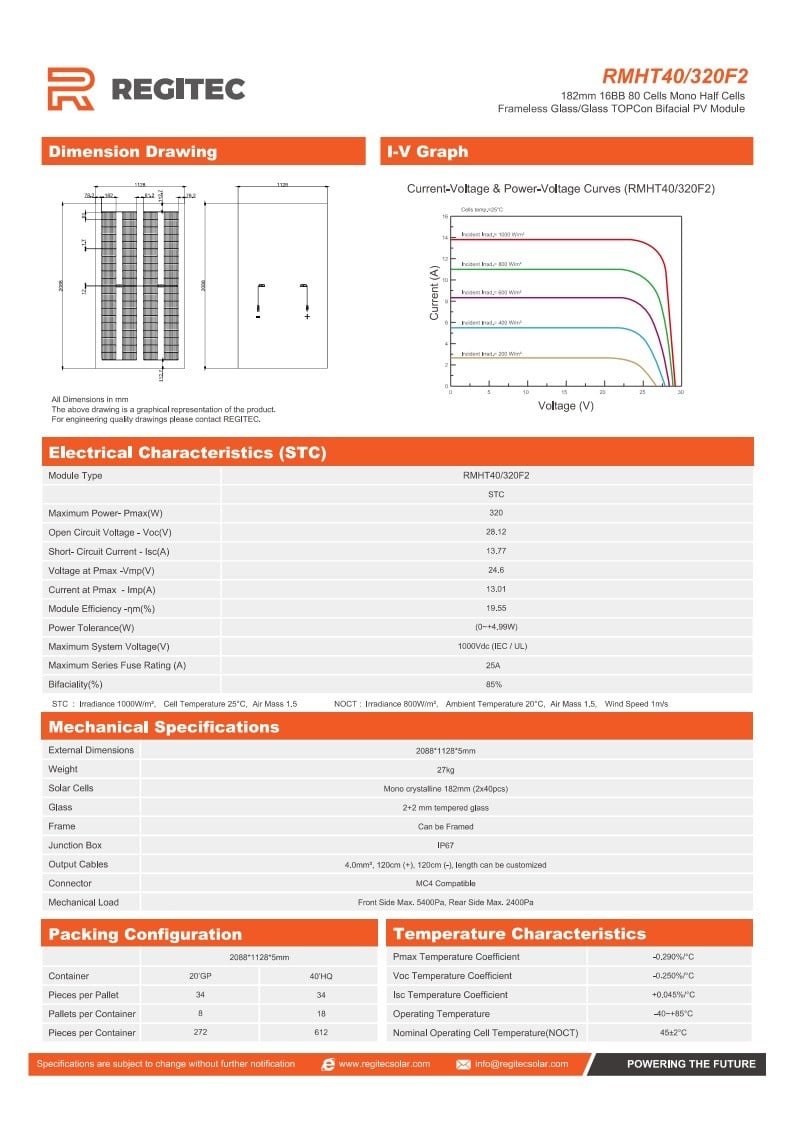

PDF
Download Manufacturer's PDF
