SPDG500-515W-N108R12

Name: SPDG500-515W-N108R12
Brand: Sunpro Power
SKU: 64049
Price: 0.09500 EUR
Availability: InStock

Zhejiang Sunpro Power Technology Co., Ltd.

Price:

From €0.095 / Wp

Price per Piece
Minimum Order	888+ Pieces
Lead Time	28 Days
SPDG500-N120R12	€47.5

Technology:	Bifacial, TOPCon, N-type
Power Range:	500 ~ 515 Wp
Region:	China

Contact Manufacturer

Note: Your Enquiry will be sent directly to Zhejiang Sunpro Power Technology Co., Ltd..

Description:

Topcon technology for higher conversion efficiency.
Excellent low-light performance.
High bifaciality rate improves backside power generation.
Superior PID resistance.

Warehouse:

Rotterdam

Stock:

42,946 Pieces

Warehouse Location:	Rotterdam
Model	Power(Wp)	Stock(Pieces)	Contact Manufacturer
SPDG510-N120R12	510	42,946

Product Info
Company Profile

Product Characteristics

Type

Monocrystalline

Model No.

SPDG500-N120R12

SPDG505-N120R12

SPDG510-N120R12

SPDG515-N120R12

Warranty

Product Warranty

25 Years

Power Warranty

25 Years of 89.4%, 30 Years of 87.4%

Electrical Data at STC

Maximum Power (Pmax)

500 Wp

505 Wp

510 Wp

515 Wp

Voltage at Maximum Power (Vmpp)

33.38 V

33.6 V

33.85 V

34.09 V

Current at Maximum Power (Impp)

14.98 A

15.03 A

15.07 A

15.11 A

Open Circuit Voltage (Voc)

40.01 V

40.24 V

40.48 V

40.71 V

Short Circuit Current (Isc)

15.83 A

15.88 A

15.93 A

15.98 A

Panel Efficiency

22.5 %

22.72 %

22.95 %

23.17 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

378.1 Wp

382.2 Wp

396.4 Wp

390.3 Wp

Voltage at Maximum Power (Vmpp)

31.4 V

31.6 V

31.9 V

32.1 V

Current at Maximum Power (Impp)

12.04 A

12.08 A

12.12 A

12.18 A

Open Circuit Voltage (Voc)

37.9 V

38.1 V

38.4 V

38.6 V

Short Circuit Current (Isc)

12.75 A

12.79 A

12.83 A

12.87 A

Temperature

45±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.3 %/°C

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

0.045 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

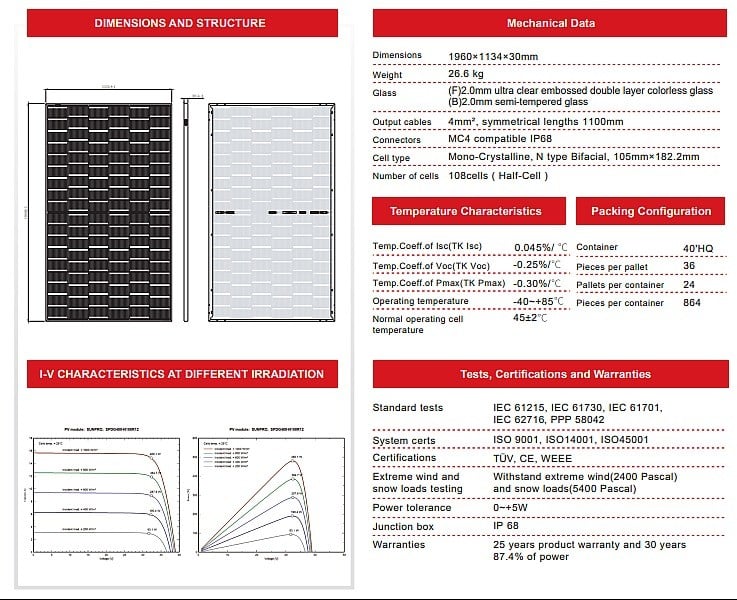

Material Data

Panel Dimension (H/W/D)

1960x1134x30 mm

Weight

26.6 kg

Cell Size

182.2×105 mm

Cell Number

108

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

2.0 mm

Encapsulant Type

EVA

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm²

Cable Length

1300 mm

PDF

Download Manufacturer's PDF

Datasheet

Ranked as BNEF Tier 1

Factory System Certifications

Product Certifications

Project Cases

Zhejiang Sunpro Power Technology Co., Ltd.

: Click to show company phone
: www.sunpropower.com
: China
: Qinggang Technological Industrial Zone, Yuhuan, Zhejiang

No. Staff: 500

Contact Manufacturer

Note: Your Enquiry will be sent directly to Zhejiang Sunpro Power Technology Co., Ltd..

Crystalline

Production (MW)/: MWp

Monocrystalline

Power Range(Wp): 375-720

Useful Contacts

SAM Senior Manager

Company Description

Zhejiang Sunpro Power Technology Co., Ltd: An innovator leading the photovoltaic industry

Sunpro Power is a high-tech enterprise committed to building photovoltaic R&D and manufacturing as its core industry. The company is mainly engaged in the design, development, production, and sales of photovoltaic cells, photovoltaic modules, and photovoltaic systems, and provides professional OEM and ODM production services to customers around the world. Strong technical strength and excellent product quality. With strong technical support, scientific production management, and strict quality control, all of Sunpro Power's products have reached the industry-leading level and have been recognized by international certification agencies. The company has advanced production equipment and a professional R&D team, and is constantly committed to the research, development, and application of new technologies to provide customers with cost-effective photovoltaic products.

Global market layout and professional service team

Sunpro Power, headquartered in Zhejiang Province, China, has branches in many countries and regions around the world, including Germany, the Netherlands, Poland, Italy, the United States, Brazil, etc. The company has a professional service team to provide timely and efficient support and services to global customers. Committed to sustainable development and social responsibility. Sunpro Power has always adhered to the concept of sustainable development and actively participated in environmental protection. The company cooperates with professional insurance companies to provide customers with comprehensive after-sales service guarantees. At the same time, Sunpro Power actively participates in social welfare undertakings to create a better life for all mankind.

Development History and Honors

Founded in 2018 in Zhejiang Province, China.

In 2018, a branch was established in Frankfurt, Germany.

In 2019, a warehouse was established in the Netherlands.

In 2020, a warehouse will be established in Poland.

In 2022, successfully entered the Bloomberg New Energy Finance Tier 1 list.

In 2023, we will set up a US company and warehouse; and establish an office in Brazil.

In 2024, Sunpro has been ranked first in the Bloomberg New Energy BNEF (TIER1) global module manufacturer list for three consecutive years with its leading TOPCon, PERC, and HJT module production technologies and strict multi-pass quality inspection processes. In the same year, a marketing office was established in Hangzhou.

Looking ahead

Sunpro Power will continue to adhere to the innovation-driven development strategy, continuously enhance its core competitiveness, provide global customers with better-quality photovoltaic products and services, and contribute to global energy transformation and sustainable development.
