RS6-550~560MBG-E3

Renesola Co., Ltd.

Technology:	Bifacial
Power Range:	550 ~ 560 Wp
Region:	China

Contact Manufacturer

Note: Your Enquiry will be sent directly to Renesola Co., Ltd..

Solar Panel
Gamko New Energy - GKA182N144 580-600W

From €0.0615 / Wp

Solar Panel
Horay Solar - Solar Ocean HS420-440TC-MHO

From €0.0782 / Wp

Product Info
Company Profile

Product Characteristics

Type

Monocrystalline

Model No.

RS6-550MBG-E3

RS6-555MBG-E3

RS6-560MBG-E3

Warranty

Product Warranty

12 Years

Power Warranty

30 Years of 85%

Electrical Data at STC

Maximum Power (Pmax)

550 Wp

555 Wp

560 Wp

Voltage at Maximum Power (Vmpp)

41.95 V

42.1 V

42.25 V

Current at Maximum Power (Impp)

13.12 A

13.19 A

13.25 A

Open Circuit Voltage (Voc)

49.8 V

49.95 V

50.1 V

Short Circuit Current (Isc)

13.98 A

14.04 A

14.1 A

Panel Efficiency

21.29 %

21.48 %

21.68 %

Power Tolerance (Positive)

+ 3 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

411 Wp

415 Wp

419 Wp

Voltage at Maximum Power (Vmpp)

38.97 V

39.11 V

39.25 V

Current at Maximum Power (Impp)

10.56 A

10.61 A

10.68 A

Open Circuit Voltage (Voc)

46.82 V

46.97 V

47.11 V

Short Circuit Current (Isc)

11.31 A

11.35 A

11.41 A

Temperature

43±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.35 %/°C

Temperature Coefficient of Voc

-0.27 %/°C

Temperature Coefficient of Isc

0.04 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Material Data

Panel Dimension (H/W/D)

2278x1134x30 mm

Weight

31.7 kg

Cell Number

144

Glass Type

Tempered

Glass Thickness

2 mm

Frame Type

Anodized Aluminium

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm²

Cable Length

300 mm

PDF

Download Manufacturer's PDF

Datasheet

Renesola Co., Ltd.

: Click to show company phone
: https://www.renesola-energy.com
: China
: No.5, Fuqiang Road , Xuejia Town, Xinbei District, Changzhou, Jiangsu

No. Staff: 500

Contact Manufacturer

Note: Your Enquiry will be sent directly to Renesola Co., Ltd..

Crystalline

Production (MW)/: MWp

Monocrystalline, Polycrystalline

Power Range(Wp): 275-700

Useful Contacts

Nick He Overseas Sales Vp

Judi Zhu Asian Sales Director

Francis Lai Brazil Sales Director

Roger Huang Sales Director

Mars Liu Sales Director

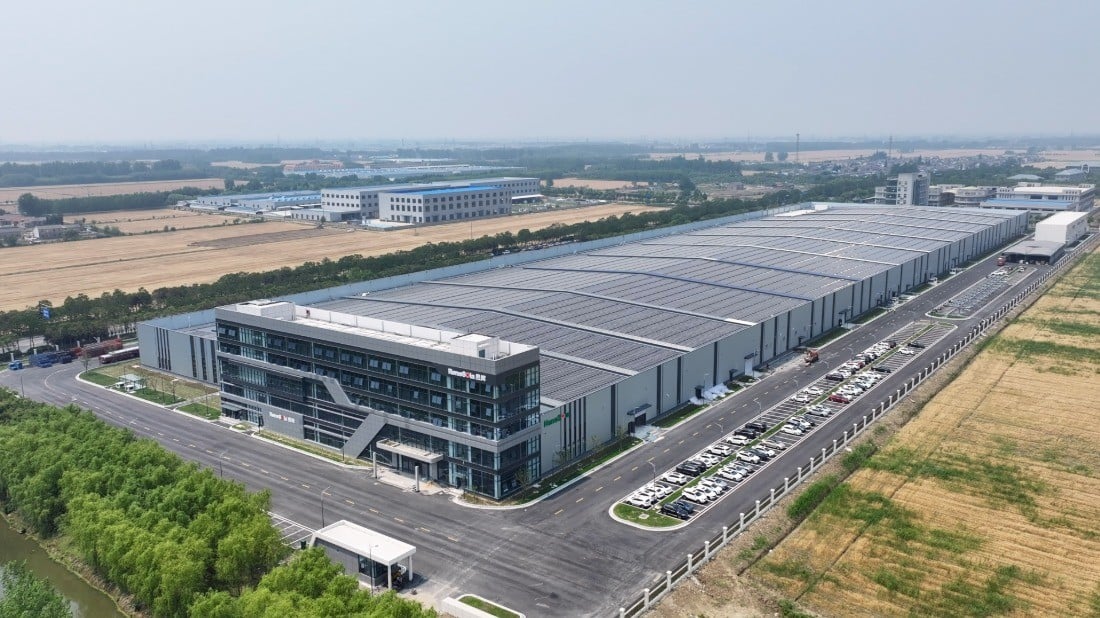

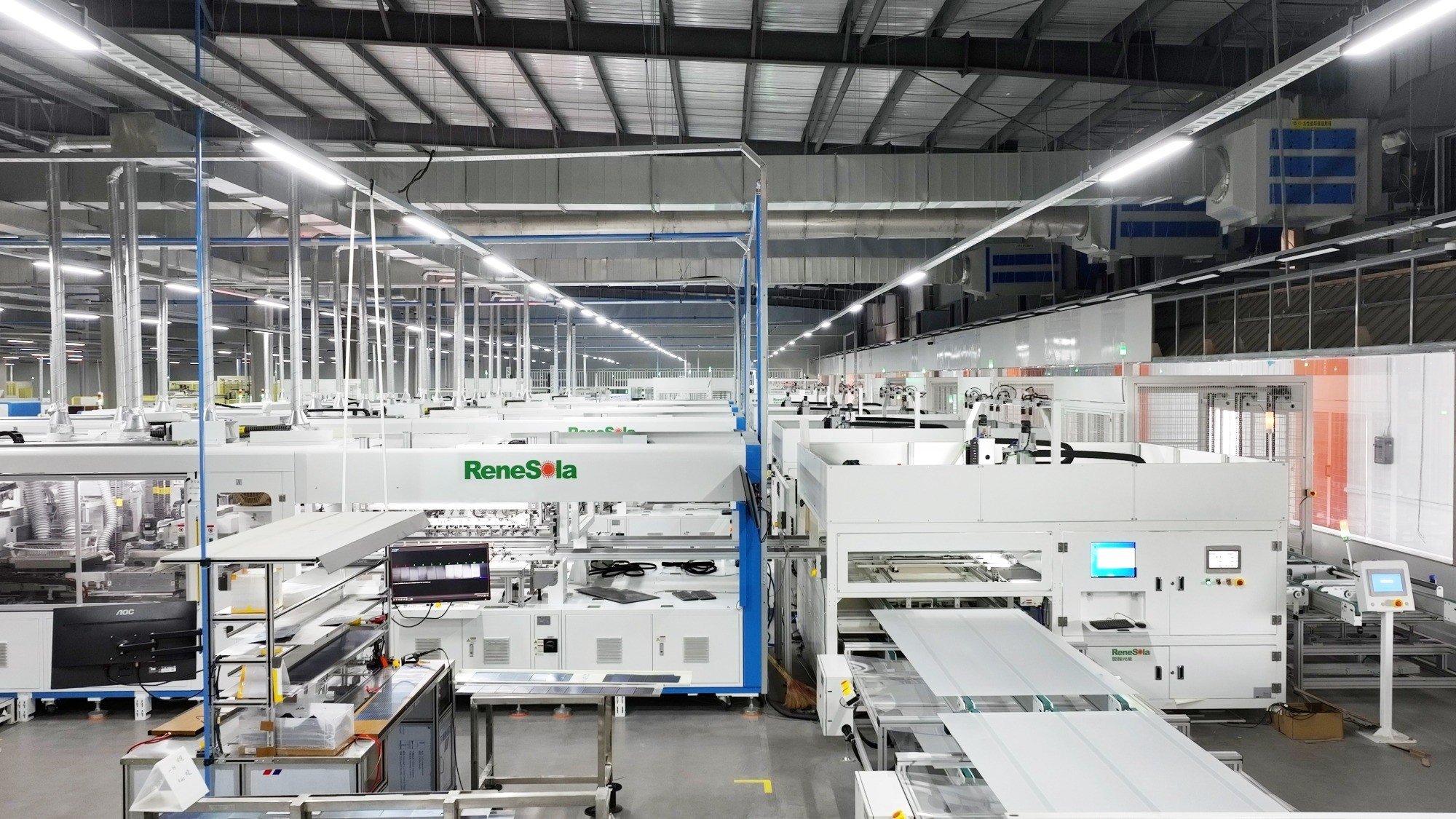

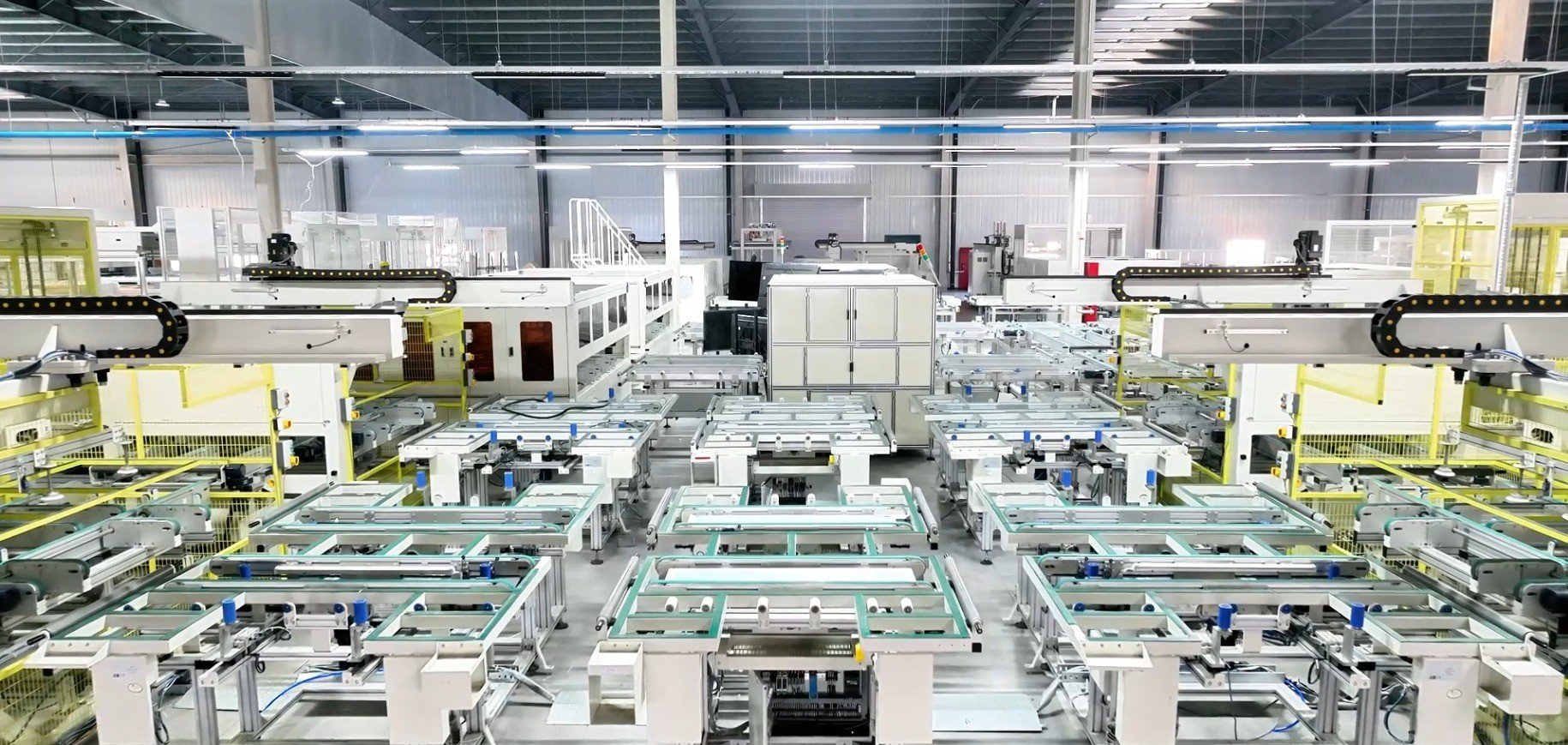

Company Description

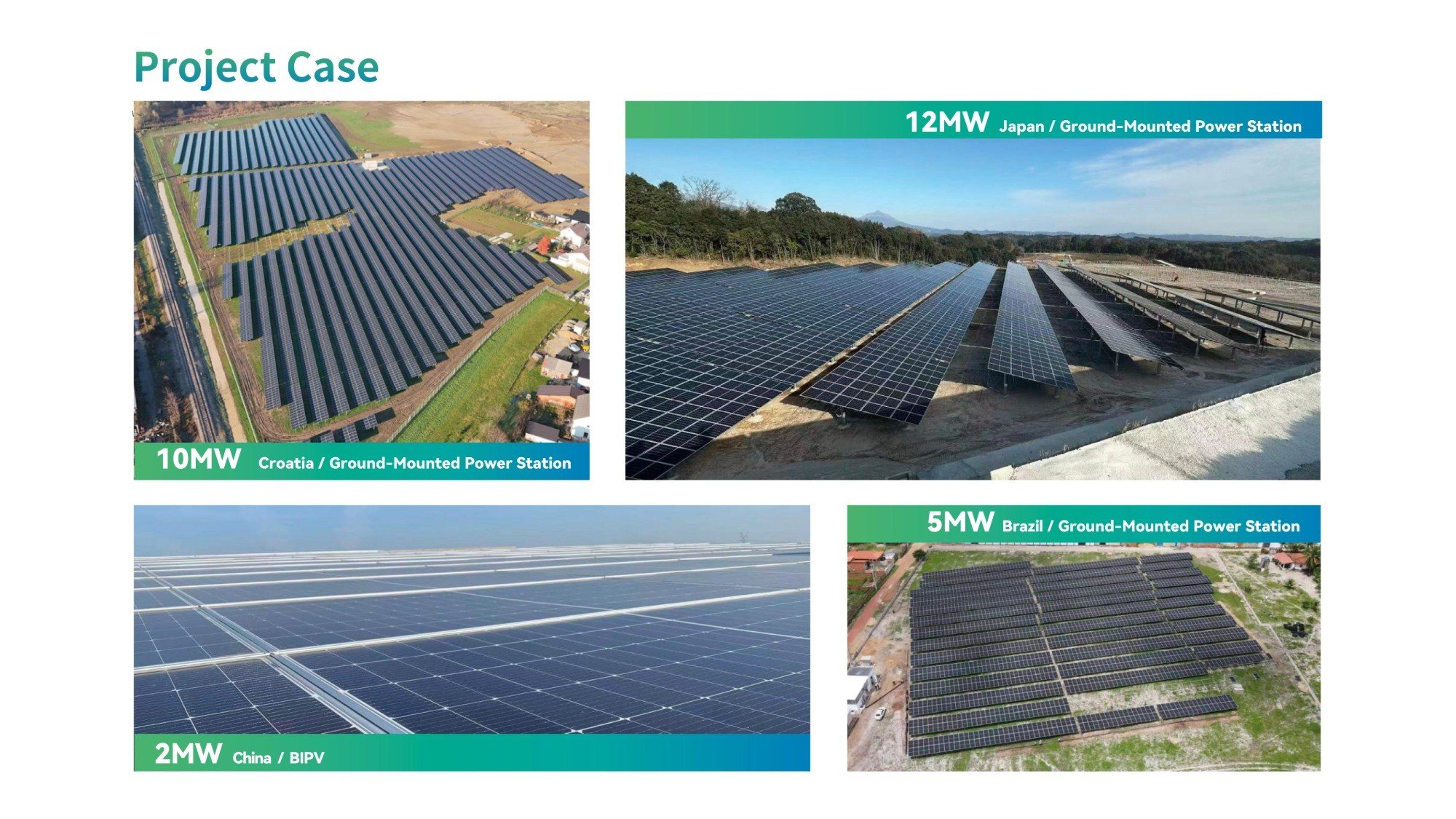

Renesola Co., Ltd - Tier 1 global photovoltaic solar project developer, EPC company, and panel manufacturer
