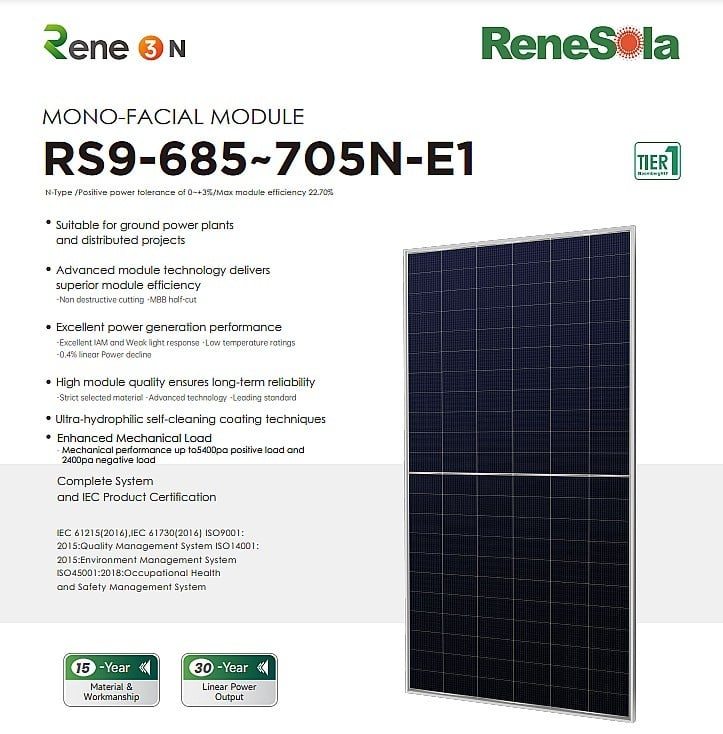

RS9-685~705NG-E1

Renesola Co., Ltd.

Technology:	TOPCon
Power Range:	685 ~ 705 Wp
Region:	China

Contact Manufacturer

Note: Your Enquiry will be sent directly to Renesola Co., Ltd..

Description:

N-type cells for excellent power generation performance.
Half-cut technology for superior module efficiency.
Suitable for ground power plants and distributed projects.
30-year linear power warranty.

Product Info
Company Profile

Product Characteristics

Type

Monocrystalline

Model No.

RS9-685N-E1

RS9-690N-E1

RS9-695N-E1

RS9-700N-E1

RS9-705N-E1

Warranty

Product Warranty

15 Years

Power Warranty

30 Years of 87.4%

Electrical Data at STC

Maximum Power (Pmax)

685 Wp

690 Wp

695 Wp

700 Wp

705 Wp

Voltage at Maximum Power (Vmpp)

38.36 V

38.56 V

38.77 V

38.97 V

39.17 V

Current at Maximum Power (Impp)

17.86 A

17.89 A

17.93 A

17.96 A

18 A

Open Circuit Voltage (Voc)

47.01 V

47.22 V

47.42 V

47.63 V

47.83 V

Short Circuit Current (Isc)

18.61 A

18.66 A

18.72 A

18.77 A

18.82 A

Panel Efficiency

22.05 %

22.21 %

22.37 %

22.53 %

22.7 %

Power Tolerance (Positive)

+ 3 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Electrical Data at NOCT

Temperature

43±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.29 %/°C

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

0.045 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

35 A

Material Data

Panel Dimension (H/W/D)

2384x1303x33 mm

Weight

33.5 kg

Cell Number

132

Glass Type

Tempered

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium

Junction Box Protection Class

IP 68

Cable Crossection

4 mm²

Cable Length

300 mm

PDF

Download Manufacturer's PDF

Datasheet

About Us

Renesola, founded in 2005, is a leader in the new energy sector in the global world. It is dedicated to combating global warming and delivering top-notch power station solutions to clients worldwide. With a historical global shipment exceeding 25GW (continuously updated), Renesola offers comprehensive turnkey solutions, including development, financing, design, construction, operation, and maintenance, as well as cutting-edge modules and exceptional pre-sale, sale, and after-sales services.

Renesola encompasses a wide range of technological innovations, including M6, M10, and M12; P-type, N-TOPCon, and HJT; and from mono-facial modules to bifacial modules with dual glass. These modules cover all mainstream sizes in the PV industry and are suitable for various environments such as rooftops, terrestrial, desert, and saline-alkali. The 30mm thinner frame products are especially valued for significantly reducing transportation costs for customers.

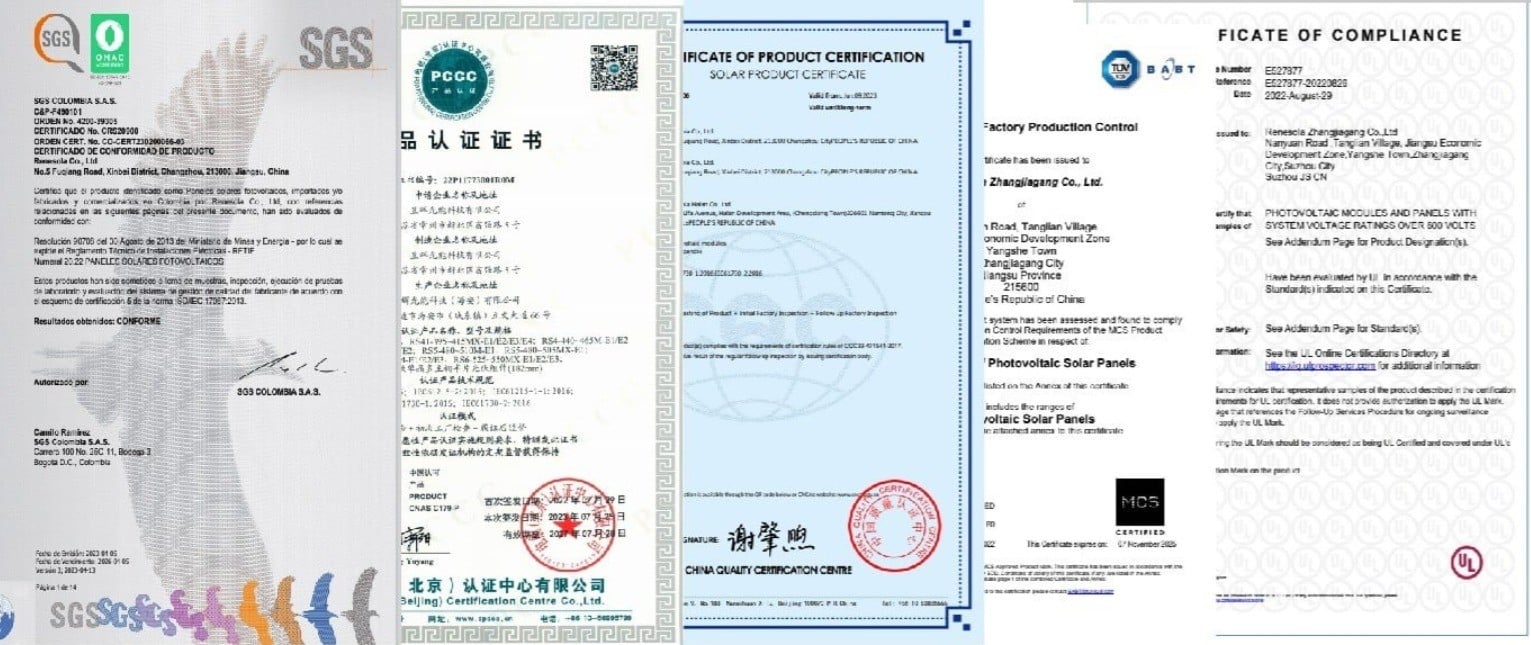

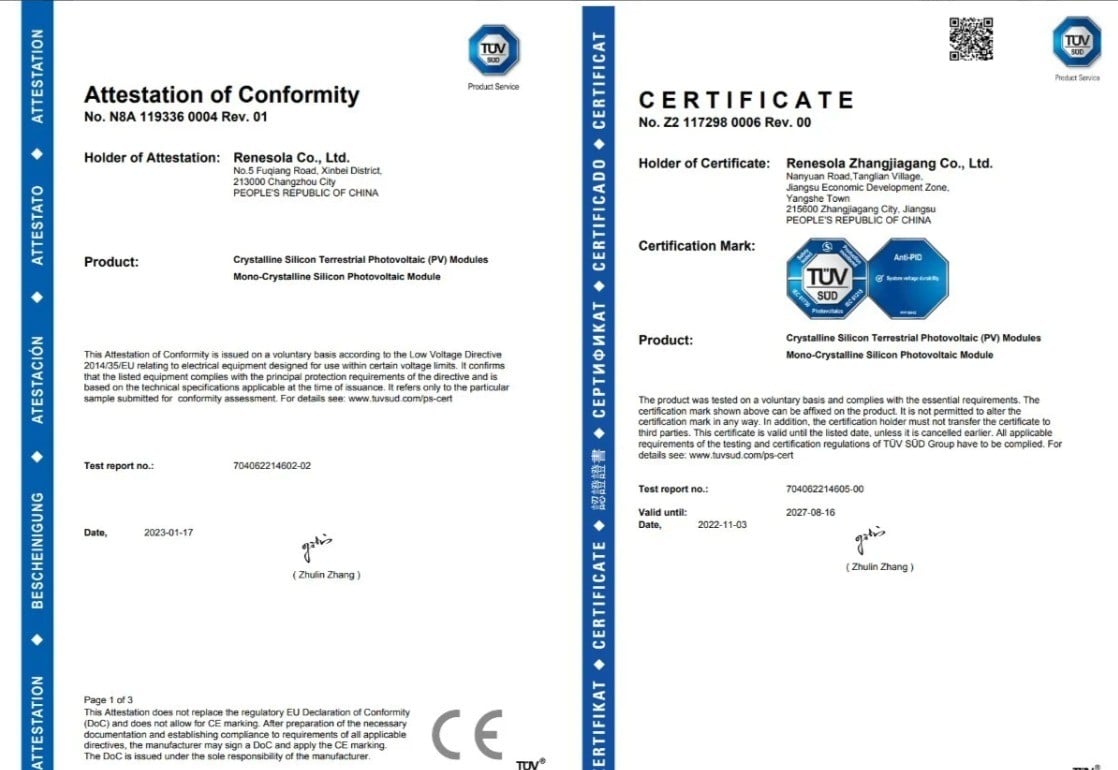

Certifications

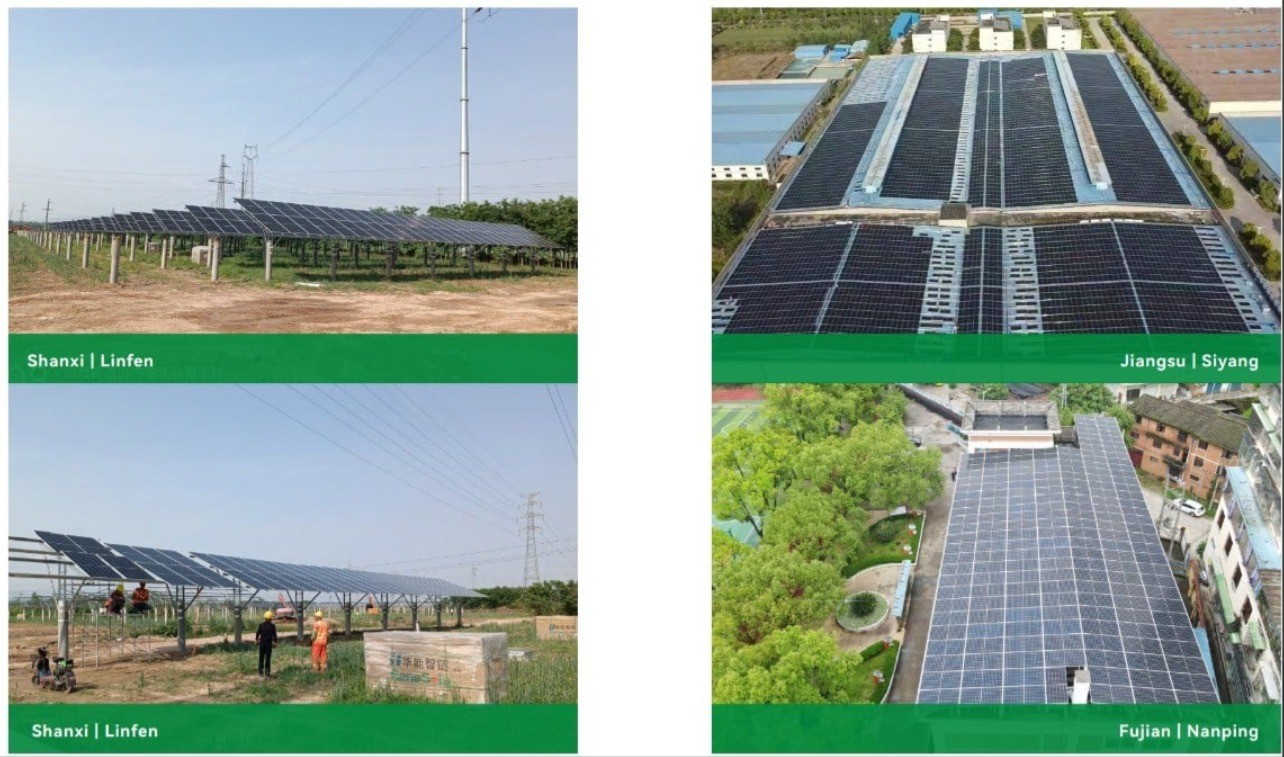

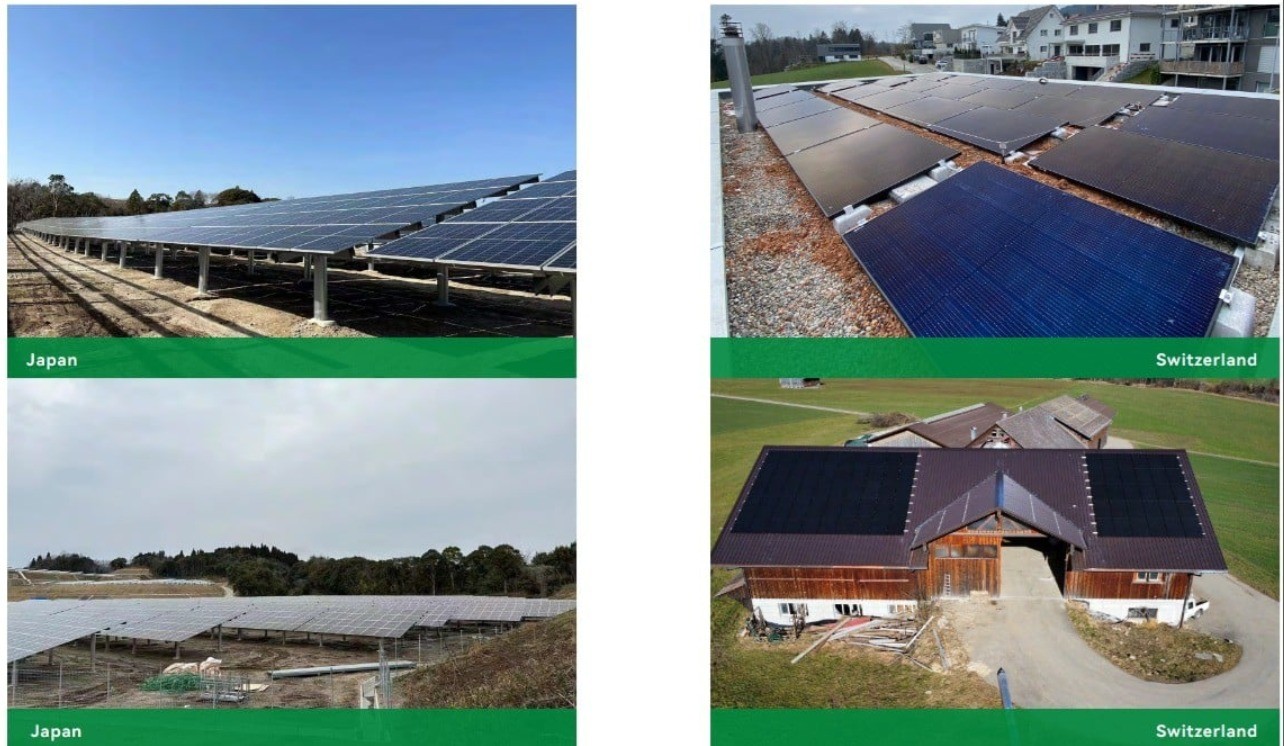

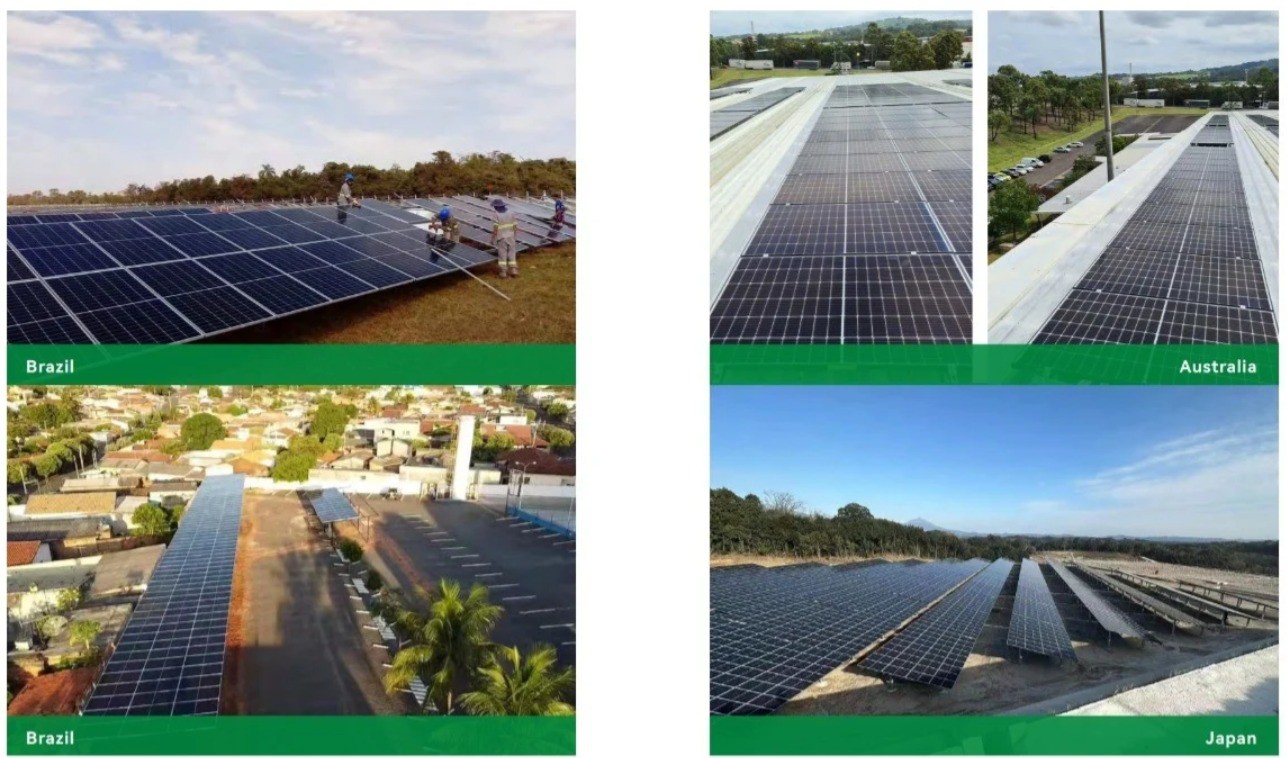

Projects
