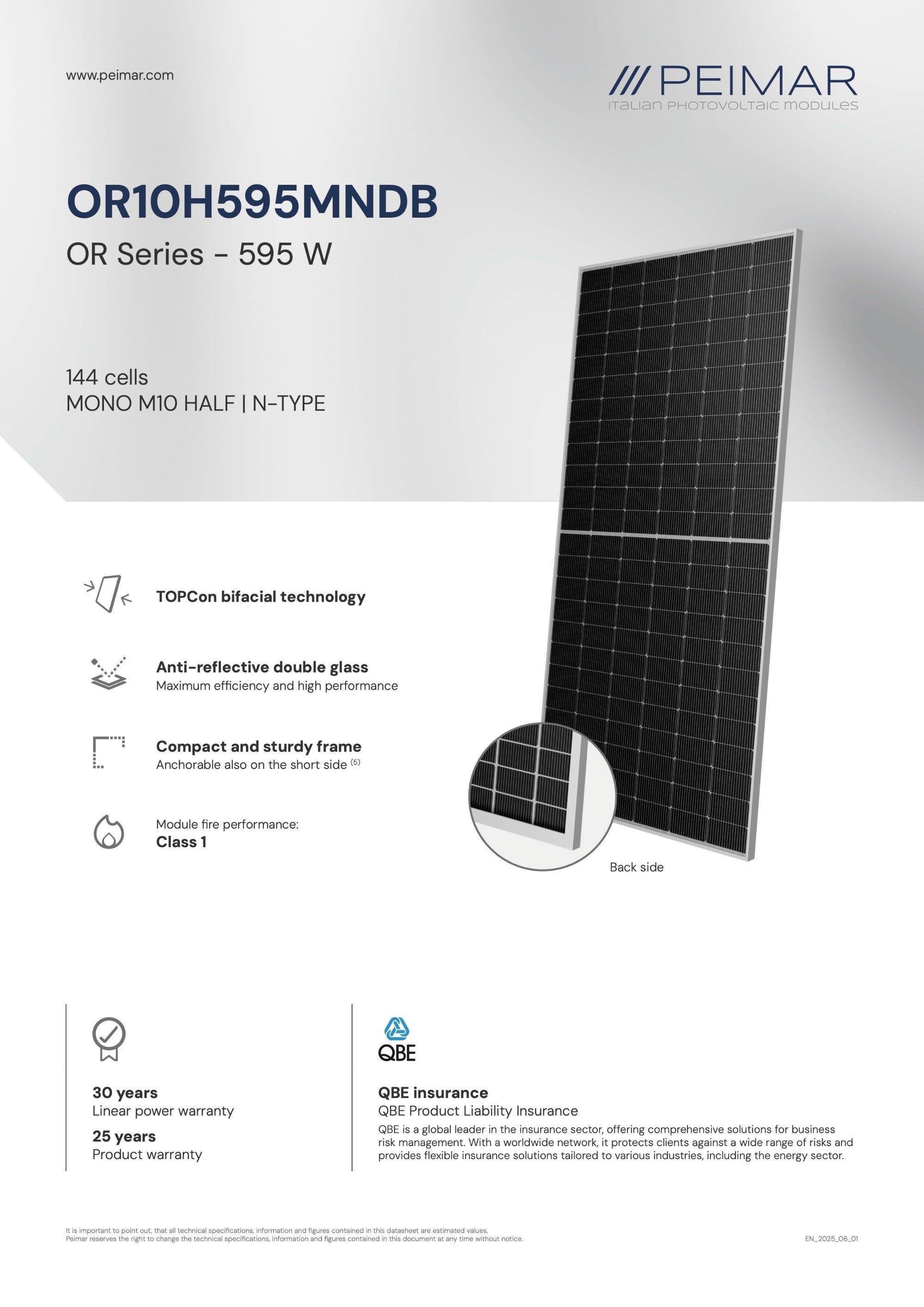

OR Series - 595 W - OR10H595MNDB
Peimar| Technology: | Bifacial, TOPCon, N-type |
|---|---|
| Power Range: | 595 Wp |
| Region: |
Italy
|
Description:
Up to 23.03% Efficiency With N-type TOPCon Cells.
Rear-Side Power Gain with Bifacial Design.
25-Year Product Warranty.
30-Year Linear Power Warranty.
QBE Insurance Adds Extra Peace of Mind.
High Performance With Reliable Output.

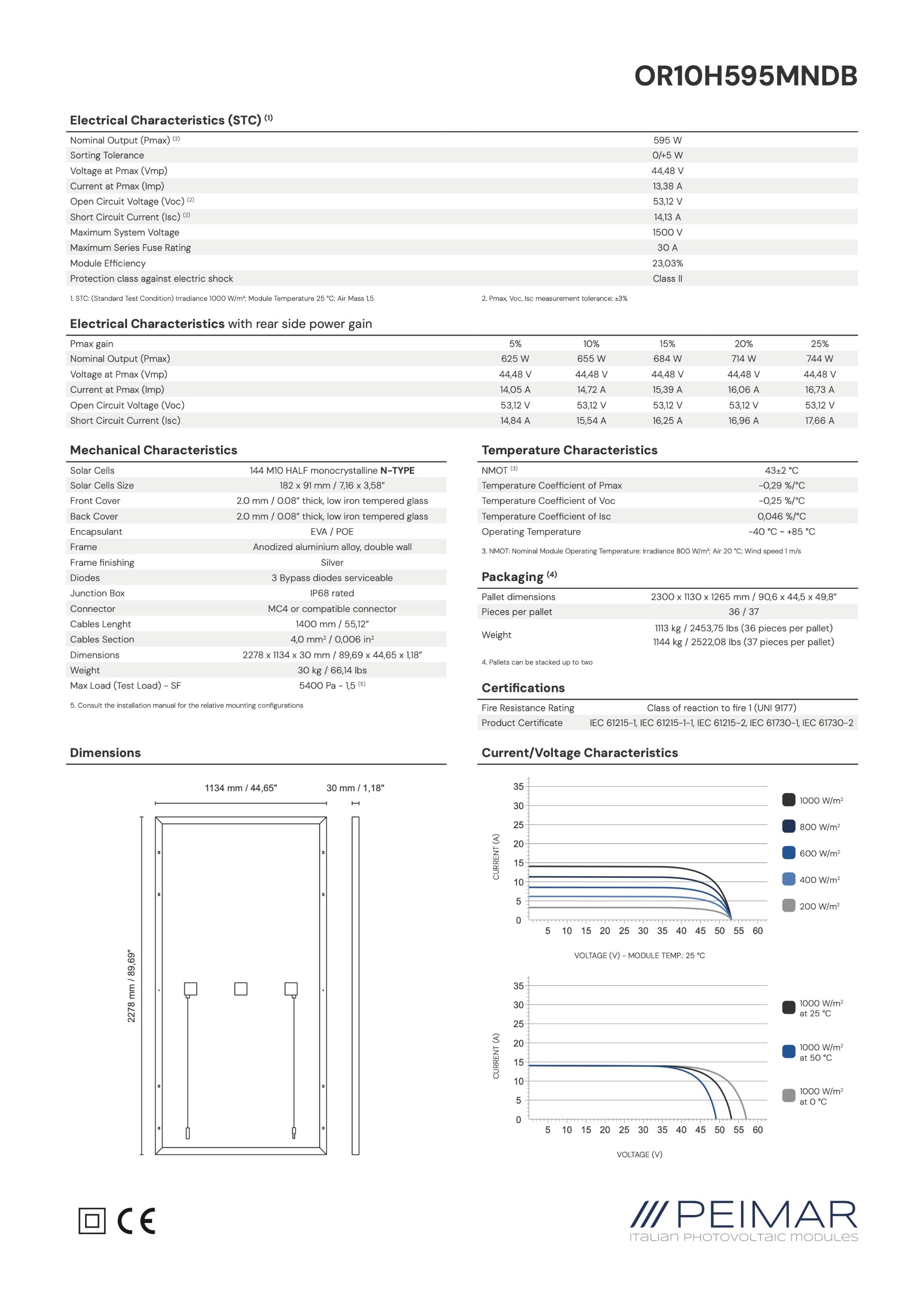

Product Characteristics
| Type | Monocrystalline | |
|---|---|---|
| Model No. |
|
|
| Warranty | ||
| Product Warranty | 25 Years | |
| Electrical Data at STC | ||
| Maximum Power (Pmax) |
|
|
| Voltage at Maximum Power (Vmpp) |
|
|
| Current at Maximum Power (Impp) |
|
|
| Open Circuit Voltage (Voc) |
|
|
| Short Circuit Current (Isc) |
|
|
| Panel Efficiency |
|
|
| Power Tolerance (Positive) |
|
|
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||
| Electrical Data at NOCT | ||
| Temperature | 43±2 °C | |
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||
| Thermal Ratings | ||
| Operating Temperature Range | -40~85 °C | |
| Temperature Coefficient of Pmax | -0.29 %/°C | |
| Temperature Coefficient of Voc | -0.25 %/°C | |
| Temperature Coefficient of Isc | 0.046 %/°C | |
| Maximum Ratings | ||
| Maximum System Voltage | 1500 V | |
| Series Fuse Rating | 30 A | |
| Material Data | ||
| Panel Dimension (H/W/D) | 2278x1134x30 mm | |
| Weight | 30 kg | |
| Cell Size | 182×91 mm | |
| Cell Number | 144 | |
| Glass Type | Anti-reflection Coating, Tempered | |
| Glass Thickness | 2 mm | |
| Encapsulant Type | EVA | |
| Frame Type | Anodized Aluminium | |
| Junction Box Diodes | 3 | |
| Junction Box Protection Class | IP 68 | |
| Connector Type | MC4 | |
| Cable Crossection | 4 mm2 | |
| Cable Length | 1400 mm | |
| Download Manufacturer's PDF |
Italian Excellence, Global Solutions
Every stage of the production of our photovoltaic modules is carried out in our advanced factory in Castegnato, in the province of Brescia, where technology and precision come together to ensure the highest quality. With automated processes and strict quality control, we are able to offer high-performance, reliable, and long-lasting products.
Our solutions not only meet the highest standards but are also ready to conquer international markets, bringing the best of Italian tradition around the world.
Our Global Presence
Through our branches in several countries, we have a worldwide presence, ready to respond quickly and effectively to the needs of international markets.
Excellence, Technology, and Quality at Every Stage
Material Inspection
Before production begins, we conduct rigorous quality checks on raw materials, including EVA, cells, and glass, selecting only top-grade components.
Production Line Testing
Throughout the entire manufacturing process, we perform extensive tests to ensure full compliance and maximum safety for our modules.

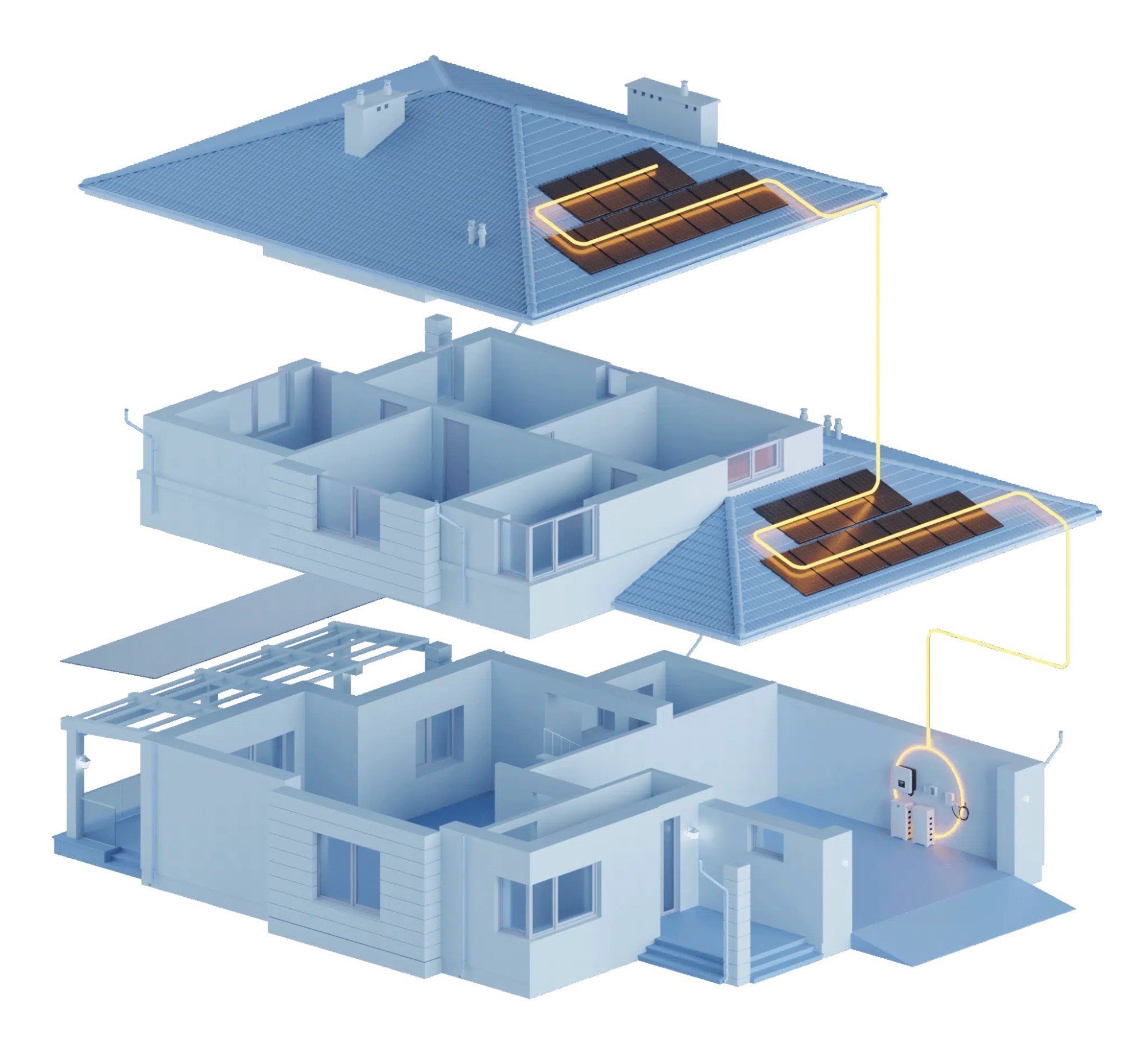

Peimar Unified System
With our product range, we offer a complete system that optimizes energy production and its management in an efficient and sustainable way.

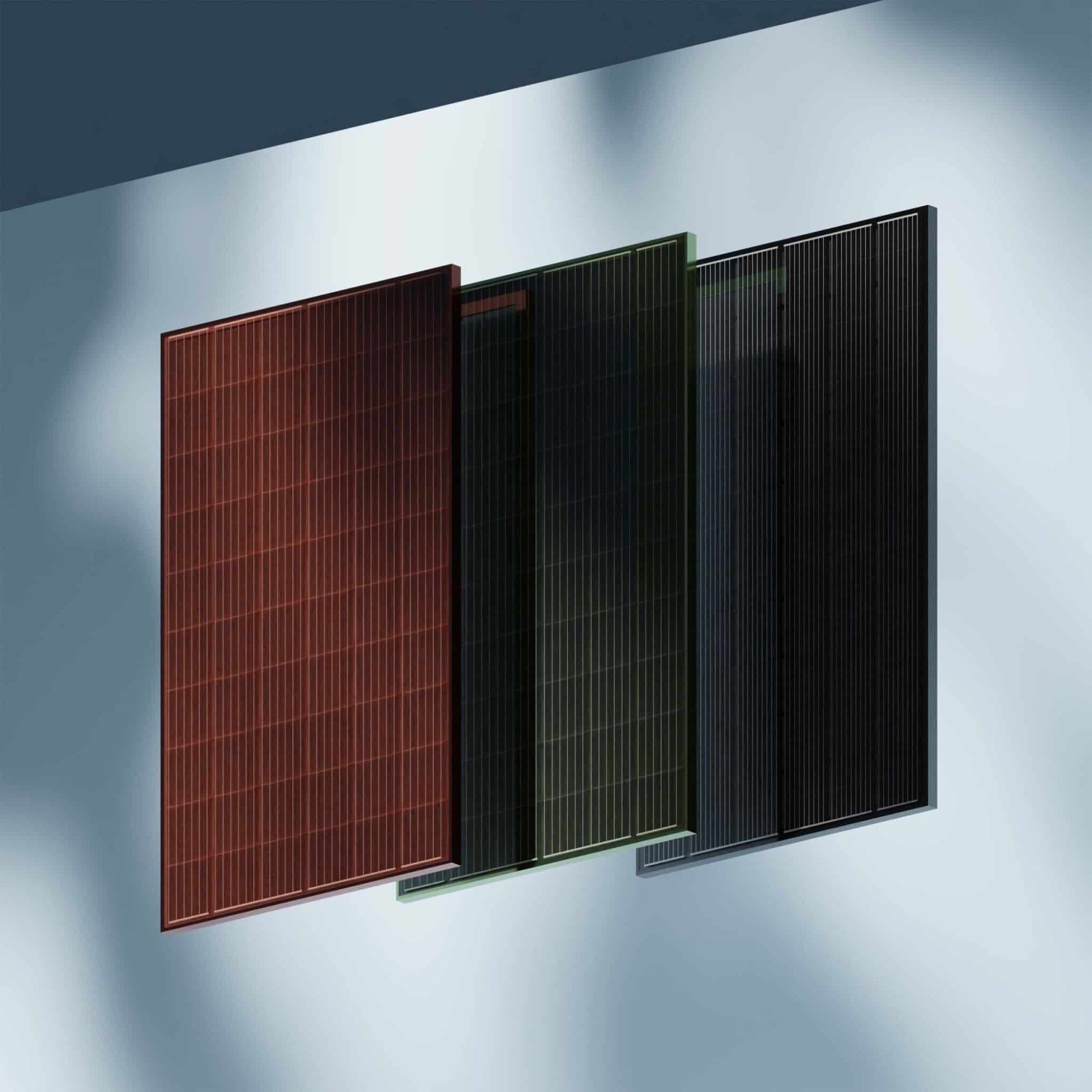

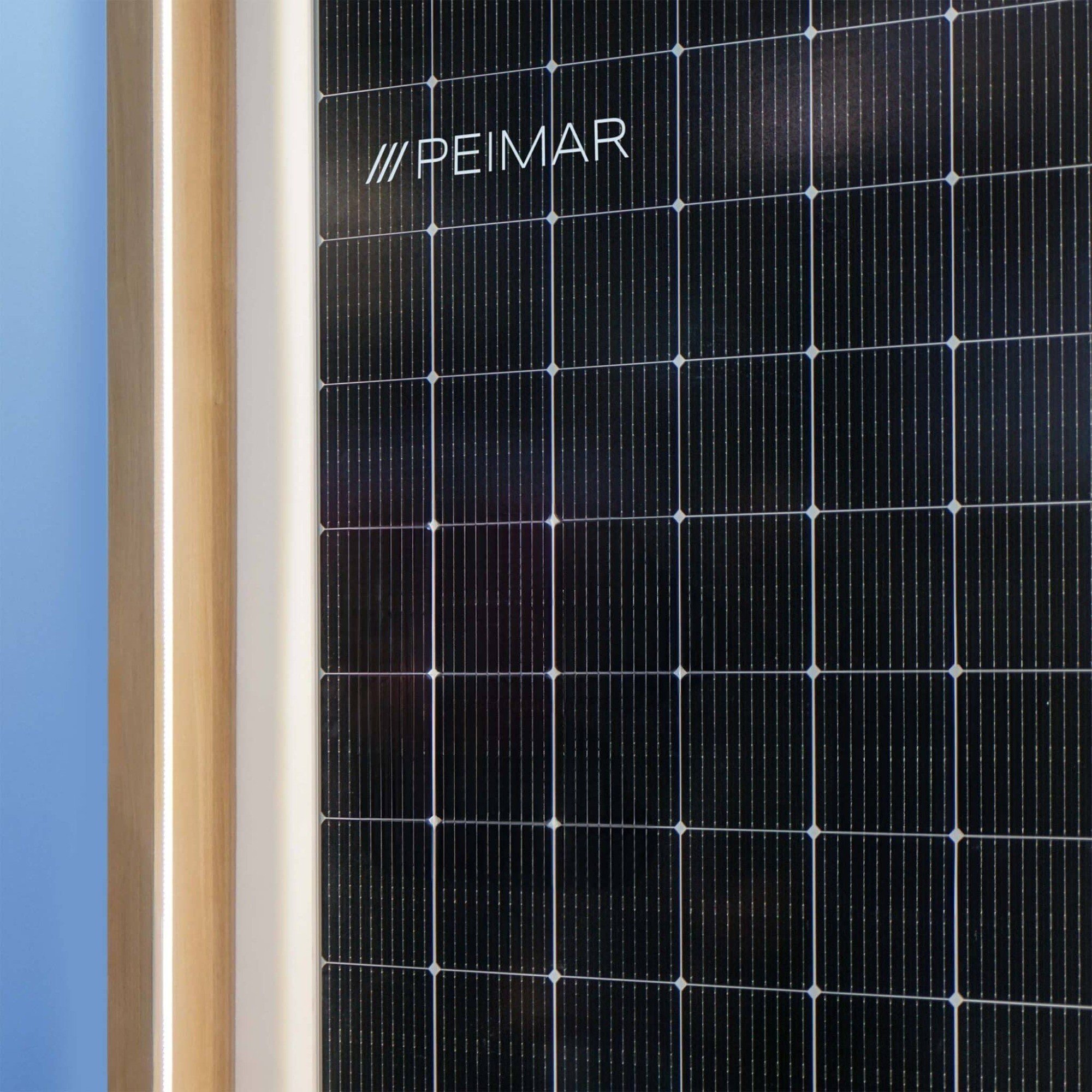

Photovoltaic Modules

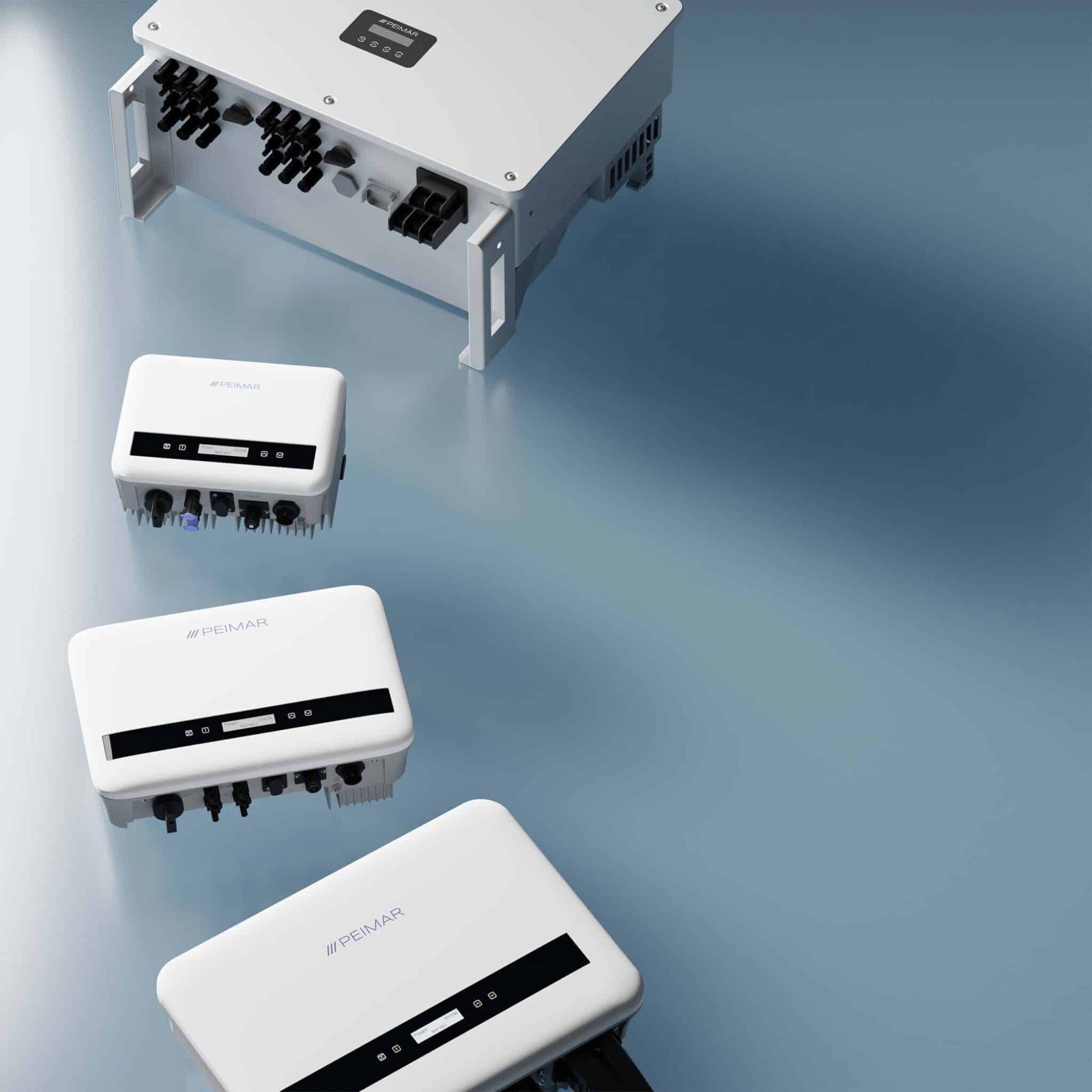

Photovoltaic Inverters
Optimizers

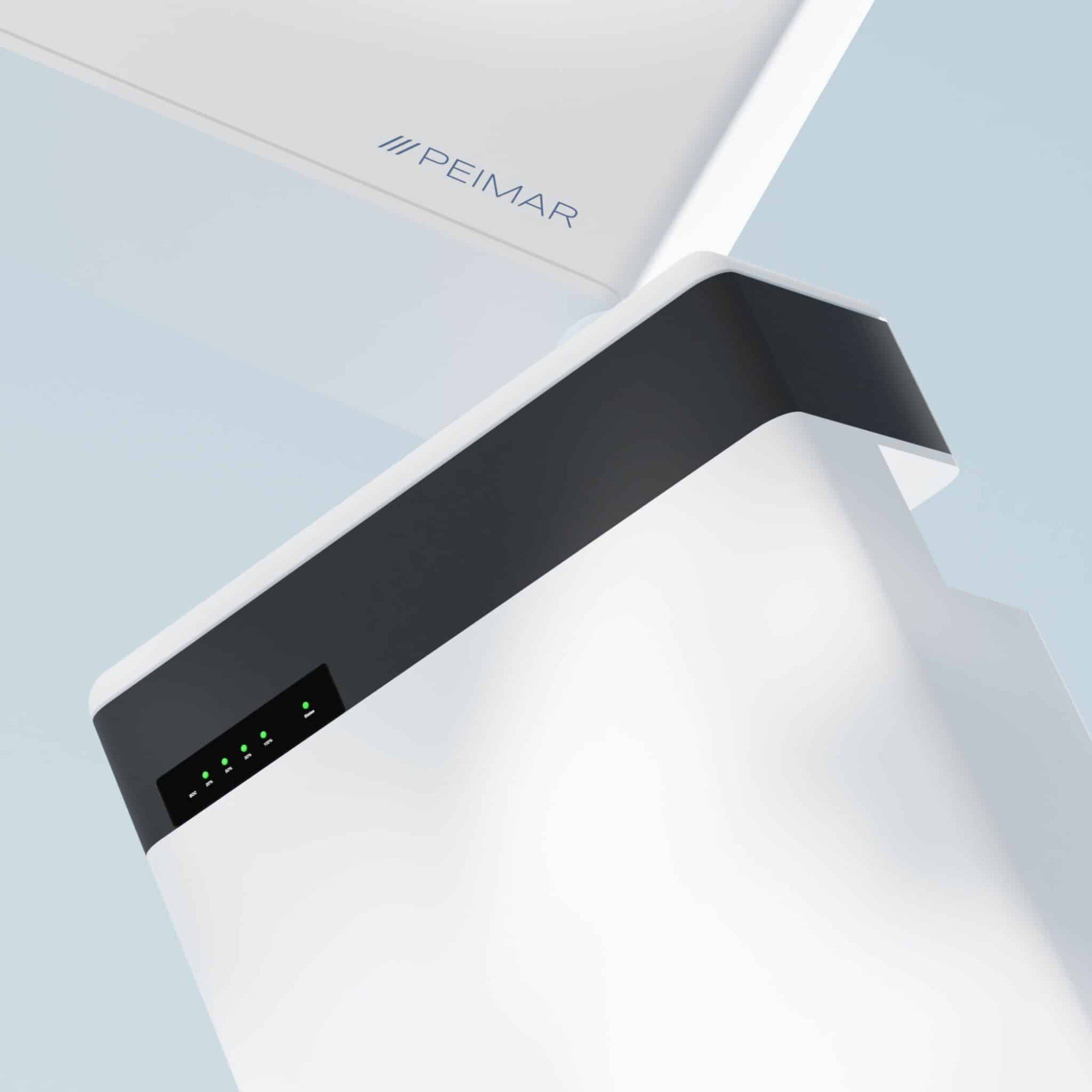

Batteries
