Lynx RCM-445-470-RDBNAA

Name: Lynx RCM-445-470-RDBNAA
Brand: RECOM
SKU: 68932
Price: 0.08377 EUR
Availability: InStock

Recom Technologies Ltd

Price:

From €0.0838 / Wp

Price per Piece
Minimum Order	936-8423 Pieces	8424-28079 Pieces	28080+ Pieces
445	€38.8	€38.1	€37.3
450	€39.3	€38.5	€37.7
455	€40.2	€39.4	€38.6
460	€40.6	€39.8	€39.0
465	€41.5	€40.7	€39.8
470	€42.0	€41.1	€40.3

Technology:	Bifacial, TOPCon, N-type
Power Range:	445 ~ 470 Wp
Region:	Italy

Contact Manufacturer

Note: Your Enquiry will be sent directly to Recom Technologies Ltd.

Description:

European brand certified by independent engineering bodies.

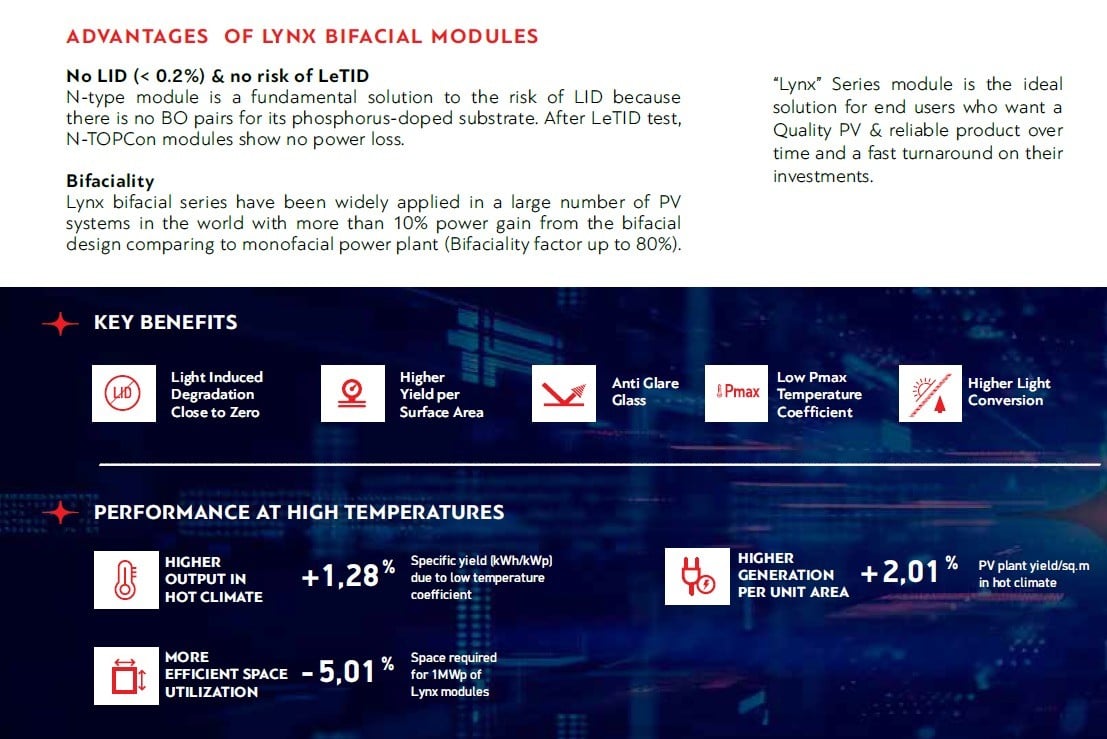

Advanced N-type TOPCon cells with bifacial power generation, higher yield per surface area.
Zero light-induced degradation and low Pmax temperature coefficient.
30 years limited product warranty.

Product Info
Company Profile

Product Characteristics

Type

Monocrystalline

Model No.

445

450

455

460

465

470

Warranty

Product Warranty

30 Years

Power Warranty

15 Years of 93.4%, 30 Years of 87.4%

Electrical Data at STC

Maximum Power (Pmax)

445 Wp

450 Wp

455 Wp

460 Wp

465 Wp

470 Wp

Voltage at Maximum Power (Vmpp)

29.6 V

29.8 V

30 V

30.2 V

30.4 V

30.6 V

Current at Maximum Power (Impp)

15.04 A

15.11 A

15.17 A

15.24 A

15.3 A

15.37 A

Open Circuit Voltage (Voc)

35.3 V

35.5 V

35.7 V

35.9 V

36.1 V

36.3 V

Short Circuit Current (Isc)

15.96 A

16.03 A

16.1 A

16.17 A

16.24 A

16.31 A

Panel Efficiency

22.27 %

22.52 %

22.77 %

23.02 %

23.27 %

23.52 %

Power Tolerance (Positive)

+ 1 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

335 Wp

338.7 Wp

342.5 Wp

345.3 Wp

349 Wp

352.7 Wp

Voltage at Maximum Power (Vmpp)

27.5 V

27.7 V

27.9 V

28 V

28.2 V

28.4 V

Current at Maximum Power (Impp)

12.18 A

12.24 A

12.29 A

12.31 A

12.37 A

12.43 A

Open Circuit Voltage (Voc)

33.3 V

33.5 V

33.6 V

33.8 V

34 V

34.2 V

Short Circuit Current (Isc)

12.82 A

12.87 A

12.93 A

12.99 A

13.05 A

13.1 A

Temperature

44±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.28 %/°C

Temperature Coefficient of Voc

-0.23 %/°C

Temperature Coefficient of Isc

0.045 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Material Data

Panel Dimension (H/W/D)

1762x1134x30 mm

Weight

21 kg

Cell Number

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

2 mm

Frame Type

Anodized Aluminium, Black

Junction Box Diodes

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm²

Cable Length

1200 mm

PDF

Download Manufacturer's PDF

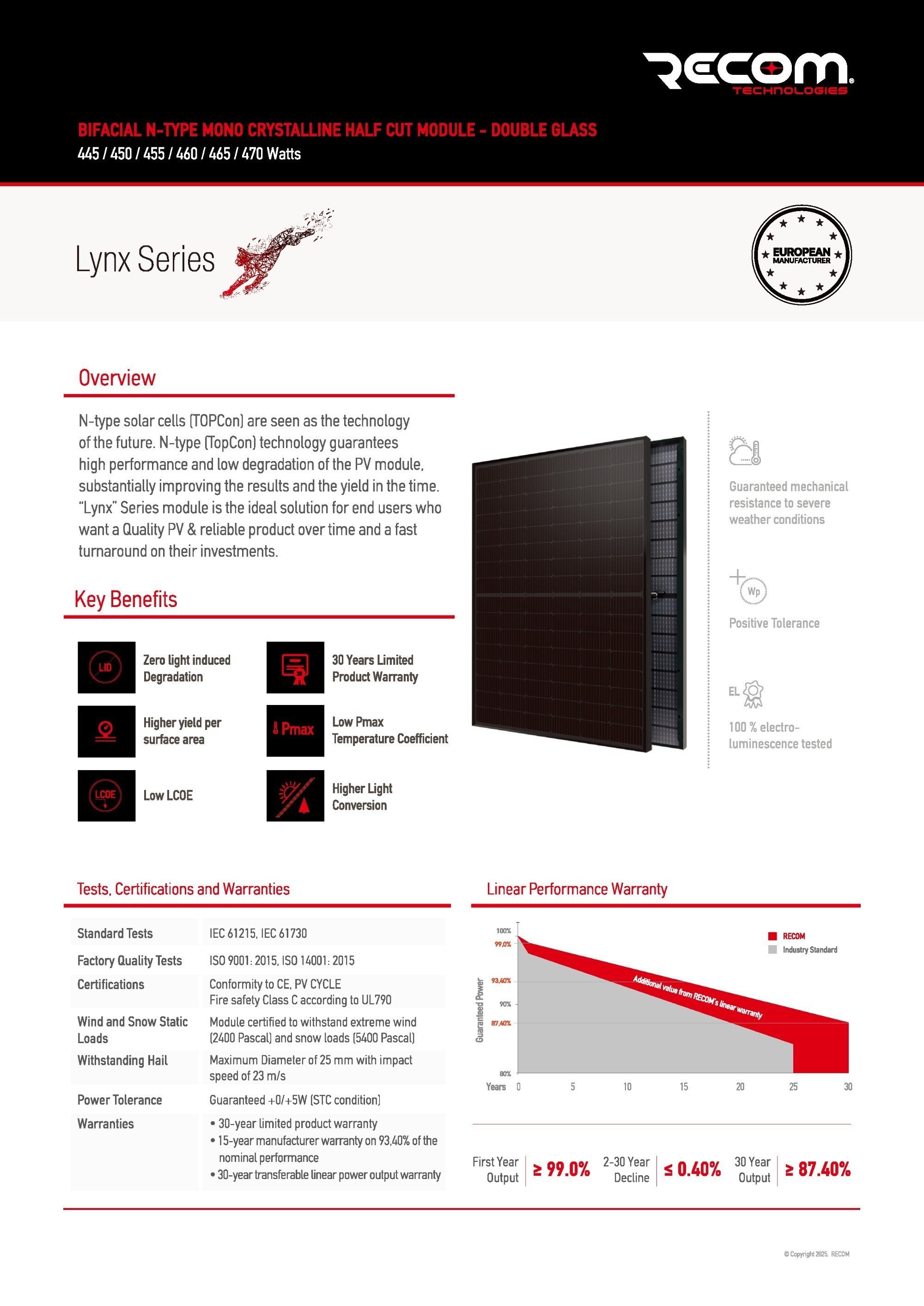

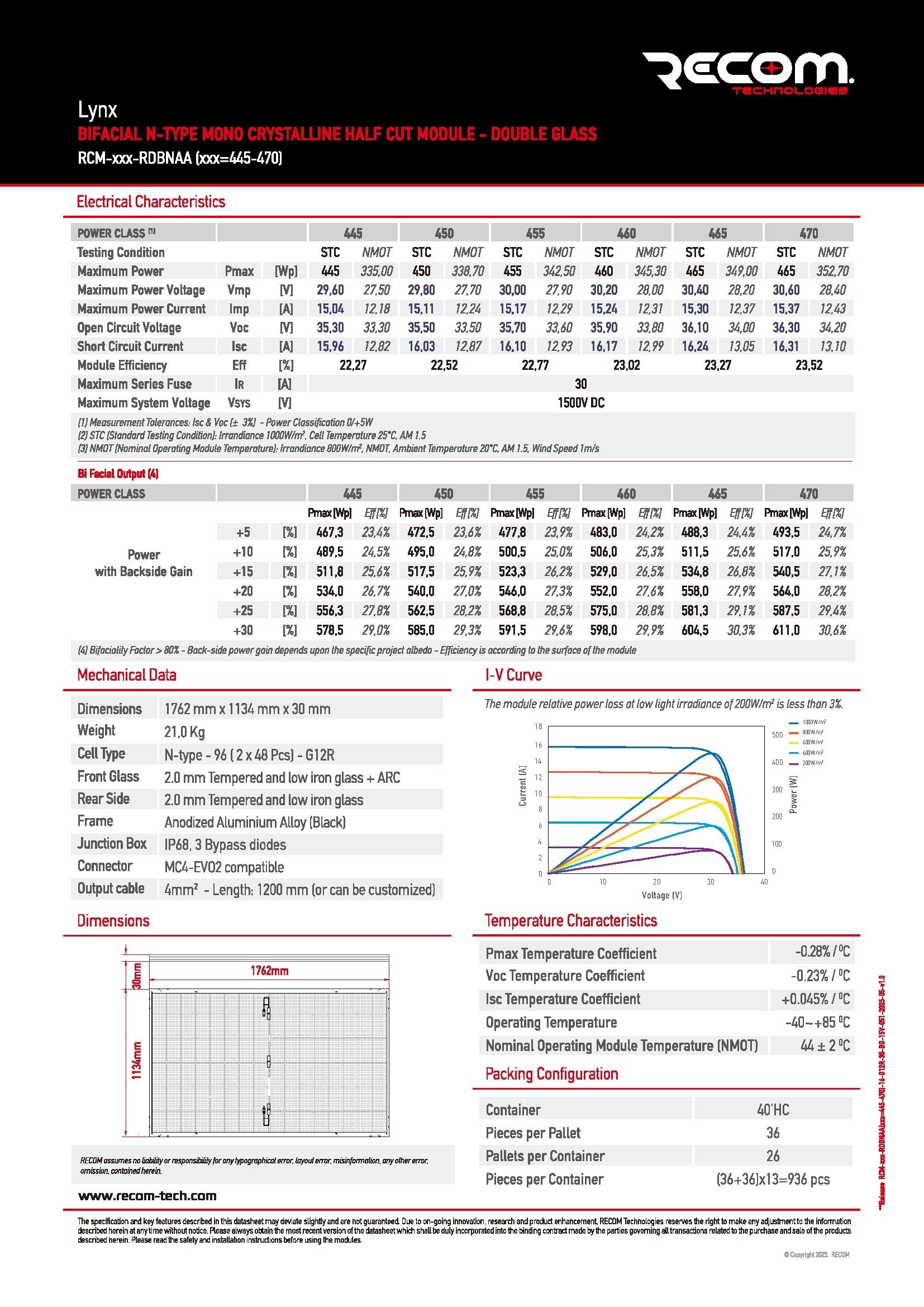

Datasheet

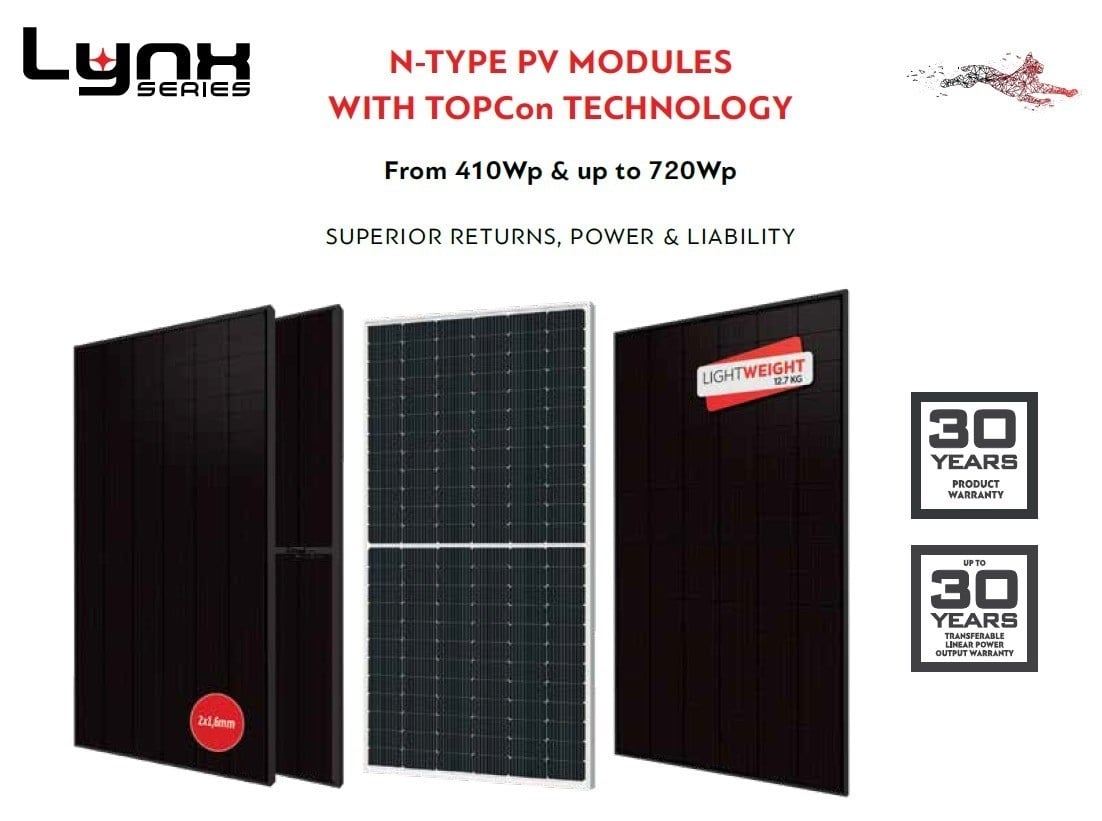

Lynx Series

RECOM — Your Path to Energy Independence

What Drives Us

At RECOM, we think differently. We are driven by a bold mission: to reduce humanity’s dependence on fossil fuels, bridge global inequalities, and halt the degradation of our environment. We believe that renewable energy and smart technologies are the foundation for a more equitable, peaceful, and sustainable world.

Clean energy, universally accessible and infinitely abundant, can empower communities across all geographies and socioeconomic backgrounds. But the future we envision goes beyond just energy - it’s one where intelligent, connected technologies enhance everyday life, foster growth, and accelerate the transition to a low-carbon economy.

That’s why at RECOM, we are constantly innovating to make solar energy, smart infrastructure, and digital sustainability accessible to all. Our goal is not only to solarize the global energy supply, but also to shape the future of mobility, smart living, and environmental intelligence - building a world that is clean, connected, and resilient for generations to come.

Follow Us on Instagram - https://www.instagram.com/recom_tech

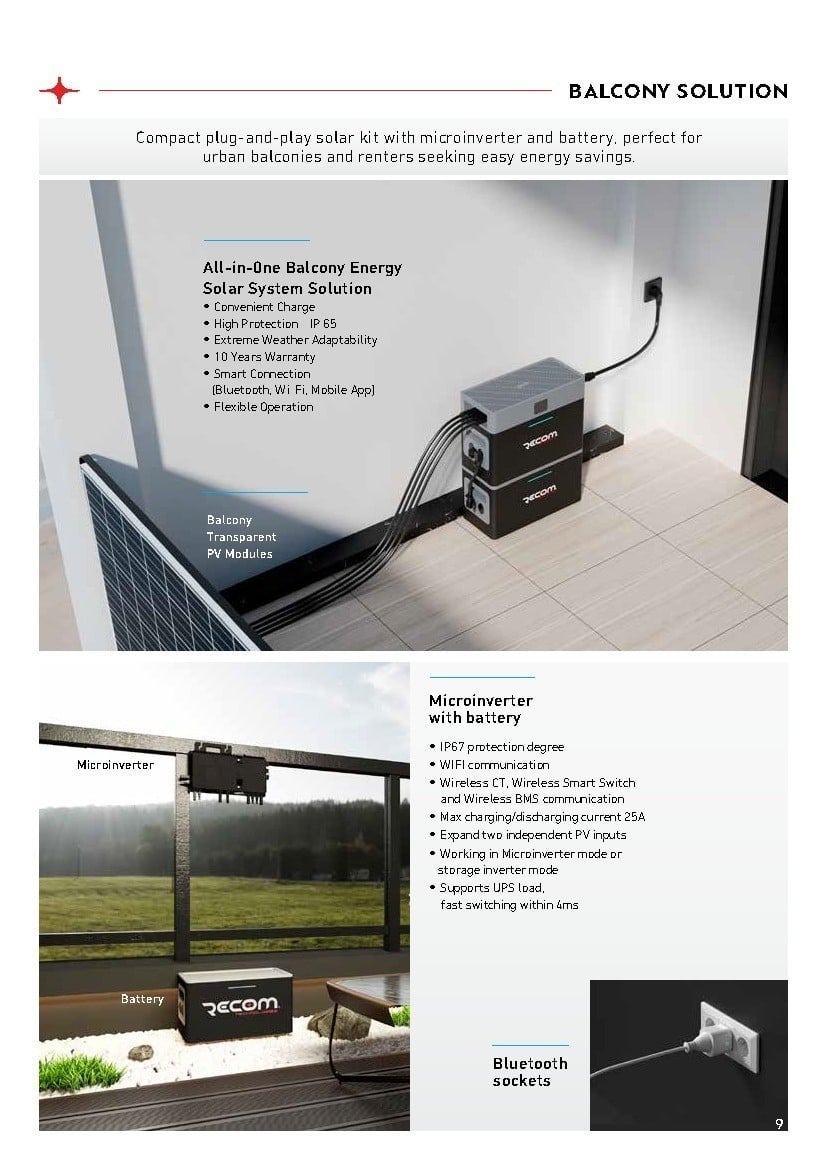

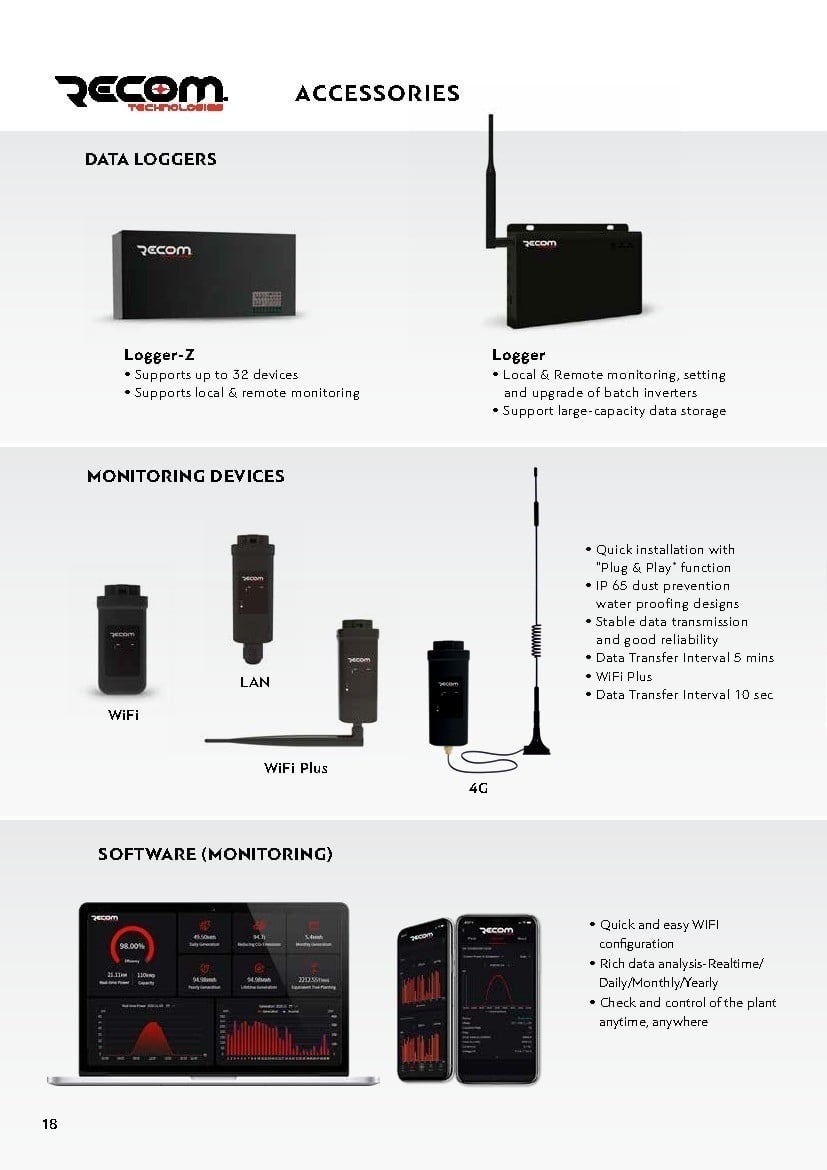

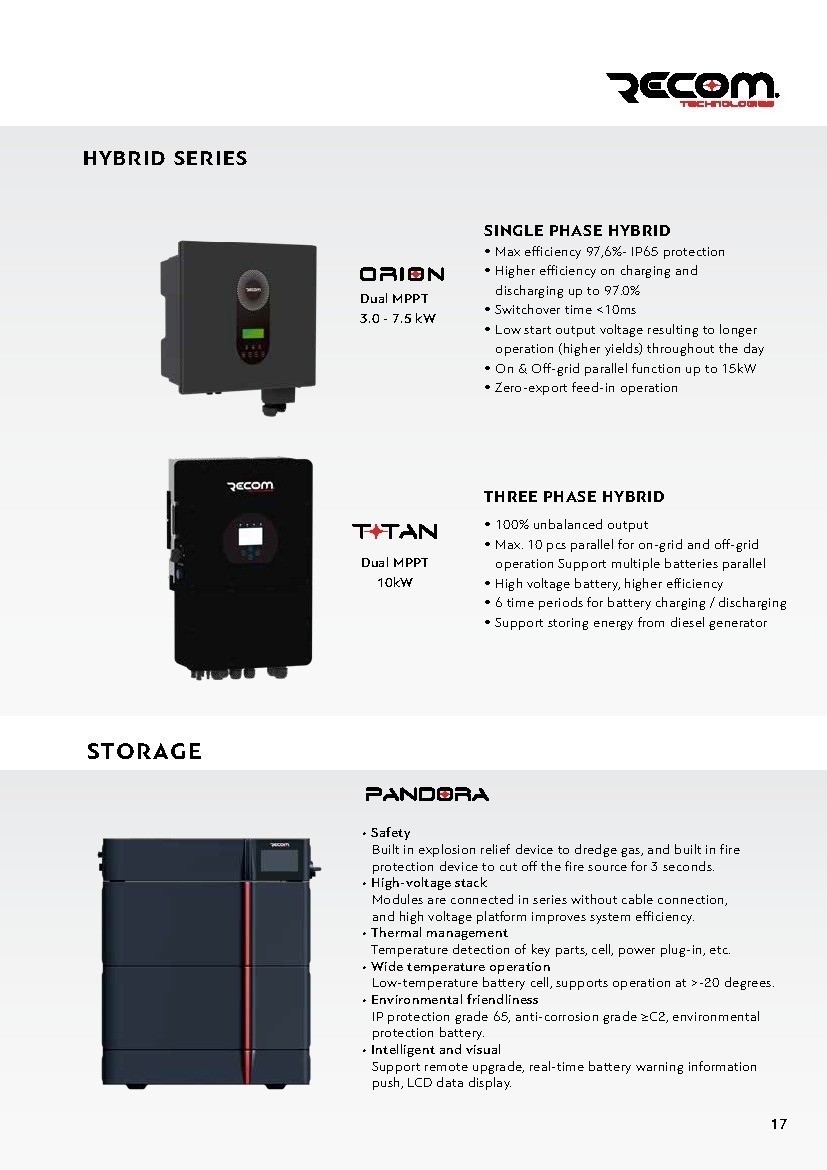

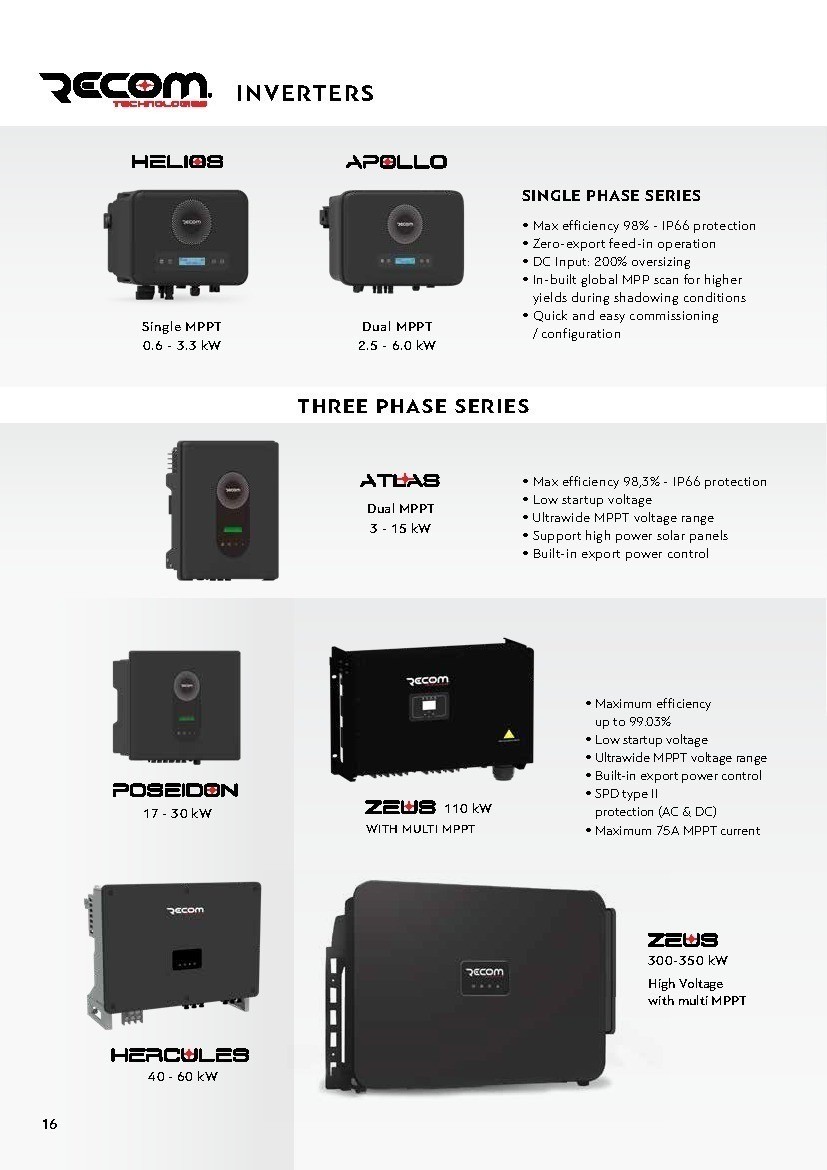

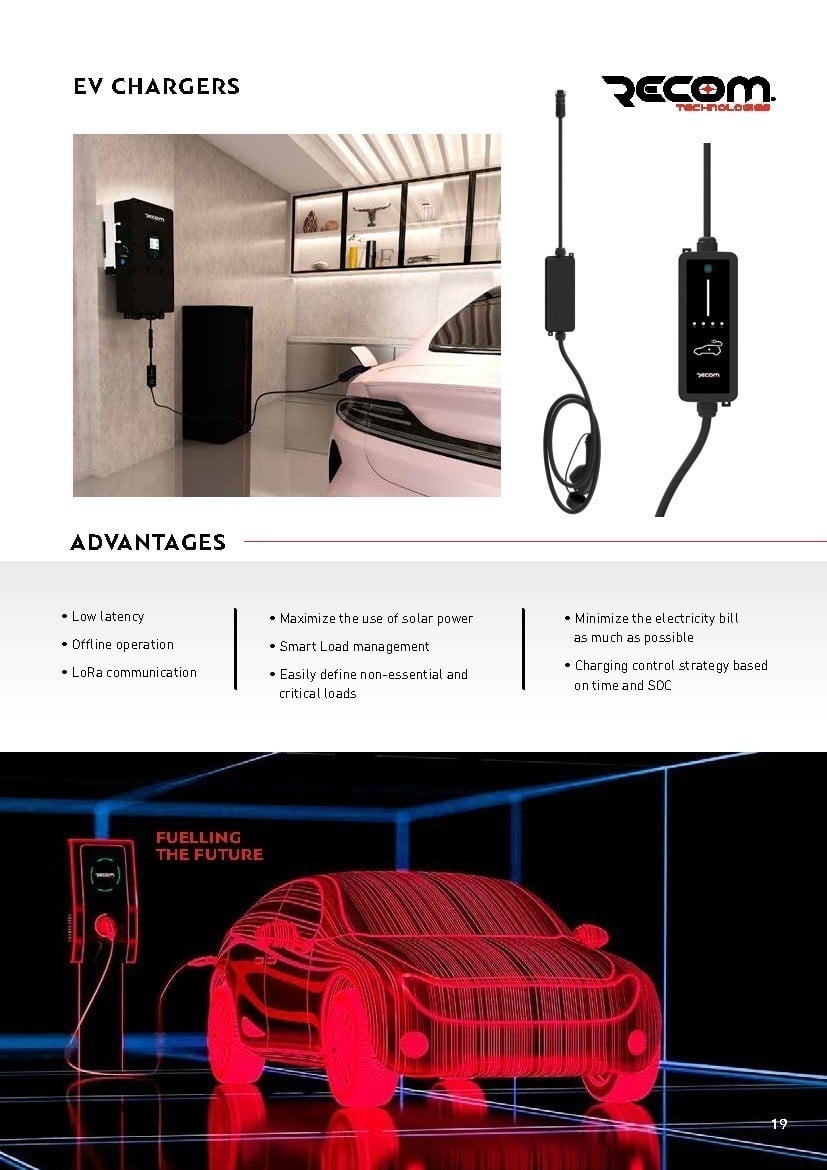

Inverters - Storage - EV Chargers

Our Solutions

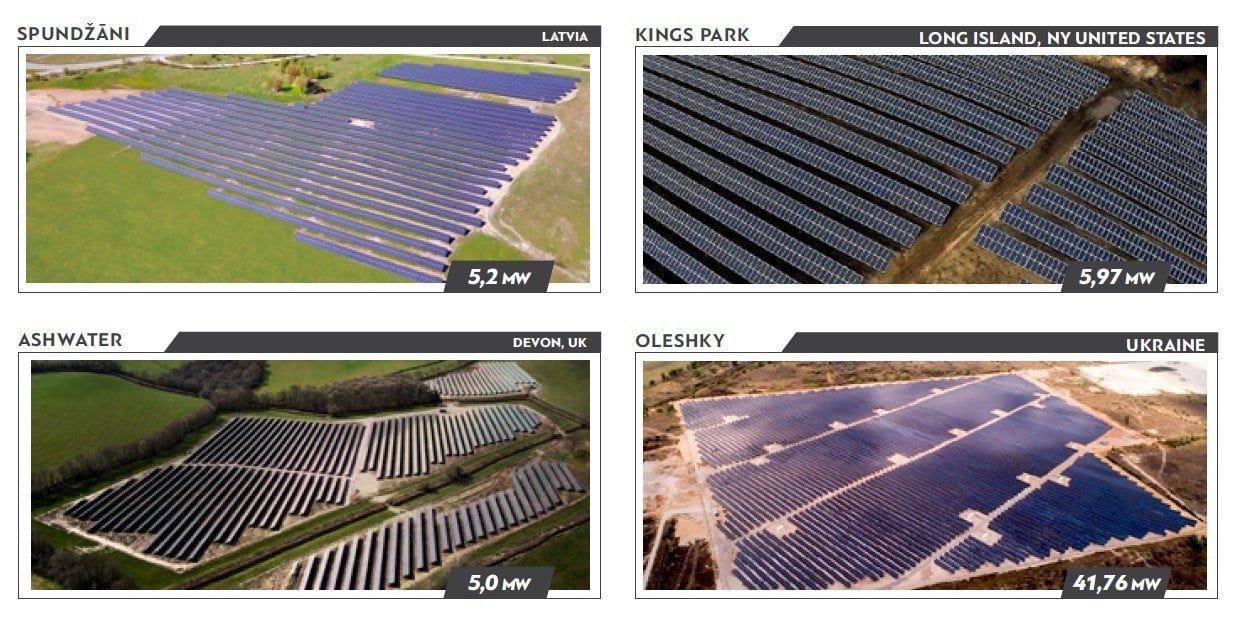

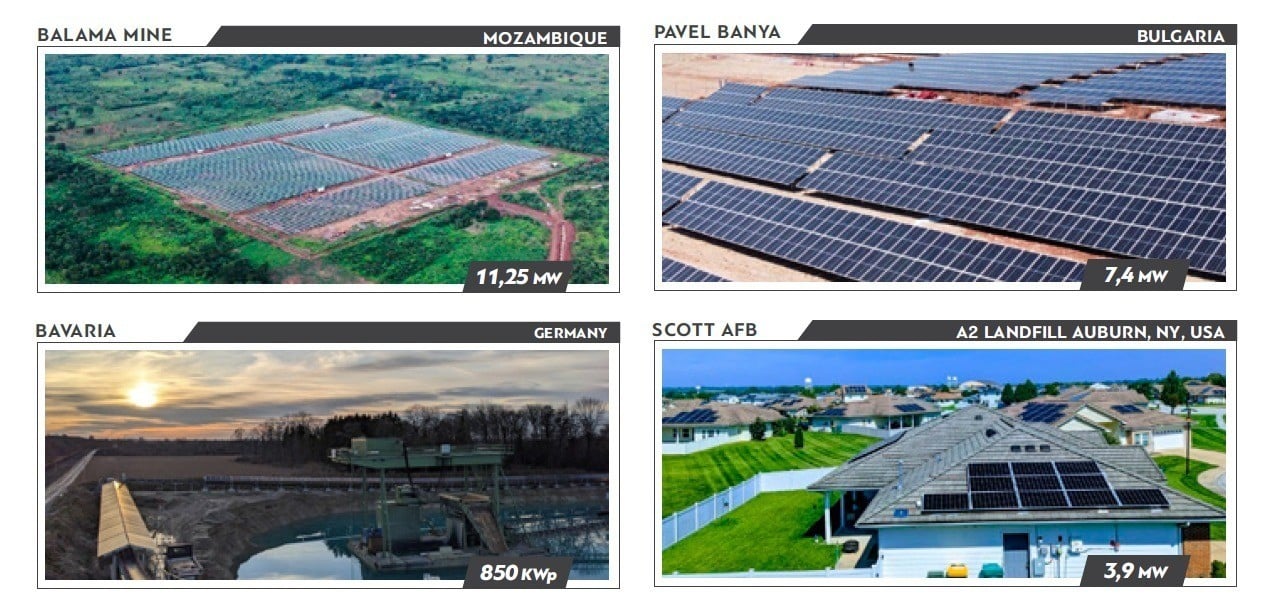

Projects
