Lynx RCM-600-630-RNM

Name: Lynx RCM-600-630-RNM
Brand: RECOM
SKU: 68959
Price: 0.07626 EUR
Availability: InStock

Recom Technologies Ltd

Price:

From €0.0763 / Wp

Price per Piece
Minimum Order	620-5579 Pieces	5580-18599 Pieces	18600+ Pieces
600	€47.7	€46.7	€45.8
605	€48.1	€47.1	€46.1
610	€48.5	€47.5	€46.6
615	€48.9	€47.9	€47.0
620	€49.4	€48.4	€47.4
625	€49.8	€48.8	€47.8
630	€50.2	€49.2	€48.2

Technology:	TOPCon, N-type
Power Range:	600 ~ 630 Wp
Region:	Italy

Contact Manufacturer

Note: Your Enquiry will be sent directly to Recom Technologies Ltd.

Solar Panel
Zun Power - GMA 420 W

From €0.105 / Wp

Solar Panel
Sunket New Energy - SKT410~430M10-108D4（FB-BMG-1.6mm)

From €0.102 / Wp

Product Info
Company Profile

Product Characteristics

Type

Monocrystalline

Model No.

600

605

610

615

620

625

630

Warranty

Product Warranty

30 Years

Power Warranty

15 Years of 93.40%, 30 Years of 87.40%

Electrical Data at STC

Maximum Power (Pmax)

600 Wp

605 Wp

610 Wp

615 Wp

620 Wp

625 Wp

630 Wp

Voltage at Maximum Power (Vmpp)

40.2 V

40.4 V

40.6 V

40.8 V

41 V

41.2 V

41.4 V

Current at Maximum Power (Impp)

14.83 A

14.88 A

14.93 A

14.98 A

15.03 A

15.08 A

15.13 A

Open Circuit Voltage (Voc)

47.7 V

47.9 V

48.1 V

48.3 V

48.5 V

48.7 V

48.9 V

Short Circuit Current (Isc)

15.75 A

15.8 A

15.85 A

15.9 A

15.95 A

16 A

16.05 A

Panel Efficiency

21.84 %

22.03 %

22.21 %

22.4 %

22.58 %

22.77 %

22.95 %

Power Tolerance (Positive)

+ 0.83 %

+ 0.82 %

+ 0.81 %

+ 0.8 %

+ 0.79 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

447.6 Wp

451.3 Wp

455 Wp

458.7 Wp

462.4 Wp

466.1 Wp

471.3 Wp

Voltage at Maximum Power (Vmpp)

37.1 V

37.3 V

37.5 V

37.6 V

37.8 V

38 V

38.04 V

Current at Maximum Power (Impp)

12.07 A

12.11 A

12.14 A

12.18 A

12.22 A

12.26 A

12.29 A

Open Circuit Voltage (Voc)

45 V

45.2 V

45.4 V

45.6 V

45.8 V

46 V

46.3 V

Short Circuit Current (Isc)

12.71 A

12.75 A

12.79 A

12.83 A

12.87 A

12.91 A

12.95 A

Temperature

42±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.28 %/°C

Temperature Coefficient of Voc

-0.23 %/°C

Temperature Coefficient of Isc

0.045 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Material Data

Panel Dimension (H/W/D)

2382x1134x35 mm

Weight

33.5 kg

Cell Size

210×182 mm

Cell Number

132

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

2 mm

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm²

Cable Length

1200 mm

PDF

Download Manufacturer's PDF

Datasheet

Recom Technologies Ltd

: +39 028 7362495
: https://recom-tech.com
: Italy
: Foro Buonaparte 12, Milano, MI, 20121

No. Staff: 2,500

Contact Manufacturer

Note: Your Enquiry will be sent directly to Recom Technologies Ltd.

Crystalline

Production (MW)/: MWp

Monocrystalline, Polycrystalline

Power Range(Wp): 350-750

Useful Contacts

Georgia Stavropoulou Marketing Director

Leo Davoularis

Tada Toyotomi Sales Manager - Japan

Vasilis Koemtzis Sales Administrator

Company Description

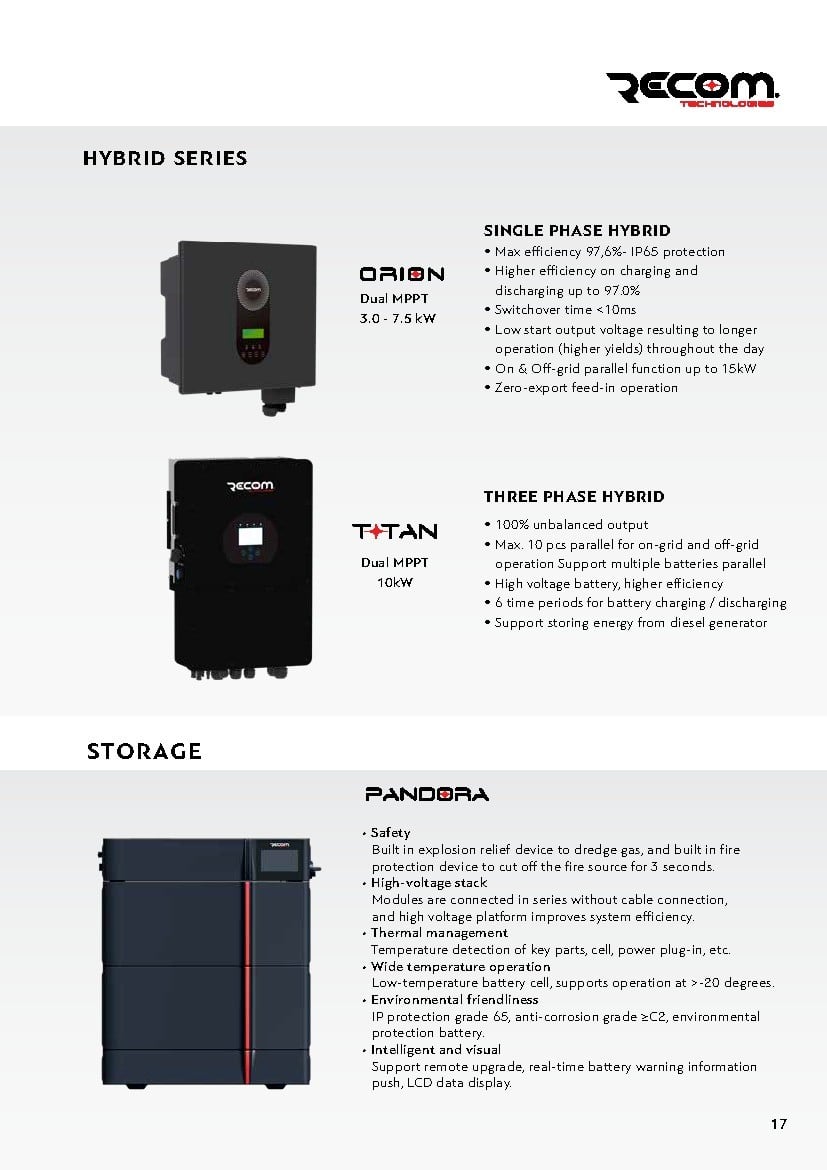

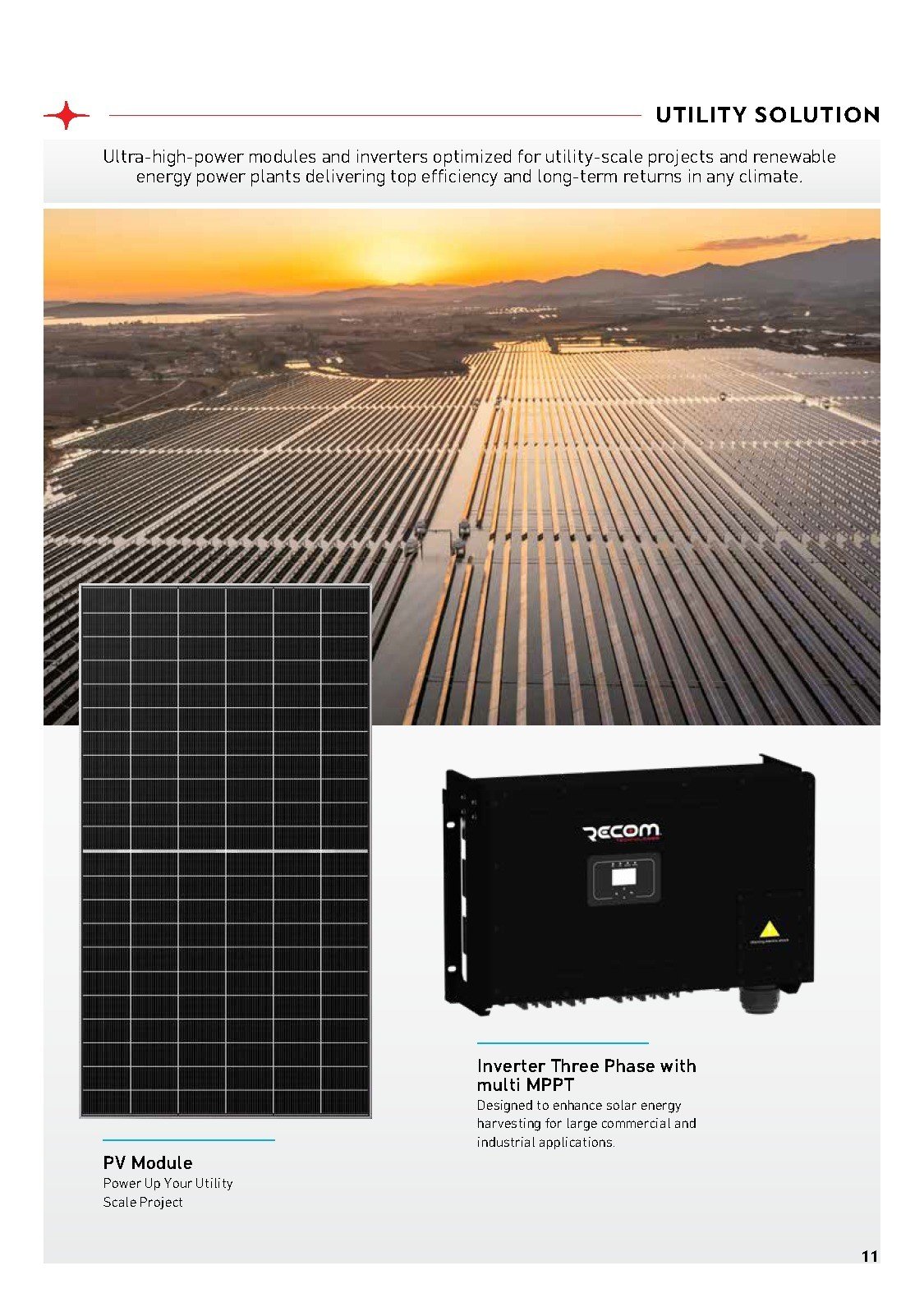

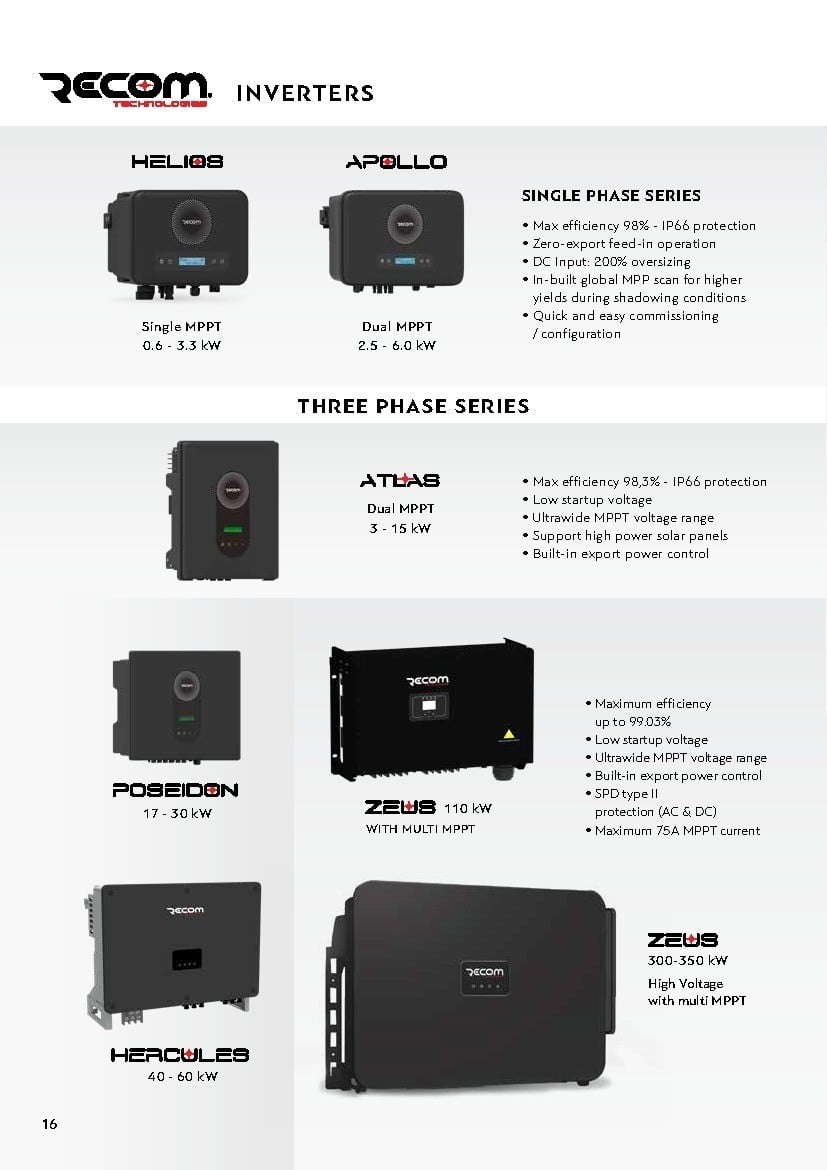

RECOM Technologies is a leading European company at the forefront of renewable energy and smart technology innovation, with a strong global presence. Rooted in solar energy excellence, RECOM manufactures advanced photovoltaic modules, inverters, hybrid storage systems, batteries, and EV chargers, while also delivering turnkey solutions for utility-scale, commercial, and residential solar projects - from investment through development and construction.

Today, RECOM is evolving - expanding beyond solar into smart home living, e-mobility, and connected consumer technologies. This strategic transformation reflects our vision to redefine sustainable living in a digital-first world, integrating AI-driven innovation to create seamless, energy-efficient experiences.

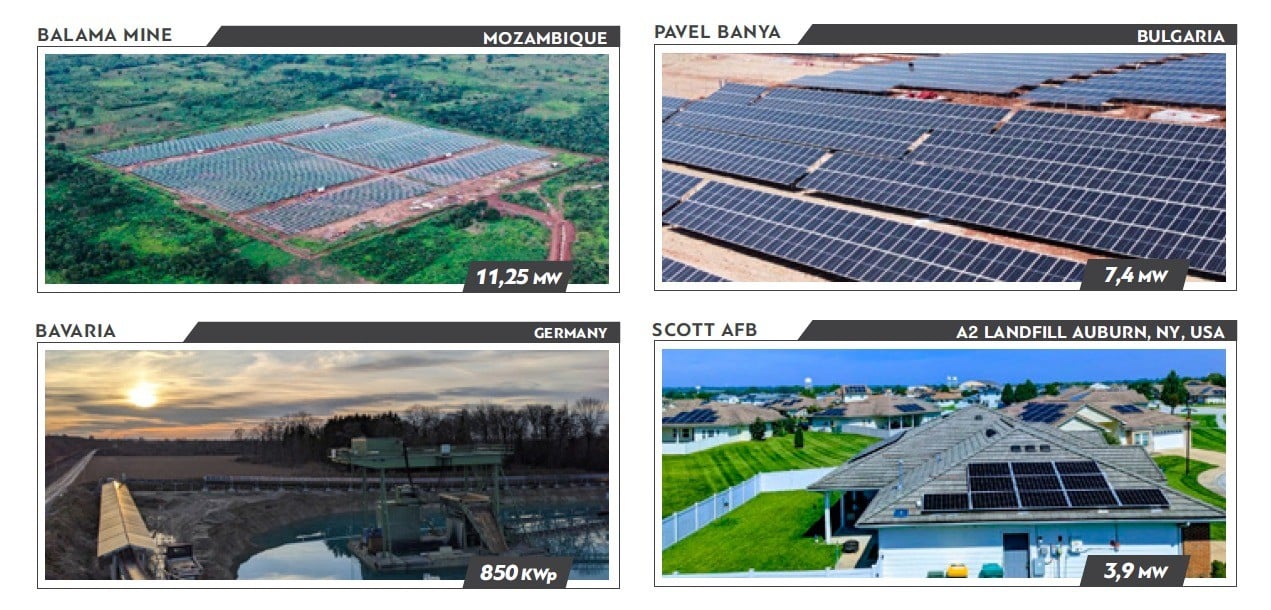

With an annual production capacity of over 3.2 GW in solar modules and installations spanning more than 110 countries, RECOM stands among Europe’s top photovoltaic manufacturers.
