Region: | China |
---|
– Adjustable tilt kit for rooftop with angle adjustable;
– Three options: 10°~15°,15°~ 30°,30°~60°;
– Application: flat / standing seam / trapezoid metal rooftop, concrete ground…
– Pre-assembly packing for quick & easy installation;
– 30% up power increase performance;
Model No. |
|
|
---|---|---|
Product Warranty | 15 Years | |
System Overview | ||
Type | Pitched Roof | |
Mounting System Arrangement | Rows | |
Panel Framing | Framed | |
Panel Orientation | Landscape | |
Roof Types | Seam Metal, Foil, Steel, Aluminium | |
Tilt Angle |
|
|
Wind Load |
|
|
Snow Load |
|
|
General Data | ||
Supporting Structure Materials | Aluminium | |
Small Parts Materials | Aluminium, Stainless Steel |

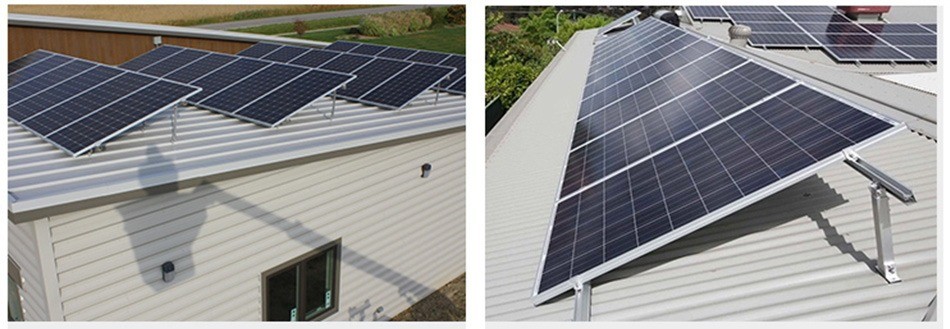

Adjustable Tilt Solar Racking System is applicable to install the usual framed module to tilt a certain angle with the roof. The solar system can be a fixed angle or adjustable such as 10~15 deg, 15~30 deg and 30~60 deg for your requirement. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.
Product | AS Fixed Angle Flat Roof Tilt Mount |
Application | Standing Seam / Trapezoid Metal Rooftop |
Roof Type | Metal Rooftop |
Tilt Angle | 10~60 deg |
Wind Speed | 60 m/s |
Snow Load | 1.4 KN/m² |
Solar Panel | Framed and Frameless |
Panel Layout | Portrait or Landscape |
Design Standard | AS/NZS 1170,DIN 1055,JIS C8955:2017,International Building Code IBC 2009 |
Material | Structure: Al6005-T5(Anodized) Components: SUS304 & A16005-T5(Anodized) |
Warranty | Ten years warranty and twenty years service life |
Xiamen Angels Solar Energy Co.,Ltd specializes in designing, manufacturing and promoting solar mounting system.
With mother company having over 12 years experience of ODM and manufacturing galvanized steel and aluminum structures. The experience of metallic structures an raw materials supply chain management, as well as quality inspection and control, makes Angels Solar competitive in delivering solar mounting solutions and products that are cost-effective and solid.
With dedicated and experienced R&D engineering team and efficient supply chain, we have launch a series of solar mounting system covering residential, commercial and utility application, and we are determined to become an all-round solar mounting solution and product provider. "Quality Value Service" is the principle we pursue. We deliver value of mounting structures in solar projects by innovation in product design, we satisfy our customers by providing professional service throughout the whole process o project planning, design, delivery and commissioning.
Together with customers, suppliers and fellow companies, we look forward to building a society of sustainable development and a greener future.
Xiamen Angels Solar Energy Co., Ltd specializes in the design, manufacturing, and promotion of solar mounting systems.
Our parent company boasts over 14 years of experience in Original Design Manufacturing (ODM) and the production of galvanized steel and aluminum structures. Angels Solar leverages this extensive background in metallic structures, raw materials supply chain management, and quality inspection and control, positioning itself as a competitive provider of cost-effective and durable solar mounting solutions and products.
Equipped with a dedicated and experienced R&D engineering team and an efficient supply chain, we have successfully introduced a comprehensive range of solar mounting systems catering to residential, commercial, and utility applications. Our goal is to evolve into a comprehensive solar mounting solution and product provider, guided by the principle of "Quality Value Service." We achieve this by innovating in product design, delivering value in mounting structures for solar projects, and ensuring customer satisfaction through professional service across the entire project lifecycle—from planning and design to delivery and commissioning.
Collaborating with customers, suppliers, and fellow companies, we look forward to building a society focused on sustainable development and a greener future.
