BENY 100kWh, 115kWh, 215kWh, 230kWh, 241kWh, 26...

Beny New Energy GmbH
Nominal Voltage
672 ~ 1,344 V
Technology
LFP (LiFePO4)
Region
Germany Germany
Weight
1,400 ~ 3,700 kg
Product Warranty
5 Years
Cycle Life
8000@80%DOD
Design Life
20 Years
Configuration
Cabinet
Price:
From
€65.2 / kWh
Price per Piece
Price per Piece
Minimum Order 1-9 Pcs 10+ Pcs
BYHV-115SAC €17,700 €17,200
BYHV-230SAC €23,800 €23,400
BYHV-241SAC €24,600 €24,200
BYHV-100SAC-H €19,500 €19,000
BYHV-215SLC €23,800 €23,400
BYHV-241SLC €26,400 €25,800
BYHV-261SLC €28,100 €27,500
BYHV-422BLC €36,800 €36,200
Contact Manufacturer
Note: Your Enquiry will be sent directly to Beny New Energy GmbH.
  • Adopts an all-in-one design with ultra-high integration, making it suitable for various scenarios.

  • Features a prefabricated cabin design for flexible deployment, convenient transportation, and no need for internal wiring and debugging.

  • Suitable for industrial and commercial situations with high requirements for grid continuity,

Warehouse:
Warehouse Location: Munich Germany
Model Stock(Pcs) Contact Manufacturer
BYHV-115SAC 1
BYHV-230SAC 1
BYHV-241SAC 1
BYHV-100SAC-H 1
BYHV-215SLC 1
BYHV-241SLC 1
BYHV-261SLC 1
BYHV-422BLC 1

Product Characteristics

Model No.
BYHV-115SAC BYHV-230SAC BYHV-241SAC BYHV-100SAC-H BYHV-215SLC BYHV-241SLC BYHV-261SLC BYHV-422BLC
Price/kWh
€149 / kWh €102 / kWh €100 / kWh €88.5 / kWh €96.9 / kWh €98.8 / kWh €65.2 / kWh €362 / kWh
Price (Unit)
€17,200 / Unit €23,400 / Unit €24,200 / Unit €19,000 / Unit €23,400 / Unit €25,800 / Unit €27,500 / Unit €36,200 / Unit
Product Warranty (Min) 5 Years
Configuration Cabinet
Storage System Technology LFP (LiFePO4)
Parts BMS
Mounting Options Floor


Nominal Voltage
768 V 768 V 768 V 672 V 768 V 768 V 832 V 1344 V
Nominal Energy
115 kWh 230 kWh 241 kWh 215 kWh 241 kWh 261 kWh 422 kWh 100 kWh
Usable Energy
115 kWh 230 kWh 241 kWh 215 kWh 241 kWh 261 kWh 422 kWh 100 kWh
Design Life
20 Years 20 Years 20 Years 20 Years 20 Years 20 Years 20 Years 20 Years
Cycle Life 8000@80%DOD

Operating Temperature -29 ~ +50 ℃

Dimension (L/W/H)
1000x1275x1900 mm 1130x1865x2050 mm 1110x1745x2050 mm 1200x1318x1850 mm 1320x1400x2050 mm 1320x1400x2050 mm 1110x1690x2350 mm 1003x1700x2519 mm
Weight
2400 Kg 2600 Kg 2400 Kg 1400 Kg 2400 Kg 2400 Kg 2600 Kg 3700 Kg
IP Rating IP55
Max. Altitude 2000 m
Communication CAN, RS485
Monitoring App

Download Manufacturer's PDF

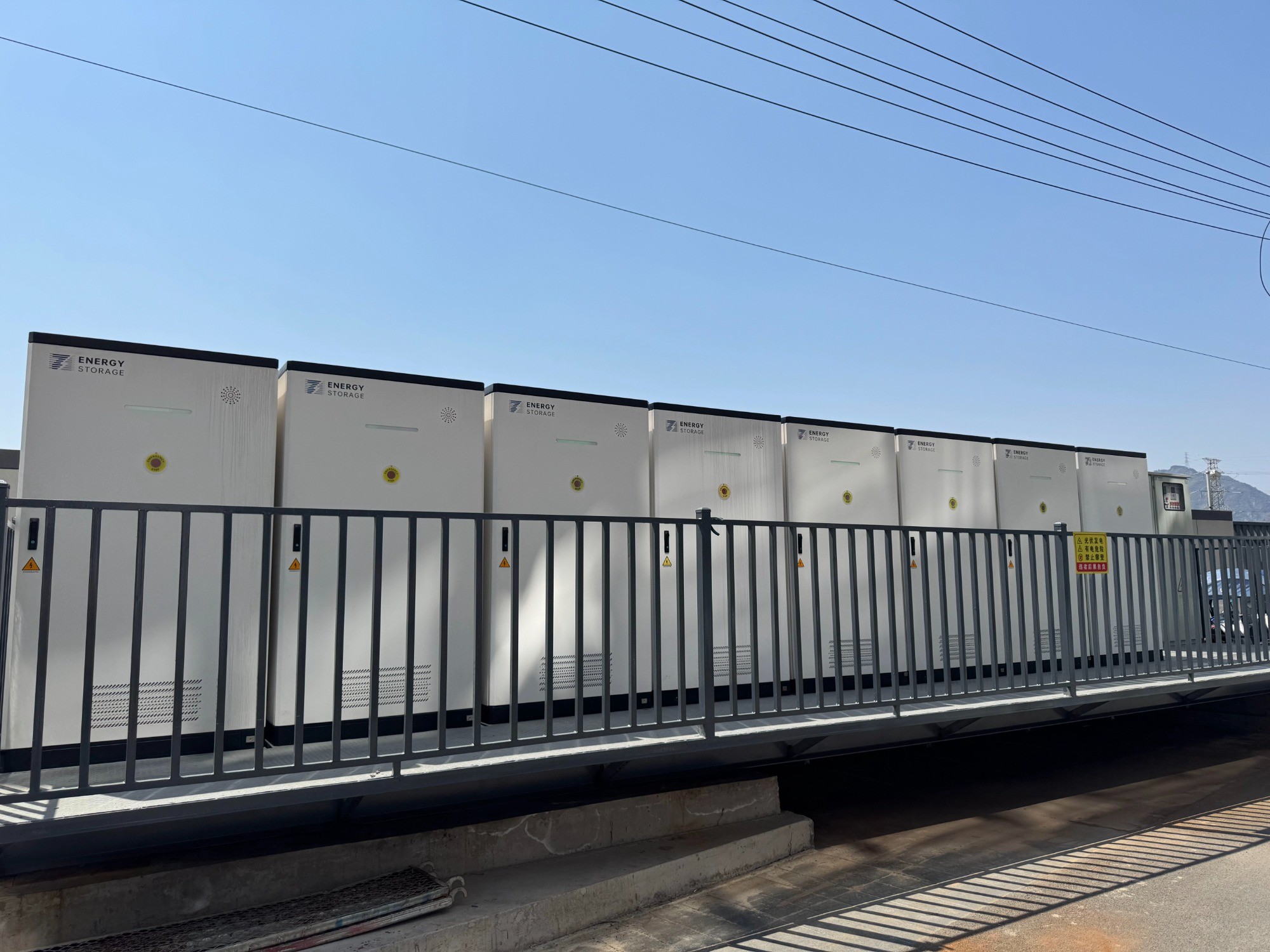

Project Cases

Production Capacity

Product Highlights

  • All-in-One Design: Batteries, BMS, PCS, fire protection, energy management, etc.

  • Quick Heat Dissipation: High specific heat liquid cooling technology.

  • Optional Battery Cells: Optional battery cells offer flexibility in performance, cost, and chemistry selection, allowing optimization for different application needs and market preferences.

  • Optional PCS: Optional PCS enables greater flexibility, lower upfront cost, easier maintenance, and broader compatibility across applications and markets.

  • Autonomous EMS: Enabling a self-developed EMS allows for smarter energy management, better system integration, and greater control over performance optimization and data security.

  • High End Components: Compatibility with premium components from brands like ABB ensures higher reliability, safety, and performance standards for the energy storage system.

  • Private Brand Charging Station: Pairing with Beny's charging stations ensures seamless compatibility, enhanced system efficiency, and a consistent brand experience.

  • Application Scenarios: Grid Energy Storage Solutions; Microgrid Solution; Commercial Complex Solution; Data Center Solutions; Wind and Solar Power Plant Solution; Integrated Solar Charging Solution

  • Functions: peak shaving, power capacity expansion, emergency backup power, grid balancing, capacity management, and multi-level parallel connection.

Application Scenario

It is suitable for industrial and commercial situations with high requirements for grid continuity, and can cover communication energy storage, grid frequency modulation energy storage, wind and solar microgrid energy storage, large-scale industrial and commercial distributed energy storage, data center energy storage, and photovoltaic power generation business in the new energy field.

Wide Inverter Compatibility

Compatible with most mainstream inverter brands, enabling seamless integration into existing and new energy systems while reducing deployment complexity.

Intelligent Monitoring

PowerView

Client software that allows for real-time viewing of the operating status and parameters, economic benefits, product information, and historical data of energy storage system.

Supervisor

Intelligent operation and maintenance software that monitors the operation status of energy storage systems, manages operation and maintenance business, predicts maintenance needs 24/7, and provides worry-free system security.

Analyzer

AI data analysis software that uses a large amount of operational data, combined with battery electrochemical models and load operating conditions, to adjust the optimal operating strategy in real time.

Bidder

Virtual power plant software that aggregates resources such as energy storage, charging stations, photovoltaics, and controllable loads, participates in power market trading, and improves asset investment return.

Certified Quality

Our battery energy storage systems are fully certified for compbliance with international standards, including but not limited to CE, UN 38.3, MSDS, and RoHS. In terms of grid connection, our systems meet the interconnection requirements of various European countries, such as VDE 4110 andVDE 4120 for the German-speaking region, CEI

0-21 and CEI 0-16 for Italy, and DSO specifications for Lithuaniia. Additionally, it complies with Australia's IEC 62040, AS/NZS 4777.2:2020, and CEC Listing.
