  2. LWM5BB-PERC-210
LWM5BB-PERC-210

LWM5BB-PERC-210

Lightway Solar Energy Technology Ltd
Price:
From €0.00917 / Wp
Cell Type: PERC
Power Range: 5.033~5.47 Wp
Region: China China
Note: Your Enquiry will be sent directly to Lightway Solar Energy Technology Ltd.

Description:

1. PID Free

2. Diamond wire PERC+SE Technique

3. High conversion efficiency, average cell efficiency is 22.0%, highest efficiency is 22.6%

4. Long term efficiency, stability and excellent reliability

5. Low breakage rate and Low LID rate

6. Good color uniformity

Product Characteristics

Model No.
LW-M6-5BB-5.033W LW-M6-5BB-5.057W LW-M6-5BB-5.082W LW-M6-5BB-5.106W LW-M6-5BB-5.131W LW-M6-5BB-5.155W LW-M6-5BB-5.180W LW-M6-5BB-5.204W LW-M6-5BB-5.23W LWM5BB-PERC-5.25W LWM5BB-PERC-5.28W LWM5BB-PERC-5.30W LWM5BB-PERC-5.33W LWM5BB-PERC--5.35W LWM5BB-PERC-5.38W LWM5BB-PERC-5.40W LWM5BB-PERC-5.42W LWM5BB-PERC-5.45W LWM5BB-PERC-5.47W
Product Characteristics
Cell Technology PERC
Dimensions 156.75×156.75 mm
Diagonal 210±0.25 mm
Cell Thickness 200 ± 20 µm
Front Surface (-)
No. of Busbars 5
Busbar Width 0.8±0.1 mm
Busbar Material Silver
Anti Reflection Coating Silicon nitride
Back Surface (+)
No. of Soldering Pads 4
Soldering Pad Width 1.7 mm
Soldering Pad Material Silver
Back Surface Field (BSF) Aluminium
Electrical Data at STC
Maximum Power (Pmax)
5.033 W 5.057 W 5.082 W 5.106 W 5.131 W 5.155 W 5.18 W 5.204 W 5.23 W 5.25 W 5.28 W 5.3 W 5.33 W 5.35 W 5.38 W 5.4 W 5.42 W 5.45 W 5.47 W
Voltage at Maximum Power Point (Vmpp)
0.552 V 0.554 V 0.556 V 0.558 V 0.56 V 0.562 V 0.564 V 0.565 V 0.563 V 0.565 V 0.567 V 0.569 V 0.571 V 0.572 V 0.575 V 0.576 V 0.577 V 0.58 V 0.581 V
Current at Maximum Power Point (Impp)
9.12 A 9.135 A 9.149 A 9.16 A 9.17 A 9.181 A 9.191 A 9.201 A 9.295 A 9.297 A 9.315 A 9.323 A 9.337 A 9.351 A 9.364 A 9.371 A 9.392 A 9.404 A 9.418 A
Open Circuit Voltage (Voc)
0.655 V 0.656 V 0.657 V 0.658 V 0.659 V 0.66 V 0.66 V 0.661 V 0.661 V 0.671 V 0.672 V 0.674 V 0.675 V 0.676 V 0.677 V 0.679 V 0.68 V 0.681 V 0.682 V
Short Circuit Current (Isc)
9.723 A 9.729 A 9.735 A 9.741 A 9.746 A 9.752 A 9.758 A 9.764 A 9.777 A 9.763 A 9.77 A 9.782 A 9.795 A 9.796 A 9.818 A 9.836 A 9.845 A 9.856 A 9.864 A
Cell Efficiency
20.5-20.6 % 20.6-20.7 % 20.7-20.8 % 20.8-20.9 % 20.9-21.0 % 21.0-21.1 % 21.1-21.2 % 21.2-21.3 % 21.4-21.5 % 21.5-21.6 % 21.6-21.7 % 21.7-21.8 % 21.8-21.9 % 21.9-22.0 % 22.0-22.1 % 22.1-22.2 % 22.2-22.3 % 22.3-22.4 % 22.4-22.5 %
Fill Factor (FF)
79.05 % 79.3 % 79.53 % 79.74 % 79.95 % 80.17 % 80.49 % 80.55 % 80.97 % 80.18 % 80.45 % 80.46 % 80.64 % 80.77 % 81.01 % 80.82 % 80.95 % 81.26 % 81.34 %
Thermal Ratings
Temperature Coefficient of Pmax -0.38 %/˚C
Temperature Coefficient of Voc -0.28 %/˚C
Temperature Coefficient of Isc 0.04 %/˚C

---------------------<<About Lightway>>----------------------

Lightway Solar was established in 2006,set up four companies in China mainland and owns two operating/sales companies in HongKong,with manufacturing factilities in Jiangsu/Jiangxi/Guangdong for solar cells,solar modules and solar applications etc and global marketing/sales company in Shenzhen,our current annual production capacity is over 1.0GW up to 2.5GW for solar cells and solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates.Lightway devoted to offering clients a one-stop shop for high quality products and already recognized by many of our clients from all over the world up to 80 countries.

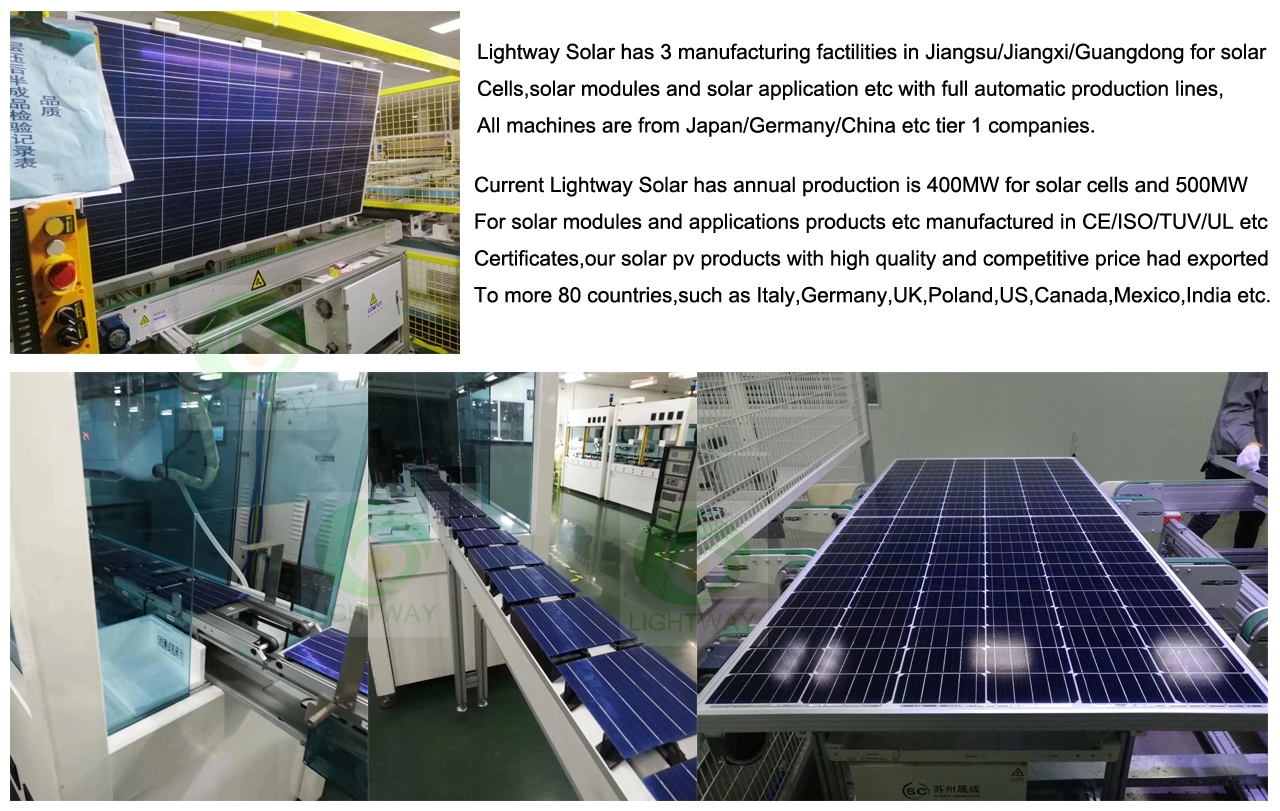

--------------------------<<Our Factory>>--------------------------

---------------------<<Storage & Package>>---------------------

-----------------<<Applications & Projects>>------------------

----------------------<<Full Certificates>>----------------------

----<<Our Flexible and Various Payment Term>>-----

Our Shipping is Fast Delivery and Safy & Accurate
