  2. SUN2000-30/36/40KTL-M3
SUN2000-30/36/40KTL-M3

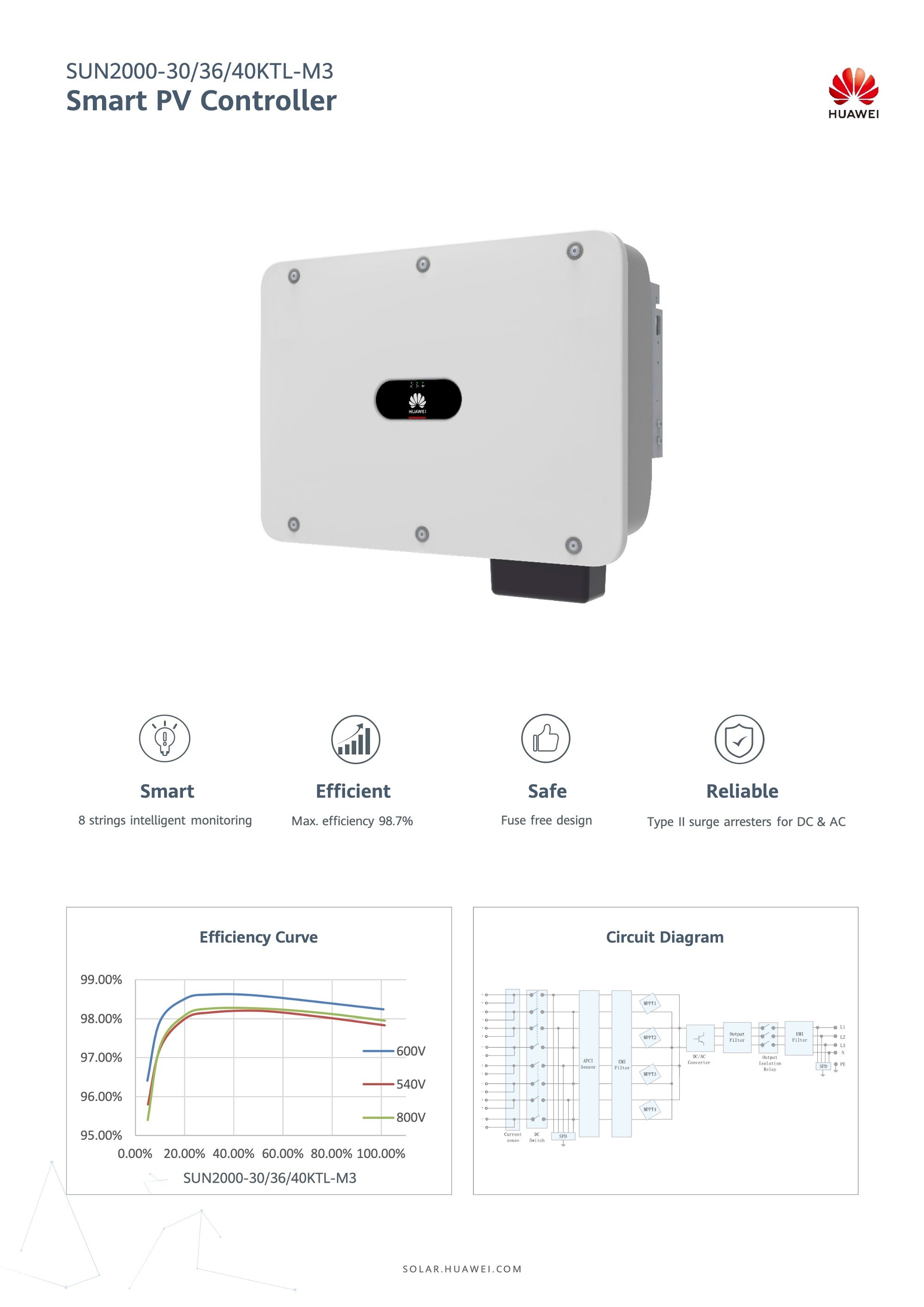

Huawei Technologies SUN2000-30/36/40KTL-M3

Raylyst Solar s.r.o.
Price:
From €0.0544 / Wp
From €2,000 / Unit
Type: On-Grid
Power Range: 33~44 kW
Region: Czech Republic Czech Republic
Note: Your Enquiry will be sent directly to Raylyst Solar s.r.o..

Alternative Product

Venus Series H...

Zonergy
From €0.145 / Wp
  • Type: Hybrid
  • Product Warranty: 5 Years
  • Protection Class: IP65
  • Dimension: 540x380x185 mm
  • Weight: 27 kg
More

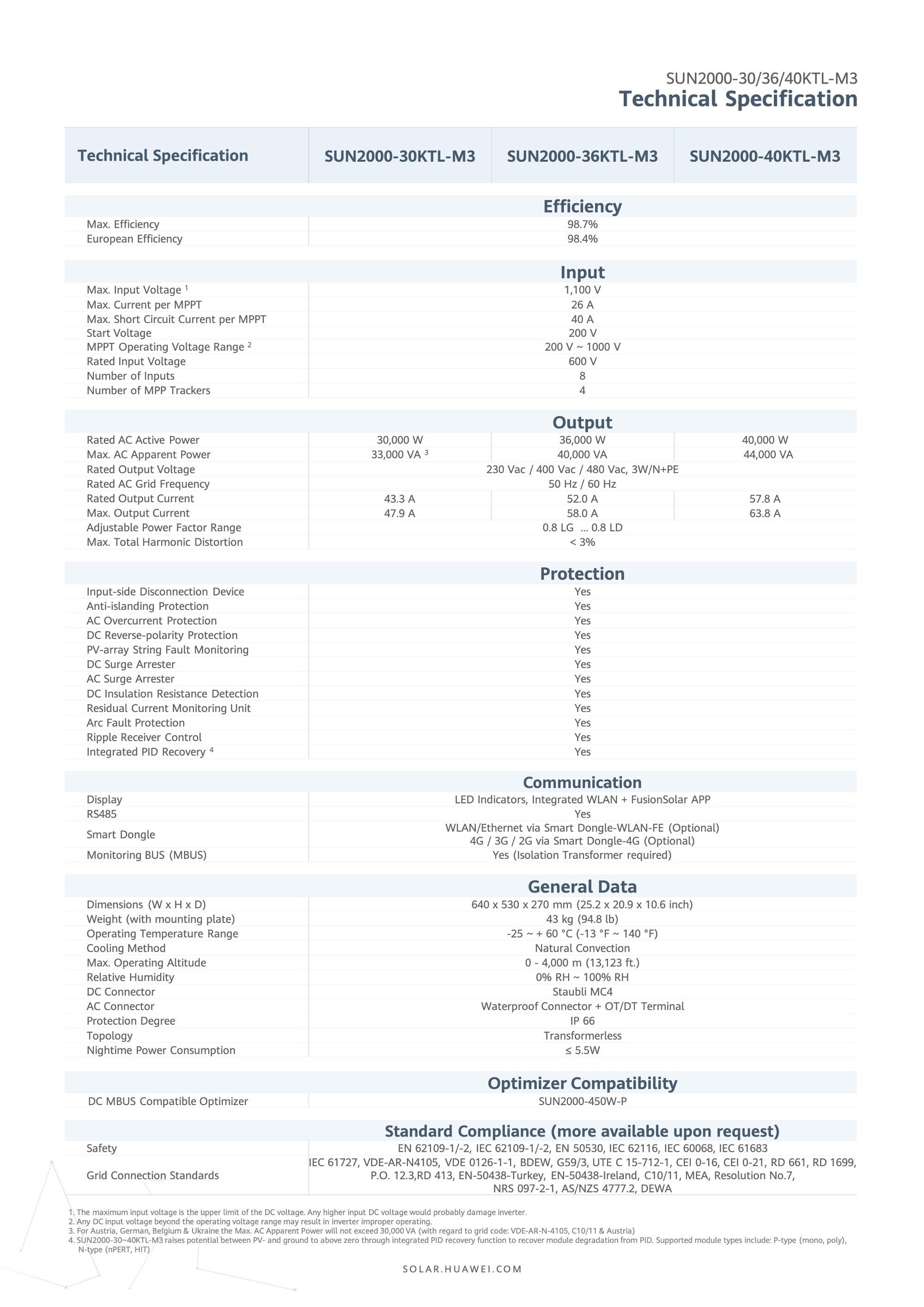

Product Characteristics

Model No.
SUN2000-30KTL-M3 SUN2000-36KTL-M3 SUN2000-40KTL-M3
Specification
Power
33 kW 40 kW 44 kW
Price
€2,000 / Unit €2,180 / Unit €2,390 / Unit
Input Data(DC)
Max. DC Voltage
1100 V 1100 V 1100 V
Rated DC Voltage
600 V 600 V 600 V
Min. DC Voltage to Start Feed In
200 V 200 V 200 V
Max. DC Current
104 A 104 A 104 A
MPP(T) Voltage Range
200~1000 V 200~1000 V 200~1000 V
No of MPP Trackers
4 4 4
DC Inputs
8 8 8
Connectors
MC4 MC4 MC4
Output Data (AC)
Max. AC Power
33 kW 40 kW 44 kW
Output AC Voltage Range
230~480 V 230~480 V 230~480 V
Nominal AC Voltage
230, 400, 480 V 230, 400, 480 V 230, 400, 480 V
Max. AC Current
47.9 A 58 A 63.8 A
Rated AC Current
43.3 A 52 A 57.8 A
Frequency
50, 60 Hz 50, 60 Hz 50, 60 Hz
Power Factor (cosθ)
0.8 0.8 0.8
Distortion (THD)
< 3 % < 3 % < 3 %
Max. Efficiency
98.7 % 98.7 % 98.7 %
Euro Efficiency
98.4 % 98.4 % 98.4 %
General Data
Dimensions (H/W/D)
640x530x270 mm 640x530x270 mm 640x530x270 mm
Weight
43 kg 43 kg 43 kg
Power Consumption at Night
< 5.5 W < 5.5 W < 5.5 W
Operating Temperature -25 ~ +60 ℃
Transformer Transformerless
Protection Class IP66
Humidity 0-100 %
Cooling Natural
Max. Altitude 4000 m
Interface RS 485, Ethernet, WLAN
Display LED
Protection Features
Protection Features Anti Island Protection(ENS), Overcurrent Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection
