(Shingled) ECO-380-400M-66SA

(Shingled) ECO-380-400M-66SA

ECO DELTA POWER CO LTD
Price:
From €0.220 / Wp
Type: Monocrystalline
Power Range: 380 ~ 400 Wp
Region: China China
Note: Your Enquiry will be sent directly to ECO DELTA POWER CO LTD.

Description:

Our 390W shingled modules, with the size as same as normal 370W half-cut panels, this new shingled panel can offer you 20W more power.

Almost same size as normal 370W panels, our shingled panels, have 20W more power, almost 40kW more in one 40FT HQ, which can save more space, transport cost, installation cost for your projects.

Now it is more and more popular in EU market.

Product Characteristics

Model No.
ECO-380M-66SA ECO-385M-66SA ECO-390M-66SA ECO-395M-66SA ECO-400M-66SA
Warranty
Product Warranty 12 Years
Power Warranty 10 Years of 93.05% Output Power, 25 Years of 84.80% Output Power
Electrical Data at STC
Maximum Power (Pmax)
380 Wp 385 Wp 390 Wp 395 Wp 400 Wp
Voltage at Maximum Power (Vmpp)
40.6 V 40.8 V 40.8 V 40.9 V 41 V
Current at Maximum Power (Impp)
9.36 A 9.44 A 9.56 A 9.66 A 9.76 A
Open Circuit Voltage (Voc)
49.1 V 49.3 V 49.3 V 49.4 V 49.5 V
Short Circuit Current (Isc)
9.93 A 9.98 A 10.03 A 10.07 A 10.12 A
Panel Efficiency
20.3 % 20.5 % 20.8 % 21.1 % 21.3 %
Power Tolerance (Positive)
+ 3 % + 3 % + 3 % + 3 % + 3 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
286 Wp 290 Wp 294 Wp 297 Wp 301 Wp
Voltage at Maximum Power (Vmpp)
38.7 V 38.9 V 38.9 V 39 V 39.1 V
Current at Maximum Power (Impp)
7.39 A 7.45 A 7.55 A 7.63 A 7.71 A
Open Circuit Voltage (Voc)
46.8 V 47 V 47 V 47.1 V 47.2 V
Short Circuit Current (Isc)
8 A 8.04 A 8.08 A 8.11 A 8.15 A
Temperature
42±2 °C 42±2 °C 42±2 °C 42±2 °C 42±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.34 %/°C
Temperature Coefficient of Voc -0.27 %/°C
Temperature Coefficient of Isc 0.04 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D) 1646x1140x35 mm
Weight 20.5 kg
Cell Type Monocrystalline
Cell Size 158.75×158.75 mm
Cell Number 360
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 2
Junction Box Protection Class IP 67
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 1000 mm
Certifications
PDF
Download Manufacturer's PDF

Product Characteristics


1.  High Efficiency

2. Series and Parallel Design

3. High Reliability

4. Low Cost

5. Good Compatobility

6. Elegance

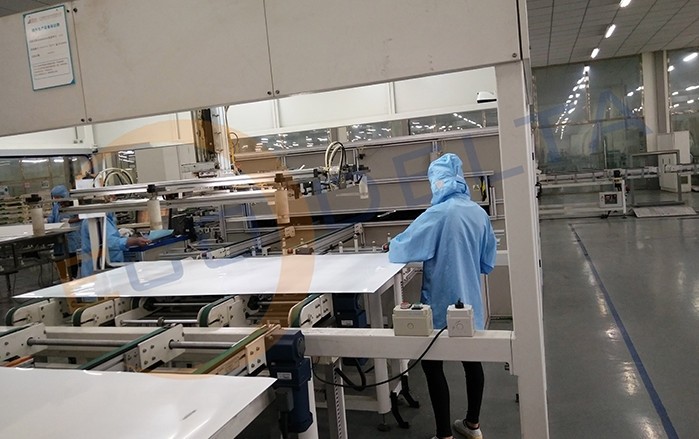

Production Line
