  1. Solar Panel Directory
  2. M6 120cells 355-370W Bifacial
M6 120cells 355-370W Bifacial
M6 120cells 355-370W Bifacial
M6 120cells 355-370W Bifacial

M6 120cells 355-370W Bifacial

Sunrise Energy Co., Ltd.
Price:
From €0.255 / Wp
Type: Monocrystalline
Power Range: Wp
Region: China China
Product is no longer manufactured.

Description:

●M6-166*83mm 370w 120cells 20.32% BIFACIAL 9BB Mono half cut Modules；

●TUV/BIS/CQC/CE/CSI/ISO；

●1500V；

●25 year linear performance warranty；

Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.

Product Characteristics

Model No.
SR-M660355HLPB SR-M660360HLPB SR-M660365HLPB SR-M660370HLPB
Warranty
Product Warranty 12 Years
Power Warranty 10 Years of 98% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)
355 Wp 360 Wp 365 Wp 370 Wp
Voltage at Maximum Power (Vmpp)
33.48 V 33.68 V 33.88 V 34.08 V
Current at Maximum Power (Impp)
10.61 A 10.69 A 10.78 A 10.86 A
Open Circuit Voltage (Voc)
40.75 V 40.99 V 41.24 V 41.48 V
Short Circuit Current (Isc)
11.13 A 11.22 A 11.31 A 11.39 A
Panel Efficiency
19.49 % 19.77 % 20.04 % 20.32 %
Power Tolerance (Positive)
+ 1 % + 1 % + 1 % + 1 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
262.89 Wp 266.6 Wp 270.3 Wp 274 Wp
Voltage at Maximum Power (Vmpp)
30.96 V 31.14 V 31.33 V 31.51 V
Current at Maximum Power (Impp)
8.49 A 8.56 A 8.63 A 8.69 A
Open Circuit Voltage (Voc)
37.99 V 38.22 V 38.45 V 38.68 V
Short Circuit Current (Isc)
8.94 A 9.01 A 9.09 A 9.16 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.365 %/°C
Temperature Coefficient of Voc -0.285 %/°C
Temperature Coefficient of Isc 0.055 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D) 1755x1038x35 mm
Weight 20 kg
Cell Type Monocrystalline
Cell Number 120
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 350 mm
PDF
Download Manufacturer's PDF

9BB oem 370w 365w 360w 355w 120 cells half cell mono perc bifacial solar panel cell

MONO has a complete IV curve cell;

M6 cell size 166*83mm;

MBB reduces power losses;

HALF CUT reduces hot pot losses;

BOS reduces investment costs;

1500v system voltage;

Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.


Type

SR-M660370HLPB

SR-M660365HLPB

SR-M660360HLPB

SR-M660355HLPB

Efficiency(%)

20.32

20.04

19.77

19.49

Cell Type(mm)

166x83 (9BB Mono-Crystalline Silicon)

Cells(pcs)

120(6*20)

Diode quantity

3

Cable&Connector

4mm2,MC4 or MC4 compatible，4mm2, EVO2 or EVO2 compatible

Cable length

350mm or as customer's requirements

Automation Product Process

Packaging and Shipping

5 or 7-ply corrugated boxes, reinforced wooden cases with pallets;

Custom made wooden cases are optional;

Ensure safety of all solar modules.

Protect your products in all aspects during transportation;

Dimension

1755×1038×35mm

Weight

20kg

Loading Capacity

360 pcs / 20’GP,858 pcs/40’HC

Packing

31pcs/pallet


Our Project Reference

Deliverry Mode

The transportation

According your demand and the quantity of products, we’ll choose safe and economic transportation for you, including sea, air, land and express.

Company Profile

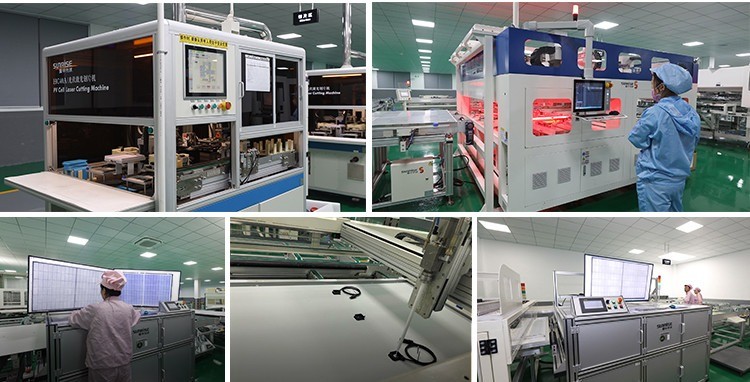

Intelligent Manufacturing

System Integration

Customization Project

Established in 2006,Sunrise Energy located in Zhonglou Economic Development District, Changzhou, China.Sunrise has 35000m² automatic workshop with 2GW annual capacity. Sunrise suppied high efficient and customized green solar power solution over 50 countries.

16+ Years Photovoltaic field experience

7.2+ GW Solar modules output

50+ Cases Germany,America,Vietnam

80+ Partners Around the world

100+ Patnents Main business , technologies


Certifications

Exhibition

T/T

20% T/T in advance, the banlance will be paid before goods arrive at discharge port.

L/C

20% T/T in advance, the banlance will be against L/C 30 days

By sea

Depart from Shanghai seaport

Delivery time

20-30 days on receipt of advance payment

FAQ

Q: What is payment term?A:T/T 30 days, L/C 30 days.
Q: What is the lead time?
A:Generally it will take about 20 days for production on receipt of advance payment.
Q: What is your monthly capacity？
A:Monthly capacity is about 80MW.Q: How long is the warranty of your products?A:year Product Warranty and 25-year Warranty for Extra Linear Power Output.

Sunrise Energy Co., Ltd.

Click to show company phone
www.sunriseenergy.cn
China
No. 20, Tongzi River West Road, Zhonglou Development Zone, Changzhou, Jiangsu, 213023
No. Staff: 1,300
Product is no longer manufactured.

Crystalline

Production (MW)/: MWp
Monocrystalline
Power Range(Wp): 340-605

Useful Contacts

Contact Face
Kelvin Sales Director
Contact Face
Lillian After-sales Manager
Contact Face
Ken Marketing Director
Contact Face
William CTO&Co-Marketing Manager
Contact Face
Mary Lu After-sales Director
Contact Face
james zhang Senior sales manager
Contact Face
Karen Senior sales manager
Contact Face
Tommy Senior sales manager
Contact Face
Shirley.yuan Senior sales manager
Company Description

Focus on modules manufacturing and system integration services for 17 years

Sunrise was established in 2006. is an enterprise located in Changzhou China, Sunrise has 35000m² automatic workshop.By the fourth quarter of 2022, the cumulative shipment exceeded 8.2GW.

Sunrise has passed ISO threesystems, CQC, TUV, BIS, CSI MCS certificates ，Sunrise has successfully built four business segments: solar module manufacturing and sales, s o l a r s y s t e m s a l e s , a q u e o u s batteries R & D, manufacturing and sales, and optical storage smart energy solutions. So far, Sunrise has provided high-quality photovoltaic products and energy solutions to more than 100 countries in the world.
