RHA66HDGDC 680-700W

Zhejiang Winhitech New Energy Co., Ltd.

Technology:	Bifacial, HJT
Power Range:	680 ~ 700 Wp
Region:	China

Contact Manufacturer

Note: Your Enquiry will be sent directly to Zhejiang Winhitech New Energy Co., Ltd..

Description:

N-type HJT technology for lower LCOE
Fire class A, harsh environment adaptability
30-year power warranty
Double-sided power generation; higher income

Product Info
Company Profile

Product Characteristics

Model No.

680

685

690

695

700

Warranty

Product Warranty

12 Years

Power Warranty

30 Years of 90.3% Output Power

Electrical Data at STC

Maximum Power (Pmax)

680 Wp

685 Wp

690 Wp

695 Wp

700 Wp

Voltage at Maximum Power (Vmpp)

42.08 V

42.32 V

42.55 V

42.77 V

43 V

Current at Maximum Power (Impp)

16.16 A

16.19 A

16.22 A

16.25 A

16.28 A

Open Circuit Voltage (Voc)

49.51 V

49.71 V

49.91 V

50.11 V

50.31 V

Short Circuit Current (Isc)

17.13 A

17.15 A

17.17 A

17.19 A

17.21 A

Panel Efficiency

21.89 %

22.06 %

22.22 %

22.37 %

22.54 %

Power Tolerance (Positive)

+ 3 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.24 %/°C

Temperature Coefficient of Voc

-0.22 %/°C

Temperature Coefficient of Isc

0.047 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

35 A

Material Data

Panel Dimension (H/W/D)

2384x1303x33 mm

Weight

38.3 kg

Cell Number

132

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Cable Crossection

4 mm²

Cable Length

300 mm

PDF

Download Manufacturer's PDF

Datasheet

RHA66HDGDC 680-700W HJT MBB Half-cut Bifacial Dual-Glass Module

12 years product warranty on materials and workmanship

N-type HJT technology for lower LCOE
The lower temperature coefficient and better low irradiance performance of HJT technology can effectively reduce LCOE.

Fire class A, harsh environment adaptability
The back of the dual-glass module adopts high transparent glass, which can adapt to all kinds of harsh environments, and the fire rating can reach Class A.

30-year power warranty
The average life of dual-glass modules is 30 years, 5 years longer than that of single-glass modules.

Double-sided power generation, higher income
The dual-glass module has a bifacially of up to 90% and a power generation gain of 7%-30% on the backside.

WINHITech —— Leading a New Energy Ecology • Creating a New Green Life

Our Culture

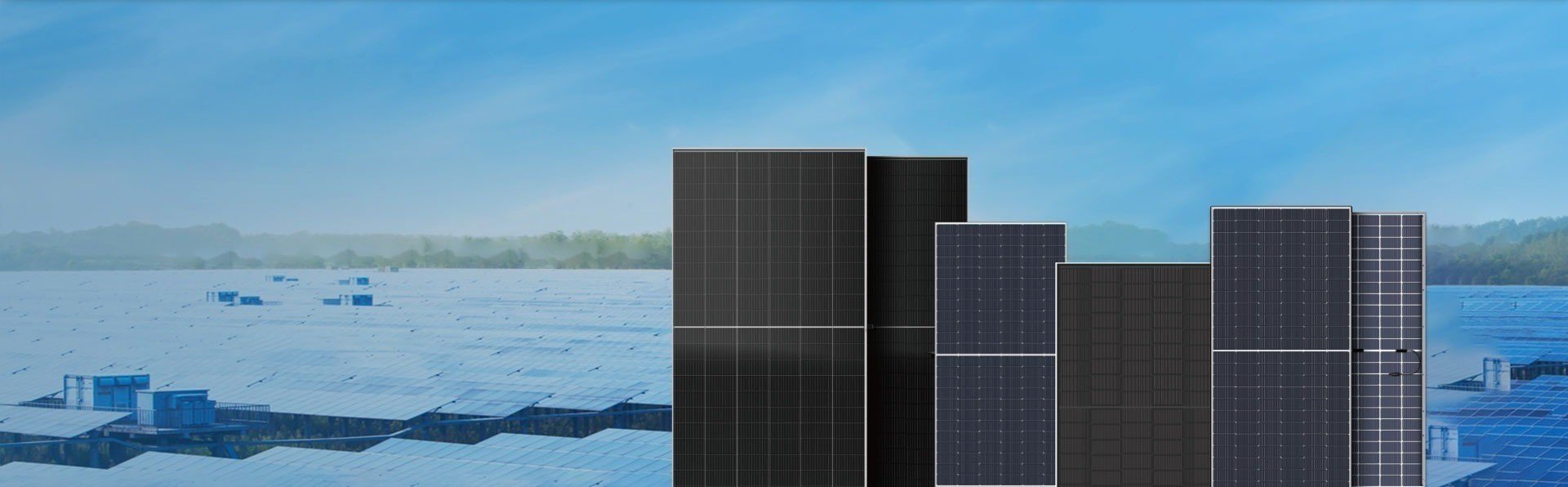

Our Products

Our Partners

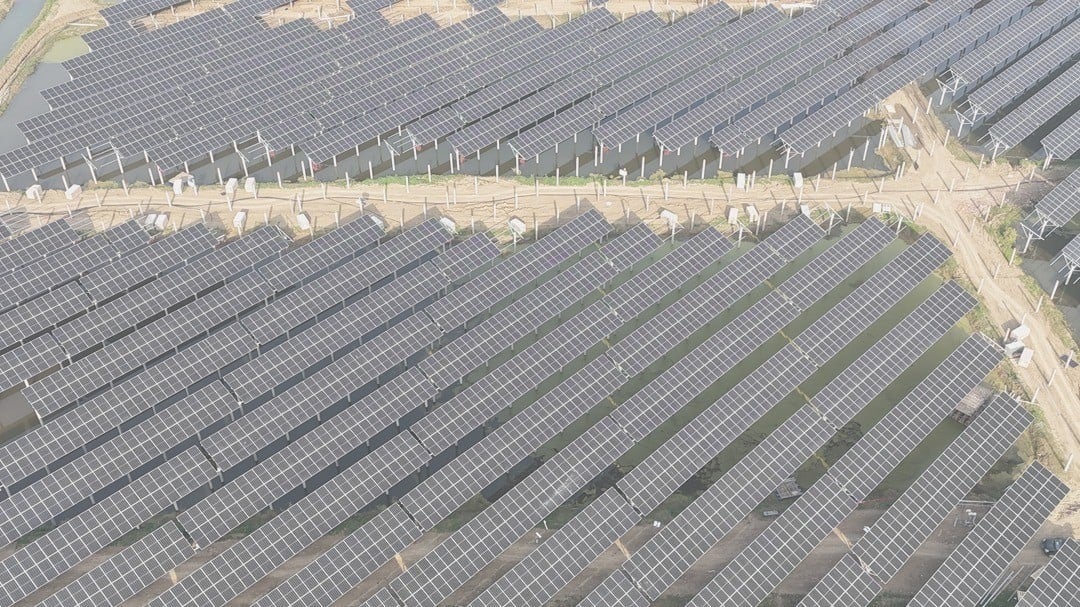

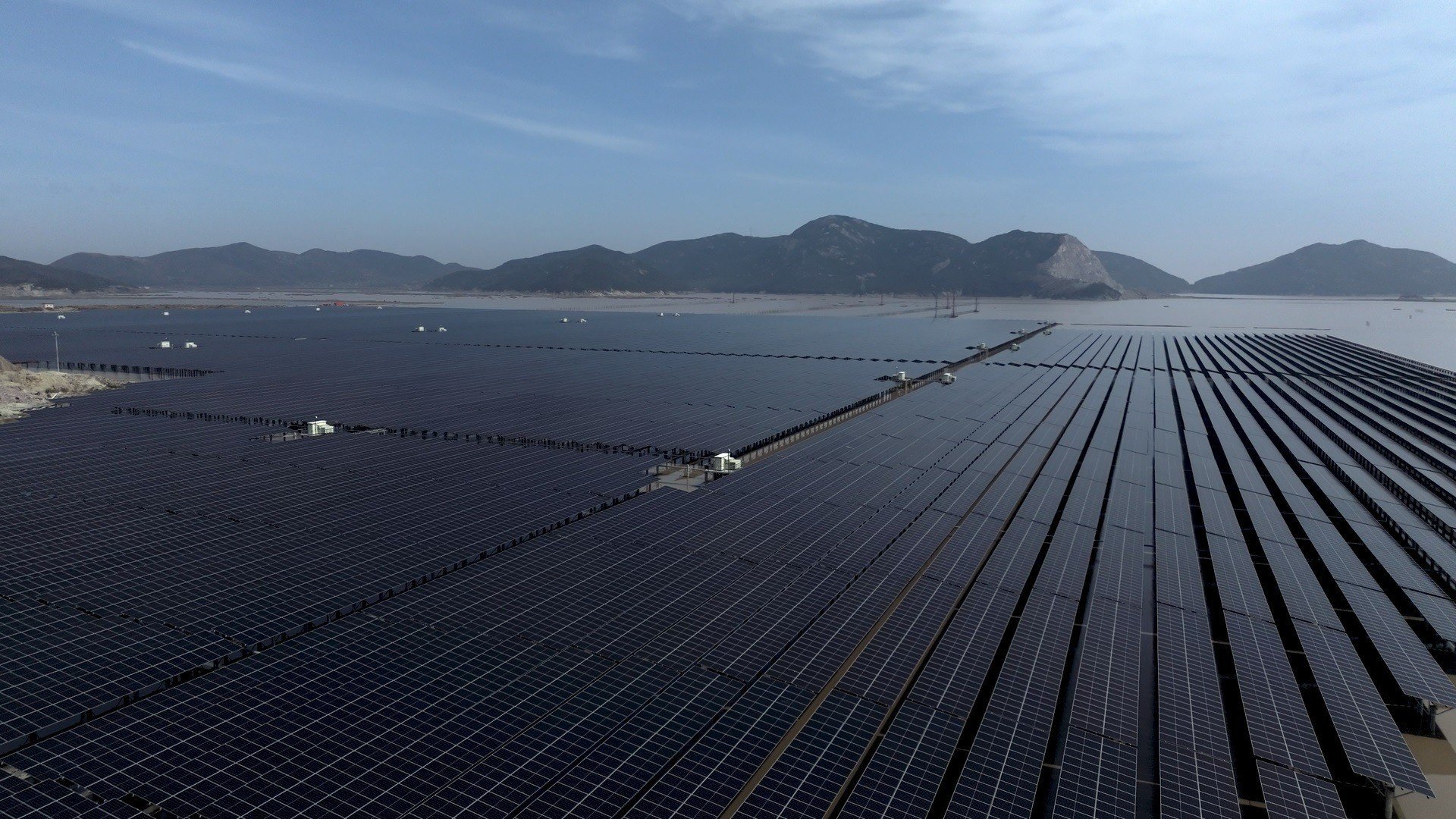

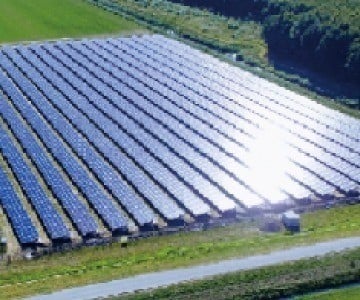

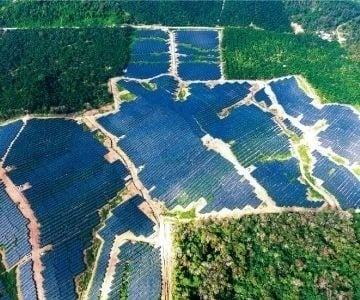

Projects
