  2. RMHT72/545~585S2
RMHT72/545~585S2

RMHT72/545~585S2

REGITEC Solar
Type: Bifacial, TOPCon
Power Range: 545 ~ 585 Wp
Region: Belgium Belgium
Contact Manufacturer
Note: Your Enquiry will be sent directly to REGITEC Solar.

Alternative Product

M12 Series MY-M12/144 ...

MY Solar
From €0.129 / Wp
  • Cell Type: Monocrystalline
  • Dimensions: 2384x1096x35 mm
  • Weight: --
  • Cell Size: --
  • Glass Thickness: --
More

Product Characteristics

Model No.
RMHT72/545S2 RMHT72/550S2 RMHT72/555S2 RMHT72/560S2 RMHT72/565S2 RMHT72/5S270 RMHT72/575S2 RMHT72/580S2 RMHT72/585S2
Warranty
Product Warranty 30 Years
Power Warranty 30 Years of 87.4% Output Power
Electrical Data at STC
Maximum Power (Pmax)
545 Wp 550 Wp 555 Wp 560 Wp 565 Wp 570 Wp 575 Wp 580 Wp 585 Wp
Voltage at Maximum Power (Vmpp)
41.32 V 41.48 V 41.64 V 41.96 V 42.14 V 42.3 V 42.44 V 42.6 V 42.76 V
Current at Maximum Power (Impp)
13.19 A 13.26 A 13.33 A 13.35 A 13.41 A 13.48 A 13.55 A 13.62 A 13.69 A
Open Circuit Voltage (Voc)
50.4 V 50.18 V 50.32 V 50.67 V 50.87 V 51.07 V 51.27 V 51.47 V 51.67 V
Short Circuit Current (Isc)
13.9 A 13.98 A 14.06 A 14.13 A 14.19 A 14.25 A 14.31 A 14.37 A 14.43 A
Panel Efficiency
21.1 % 21.29 % 21.48 % 21.68 % 21.87 % 22.07 % 22.26 % 22.45 % 22.64 %
Power Tolerance (Positive)
+ 1 % + 1 % + 1 % + 1 % + 1 % + 1 % + 1 % + 1 % + 1 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
408 Wp 412 Wp 416 Wp 421 Wp 425 Wp 429 Wp 432 Wp 436 Wp 440 Wp
Voltage at Maximum Power (Vmpp)
38.91 V 39.02 V 39.15 V 39.39 V 39.54 V 39.65 V 39.78 V 39.86 V 39.94 V
Current at Maximum Power (Impp)
10.49 A 10.56 A 10.63 A 10.69 A 10.75 A 10.82 A 10.86 A 10.94 A 11.04 A
Open Circuit Voltage (Voc)
47.53 V 47.66 V 47.79 V 48.13 V 48.32 V 48.51 V 48.7 V 48.89 V 49.08 V
Short Circuit Current (Isc)
11.16 A 11.25 A 11.32 A 11.41 A 11.46 A 11.5 A 11.55 A 11.6 A 11.75 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.3 %/°C
Temperature Coefficient of Voc -0.25 %/°C
Temperature Coefficient of Isc 0.04 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 2278x1134x35 mm
Weight 28 kg
Cell Type Bifacial, TOPCon
Cell Number 144
Glass Type Anti-reflection Coating, Tempered
Glass Thickness 2 mm
Frame Type Anodized Aluminium
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 1000 mm

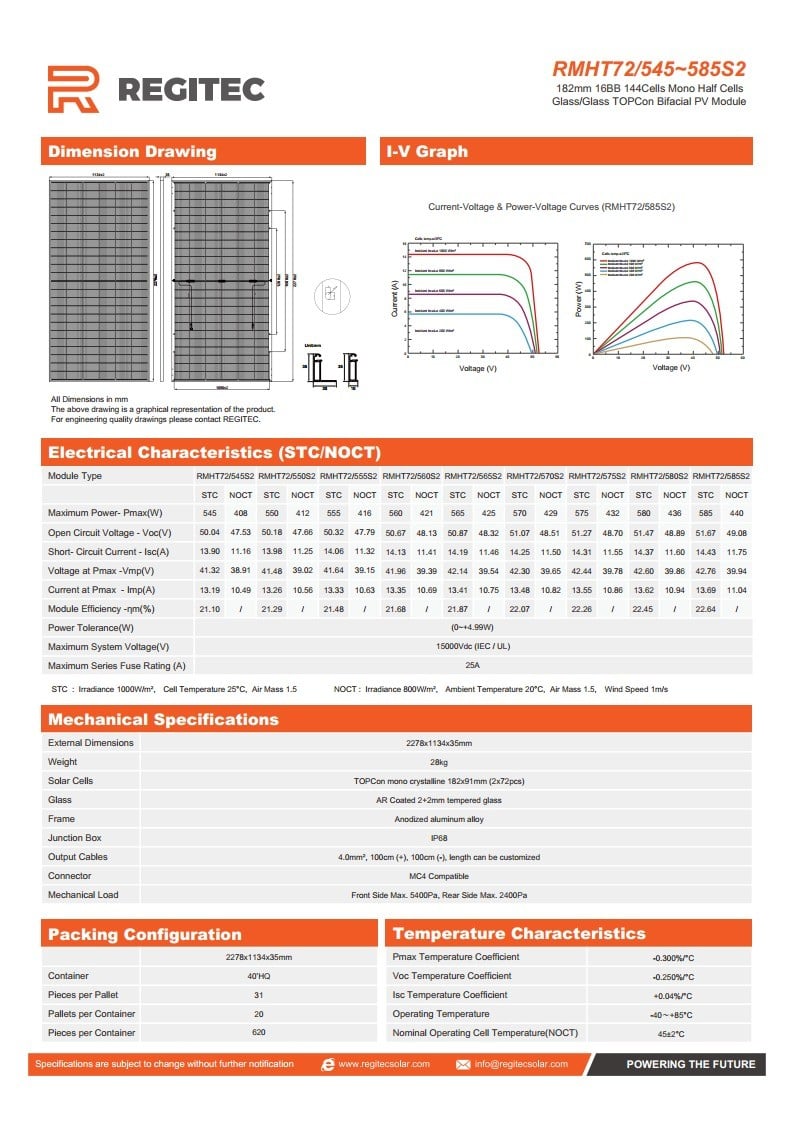

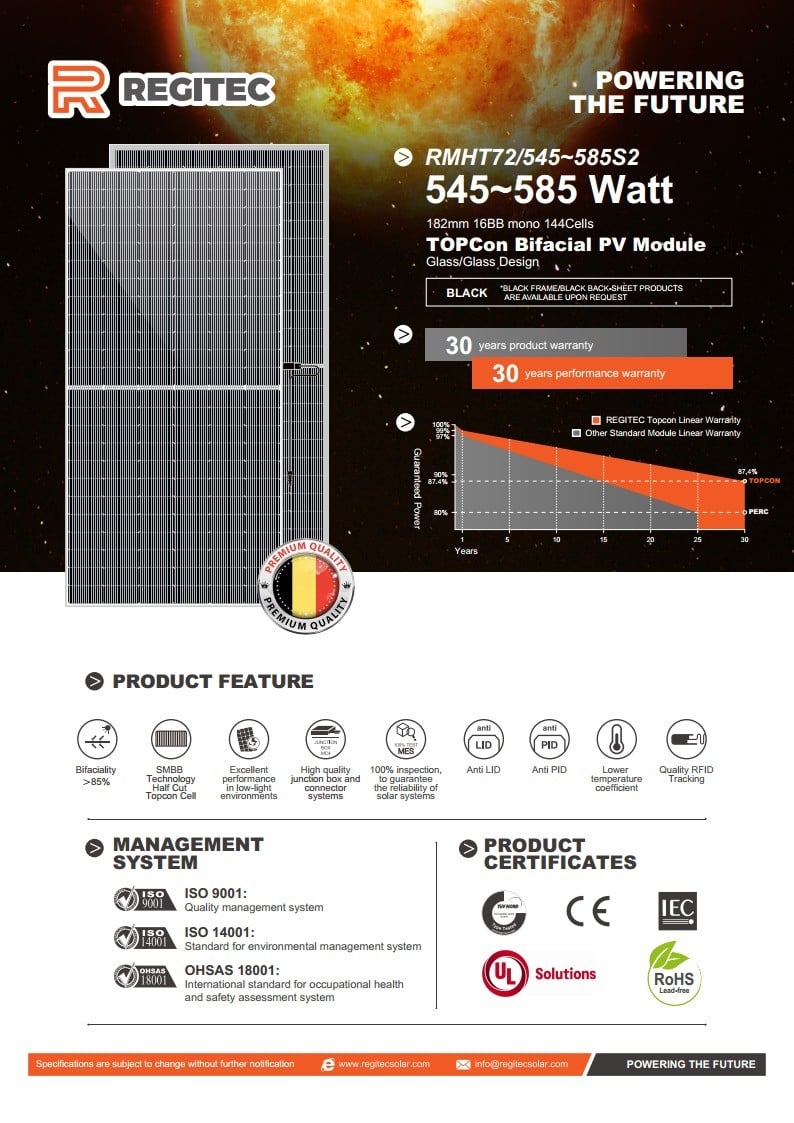

PDF
Download Manufacturer's PDF

REGITEC Solar

Click to show company phone
www.regitecsolar.com
Belgium
Veldekensstraat 5A, 8810 Lichtervelde
Contact Manufacturer
Note: Your Enquiry will be sent directly to REGITEC Solar.

Crystalline

Production (MW)/: MWp
Monocrystalline, Polycrystalline
Power Range(Wp): 310-705

Innovative Panel Design

Production (MW): --
Other
Power Range(Wp): -385
Company Description

REGITEC uses the latest advanced fully automatic production equipment and precise testing instruments to create reliable, high-quality solar products.

We can produce Topcon, HJT and PERC cells solar modules with an output till 705W!

Our newest Topcon All black double glass solar modules reaches 460Wp with 108cells and has 23% efficiency!

REGITEC also has:

an own inverter range of hybrid and string inverters from 2-110Kw

several LFP battery energy storage ranges of LV and HV:

- Stackable HV version with 2,88kWh batteries with a range of 8,64-28,8kWh

- Wall version LV version of 5 and 10kWh.

- Rack version LV/HV version of 2.4kWh and 5.1kWh.

- CI version of 100/215kWh

Mounting materials.

Solar cable from 2,5-35mm² with fireclass Cca.

We can offer OEM solutions if needed.
